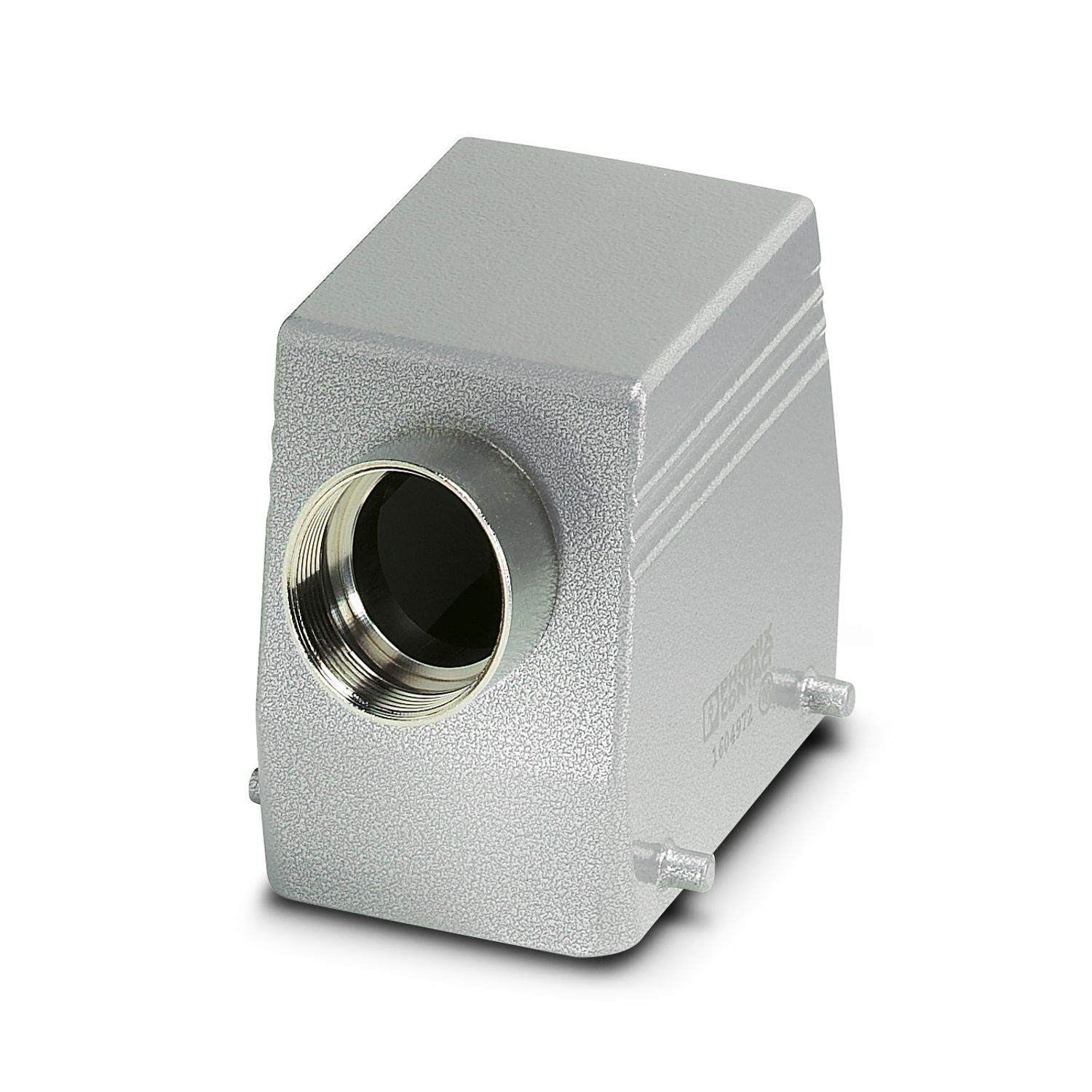

HC-D 50-TFQ-76/O1M32S
-
Housing
1604972
HEAVYCON sleeve housing D50, for double locking latch, height 76 mm, with support 1x M32, lateral conductor exit
Product details
| General | For contact inserts HC-D25, A16/A32 |
| Product type | Housing with locking latch |
| Housing type | Sleeve housing |
| Application | Standard |
| Type | D50 |
| No. of cable outlets | 1 |
| Type of the screw connection | 1x M32 |
| Shielded | no |
| Cable outlet | lateral |
| Pg screw connection | none |

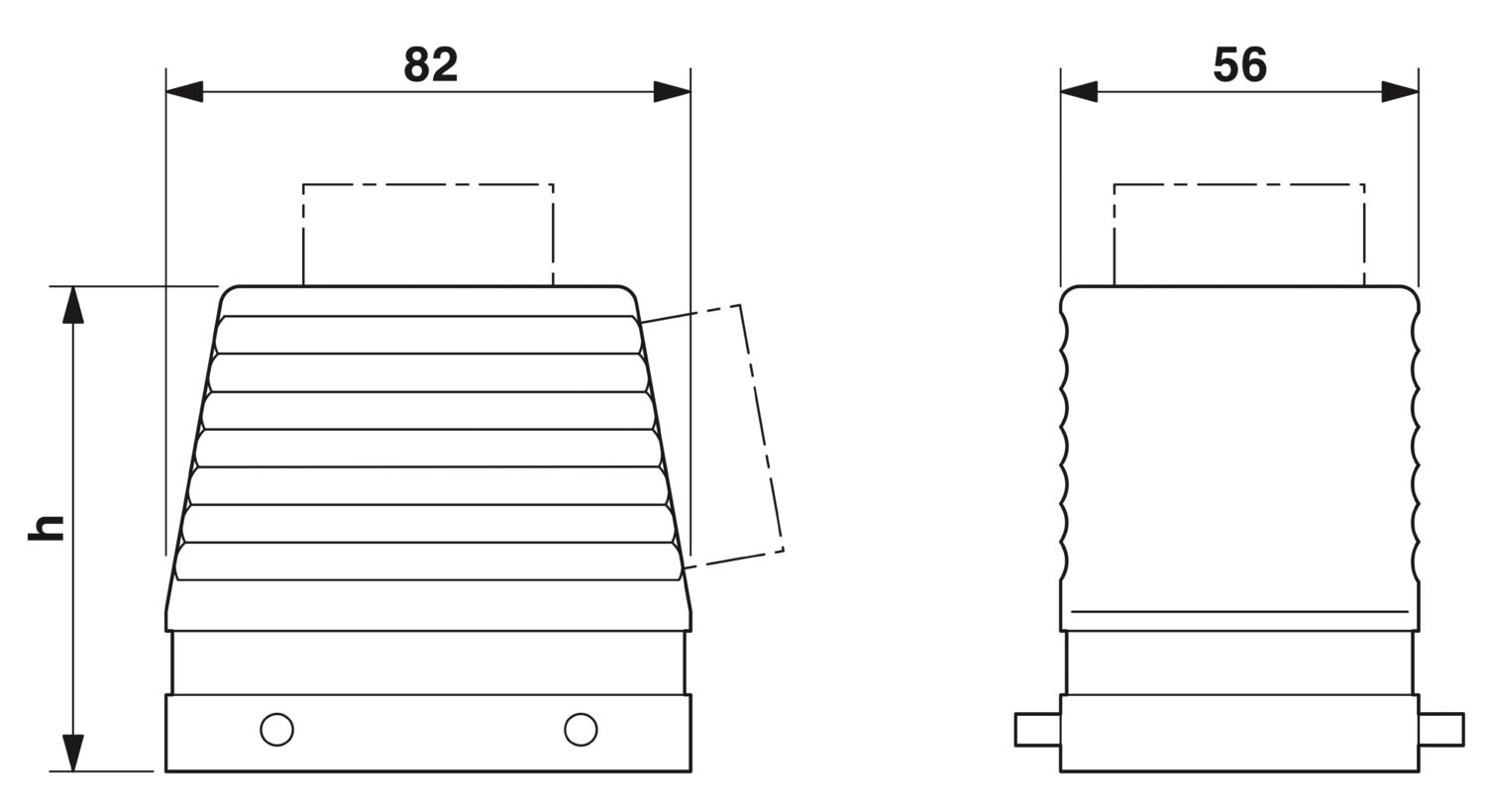

| Dimensional drawing |
|
| Width | 56 mm |
| Height | 76 mm |
| Length | 82 mm |
| Housing material | Die-cast aluminum |
| Housing surface material | Powder-coated, gray |
| Mechanical data | |
| Type of the screw connection | 1x M32 |
| Locking type | Pin |
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
