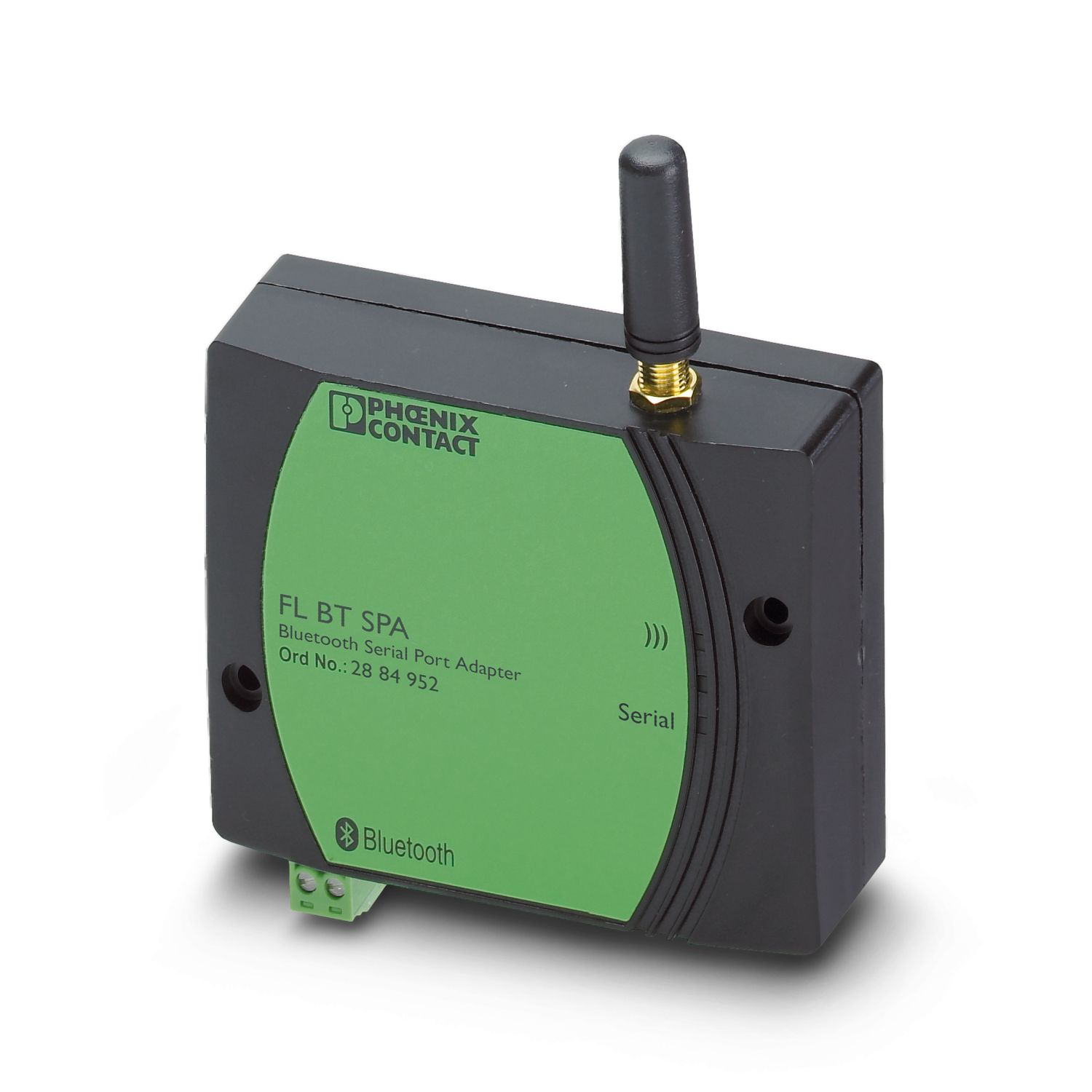

FL BT SPA - Wireless module - 2884952

Product properties

Electrical properties

Maximum power dissipation for nominal condition	4.8 W
Supply: Module electronics
Connection method	Via COMBICON
Supply voltage	24 V DC
Supply voltage range	9 V DC ... 30 V DC
Supply current	200 mA
Current consumption	200 mA

Interfaces

Antenna
Number	1
Connection method	SMA (male)
Functions
Operating modes	Serial client adapters
Configuration	By means of AT commands
Automatic channel selection	FHSS, AFH
Security	128-bit data encryption
		MAC filter
		Authentication
		PIN
		Non-discoverable
Wireless licenses	Europe, additional countries in the e-shop
Country support	Australia (Special rule: Please contact the Product Manager)
		Belgium
		Bulgaria
		Denmark
		Germany
		Estonia
		Finland
		France
		Greece
		Great Britain
		Ireland
		Iceland
		Israel
		Italy
		Canada
		Latvia
		Liechtenstein
		Lithuania
		Luxembourg
		Malta
		Netherlands
		Norway
		Austria
		Poland
		Portugal
		Romania
		Russia (Special rule: Please contact the Product Manager)
		Sweden
		Switzerland
		Singapore
		Slovakia
		Slovenia
		Spain
		Czech Republic
		Turkey
		Hungary
		USA
		Cyprus (rep.)
Serial
Connection method	D-SUB 9 plug
Protocols supported	RS-232, RS-485, RS-422
Wireless
Designation	Bluetooth
Antenna connection method	SMA (female)
Frequency range	2.402 GHz ... 2.48 GHz (ISM bandwidth)
Frequency band	2.4 GHz
Wireless standard	Bluetooth 2.0
Transmission power	max. 14 dBm (with automatic control)
Number of wireless interfaces	1
Wireless modules that can be connected	1
Profiles supported	SPP

Dimensions

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP20
Ambient temperature (operation)	-25 °C ... 55 °C
Air pressure (operation)	795 hPa ... 1080 hPa (up to 2000 m above sea level)
Ambient temperature (storage/transport)	-40 °C ... 85 °C
Permissible humidity (operation)	5 % ... 90 % (non-condensing)
Permissible humidity (storage/transport)	10 % ... 95 % (non-condensing)

Standards and regulations

Protection class	III (IEC 61140, EN 61140, VDE 0140-1)

Mounting

Mounting type	Panel mounting, optional DIN rail mounting
Mounting type		Panel mounting
Assembly note	External OMNI antenna, antennas can be exchanged

Item number	2884952
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	D25
Product key	DNN2B2
GTIN	4046356173100
Weight per piece (including packing)	235.4 g
Weight per piece (excluding packing)	235.4 g
Customs tariff number	85176200
Country of origin	SE

FL BT SPA - Wireless module

2884952

EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
