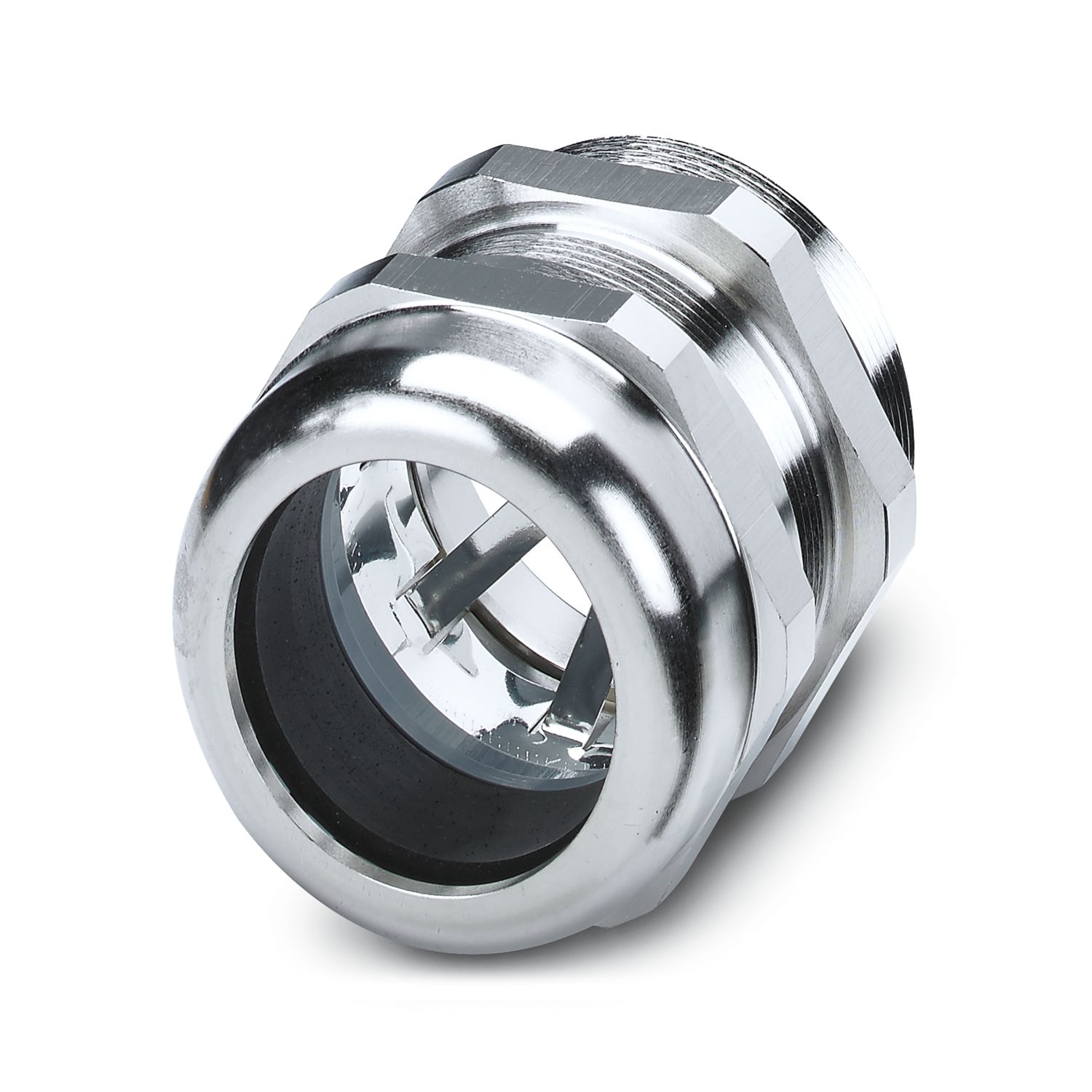

G-INSEC-PG48-L68N-NNES-S
-
Cable gland
1411204
Cable gland, material for screw connection: Brass, nickel-plated, application: EMC, external cable diameter 34 mm ... 44 mm, shielding: yes, connecting thread: Pg48, color: silver-colored, with O-ring
Product details
| Assembly note | 1) Mount screw connection flange in the housing using the correct torque 2) Insert cable 3) Tighten union nut using the correct torque |
| Method 1 Cut the outer sheath, but do not remove it. Feed the cable through the screw connection and then remove the outer sheath. Now pull the cable back until the connection is established between the cable shield and the contact spring. Method 2 Push the braided shield back around 15 ... 20 mm over the outer sheath. Insert the cables into the screw connection until the connection is established between the cable shield and the contact spring. |
| Product type | Cable screw gland |
| Application | EMC |
| No. of conductors | 1 |
| Manufacturer | BIMED |
| Manufacturer Designation | BSEM-10 |
| Shielded | yes |
| Cable diameter without cable sheath | 31 mm (Diameter of braided shield) |

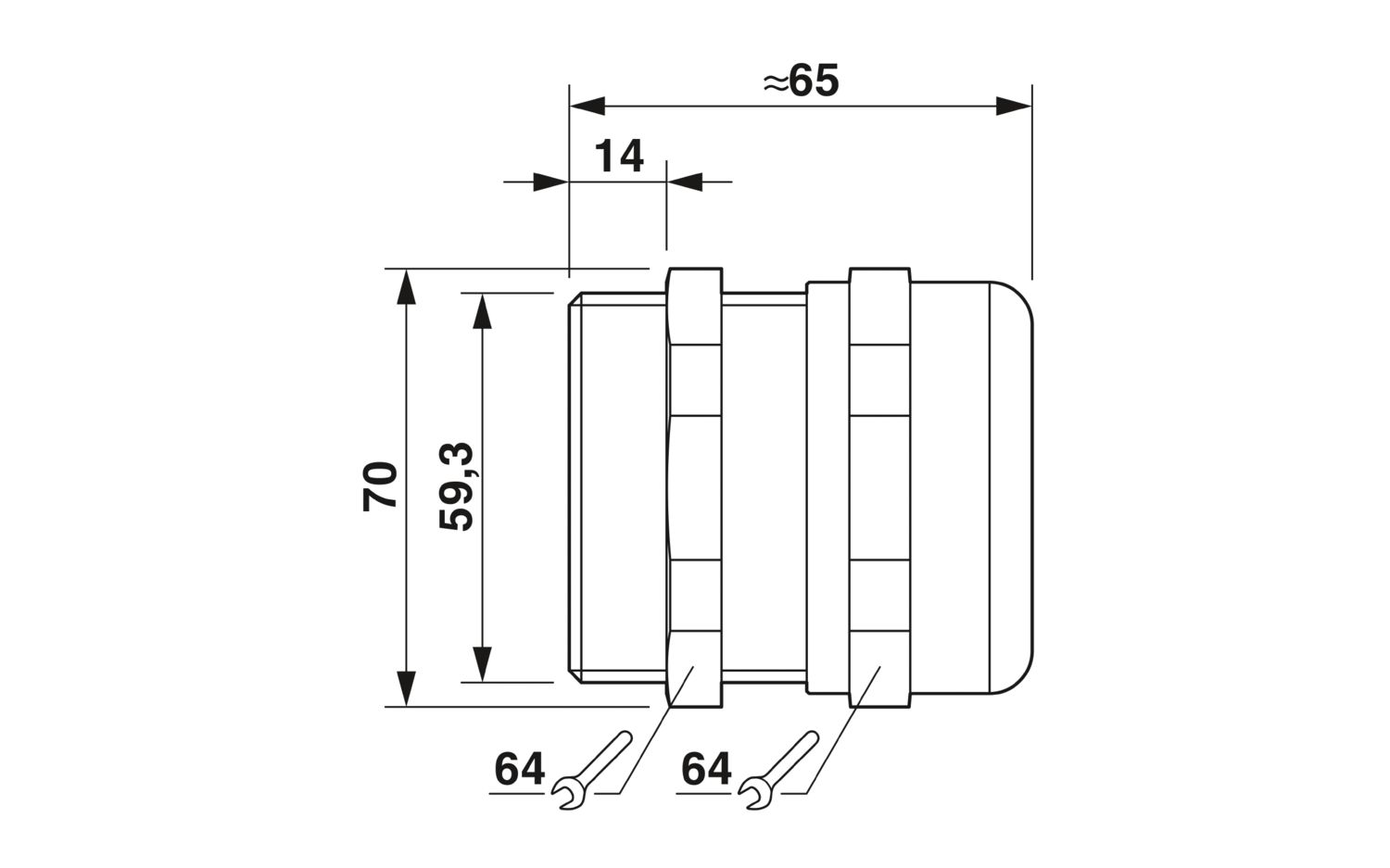

| Dimensional drawing |
|
| Length | 65 mm |
| Length of the connecting thread | 14 mm |
| Hole diameter | 59.4 mm ... 59.7 mm |
| Wrench size, union nut | 64 mm |
| Wrench size, support | 64 mm |
| Hexagon angular dimension | 70 mm |
| Thread type connection side | Pg48 |
| Tightening torque | 50 Nm (Union nut: EN 62444) |
| 25 Nm (Support: EN 62444) |
| Color | brass color |
| Material Compression ring | PA 6 |
| Seal material O-ring | Perbunan |
| Seal material Cable seal | CR |
| Material for screw connection | Brass, nickel-plated |
| External cable diameter Cable 1 | 34 mm ... 44 mm |
| Halogen-free | no |
| Ambient conditions | |
| Degree of protection | IP68 |
| Ambient temperature (operation) | -40 °C ... 100 °C (static) |
