Cable gland
1411145
Cable gland, material for screw connection: PA, application: Standard, external cable diameter 13 mm ... 18 mm, shielding: no, connecting thread: Pg21, color: silver-gray RAL 7001
Product details
| Assembly note | 1) Mount screw connection support in the housing using the correct torque 2) Insert cable 3) Tighten union nut using the correct torque |
| Product type | Cable screw gland |
| Application | Standard |
| No. of conductors | 1 |
| Manufacturer | BIMED |
| Manufacturer Designation | BS-06 |
| Shielded | no |

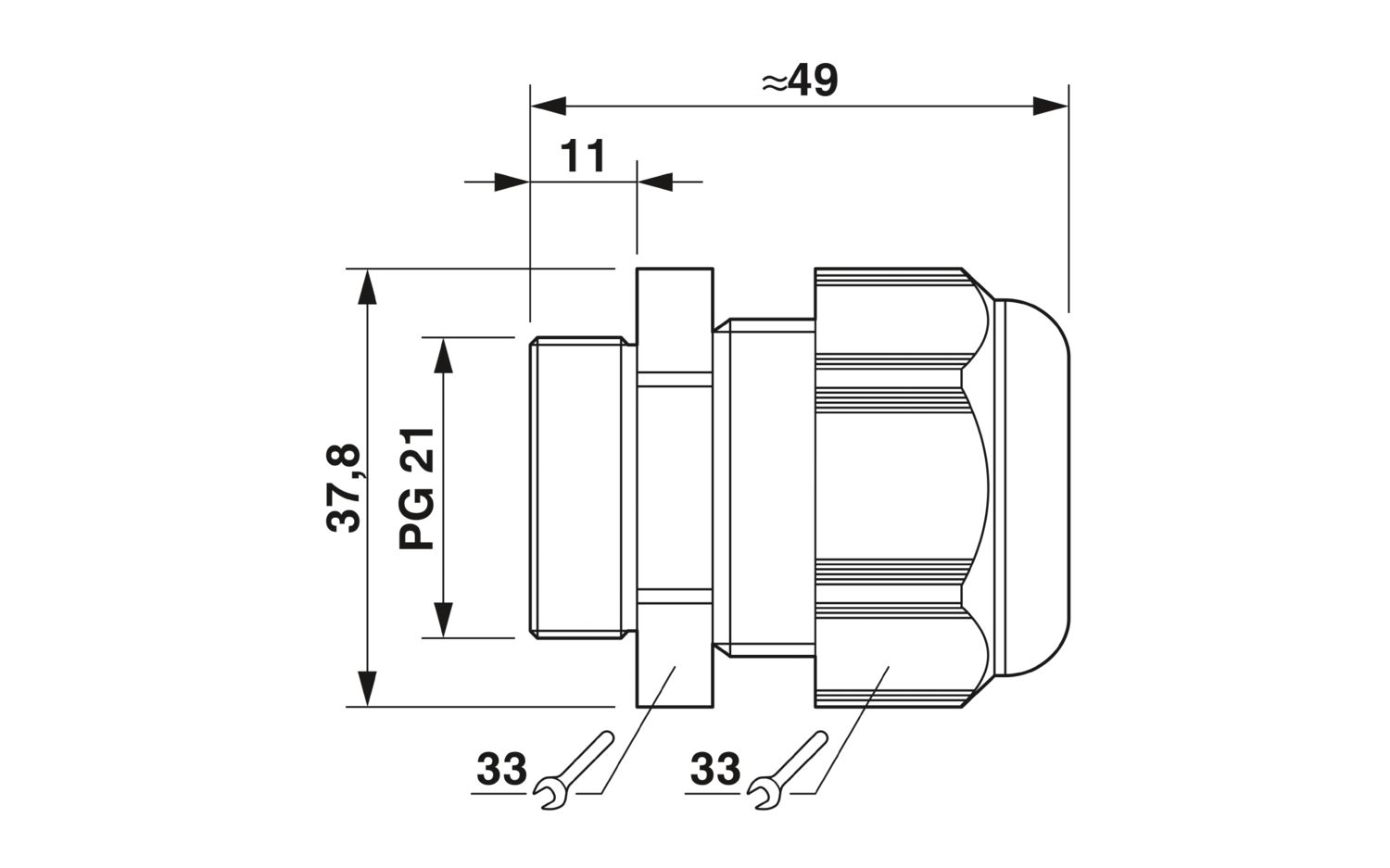

| Dimensional drawing |
|
| Length | 49 mm |
| Length of the connecting thread | 11 mm |
| Hole diameter | 28.4 mm ... 28.6 mm |
| Wrench size, union nut | 33 mm |
| Wrench size, support | 33 mm |
| Hexagon angular dimension | 37.8 mm |
| Thread type connection side | Pg21 |
| Tightening torque | 5.5 Nm ±0.5 Nm (Cap nut) |
| 3.5 Nm (Support sleeve) |
| Color | silver grey (RAL 7001) |
| Material Housing | PA (Housing) |
| Flammability rating according to UL 94 | V2 |
| Seal material Cable seal | CR |
| Material for screw connection | PA |
| External cable diameter Cable 1 | 13 mm ... 18 mm |
| External cable diameter | 13 mm ... 18 mm (for UL 514 B) |
| Halogen-free | no |
| Ambient conditions | |
| Degree of protection | IP66 |
| IP68 (5 bar / 0.5 h) | |
| Enclosure rating (NEMA) | 1 |
| 4 | |
| 4X | |
| 12 | |
| 13 | |
| Ambient temperature (operation) | -40 °C ... 100 °C (static) |
Your advantages
Plastic material conforms to UL 746C f1
