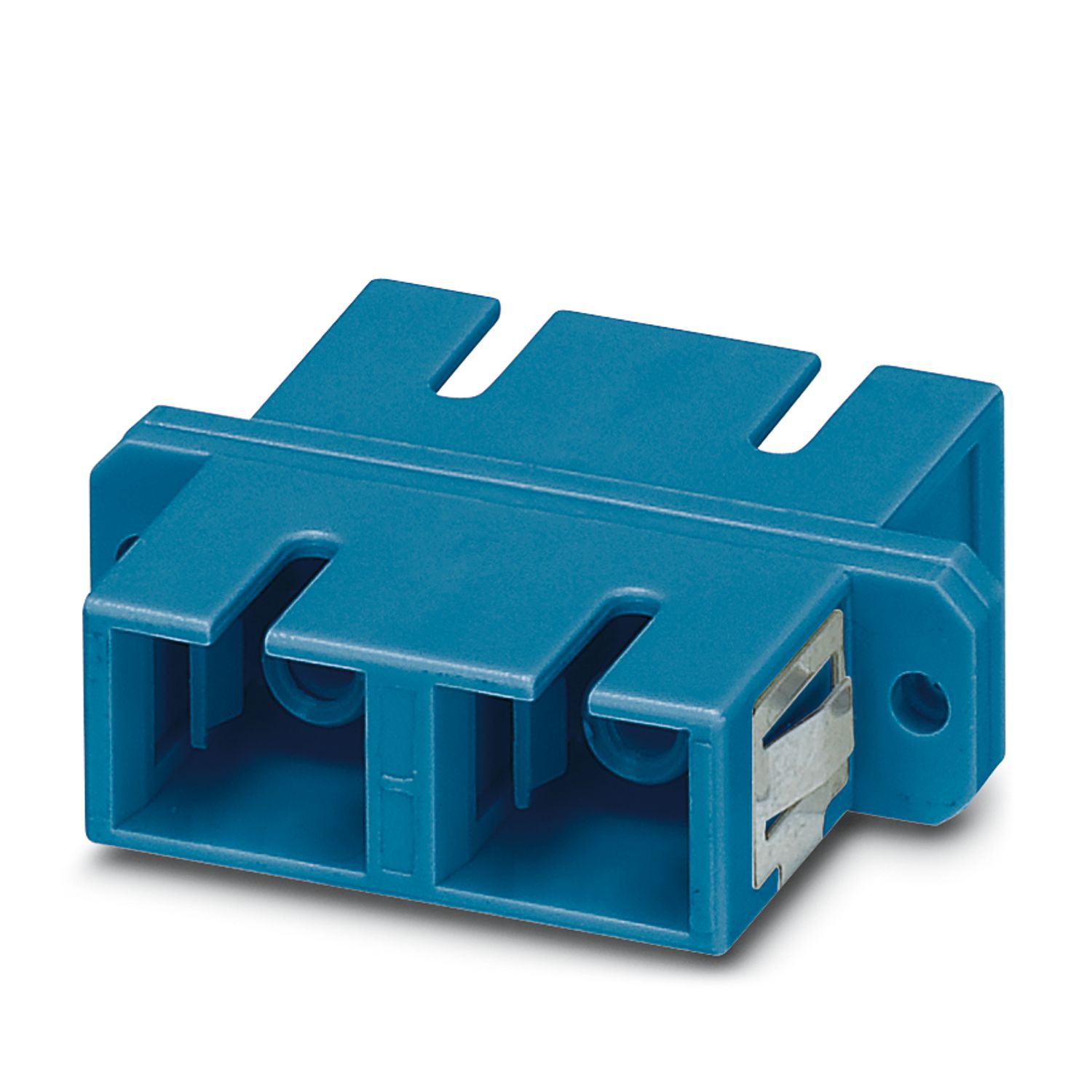

FL COUPLER SC-DUPLEX
-
Fiber optic coupling
2901788
Coupling, SC duplex/SC duplex, compatible with multi-mode and single mode glass fibers, PCF, and polymer fibers
Product details
| Product type | Data plug |
| Application | Fiber-optic coupling |
| Sensor type | Ethernet |
| Number of positions | 2 |
| Connection profile | SC duplex as per IEC 61754-4 |
| Number of module slots | 1 |
| Number of slots | 2 |
| Type | Socket |
| Attenuation | < 0.2 dB |
| Connection method | Coupling |

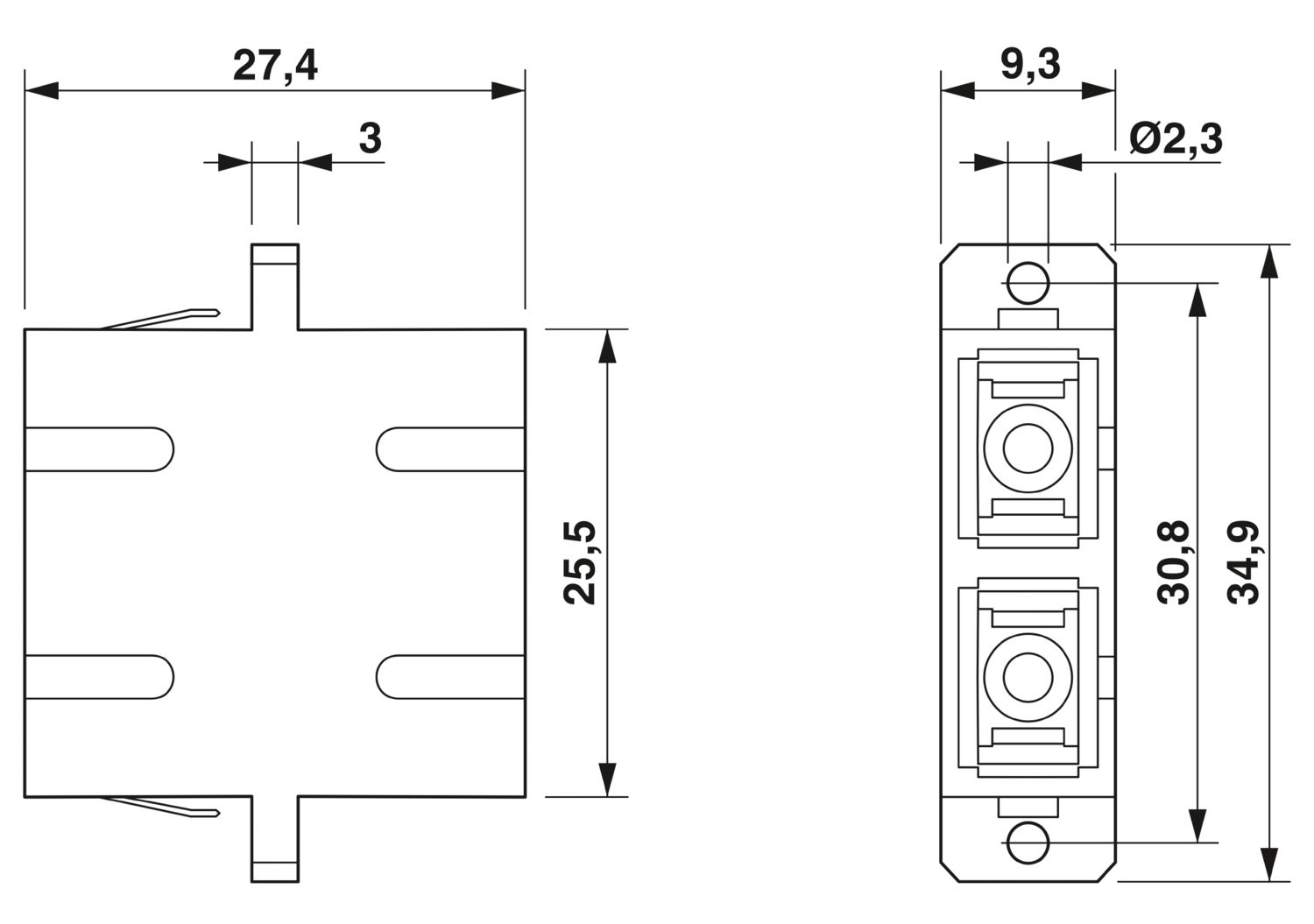

| Dimensional drawing |
|
| Width | 35 mm |
| Height | 9.3 mm |
| Depth | 27.4 mm |
| Mechanical characteristics | |
| Ferrule diameter | 2.50 mm |
| Flammability rating according to UL 94 | V0 |
| Ferrule material | Zirconia ceramics |
| Housing material | Plastic |
| Cable type | Fiberglass |
| FO cable | |
| Number of fibers | 2 |
| Fiber type | Multimode fiberglass 50/125 µm |
| Attenuation | ≤ 0.2 dB |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 1000 |
| Attenuation | < 0.2 dB |
| Ambient conditions | |
| Degree of protection | IP20 |
| IP20 | |
| Ambient temperature (operation) | -40 °C ... 80 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Ambient temperature (assembly) | -5 °C ... 50 °C |
| Resistance to UV radiation | no |
