RAD-IN-2D-CNT
-
Extension module
2885223
Digital extension module with 2 digital inputs for measuring pulses and frequencies

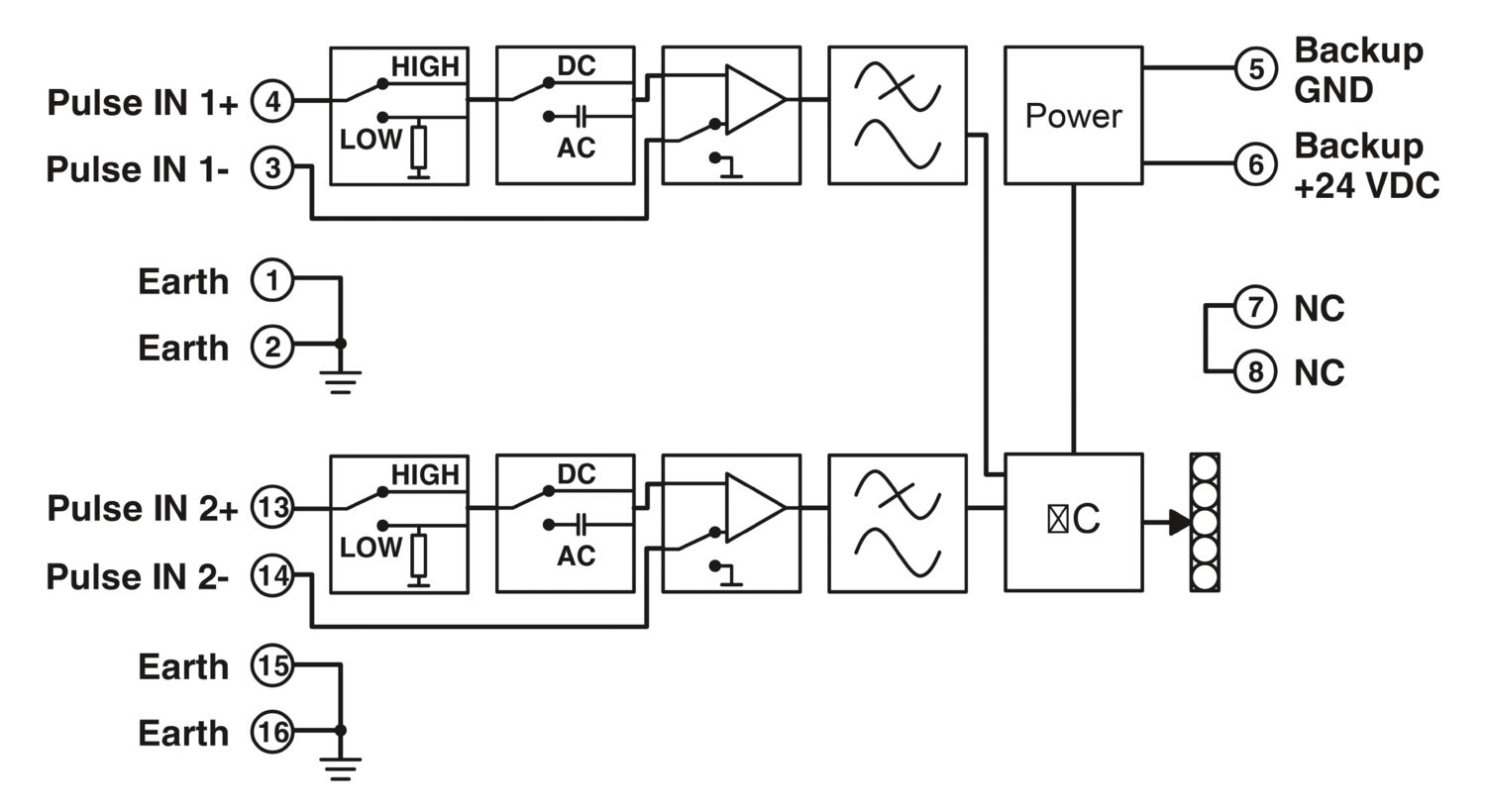

Product details
| Product type | Extension module |
| Maximum power dissipation for nominal condition | 1.08 W |
| Brake to be connected | |
| Connection method | Screw connection |
| Supply | |
| Supply voltage range | 9 V DC ... 30 V DC (via bus foot) |
| Typical current consumption | 35 mA |
| Max. current consumption | 45 mA |
| Digital | |
| Input voltage range | 5 V AC/DC ... 30 V AC/DC |
| Voltage input signal | 5 V AC/DC ... 30 V AC/DC |
| Pulse | |
| Number of channels | 2 |
| Input frequency | 0.1 Hz ... 10 kHz (50 % Duty Cycle) |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Cross section AWG | 24 ... 14 |
| Screw thread | M3 |
| Width | 22.5 mm |
| Height | 99 mm |
| Depth | 114.5 mm |
| Color (Housing) | green (RAL 6021) |
| Material (Housing) | Polyamide |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -20 °C ... 65 °C |
| -4 °F ... 149 °F | |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| CE | |
| Certificate | CE-compliant |
| UL, USA/Canada | |
| Identification | Class I, Div. 2, Groups A, B, C, D |
| Assembly note | on standard DIN rail NS 35 in accordance with EN 60715 |
| Mounting position | any |
| Item number | 2885223 |
| Packing unit | 1 pc |
| Minimum order quantity | 1 pc |
| Note | Made to order (non-returnable) |
| Sales key | D22 |
| Product key | DNC654 |
| Catalog page | Page 471 (C-6-2017) |
| GTIN | 4046356049863 |
| Weight per piece (including packing) | 173.6 g |
| Weight per piece (excluding packing) | 173.6 g |
| Customs tariff number | 85177000 |
| Country of origin | CA |
| China RoHS | |
| Environment friendly use period (EFUP) |
EFUP-E
No hazardous substances above the limits
|
| EU REACH SVHC | |
| REACH candidate substance (CAS No.) | No substance above 0.1 wt% |
