The module is a remote I/O that is installed in zone 1/21. It serves as the interface between the intrinsically safe signals in potentially explosive areas (zone 0/20 or zone 1/21) and the distributed control system (DCS) or the PLC in the safe area. It is intended for installation in a certified housing that is certified in accordance with Directive 2014/34/EU, Regulation UK SI 2016 No. 1107, and the IECEx Scheme. The housing must correspond to equipment protection level Gb or Db and provide a degree of protection of at least IP54. Up to 32 input/output signals are combined in the remote I/O. The data is transmitted via PROFINET.

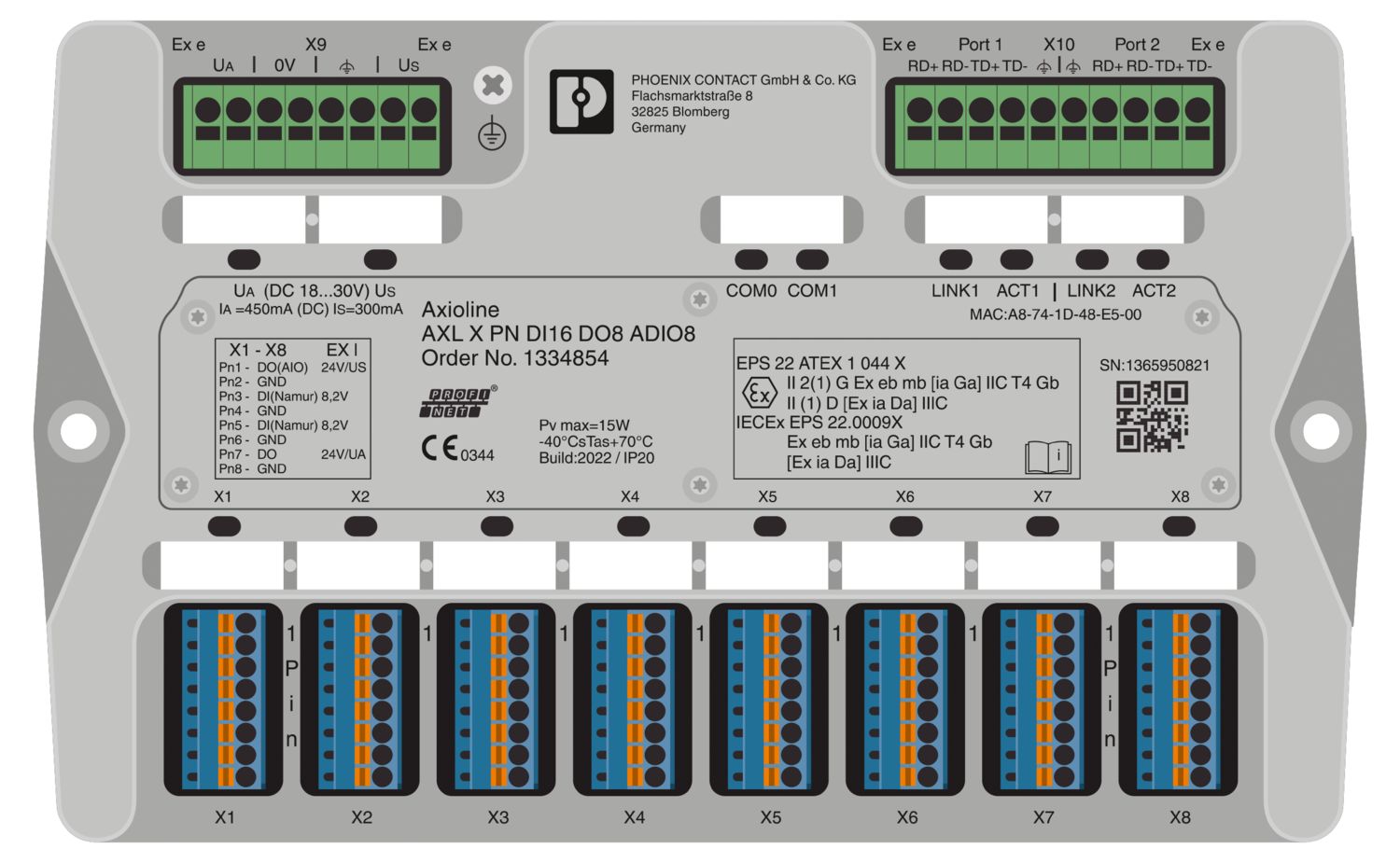

AXL X PN DI16 DO8 ADIO8
-
Digital module
1334854
Axioline X remote I/O module for installation in zone 1. PROFINET communication with analog and digital inputs and outputs.
Free download available.
Downloads
Product details

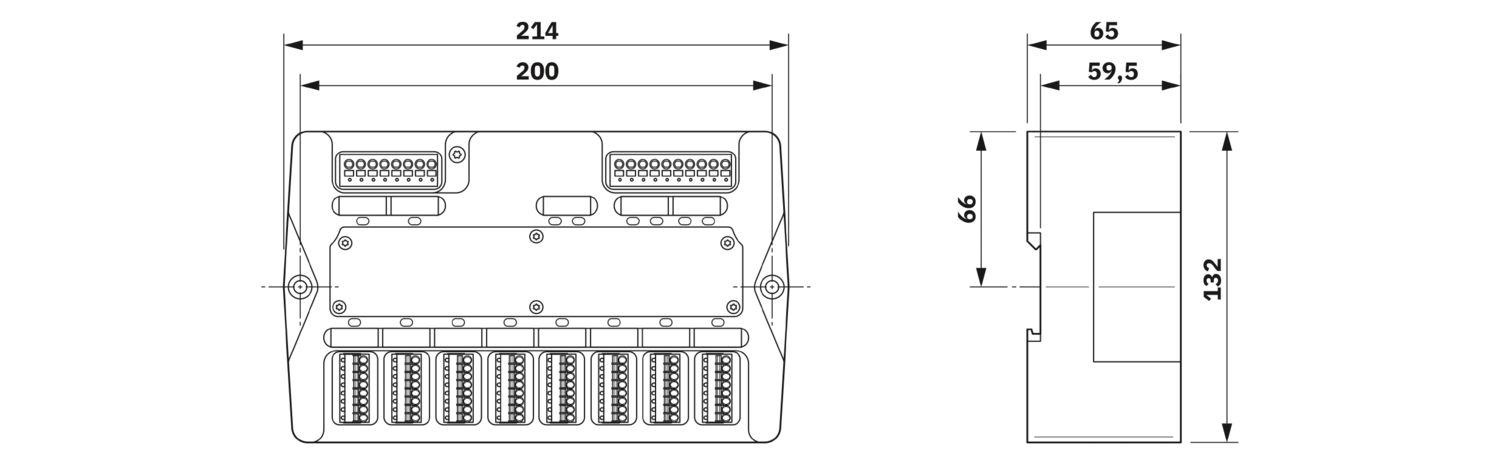

| Dimensional drawing |
|
| Width | 214 mm |
| Height | 132 mm |
| Depth | 65 mm |
| Note on dimensions | The depth applies when a TH 35 DIN rail is used. |
| Note on application | |
| Note on application | Only for industrial use |
| Utilization restriction | |
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
| Color | aluminum color |
| PROFINET | |
| Number of interfaces | 2 |
| Connection method | Terminal block |
| Note on the connection method | Auto negotiation and autocrossing |
| Permissible conductor cross section | max. 2.5 mm² |
| Transmission speed | 100 Mbps (Full duplex) |
| Analog: | |
| Input name | Analog inputs |
| Number of inputs | 8 (configurable) |
| Connection method | Push-in connection |
| Connection technology | 2-conductor |
| Note regarding the connection technology | shielded, twisted pair |
| Current input signal | 0 mA ... 20 mA |
| Protective circuit | Polarity reversal protection of the inputs |
| Analog: | |
| Input name | Analog inputs |
| Description of the input | For monitoring an externally connected switch |
| Number of inputs | 8 (Switch mode, configurable) |
| Connection method | Push-in connection |
| Connection technology | 2-conductor |
| Current input signal | 4 mA |
| Digital: | |
| Input name | Digital inputs |
| Description of the input | NAMUR enabled digital input signals |
| Number of inputs | 16 (NAMUR) |
| Connection method | Push-in connection |
| Connection technology | 2-conductor |
| Nominal input voltage UIN | 8.2 V DC |
| Protective circuit | Polarity reversal protection of the inputs |
| Analog: | |
| Output name | Analog outputs |
| Connection method | Push-in connection |
| Connection technology | 2-conductor |
| Note regarding the connection technology | shielded, twisted pair |
| Number of outputs | 8 (configurable) |
| Current output signal | 0 mA ... 20 mA |
| Digital: | |
| Output name | Digital outputs |
| Connection method | Push-in connection |
| Connection technology | 2-conductor |
| Number of outputs | 8 |
| Protective circuit | Polarity reversal protection of the outputs |
| Output voltage | 24 V DC |
| Output current | 25 mA |
| Product type | I/O component |
| Product family | Axioline X |
| Mounting position | Horizontal DIN rail |
| Special properties | NAMUR functionality |
| intrinsically safe |
| Maximum power dissipation for nominal condition | 15 W |
| Supply: Module electronics | |
| Designation | Supply of module electronics and sensors (US) |
| Permissible conductor cross section | max. 2.5 mm² |
| Supply voltage | 24 V DC |
| Supply voltage range | 18 V DC ... 30 V DC |
| Supply current | 450 mA |
| Supply: Actuators | |
| Designation | Supply of actuators (UA) |
| Supply voltage | 24 V DC |
| Supply voltage range | 18 V DC ... 30 V DC (The supply voltage at the most remote module must not fall short of 18 V DC. At a voltage below 18 V DC, the module shuts down.) |
| Connection technology | |
| Connection name | Power supply, Ethernet connection, I/O terminals |
| Conductor connection | |
| Connection method | Push-in connection |
| Conductor cross section rigid | 0.2 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 1.5 mm² |
| Conductor cross section AWG | 24 ... 16 |
| Stripping length | 8 mm |
| Power supply, Ethernet connection, I/O terminals | |
| Connection method | Push-in connection |
| Conductor cross section, rigid | 0.2 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.2 mm² ... 1.5 mm² |
| Conductor cross section AWG | 24 ... 16 |
| Stripping length | 8 mm |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 70 °C |
| Degree of protection | IP20 (IEC 60529) |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| ATEX | |
| Identification | II 2(1) G Ex eb mb [ia Ga] IIC T4 Gb II (1) D [Ex ia Da] IIIC |
| Certificate | EPS 22 ATEX 1 044 X |
| IECEx | |
| Identification | Ex eb mb [ia Ga] IIC T4 Gb [Ex ia Da] IIIC |
| Certificate | IECEx EPS 22.0009X |
| UL data | |
| Power consumption | 15 W (max.) |
| Mounting position | Horizontal DIN rail |
IECEx
Approval ID: IECEx EPS 22.0009X
Your advantages
Intrinsically safe input and output channels with connection to zone 1, zone 0, or division 1
16 digital NAMUR input channels for NAMUR proximity sensors in accordance with EN 60947-5-6
8 channels for digital output signals
8 configurable channels for input/output signals, can be selected as analog input or analog output (0 mA ... 20 mA), digital output (24 V DC), or switch mode
Integrated web server
Extended temperature range of -40 °C … +70 °C
