SI-FP-R1A-D1E
-
Front plate
1404500
Front plate with contact inserts, plastic, 1 x RJ45, 8-pos. metal, CAT5e (socket/socket), 1 x D-SUB 9 blind cover
Product details
| Product type | Data front plate |
| Number of positions | 8 |
| Number of slots | 2 |
| Rated voltage (III/3) | max. 42.4 V DC (RJ45, UL rating) |
| max. 30 V AC (RJ45, UL rating) | |
| Rated current | max. 175 mA (RJ45, UL rating) |

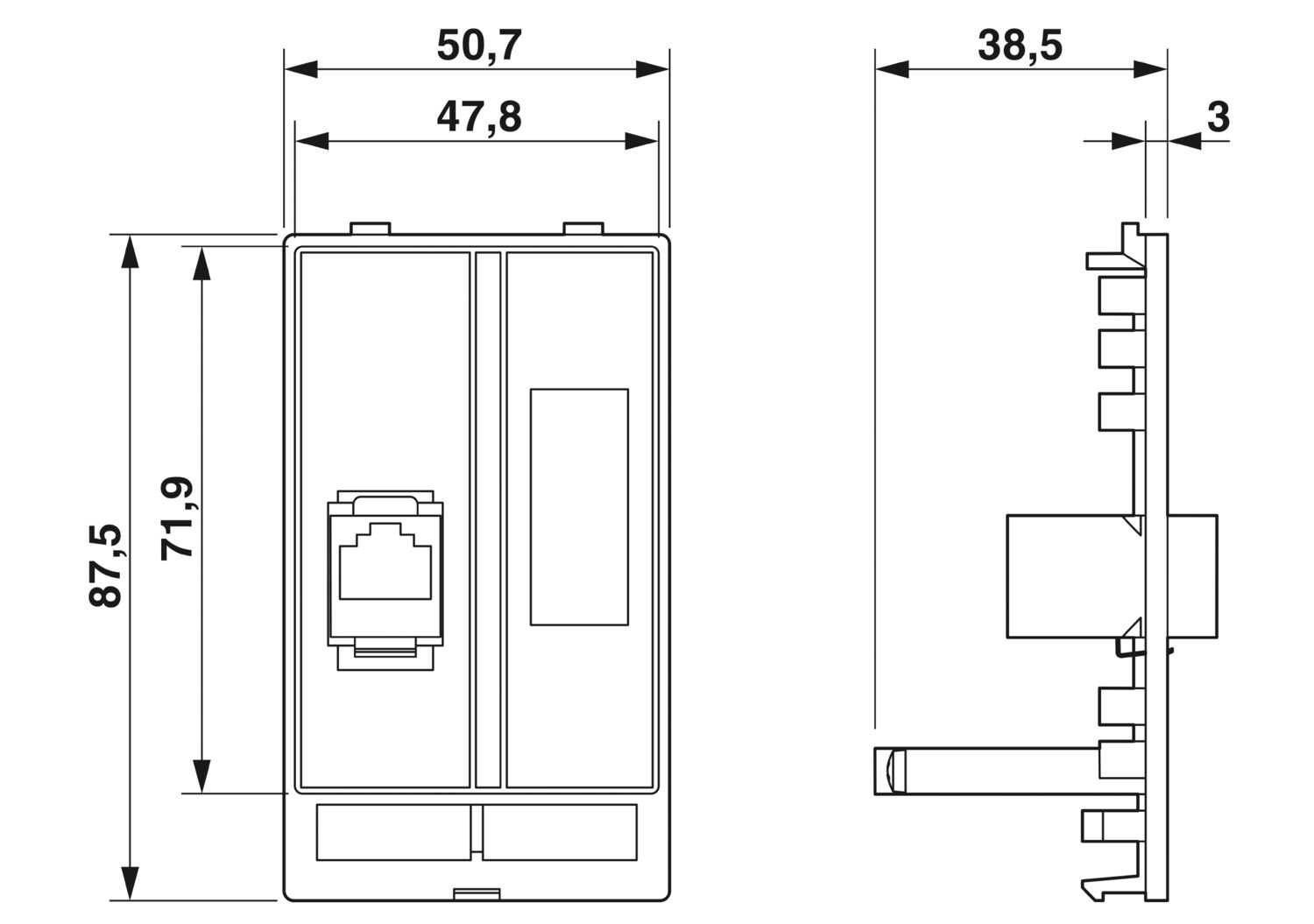

| Dimensional drawing |
|
| Width | 50.7 mm |
| Height | 87.5 mm |
| Depth | 40 mm |
| Material Front plate | PBT (Front plate) |
| Contact insert design | with 1x RJ45 Socket/socket, snap-in slot locking |
| with 1x D-SUB 9 |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -10 °C ... 60 °C |
| Assembly note | suitable for all mounting frames |
