Reduced M25 to M20
REDUC-M-KV-M25/M20
-
Reducing adapter
1647624
Reducing adapter, connecting thread: M25 x 1.5, color: silver-colored, with O-ring
Product details
| Product type | Reducing adapter |
| Seal present | yes |
| Tightening torque | 7.5 ... 8 Nm |

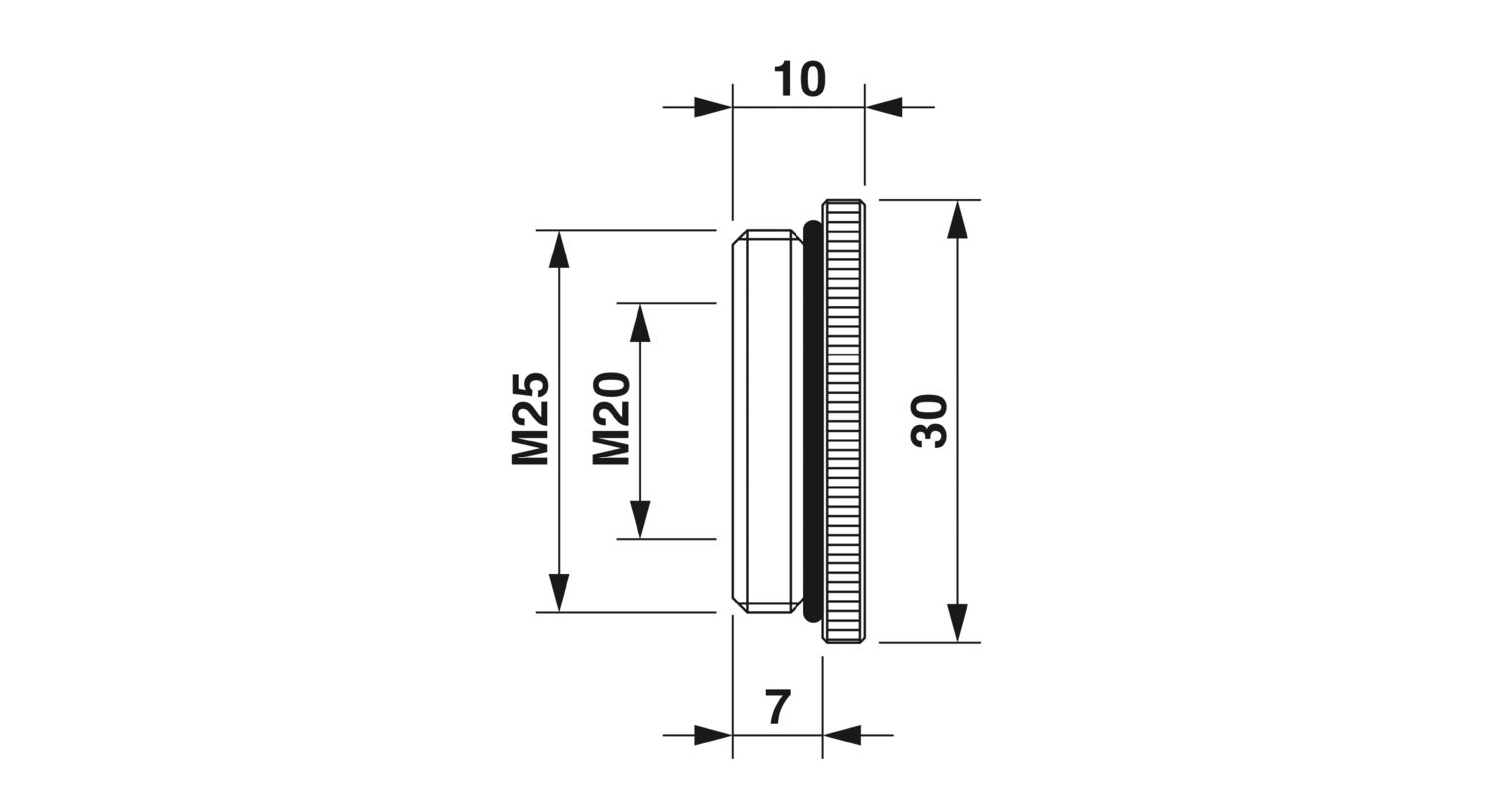

| Dimensional drawing |
|
| Width | 30.00 mm |
| Length | 10 mm |
| Length of the connecting thread | 7 mm |
| Length without connecting thread | 3 mm |
| Diameter | 25 mm |
| Connecting thread diameter | 25 mm |
| Hexagon angular dimension | 30 mm |
| Thread type connection side | M25 x 1.5 |
| Thread pitch | 1.5 mm |
| Thread type on seal side | M20 |
| Color | brass color |
| Material | Brass, nickel-plated |
| Seal material | NBR |
| Housing surface material | Ni |
| Halogen-free | no |
| Ambient conditions | |
| Degree of protection | IP65 (Depends on the screw connection used) |
| Ambient temperature (operation) | -20 °C ... 80 °C |
| Assembly note | With corresponding screw connection: IP68 |
