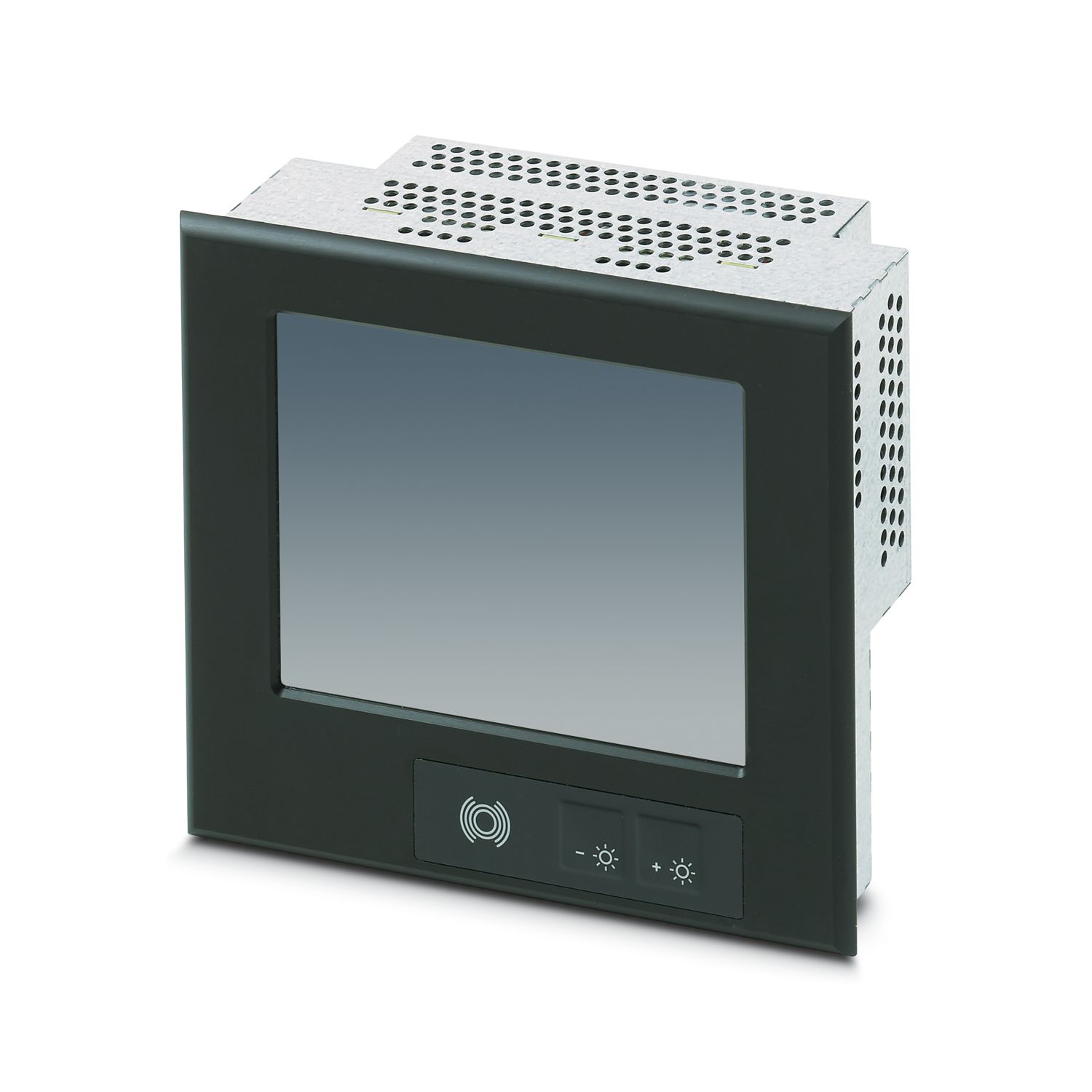

TPM057STV-12/201211201 S00071 - Touch panel - 1081744

Product properties

Product type	Operator panel
Application	Maritime
Computer data
Processor	Arm® Cortex®-A8, 1000 MHz
Operating system	Windows® Embedded Compact 7
RAM	512 MB LPDDR RAM
RAM		1 MB SRAM
Data storage system	NAND-Flash, 1 GB
Slots	1x SD
Front cover	Aluminum (black anodized) with dimming buttons and horn
Display
Display type	14.5 cm / 5.7"-TFT
Screen resolution	640 x 480 Pixel(s) (VGA)
Touch technology	analog resistive (polyester)
Display lighting type	LED
Brightness	400 cd/m², typical (adjustable)
MTBF	40000 h
Color spectrum	262144 colors
Reading angle left	65.00 °
Reading angle right	65.00 °
Reading angle top	55.00 °
Reading angle bottom	52.00 °

Interfaces

System properties

User software	TSvisIT

Electrical properties

Service life of battery	5 years (typical)
Supply
Power supply unit	24 V DC ±20 %
Typical current consumption	0.4 A
Real-time clock
Realtime clock	Yes

Mounting

Mounting type	Front mounting

Material specifications

Housing material	Steel sheet, zinc-plated

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP65 (front), IP20 (back)
Ambient temperature (operation)	-20 °C ... 60 °C (Front aluminum, black anodized)
Ambient temperature (storage/transport)	-30 °C ... 80 °C (Front aluminum, black anodized)
Altitude	3000 mm
Permissible humidity (operation)	20 % ... 85 % (non-condensing)
Permissible humidity (storage/transport)	20 % ... 85 % (non-condensing)
Shock	15g, according to IEC 60068-2-27
Vibration (operation)	1g, according to EN 60068-2-6

Dimensions

External dimensions
Width / Height / Depth	168 mm / 147 mm / 5 mm (Front plate dimensions (black anodized aluminum))
Installation dimensions
Width / Height / Installation depth	160 mm / 139 mm / 75 mm (Depth with fieldbus (front aluminum, black anodized))

Item number	1081744
Packing unit	1 pc
Minimum order quantity	1 pc
Note	Made to order (non-returnable)
Sales key	DRC
Product key	DRCBBE
GTIN	4055626810669
Weight per piece (including packing)	848 g
Weight per piece (excluding packing)	800 g
Customs tariff number	84714100
Country of origin	DE

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(a), 6(a)-I, 6(b), 6(b)-II, 6(c), 7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-15 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Diazene-1,2-dicarboxamide (C,C'-azodi(formamide)) (ADCA) (CAS: 123-77-3)
		Lead (CAS: 7439-92-1)
