VS-09-DSUB-20-LI-1,0
-
D-SUB cable
1656233

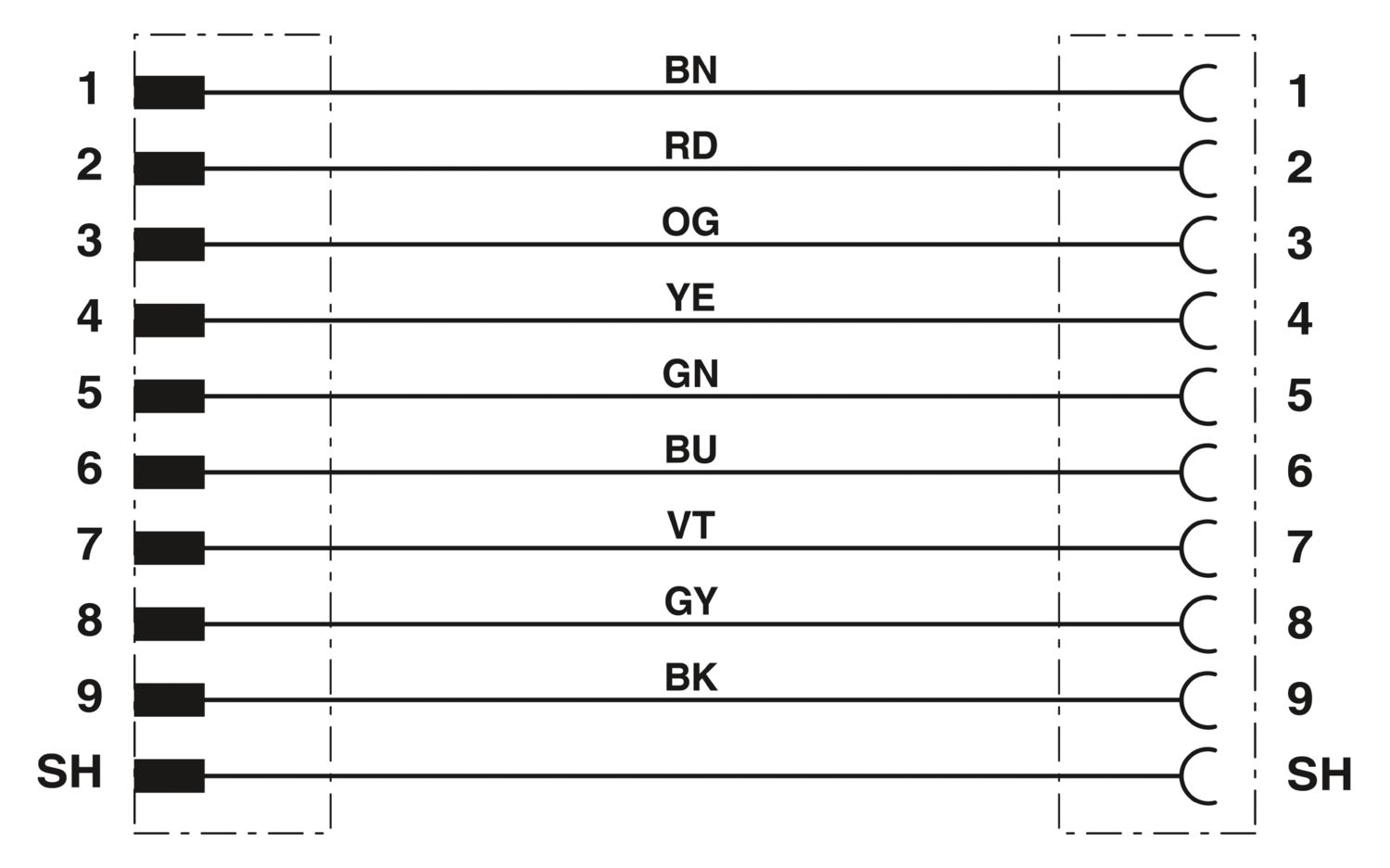

Assembled D-SUB cable, shielded, 9-pos., stranded (7-wire), cable color: RAL 7000 (gray), secured using 4-40 UNC thread, IP20 protection, head 1 with socket shell 1 and straight cable outlet, head 2 with pin shell 1 and straight cable outlet, length: 1 m
Product details
| Product type | Data cable preassembled |
| Type | D-SUB |
| Sensor type | Universal |
| Number of positions | 9 |
| Cable outlet | straight |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 2 |
| Rated current | 1 A |
| Operating voltage | 30 V |
| Transmission medium | Copper |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 50 |
| Housing material | PVC |
| Contact material | Copper alloy |
| Contact surface material | gold-plated |
| Outer sheath, material | PVC |
| Connection technology | |
| Connection method | D-SUB |
| Conductor connection | |
| Connection method | D-SUB |
| Connection 1 | |

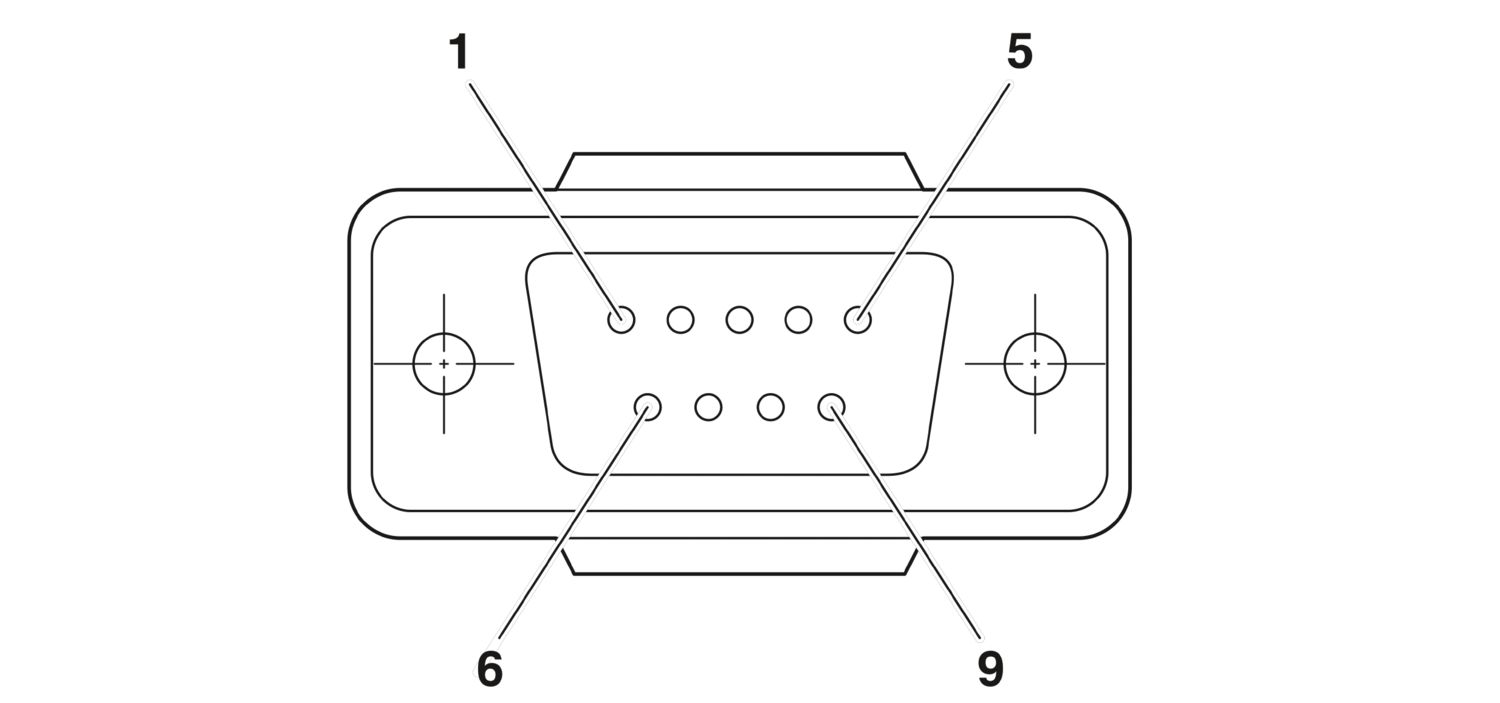

| Type | Socket straight D-SUB 9 |
| Degree of protection | IP20 |
| Connection 2 | |

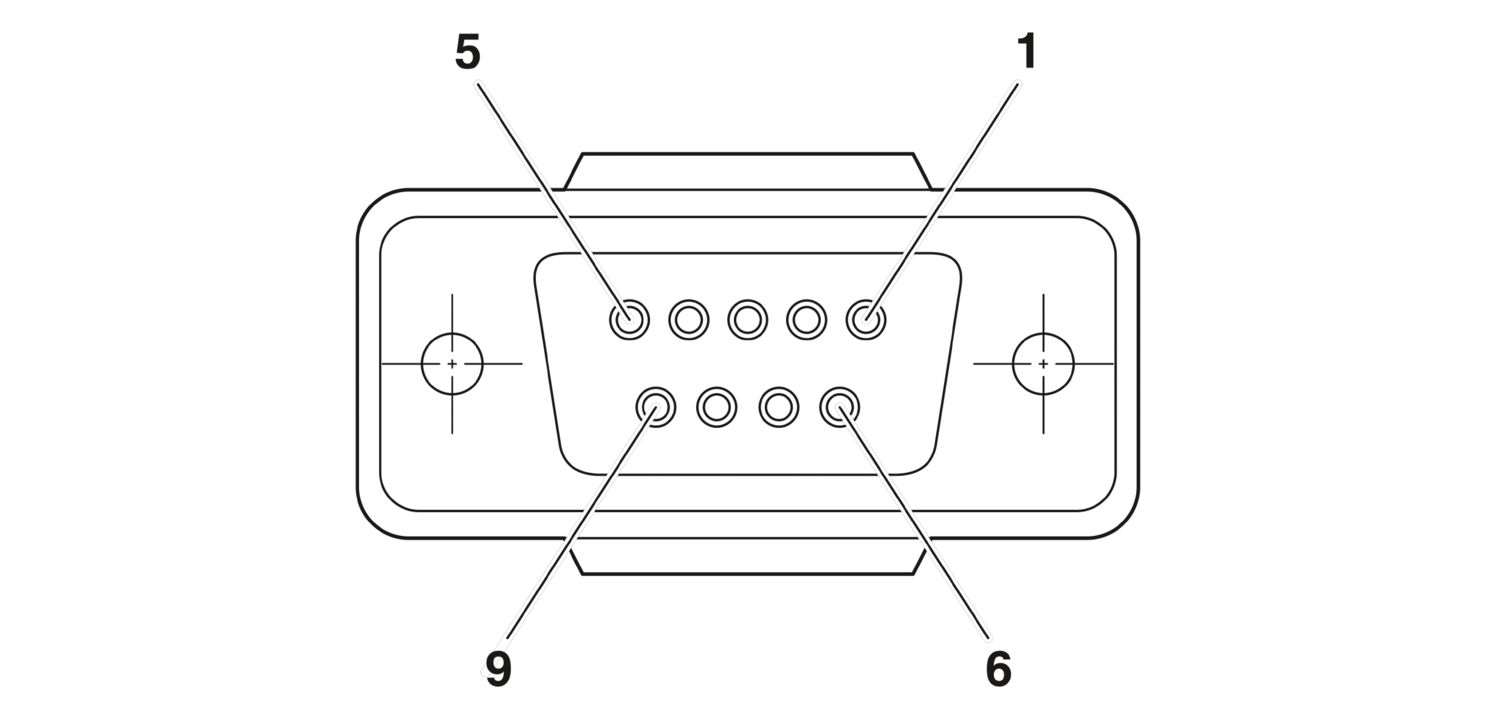

| Type | Plug straight D-SUB 9 |
| Degree of protection | IP20 |
| Outer sheath, material | PVC |
| Cable cross section | 0.08 mm² |
| AWG signal line | 28 |
| Ambient conditions | |
| Degree of protection | IP20 |
| IP20 | |
| Ambient temperature (operation) | 0 °C ... 70 °C |
| Item number | 1656233 |
| Packing unit | 1 pc |
| Minimum order quantity | 1 pc |
| Sales key | AB |
| Product key | ABNCAS |
| Catalog page | Page 218 (C-2-2013) |
| GTIN | 4046356029711 |
| Weight per piece (including packing) | 98.1 g |
| Weight per piece (excluding packing) | 96.3 g |
| Customs tariff number | 85444290 |
| Country of origin | CN |
ECLASS
| ECLASS-13.0 | 27060307 |
ETIM
| ETIM 9.0 | EC001855 |
UNSPSC
| UNSPSC 21.0 | 26121600 |
| EU RoHS | |
| Fulfills EU RoHS substance requirements | Yes (No exemptions) |
| China RoHS | |
| Environment friendly use period (EFUP) |
EFUP-E
No hazardous substances above the limits
|
| EU REACH SVHC | |
| REACH candidate substance (CAS No.) | No substance above 0.1 wt% |
