CK2,5-ED-3,00M AG - Crimp contact

1273648

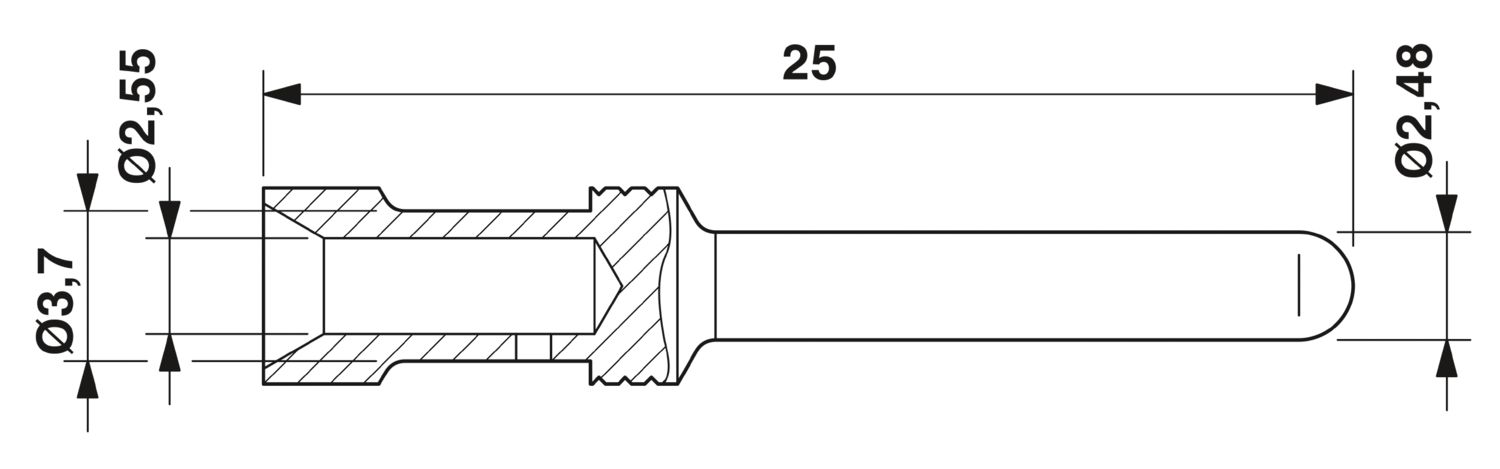

Crimp contact, contact diameter: 2.5 mm, turned, Pin, contact material: Copper alloy, lead-free, contact surface: silver-plated, connection cross section: 3 mm² ... 3 mm², AWG 12

General	for HC-M-06..., HC-M-HV-, HC-M-08-, HC-M-20-, HC-A..., HC-B..., HC-BB..., HC-BBB..., and HC-HV contact carriers

Assembly note	The quality of a crimp connection is determined by DIN EN 60352-2.

Product type	Crimp contact
Series	HC-M-06
	HC-M-HV
	HC-M-08
	HC-A
	HC-BB
	HC-B
	HC-HV
	HC-M-20
	HC-K
	HC-BBB
	HC-Q
	HC-COM
Type	Individual male contact
Contact material type	turned

Connection method	Crimp connection
Contact connection type	Pin
Connection technology	Crimp connection
Conductor cross section	3 mm² ... 3 mm²
Connection cross section AWG	12
Stripping length of the individual wire	7.5 mm (9.5 mm at HC-M-HV...)
Conductor cross section flexible	3 mm² ... 3 mm²

Contact material	Copper alloy, lead-free
Contact surface material	silver-plated

Mechanical characteristics
Contact diameter	2.5 mm

Mechanical data
Insertion/withdrawal cycles	≥ 500

Ambient conditions
Ambient temperature (operation)	-40 °C ... 125 °C

Item number	1273648
Packing unit	100 pc
Minimum order quantity	100 pc
Sales key	BF7
Product key	AF7AID
GTIN	4063151465568
Weight per piece (including packing)	1.315 g
Weight per piece (excluding packing)	1.315 g
Customs tariff number	85366990
Country of origin	DE

Compatible products

Accessories

PHOENIX CONTACT Middle East FZ LLC

1201N-1206N, Dubai Science Park Towers - North, P.O. Box 345002, Dubai, United Arab Emirates

Ask a Question 800-7463649 info-me@phoenixcontact.com

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
