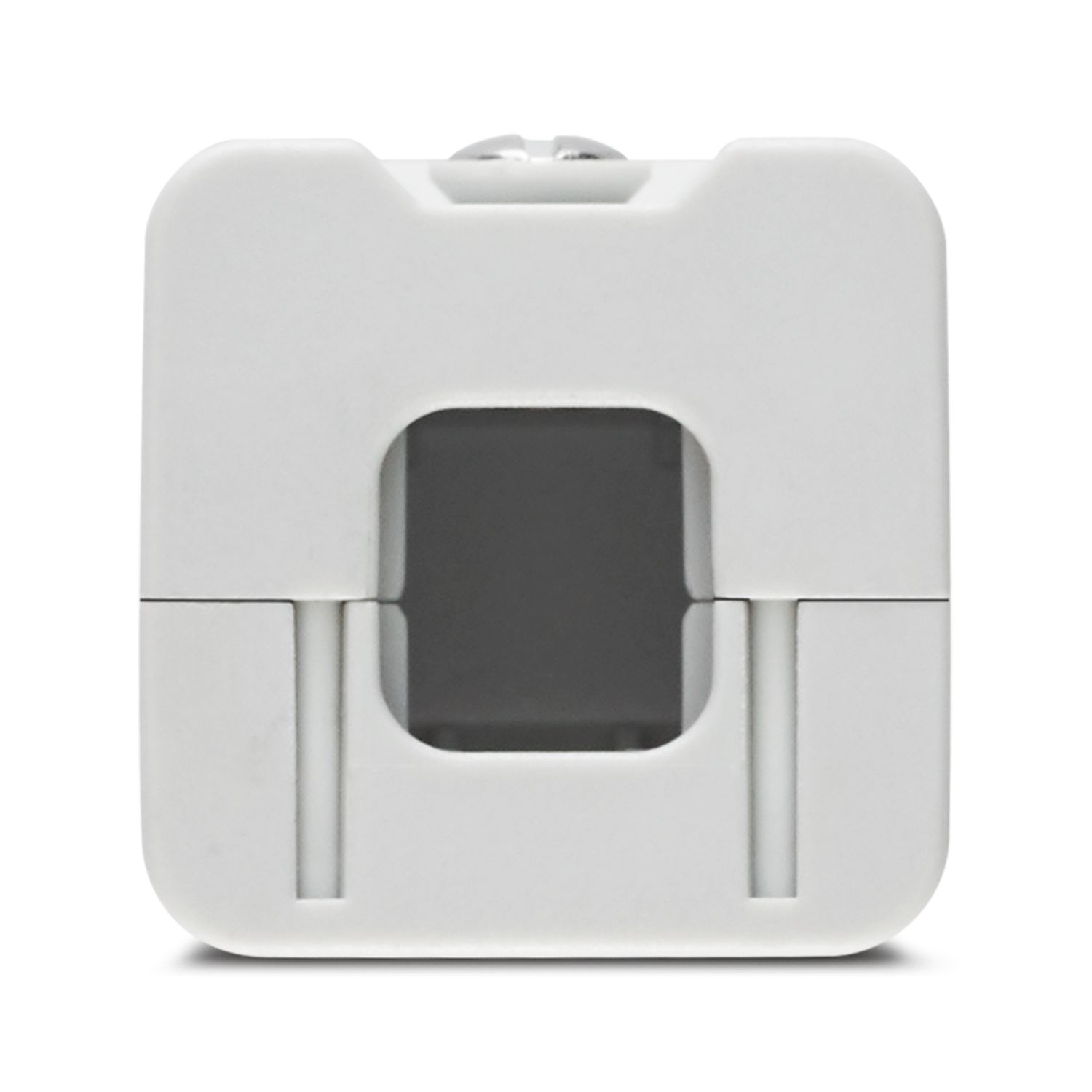

HC-Q-I-RJ45-AD-PC-M - Contact insert

1077120

Contact insert, number of positions: RJ45, size: D7, type : RJ45, Pin, 50 V, 1 A, application: Data, Adapter for patch cables

General	Use the patch cable from the accessories list.
General	Connectors may be operated only when there is no load/voltage.

Product type	Contact insert with a fixed no. of positions
Series	HC-Q
Application	Data
Type	D7
Sensor type	Ethernet
Number of positions	8
Connection profile	RJ45
Type	RJ45
Insulation characteristics
Overvoltage category	III
Degree of pollution	3

Width	21 mm
Height	20.5 mm
Length	21 mm

Connection technology
Connection in acc. with standard	IEC / EN
Conductor connection
Tightening torque	0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing)

Rated voltage (III/3)	50 V
Rated surge voltage	0.8 kV
Rated current	1 A
Transmission characteristics (category)	CAT6

Flammability rating according to UL 94	V0
Contact material	Copper alloy
Contact surface material	Au
Contact carrier material	PC
Standards/regulations	PC

Ambient conditions
Ambient temperature (operation)	-25 °C ... 60 °C

Testing
Standards/regulations	PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)

Item number	1077120
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	AF7
Product key	AF7ABJ
Catalog page	Page 513 (C-2-2019)
GTIN	4055626788838
Weight per piece (including packing)	6.9 g
Weight per piece (excluding packing)	5.1 g
Customs tariff number	85366990
Country of origin	CN

Compatible products

Accessories

Your advantages

Shock and vibration-resistant in accordance with DIN EN 61373
