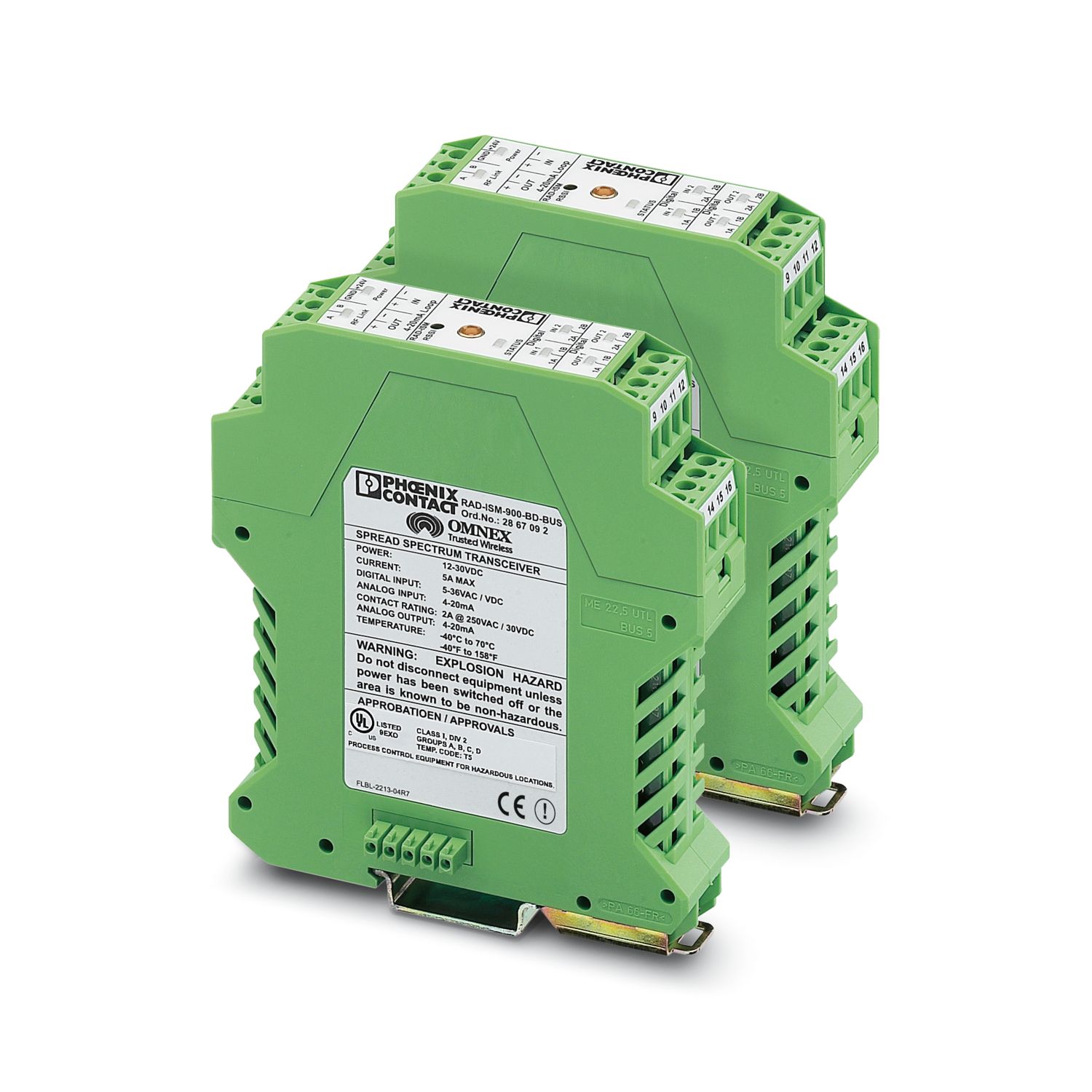

RAD-ISM-900-SET-BD-BUS-AU
-
Wireless module
2867487
Bidirectional, wireless, 900 MHz transmission system (Australia), made up of 2 transceivers (transmitter and receiver)
Product details
Your advantages
The integrated bus foot enables connection to additional I/O modules
Status of the wireless connection via a relay (RF link)
Each transceiver has 1 analog input (4 ... 20 mA) and 2 digital inputs (5 ... 30 V AC/DC), as well as 1 analog output and 2 digital outputs, for direct connection to compatible sensors and actuators and for data transmission in both directions
Frequency hopping spread spectrum
Operates in the license-free 902 MHz ... 928 MHz ISM band
Individual transceivers are listed under Class I, Division 2
Additional transceivers can be added to configure repeater systems
Two omnidirectional antennas (optional)
No additional parameterization or programming required
Two pre-programmed transceivers that automatically communicate with each other
