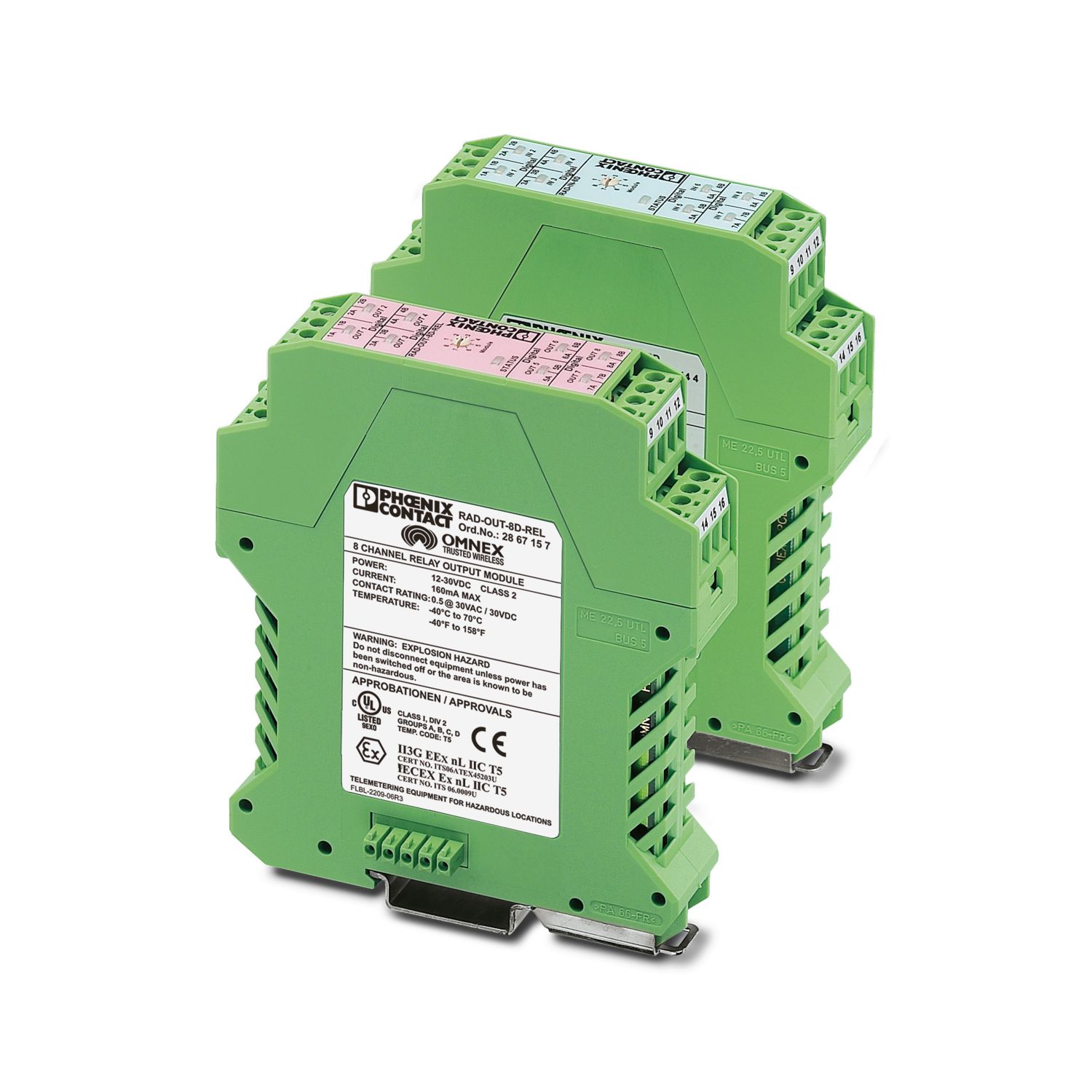

RAD-OUT-8D-REL
-
Extension module
2867157
Digital extension module with 8 digital outputs
Product details

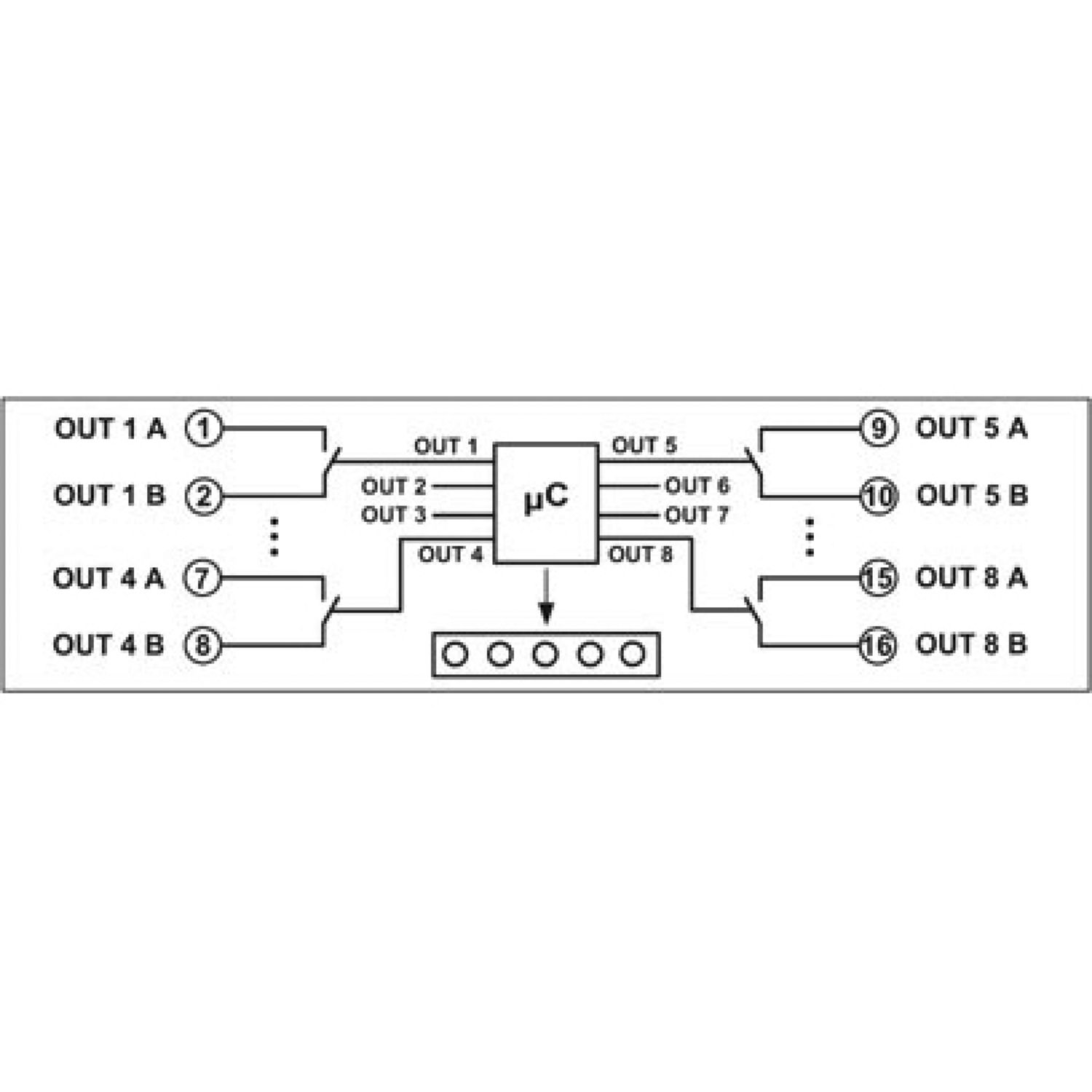

| Product type | Extension module |
| Maximum power dissipation for nominal condition | 1.8 W |
| Brake to be connected | |
| Connection method | Screw connection |
| Supply | |
| Supply voltage range | 9 V DC ... 30 V DC (via bus foot) |
| Typical current consumption | 100 mA |
| Max. current consumption | 160 mA |
| Input frequency | max. 1 Hz |
| Digital | |
| Output name | Relay output |
| Number of outputs | 8 |
| Maximum switching voltage | 30 V AC/DC (EC Declaration of Conformity) |
| 30 V DC (in acc. with UL) | |
| 250 V AC (in acc. with UL) | |
| Limiting continuous current | 0.5 A (EC Declaration of Conformity) |
| 2 A (in acc. with UL) | |
| Analog | |
| Load/output load current output | at UB = 24 V, RB = [UB-10 V] / 20 mA |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Cross section AWG | 24 ... 14 |
| Screw thread | M3 |
| Width | 22.5 mm |
| Height | 99 mm |
| Depth | 114.5 mm |
| Color (Housing) | green (RAL 6021) |
| Material (Housing) | Polyamide |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -20 °C ... 65 °C |
| -4 °F ... 149 °F | |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| CE | |
| Certificate | CE-compliant |
| UL, USA/Canada | |
| Identification | Class I, Div. 2, Groups A, B, C, D |
| Assembly note | on standard DIN rail NS 35 in accordance with EN 60715 |
| Mounting position | any |
| Item number | 2867157 |
| Packing unit | 1 pc |
| Minimum order quantity | 1 pc |
| Note | Made to order (non-returnable) |
| Sales key | 0917* |
| Product key | DNC654 |
| Catalog page | Page 470 (C-6-2017) |
| GTIN | 4017918929657 |
| Weight per piece (including packing) | 201.8 g |
| Weight per piece (excluding packing) | 195.4 g |
| Customs tariff number | 85371098 |
| Country of origin | CA |
| China RoHS | |
| Environment friendly use period (EFUP) |
EFUP-E
No hazardous substances above the limits
|
| EU REACH SVHC | |
| REACH candidate substance (CAS No.) | No substance above 0.1 wt% |
