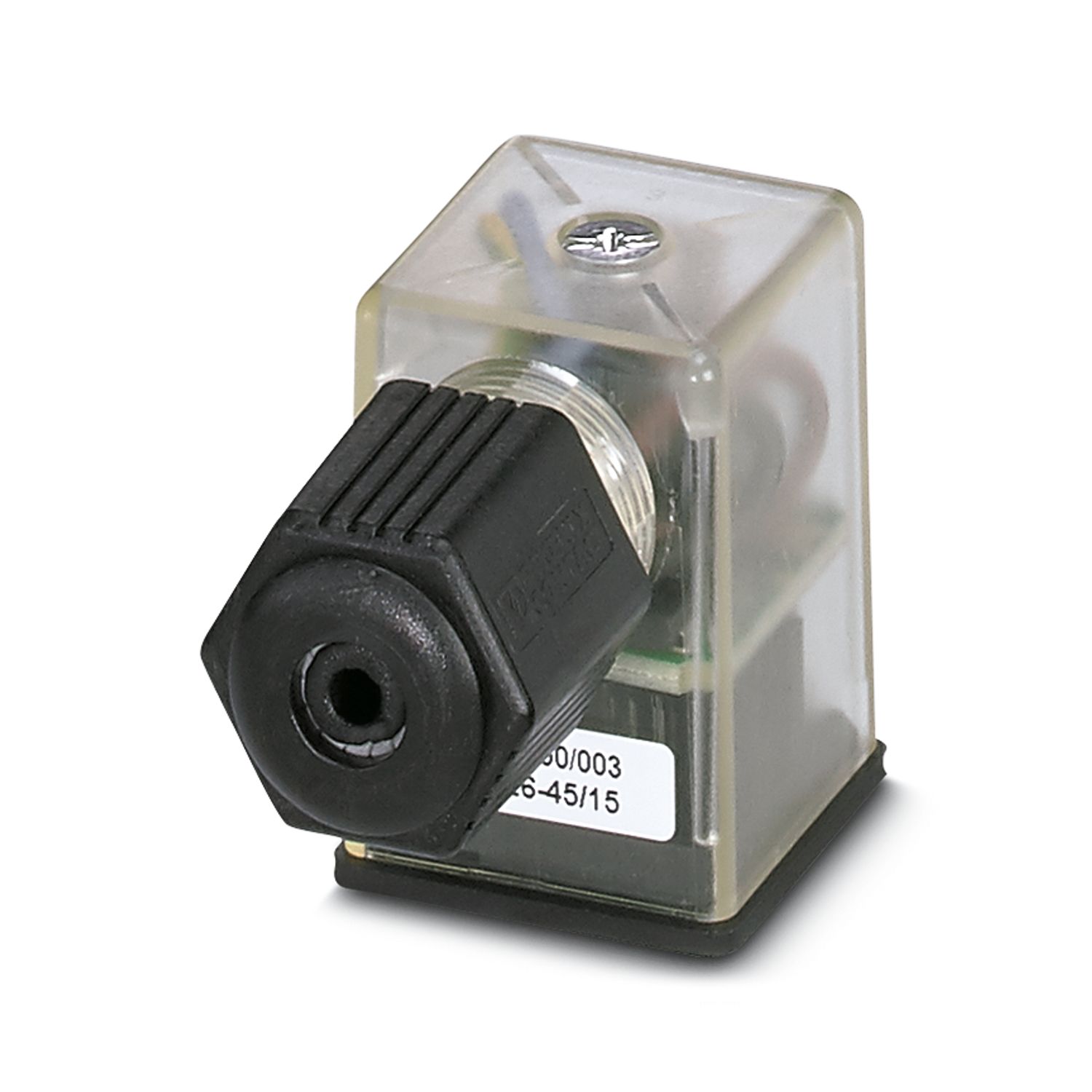

SACC-VQ-4CON-A-0,75-VER - Valve connector

1559851

Sensor/actuator male connector, 4-pos., type A valve connector, with QUICKON connection, with wiring, connection cross section of 0.34 ... 0.75 mm², with a cable inlet for round cables of 4 ... 7 mm

Product details

Technical data

Assembly note	NOTE: Observe the permissible bending radii when routing cables, since the degree of protection may be at risk if the bending forces are too high. Reduce mechanical loads upstream of the connector, e.g., by using cable ties.

Product type	Valve connectors

Connection 1
Head design	Valve connector
Head thread type	A

Commercial data

Item number	1559851
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	*****
Product key	AF2DAA
GTIN	4046356307123
Weight per piece (including packing)	33.11 g
Weight per piece (excluding packing)	32 g
Customs tariff number	85366990
Country of origin	DE

Classifications

Environmental product compliance

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
