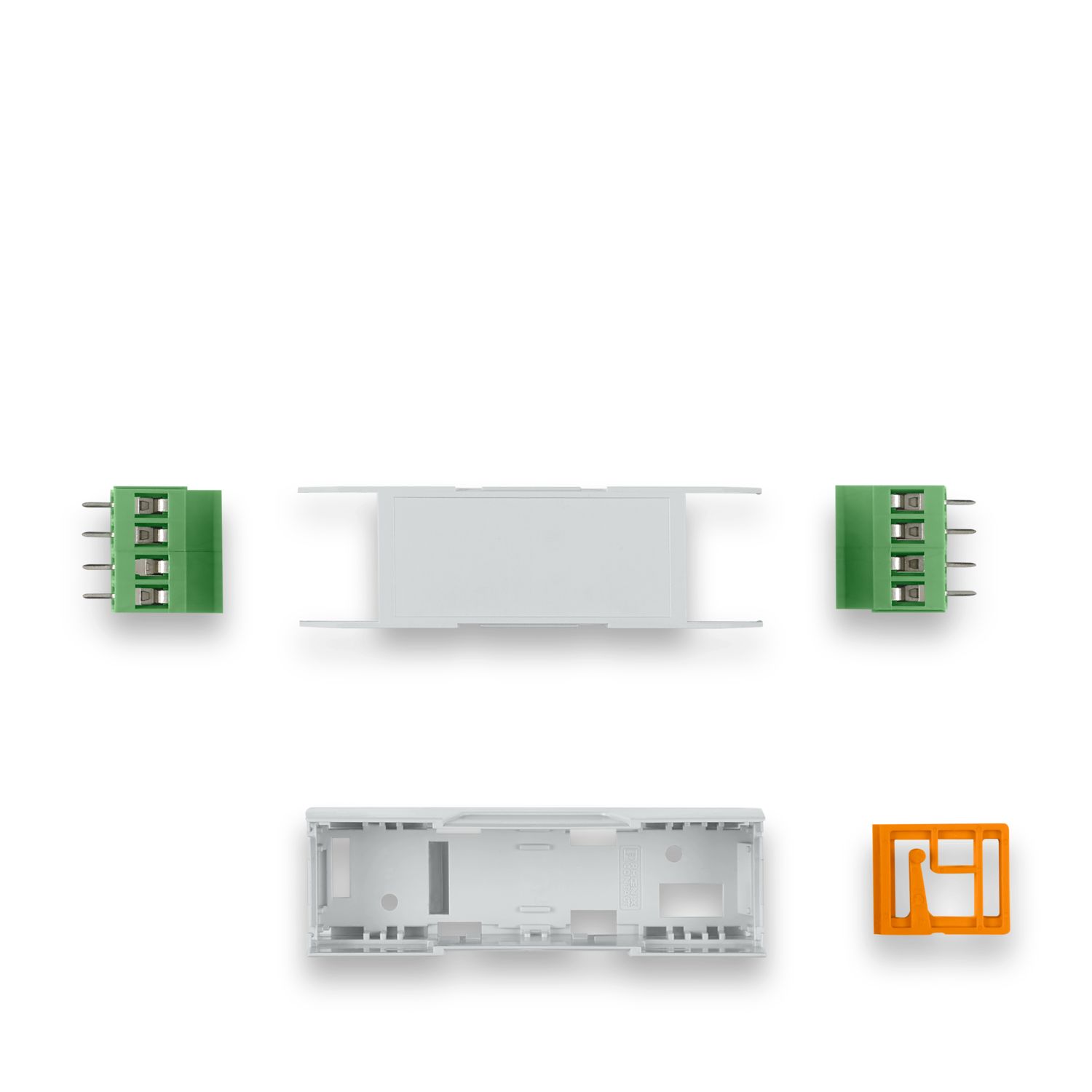

EH 22,5 - KIT - FB+CDS/ABS-PC-7035 + 2MK
-
Housing set
1311033
DIN rail housing, for mounting on a DIN rail, color: light gray (similar RAL 7035), width: 22.6 mm, height: 77 mm, depth: 50.2 mm, incl. 2 PCB terminal blocks, 4-pos., screw connection, for 2.5 mm2, nominal current: 24 A, 400 V, PCB surface: 750 mm2
Product details
| Assembly note | Please observe the assembly instructions available in the download area. |
| General | The PCB surface specification is for orientation purposes and is based on a basic PCB. The housing can also accommodate several PCBs. |
| Product type | Stackable housing set |
| Housing type | DIN rail housing |
| Housing series | EH |
| Number of positions | 8 |
| Max. number of positions | 8 (pitch: 3.08 mm) |
| Number of rows | 1 |
| Ventilation openings present | yes |
| Connection method | Screw connection with tension sleeve |
| Dimensional drawing |
|
| Width | 22.6 mm |
| Height | 77 mm |
| Depth | 50.2 mm |
| Depth from top edge of DIN rail | 45.9 mm |
| PCB design | |
| PCB thickness | 1.4 mm ... 1.8 mm |
| Color (Upper housing part) | light gray (RAL 7035) |
| Color (Lower housing part) | light gray (RAL 7035) |
| Flammability rating according to UL 94 | V0 |
| Insulating material | ABS-PC |
| Housing material | ABS-PC |
| Surface characteristics | untreated |
| Ambient conditions | |
| Max. IP code to attain | IP20 |
| Ambient temperature (operation) | -40 °C ... 80 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Ambient temperature (assembly) | -5 °C ... 80 °C |
| Relative humidity (storage/transport) | 95 % |
| Number of PCB holders | 1 |
| Type of PCB mount | Latching |
| Total PCB surface | 750 mm² |
| Thickness of the PCB | 1.4 mm ... 1.8 mm |
| Mounting type | DIN rail mounting |
| Type of packaging | packed in cardboard |
| Outer packaging type | Carton |
