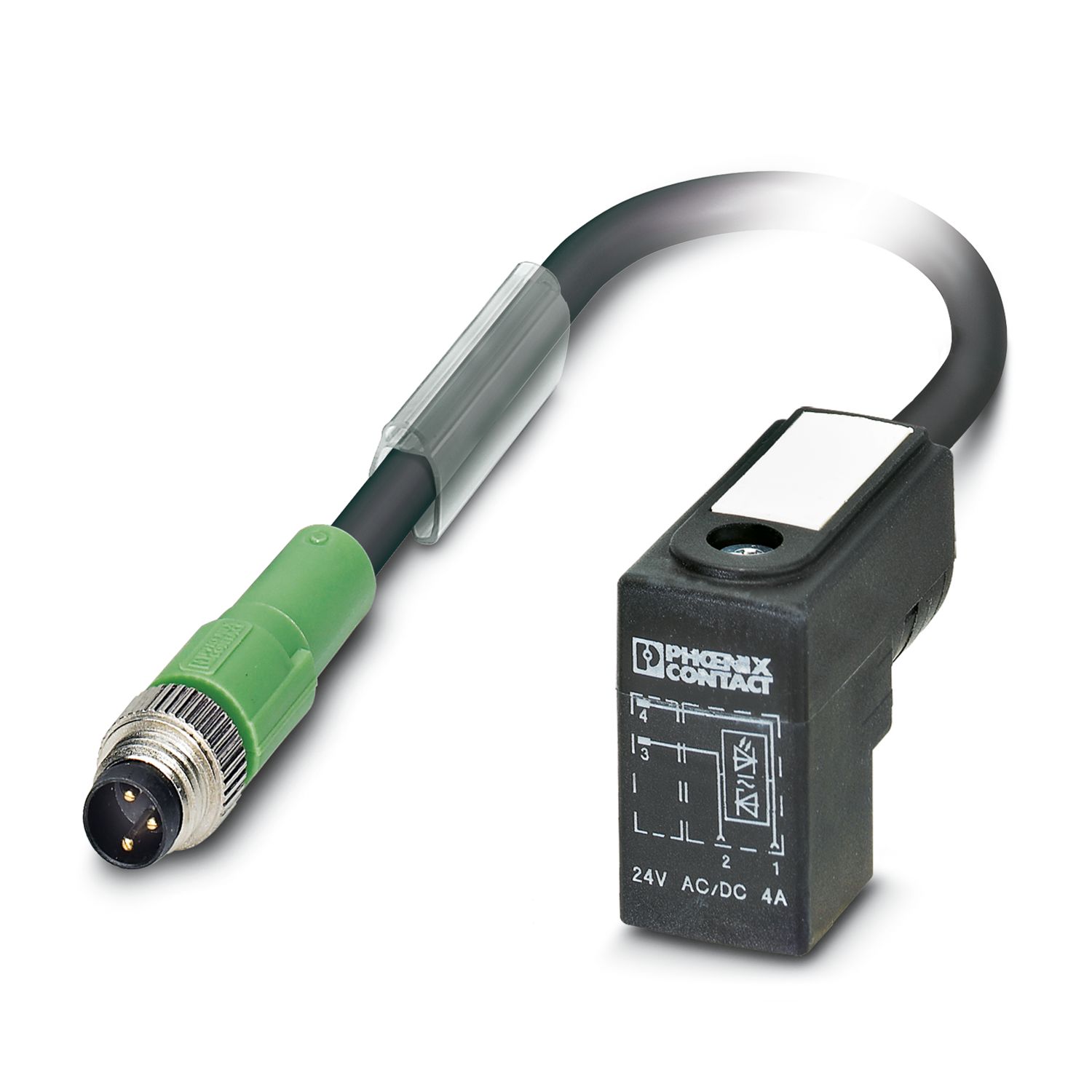

SAC-2P-M 8MS-C-1L-Z/.../... - Sensor/actuator cable

1405653

Sensor/actuator cable, 2-position, Plug straight M8, coding: A, on Valve connector C (8 mm), with 1 LED, Wiring: Z diode, cable length: Free input (0.2 ... 40.0 m)

Product details

Product type	Sensor/actuator cable with valve connector
Application	Standard
Number of positions	2
No. of cable outlets	1
Shielded	no
Coding	A

Conductor connection
Tightening torque	0.2 Nm (M8 connectors)
	0.6 Nm (Valve connector)

Flammability rating according to UL 94	HB
Seal material	TPU
Material housing valve plug	TPU
Material of grip body	TPU, hardly inflammable, self-extinguishing
Contact material	CuSn
Contact surface material	Ni/Au
Contact carrier material	TPU GF
Contact material	CuSn
Valve plug contact insert material	PA 6.6
Contact surface material	Sn
Material for screw connection	Zinc die-cast, nickel-plated

Insulation resistance	≥ 100 MΩ
Nominal voltage U_N	24 V AC
	24 V DC
Nominal current I_N	4 A
Valve connector characteristics
Fixing screws	M2,5 x 27,5
Pulse power	40 W (at 100 µs square-wave pulse)
Terminal voltage	70 V (at 2 mA constant current)
Reverse voltage	50 V

Mechanical data
Insertion/withdrawal cycles	≥ 100 (M8 connectors)

Status display	1 LED
Status display present	yes

Connection 1
Type	Plug straight M8
Coding type	A
Connection 2

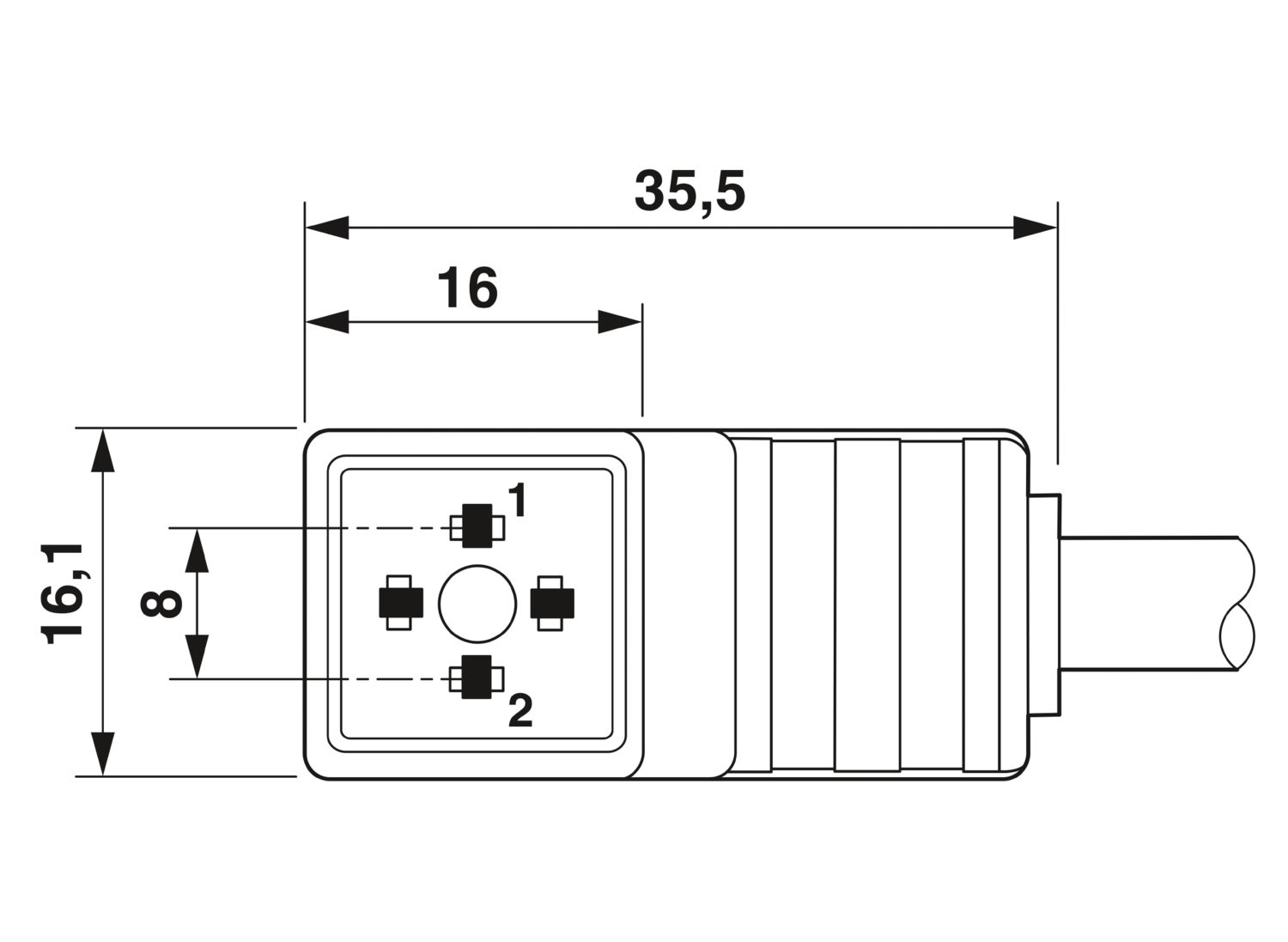

Type	Valve connector C (8 mm)
Material	CuSn (Contact)
	Contact surface
	TPU (Housing)
	Sn
Protective circuit	Z diode

Cable length	Free input (0.2 ... 40.0 m)
PUR halogen-free black [PUR]
Cable weight	25 kg/km
UL AWM Style	20549 / 10152 (80°C/300 V)
Number of positions	2
Shielded	no
Cable type	PUR halogen-free black [PUR]
	PUR halogen-free black PUR
Conductor structure signal line	28x 0.15 mm
AWG signal line	20
Conductor cross section	2x 0.5 mm²
Wire diameter incl. insulation	1.46 mm ±0.05 mm
External cable diameter	4.25 mm ±0.15 mm
Outer sheath, material	PUR
External sheath, color	black-gray RAL 7021
Conductor material	Bare Cu litz wires
Material wire insulation	PP
Single wire, color	brown, blue
Thickness, outer sheath	≥ 0.38 mm
Max. conductor resistance	≤ 39 Ω/km (at 20 °C)
Insulation resistance	≥ 1 GΩ*km (at 20 °C)
Nominal voltage, cable	≤ 300 V AC
Test voltage	≥ 3000 V AC (Spark test)
Minimum bending radius, fixed installation	5 x D
Minimum bending radius, flexible installation	10 x D
Smallest bending radius, fixed installation	22 mm
Smallest bending radius, movable installation	43 mm
Dynamic load capacity (bending)	Max. bending cycles: 4000000, Bending radius: 10 x D, Traversing path: 10 m, Traversing rate: 3 m/s, Acceleration: 10 m/s²
Halogen-free	in accordance with DIN VDE 0472 part 815
	in accordance with DIN EN 50267-2-1
Flame resistance	according to UL 758/1581 (horizontal)
	in accordance with UL 758/1581 FT2
Resistance to oil	According to DIN EN 60811-2-1, 168 h at 100°C
Other resistance	hydrolysis and microbe resistant
	partly UV-resistant (in accordance with DIN EN ISO 4892-2-A)
	Resistant to salt water
	Low adhesion
	abrasion-resistant
Special properties	flexible
	Flexible cable conduit capable
Ambient temperature (operation)	-40 °C ... 80 °C (cable, fixed installation)
	-25 °C ... 80 °C (Cable, flexible installation)
PVC black [PVC]
Cable weight	34.9 kg/km
UL AWM Style	2464
Number of positions	2
Shielded	no
Cable type	PVC black [PVC]
	PVC black PVC
Conductor structure signal line	16x 0.20 mm
AWG signal line	20
Conductor cross section	2x 0.5 mm²
Wire diameter incl. insulation	1.5 mm ±0.05 mm
External cable diameter	4.80 mm ±0.2 mm
Outer sheath, material	PVC
External sheath, color	black
Conductor material	Bare Cu litz wires
Material wire insulation	PVC
Single wire, color	brown, blue
Max. conductor resistance	39 Ω/km (at 20 °C)
Insulation resistance	≥ 20 MΩ*km
Nominal voltage, cable	300 V
Test voltage	1200 V
Minimum bending radius, fixed installation	5 x D
Smallest bending radius, fixed installation	24 mm
Flame resistance	according to DIN VDE 0482
	According to DIN EN 50265-2-1
Resistance to oil	largely oil-resistant
Ambient temperature (operation)	-40 °C ... 80 °C (cable, fixed installation)
	-5 °C ... 80 °C (Cable, flexible installation)

Ambient conditions
Degree of protection	IP65
	IP67
Ambient temperature (operation) (male connector/female connector)	-25 °C ... 90 °C (Plug / socket)
Ambient temperature (operation) (Valve connector)	-20 °C ... 85 °C (Valve connector)

M8
Standard designation	M8 connector
Standards/specifications	IEC 61076-2-104
Valve connector
Standard designation	Valve connector
Standards/specifications	EN 175301-803

Commercial data

Item number	1405653
Packing unit	1 pc
Minimum order quantity	1 pc
Note	Made to order (non-returnable)
Sales key	*****
Product key	AF1DNA
Customs tariff number	85444290
Country of origin	PL

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	24 V	4 A

Environmental product compliance

Compatible products

Accessories

Your advantages

Easy and safe: 100 % electrically tested plug-in components

Convenient: increased machine availability thanks to quick and easy diagnostics

Flexible solutions - configurable materials with variable cable types and cable lengths

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Diboron trioxide (CAS: 1303-86-2)
		Lead monoxide (lead oxide) (CAS: 1317-36-8)
