The PSR-MIS non-contact safety switches offer a cost-optimized safety solution. The safety switches in this series use the proven magnetic switching principle for monitoring of movable guards and are easy to install.

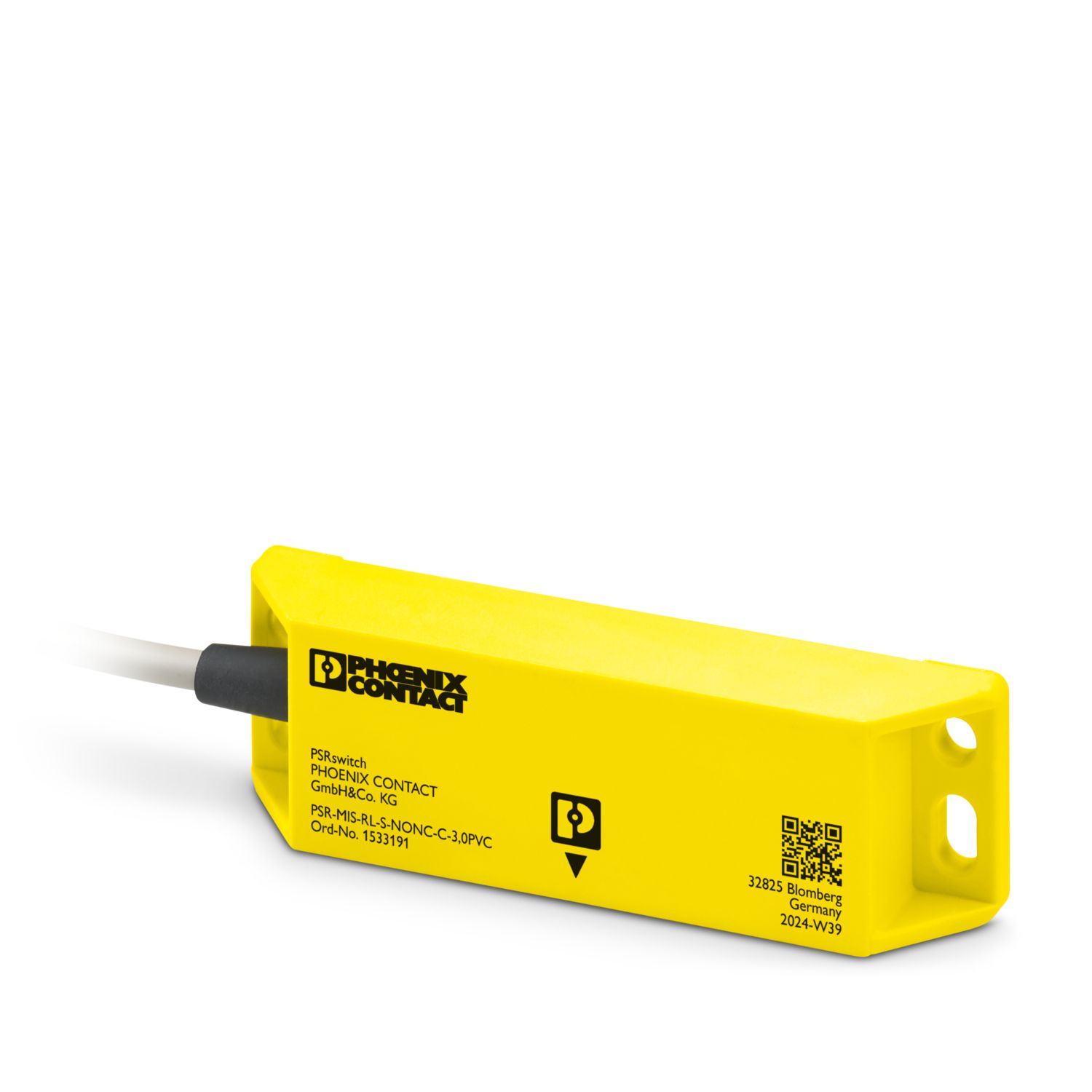

PSR-MIS-RL-S-NONC-C-3,0PVC
-
Safety switch sensor
1533191
Non-contact safety switch, sensor, up to Cat. 4, PL e (EN ISO 13849), SIL 3 (EN IEC 62061), design 4 (EN ISO 14119), low encoding level, 1 N/O contact, 1 N/C contact, flat design, 3 m open PVC cable
Product details
| Product type | Safety switches |
| Product family | PSR-MIS |
| Technology | Magnetic |
| Application | Safety door monitoring |
| Position monitoring | |
| Design in accordance with EN ISO 14119 | 4 |
| Encoding level in accordance with EN ISO 14119 | low |
| Insulation characteristics | |
| Pollution degree | 3 |
| Times | |
| Response time | 1 ms |
| Switching intervals (Actuation position frontal) | |
| Actuation setting | 1 (frontal), see the “Actuation positions and travel directions” section in the data sheet |
| Sensor | |
| Contact switching type | 1 N/C contact, 1 N/O contact |
| Utilization category | DC12 |
| Rated insulation voltage Ui | max. 75 V DC |
| max. 50 V AC | |
| Voltage | min. 0 V DC (SELV/PELV) |
| max. 28.8 V DC (SELV/PELV) | |
| Current | min. 0 mA |
| max. 100 mA | |
| Rated impulse withstand voltage | 0.8 kV (Uimp) |
| Switching frequency | max. 5 Hz |
| Resistance | 22 Ω |
| Cable length | max. 30 m |
| Conductor connection | |
| Connection method | open cable end |
| Note regarding the connection technology | 3 m PVC cable, tin-plated cable end |
| Dimensional drawing |
|
| Width | 88 mm |
| Height | 25 mm |
| Depth | 14 mm |
| Color (Housing) | traffic yellow (RAL 1023) |
| Housing material | PBT |
| Safety data: EN ISO 13849-1 | |
| Category | 4 |
| Performance level (PL) | e |
| Safety data | |
| Safety Integrity Level (SIL) | 3 |
| Ambient conditions | |
| Degree of protection | IP67 |
| Ambient temperature (operation) | -25 °C ... 75 °C |
| Ambient temperature (storage/transport) | -25 °C ... 75 °C |
| Maximum altitude | ≤ 2000 m (Above sea level) |
| Shock | 30g, 11 ms |
| Vibration (operation) | 10 Hz ... 55 Hz |
| Mounting type | not flush |
| Assembly note | Note EN ISO 14119 |
| max. tightening torque to secure: 1 Nm | |
| Mounting position | any, sensor and actuator parallel to each other |
| Minimum distance | min. 50 mm (between two safety switching systems) |
cETL
Approval ID: Industrial component
Your advantages
Cost-optimized safety switch
Tried-and-tested magnetic switching principle
Flat design
Can be used with standard actuator and reinforced actuator
Flexible connection, due to open cable end
Spacer plates for mounting on ferrous material available as accessories
