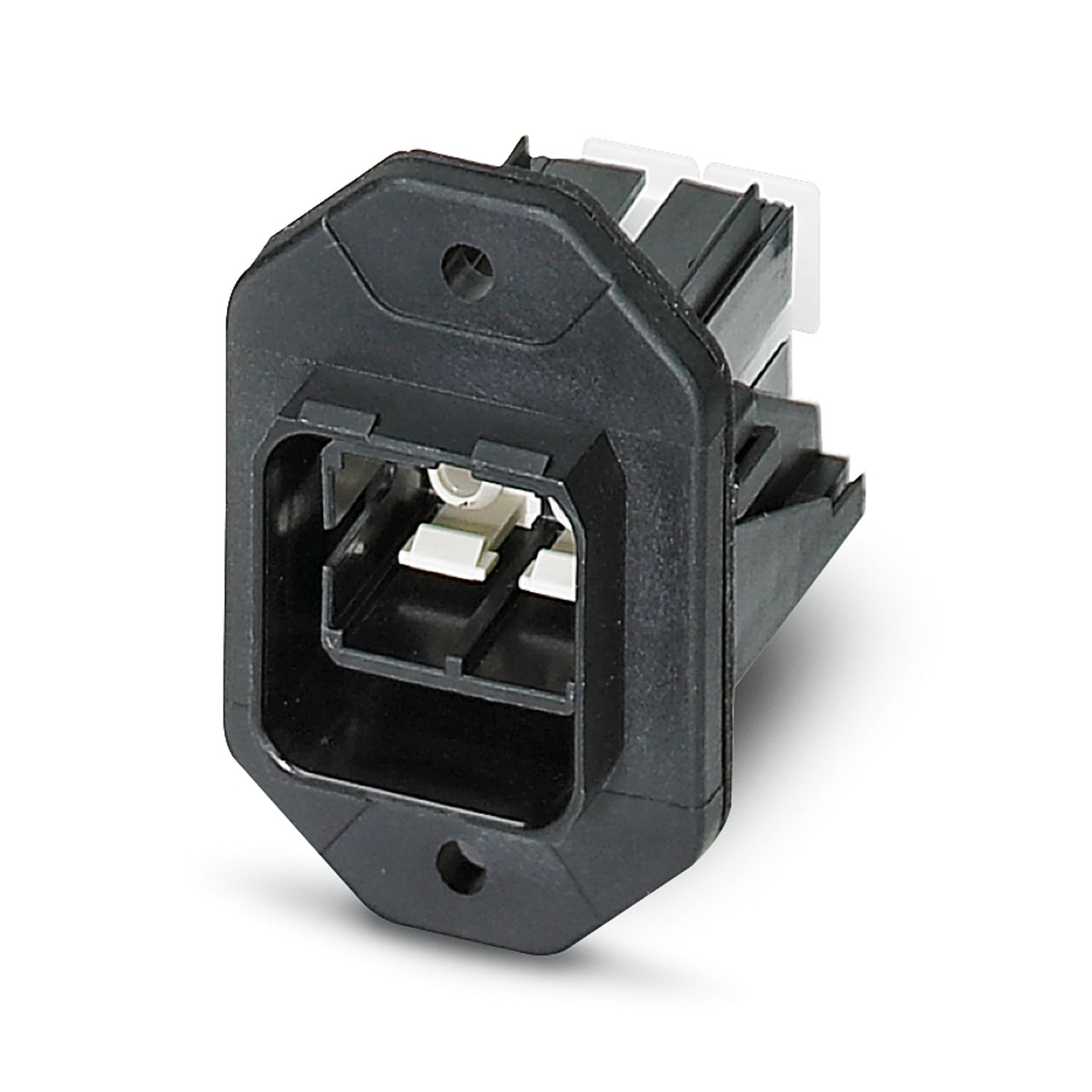

VS-PPC-F1-SCRJ-POBK-1RF
-
Panel-mount frame
1608210
SC-RJ panel mounting frame, IP67, for push-pull interlocking, plastic, with Freenet system, for rectangular mounting cutout, with seal and SC-RJ coupling (for POF, PCF, and GOF), without mounting screws
Product details
| Product type | Panel-mount frame |
| Application | Freenet |
| Type | SC-RJ |
| Number of positions | 2 |
| Connection profile | SC-RJ |
| Number of slots | 1 |
| Type | SC-RJ |
| Insulation characteristics | |
| Degree of pollution | 2 |
| Transmission medium | FO |
| Connection technology | |
| Connection method | Spring-cage connection |
| Dimensional drawing |
|
| Width | 22.2 mm |
| Height | 42 mm |
| Color | black |
| Material | Plastic |
| Flammability rating according to UL 94 | V0 |
| Seal material | NBR |
| Housing material | Plastic |
| Housing surface material | PA, light gray |
| Contact surface material | Au/Ni |
| Contact carrier material | Polyester GF |
| FO cable | |
| Number of fibers | 2 |
| Fiber | POF, PCF, GOF |
| Fiber type | GOF, PCF, POF |
| Transmission medium | FO |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 500 |
| Ambient conditions | |
| Degree of protection | IP67 (IP65/67) |
| IP65/IP67 | |
| Ambient temperature (operation) | -20 °C ... 70 °C |
| Mounting type | Front mounting |
