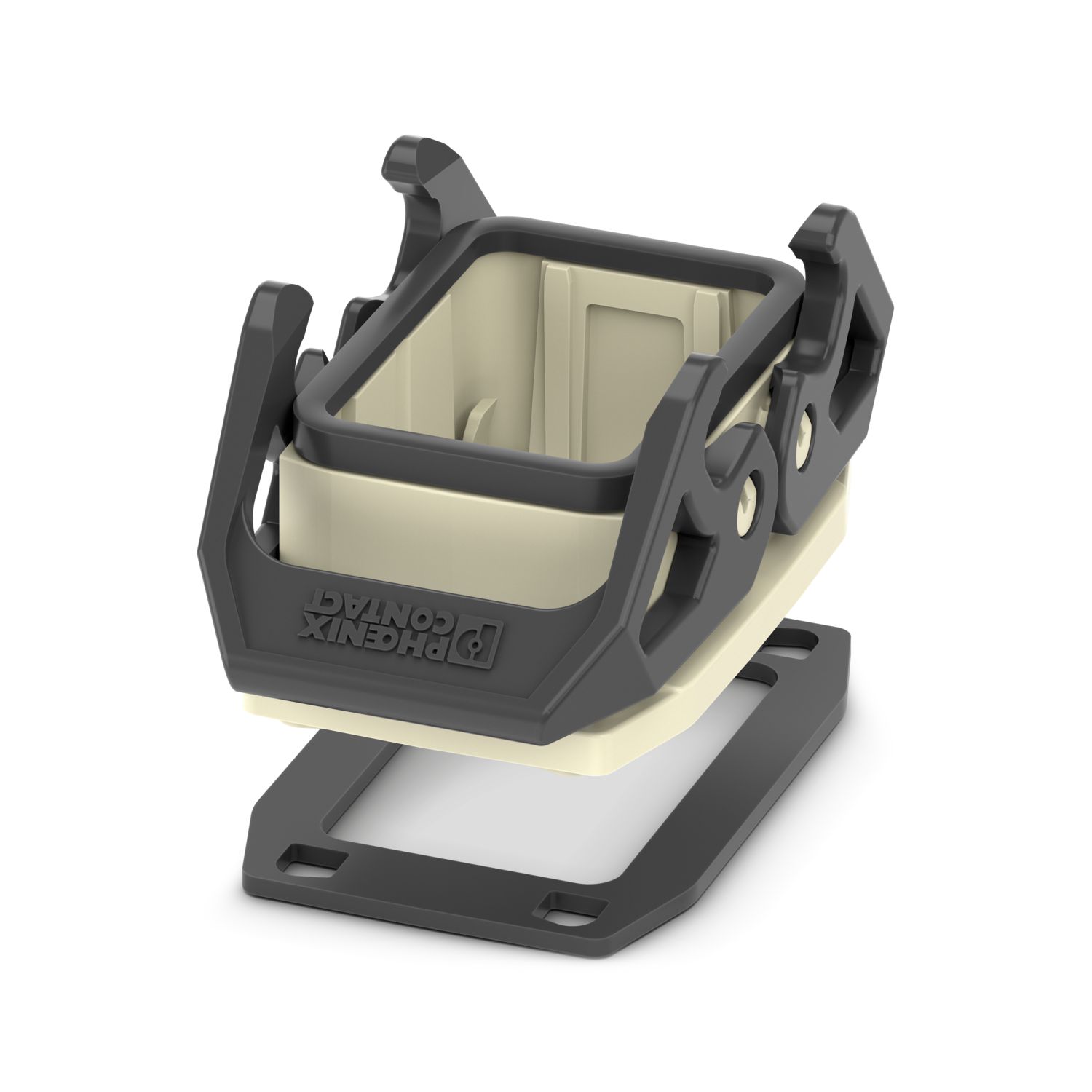

HC-DCC06-BWD-PLRGY
-
Panel mounting base
1724261
Panel mounting base DCC06, with double locking latch, material: PA 6, height: 30.5 mm, cable gland: none, Power supply in data centers
Product details
| General | Connectors may be operated only when there is no load/voltage. |
| Product type | Housing with locking latch |
| Housing type | Panel mounting base |
| Series | HC-DCC |
| Application | Power supply in data centers |
| Shielded | no |
| Pg screw connection | none |

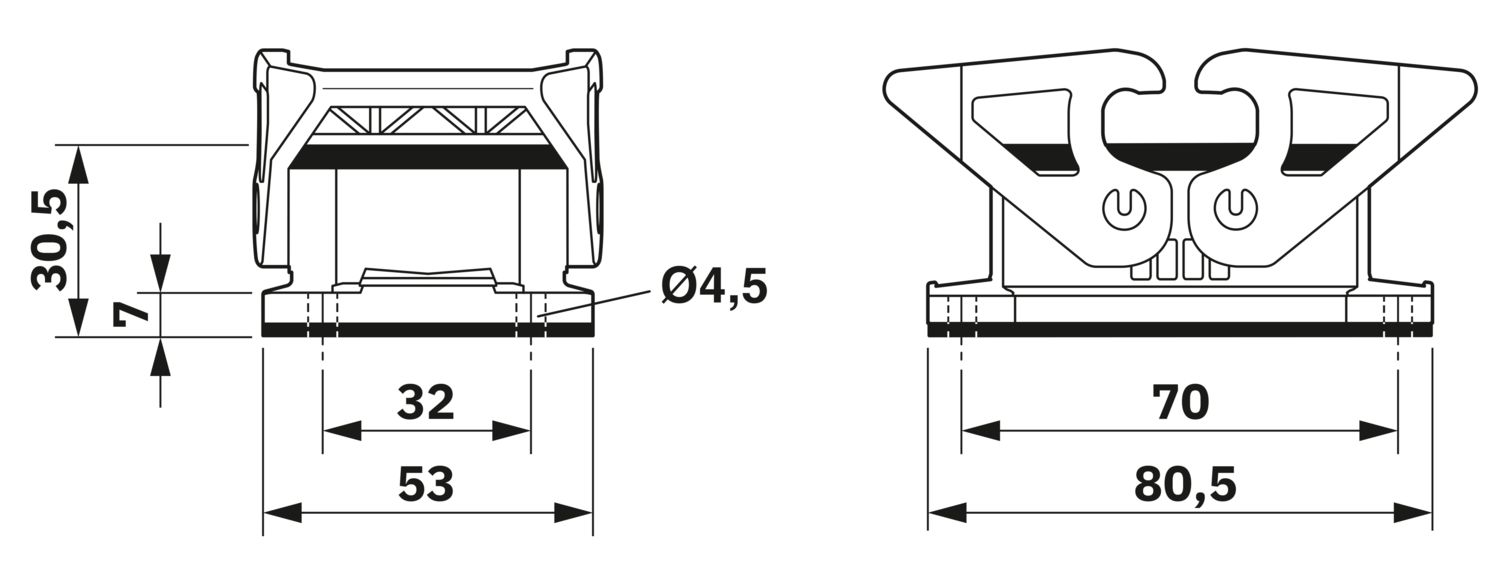

| Dimensional drawing |
|
| Width | 53 mm |
| Height | 30.5 mm |
| Length | 80.5 mm |
| Hole diameter | 4.5 mm |
| Installation dimensions | |
| Width of the assembly cutout | 38 mm |
| Length of the assembly cutout | 56 mm |
| Color | beige (RAL 7032) |
| Flammability rating according to UL 94 | V0 |
| Seal material | NBR |
| Housing material | PA 6 |
| Locking latch material | PA |
| Mechanical data | |
| Locking type | Latch |
| Assembly note | Connectors may only be actuated when there is no load/voltage. |
| Ambient conditions | |
| Degree of protection | IP66 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
Your advantages
Lower costs than metal version
Low weight
