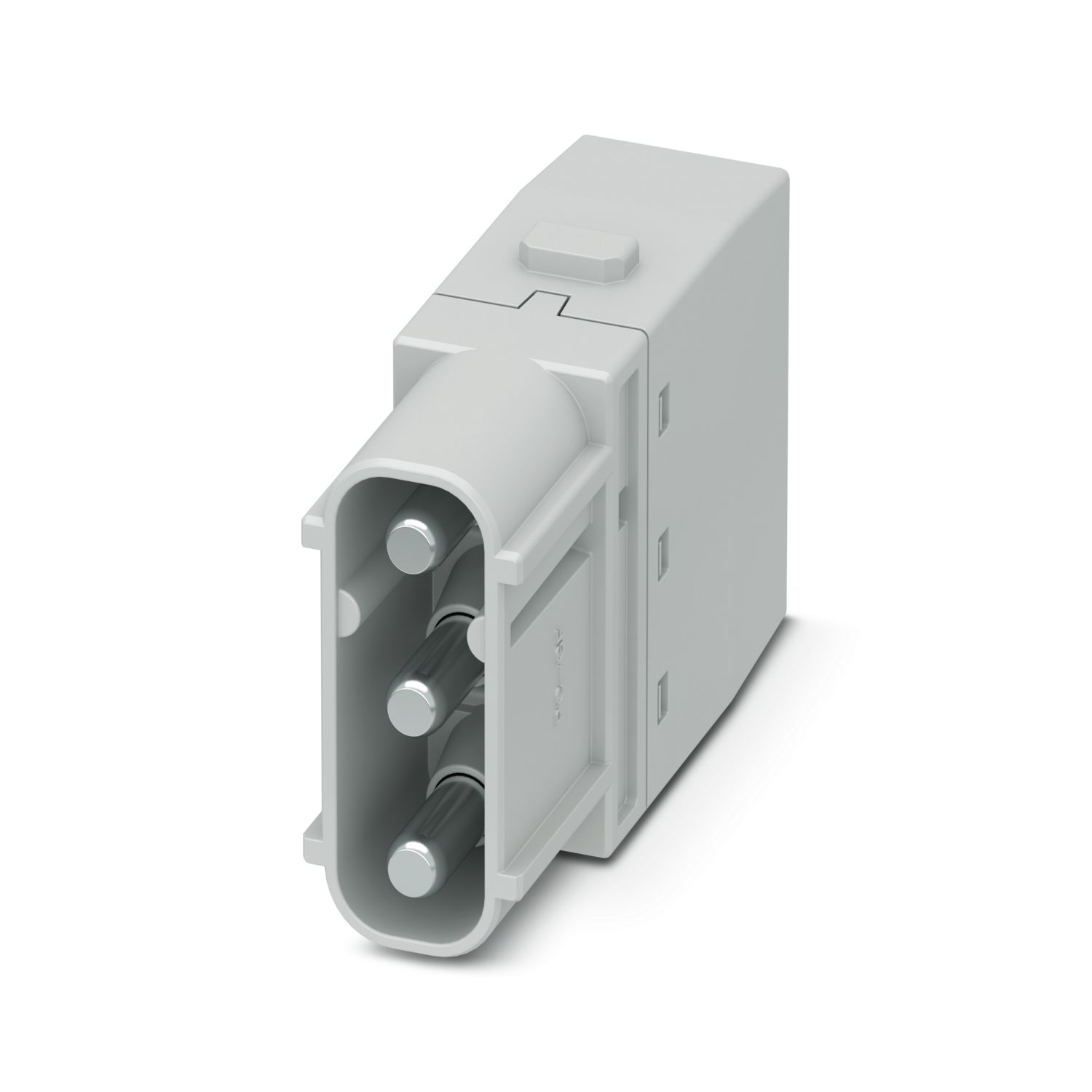

HC-M-03-PT-F - Contact insert module

1424218

Contact insert module, number of positions: 3, power contacts: 3, control contacts: 0, Socket, Push-in connection, 690 V, 40 A, 2.5 mm² ... 6 mm², application: Power

Product details

General	for flexible conductors with or without ferrules
General	Connectors may be operated only when there is no load/voltage.
General	For HEAVYCON housing type B6 ... B48 and module carrier frame HC-M-B...MF-...

Assembly note	To ensure correct use, installation in housing with IP54 protection or better is required

Product type	Modular contact insert
Series	HC-M-03
Application	Power

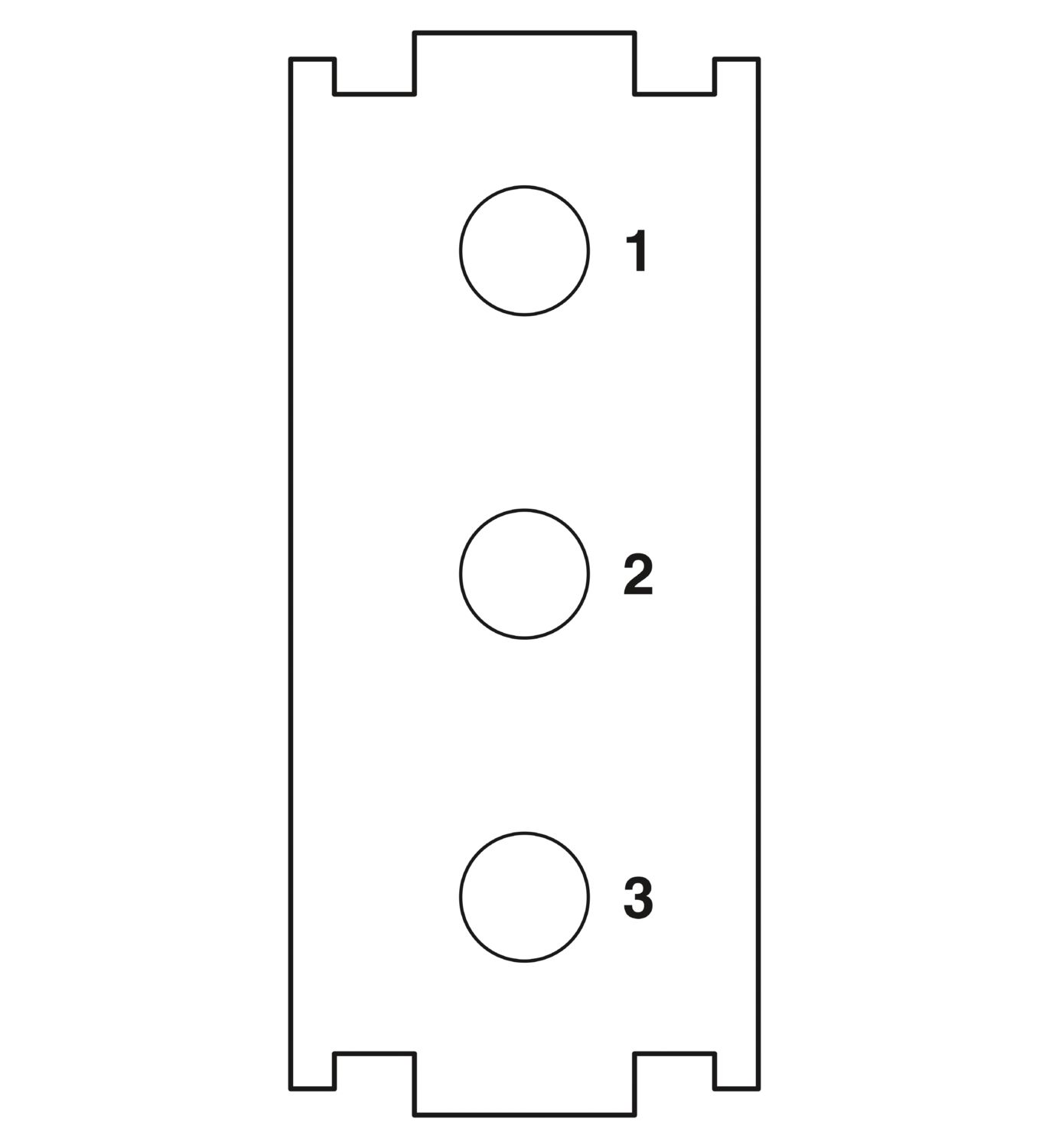

Number of positions	3
Connection profile	3
Number of module slots	1
No. of power contacts	3
No. of control contacts	0
Contact material type	rolled
Insulation characteristics
Overvoltage category	III
Degree of pollution	3

Connection technology

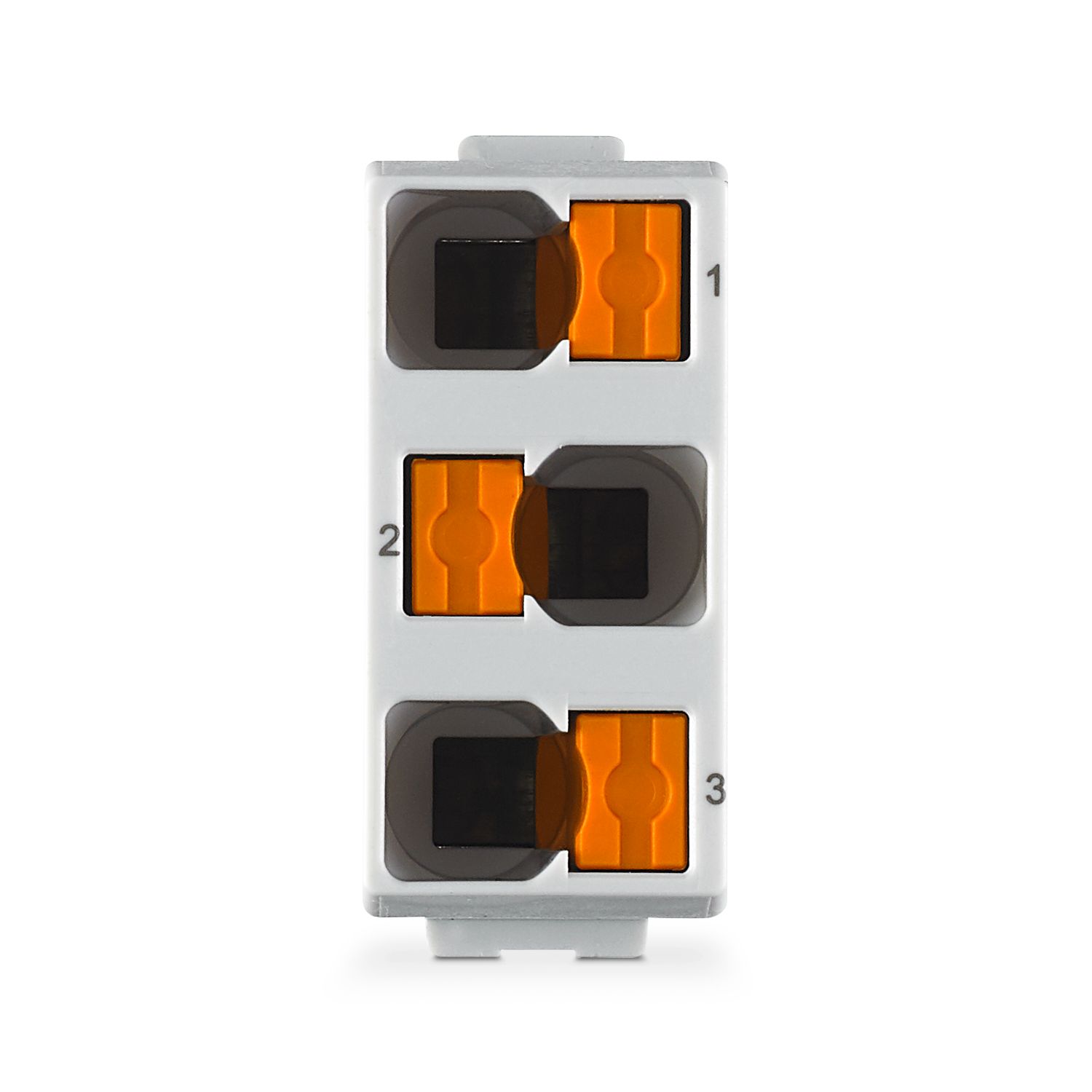

Connection technology	Push-in connection
Connection in acc. with standard	IEC / EN
Conductor connection
Conductor cross section	2.5 mm² ... 6 mm²
Connection cross section AWG	14 ... 10
Stripping length of the individual wire	12 mm

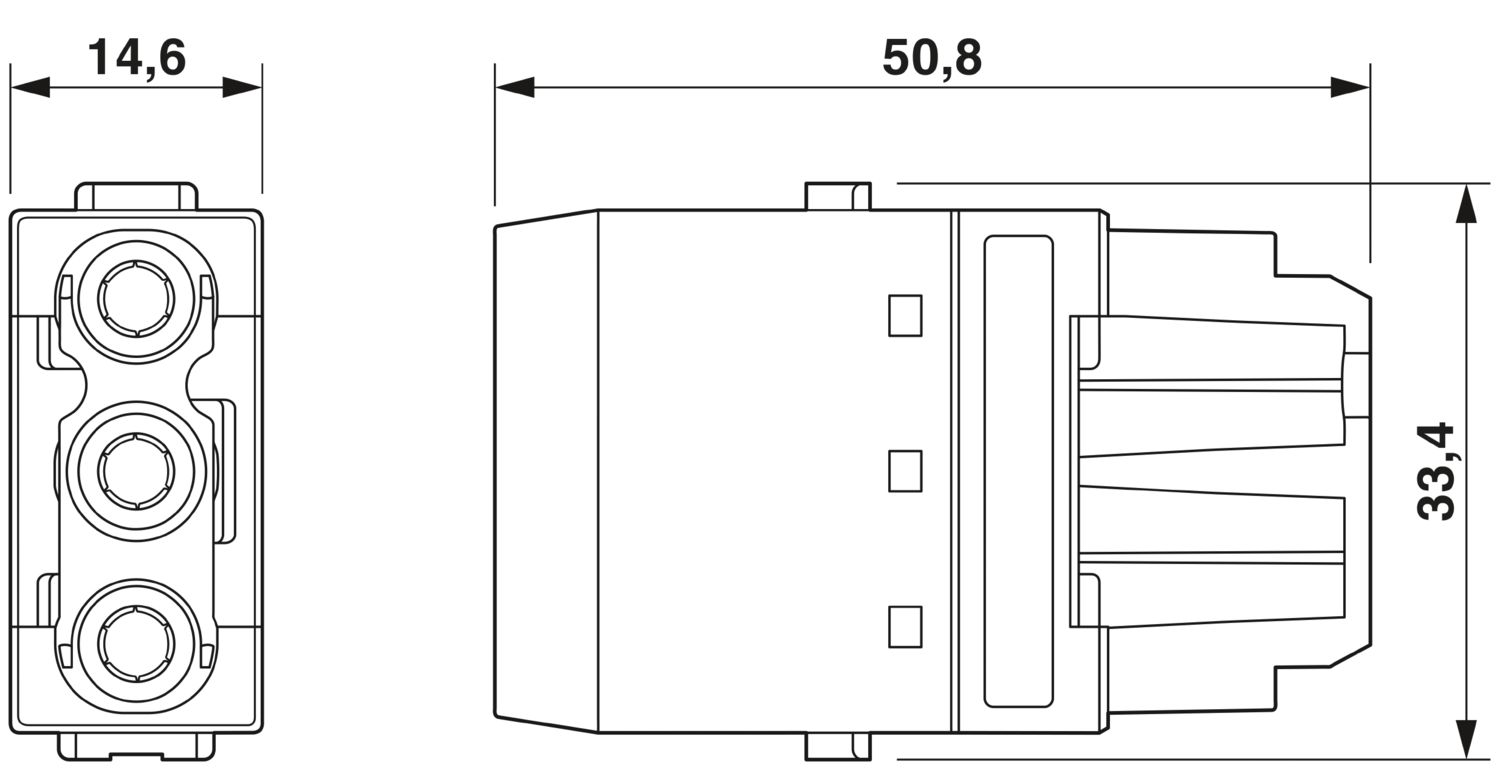

Mechanical characteristics
Minimum housing height	72 mm
Contact diameter	4 mm

Rated voltage (III/2) contacts	1000 V
Rated voltage (III/3)	690 V
Rated surge voltage (III/2)	8 kV
Rated surge voltage (III/3)	6 kV
Rated surge voltage	6 kV

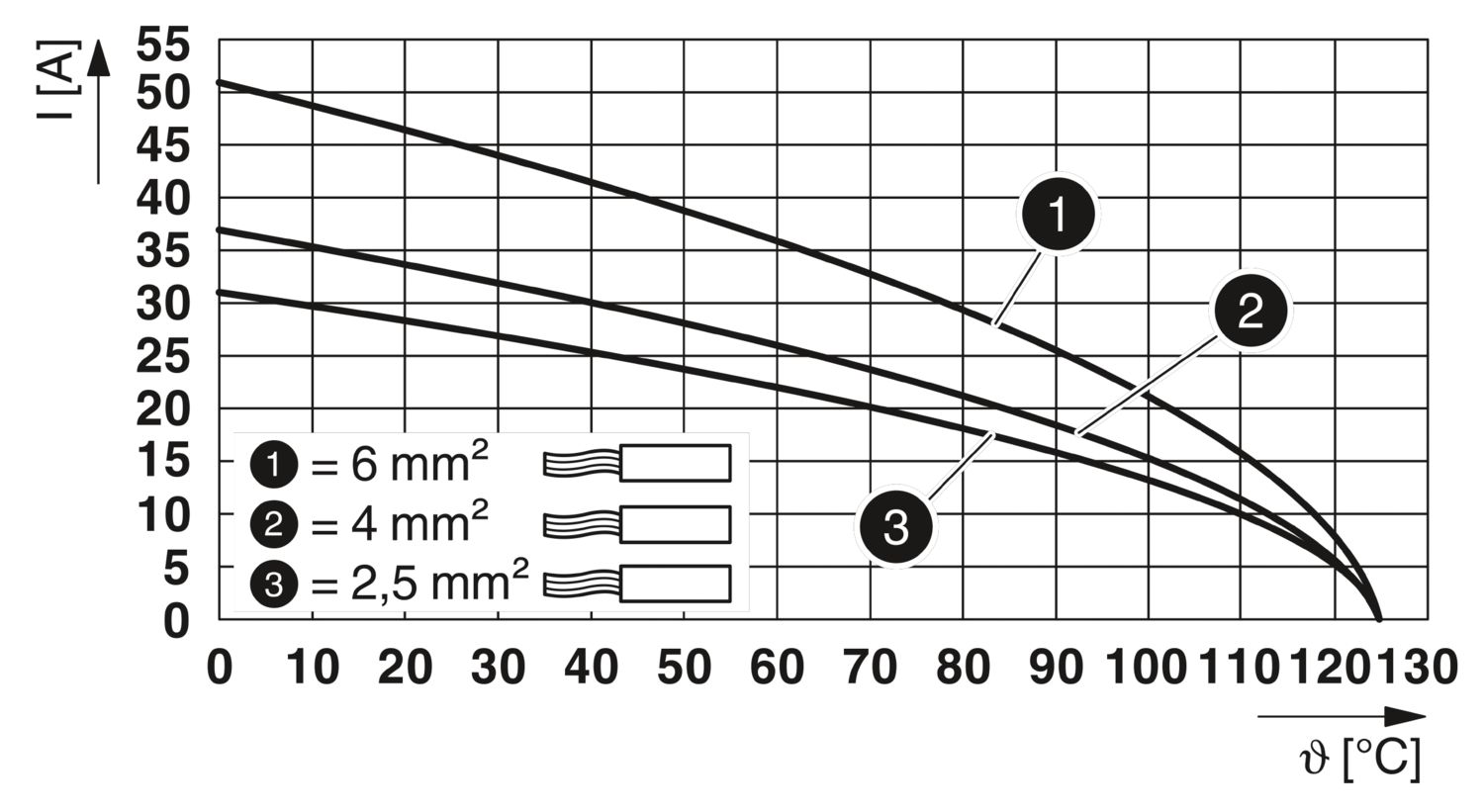

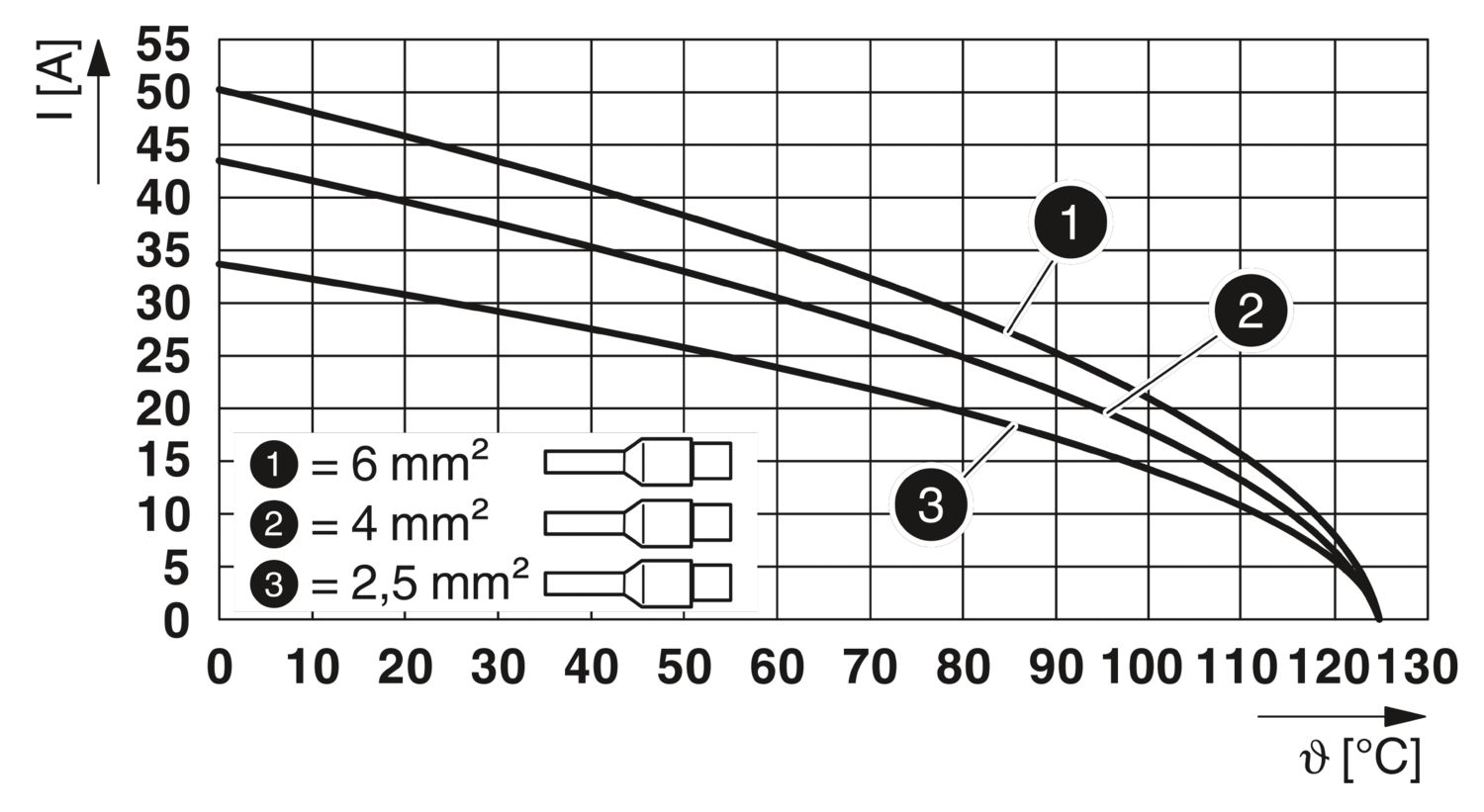

Rated current	40 A

Mechanical data
Insertion/withdrawal cycles	≥ 500

Flammability rating according to UL 94	V0
Contact material	Copper alloy
Contact surface material	Ag
Contact carrier material	PC
Standards/regulations	PC

Ambient conditions
Ambient temperature (operation)	-40 °C ... 125 °C

Testing
Standards/regulations	PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)

Commercial data

Item number	1424218
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	*****
Product key	AF7ACE
GTIN	4055626368696
Weight per piece (including packing)	27.9 g
Weight per piece (excluding packing)	22.22 g
Customs tariff number	85366990
Country of origin	CN

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	600 V	30 A	- 10

Environmental product compliance

Compatible products

Accessories

Your advantages

Easy installation without tools, even when mounted, with push-in connection technology

Shortest installation time compared to other connection technologies

Quick and effortless wiring, in particular when space is tight

Automatic cabling with robots possible

Safe wiring and operation with color-coded actuators

Shock and vibration-resistant in accordance with DIN EN 61373

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
