Approval ID: E468743| Nominal voltage UN | Nominal current IN | Cross section AWG | Cross section mm2 | |
|---|---|---|---|---|
| - - - |

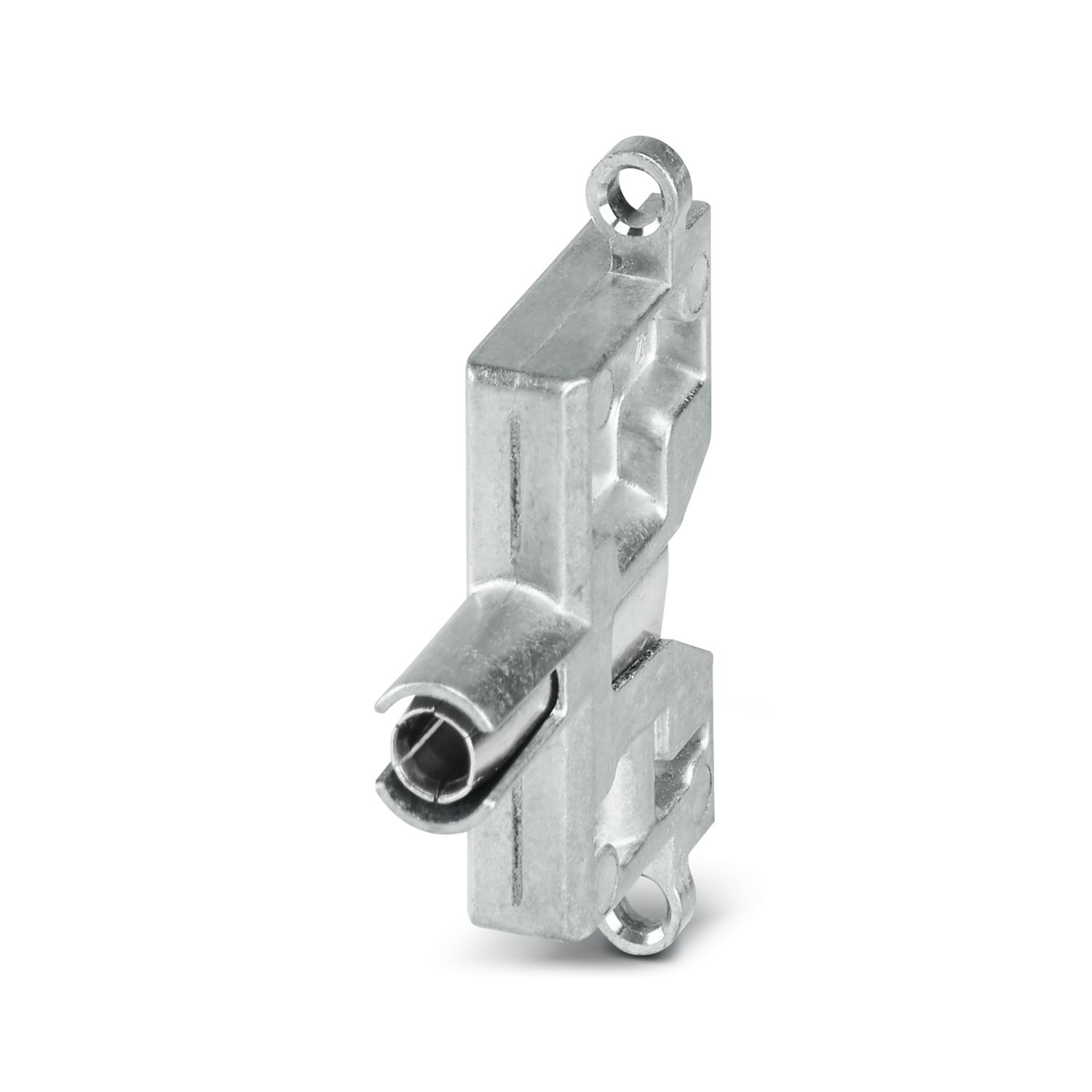

HC-1/2M-UT-F-6-PE
-
Contact insert module
1424438
Contact insert module, Socket, Screw connection, 0.5 mm2 ... 6 mm2, application: PE transmission, for housing size HC-EVO-M1
Product details

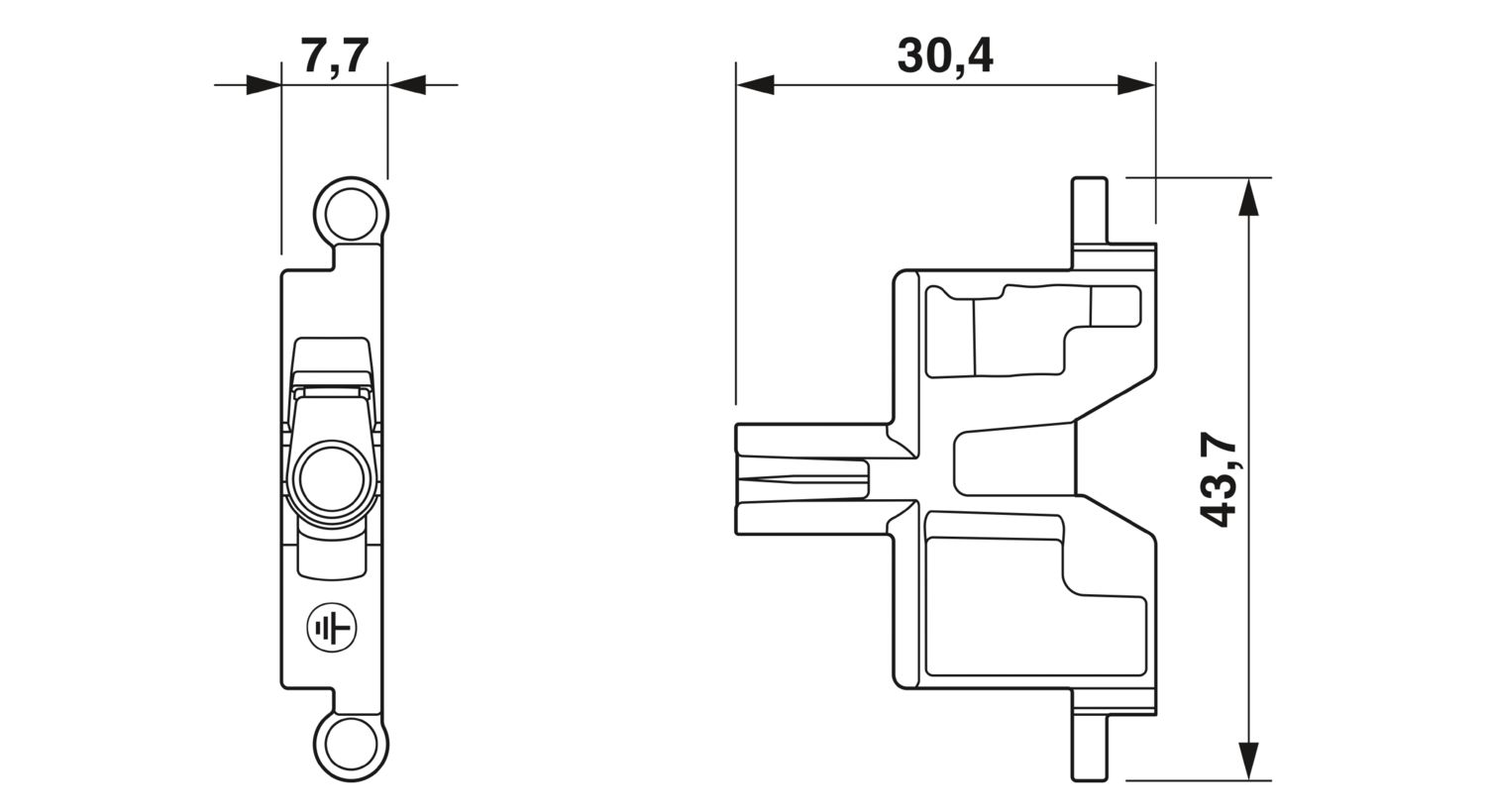

| General | For HEAVYCON housing type HC-EVO-M1 |
| General | Connectors may be operated only when there is no load/voltage. |
| Product type | Modular contact insert |
| Series | HC-EVO-M1 |
| Application | PE transmission |
| Number of positions | 1 |
| Contact material type | turned |
| Connection technology | |
| Connection technology | Screw connection |
| Conductor connection | |
| Conductor cross section | 0.5 mm² ... 6 mm² |
| Connection cross section AWG | 20 ... 10 |
| Tightening torque | 0.8 Nm ... 1.2 Nm (PE connection) |
| 0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing) | |
| Dimensional drawing |
|
| Width | 30.6 mm |
| Height | 43.7 mm |
| Length | 7.7 mm |
| Drill hole distance, horizontal | 30.6 mm |
| Mechanical characteristics | |
| Contact diameter | 4 mm |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 500 |
| Flammability rating according to UL 94 | V0 |
| Contact carrier material | Die-cast zinc alloy |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
