TC EXTENDER 6004 ETH-2S - Ethernet extender

2702255

Managed Ethernet extender, point-to-point, line and ring structures, data rates up to 30 Mbps, distances of up to 20 km on in-house copper cables, replaceable surge protection, 2 SHDSL ports, 4-port switch, diagnostics via display and Ethernet

Free download available. Downloads

Note on application
Note on application	Only for industrial use
Utilization restriction
CCCex note	Use in potentially explosive areas is not permitted in China.

Product type	Ethernet extender
MTTF	506 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
	260 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
	110 Years (SN 29500 standard, temperature 40°C, operating cycle 100%)

Functionality
Basic functions	Ethernet extenders in accordance with ITU-T G.991.2

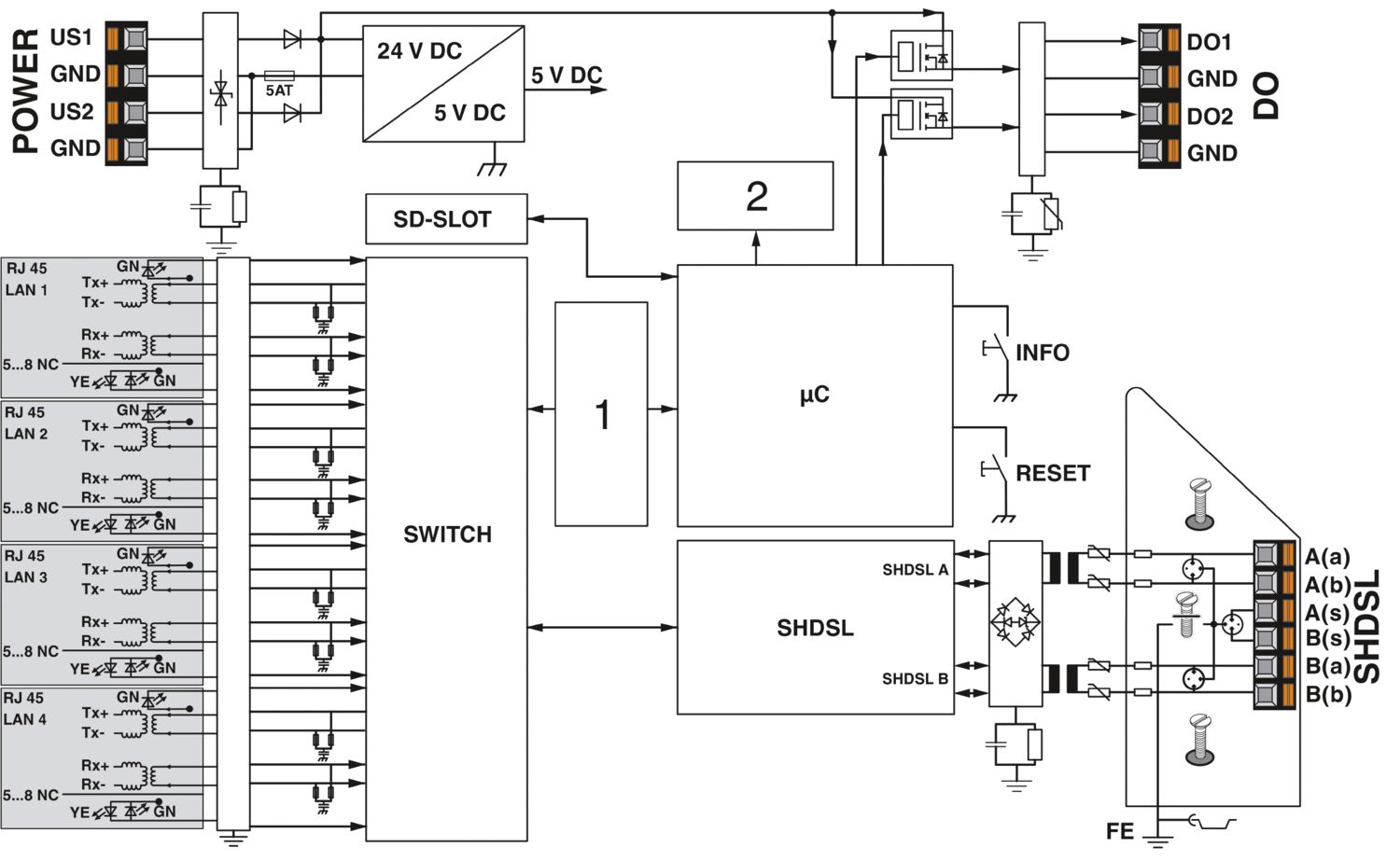

Electrical isolation	VCC // Ethernet // DSL (A) // DSL (B) // FE
Maximum power dissipation for nominal condition	4.8 W
Mains type	Permanent line
Test voltage data interface/power supply	500 V AC (In accordance with EN/IEC 60079-7, observe the limitations in the specific conditions of use.)
	1.5 kV AC (50 Hz, 1 min.)
Supply

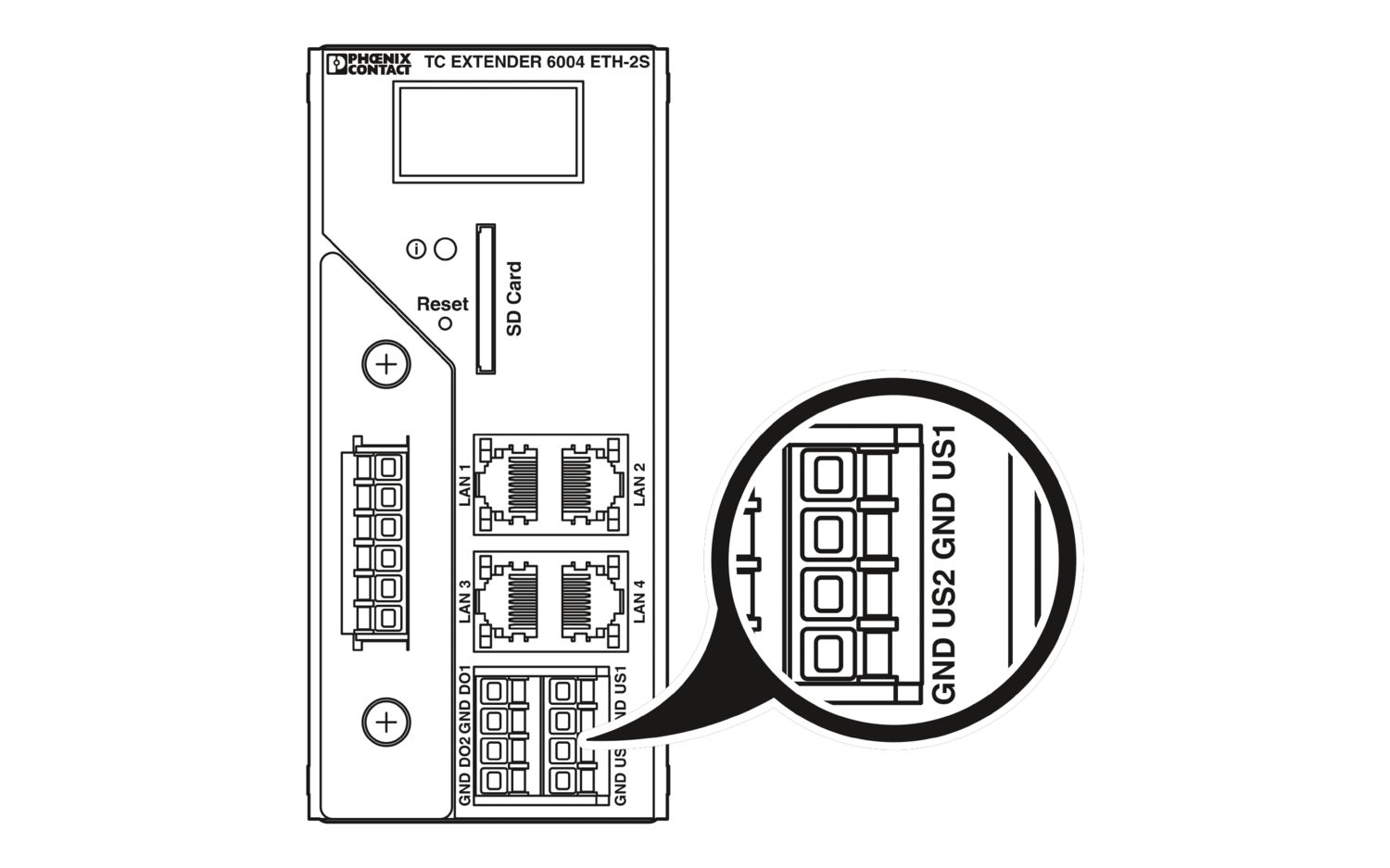

Supply voltage range	10 V DC ... 60 V DC
Nominal supply voltage	24 V DC ±5 %
Typical current consumption	200 mA (24 V DC)
	90 mA (60 V DC)
	450 mA (10 V DC)
Function

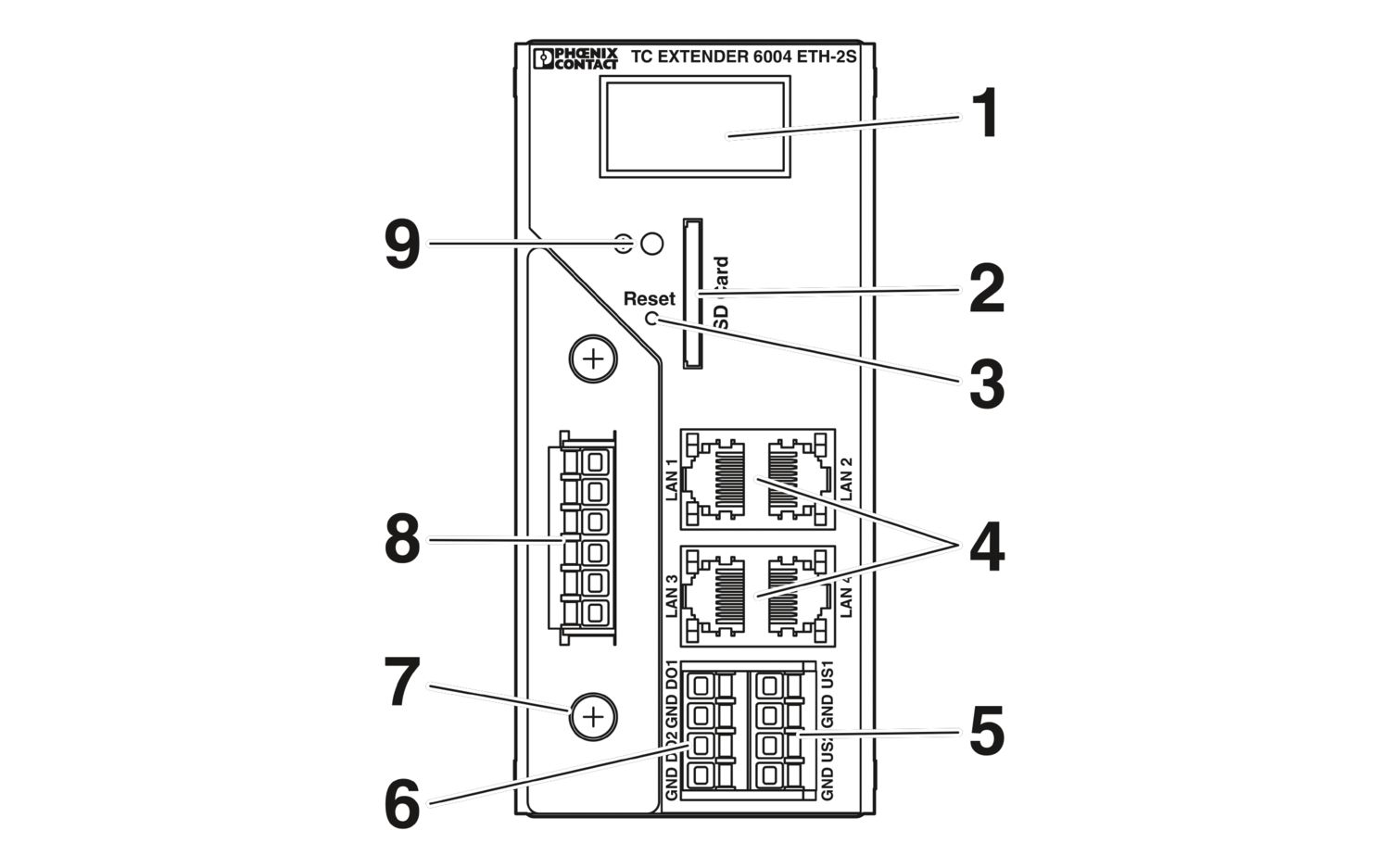

Status and diagnostic indicators	Display for warning, status and device information

Signal

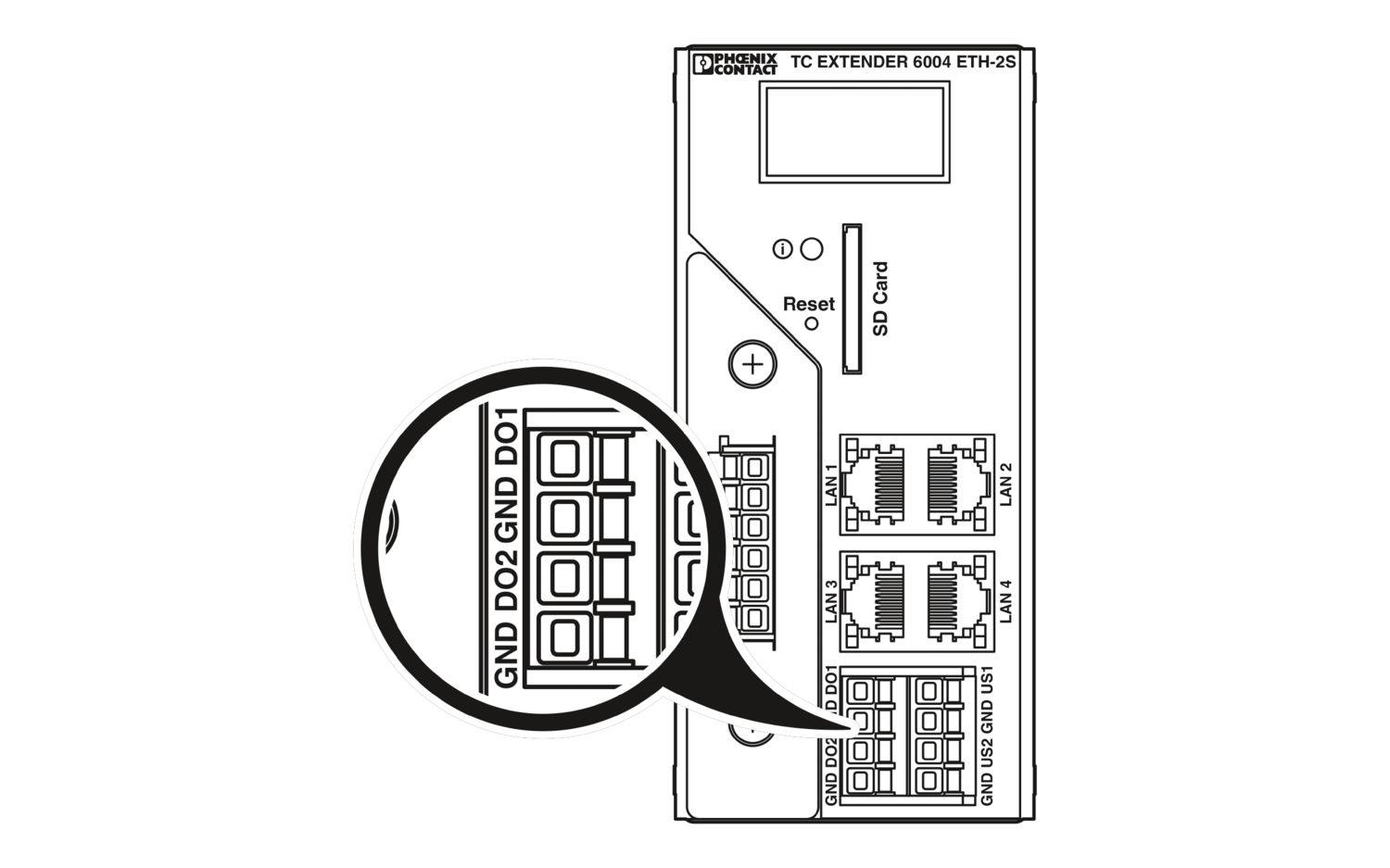

Output name	Digital output
Number of outputs	2
Voltage output signal	10 V DC ... 60 V DC (24 V DC, depending on the operating voltage)
Current output signal	≤ 500 mA (Short-circuit-proof)

Supply
Connection method	Push-in spring connection

Signal	Ethernet
Web server	yes
Basic functions	Ethernet extenders in accordance with ITU-T G.991.2
Data: Ethernet interface, 10/100Base-T(X) in accordance with IEEE 802.3
Serial transmission speed	10/100 Mbps, auto negotiation
Connection method	RJ45 jack, shielded
	4 ports 10/100BaseT(X), auto negotiation and autocrossing
No. of channels	4
Transmission length	< 100 m (shielded twisted pair)
Protocols supported	IPv4, IPv6, TCP/IP, HTTP, HTTPS
Auxiliary protocols	ARP, DHCP (Client), PING, SNMP
Data: SHDSL interface according to ITU-T G.991.2.bis
Serial transmission speed	4-wire operation: 64 kbps ... 30 Mbps
	2-wire operation: 32 kbps ... 15.3 Mbps
Connection method	Push-in spring connection
No. of channels	2 (2-wire operation)
Transmission length	< 20 km (Depending on data rate and cable cross section)
Single conductor/terminal point, rigid	0.2 mm² ... 1.5 mm²
Single-wire/terminal point, flexible	0.2 mm² ... 2.5 mm²
Single-wire/terminal point, rigid AWG max.	16
Single-wire/terminal point, rigid AWG min.	24

Width	60 mm
Height	130 mm
Depth	160 mm

Material (Housing)	Aluminum
	Sheet steel DC01

Vibration resistance in accordance with EN 60068-2-6/IEC 60068-2-6	: 5g, 10...150 Hz, 2.5 h, in XYZ direction
Shock in accordance with EN 60068-2-27/IEC 60068-2-27	: 15g

Ambient conditions
Degree of protection	IP20
Ambient temperature (operation)	-25 °C ... 60 °C
	-25 °C ... 0 °C (Display inactivity can occur, image changes may take several seconds)
	55 °C ... 60 °C (Display contrast can deteriorate)
Ambient temperature (storage/transport)	-40 °C ... 85 °C
Altitude	≤ 2500 m (For restrictions, see the manufacturer's declaration for altitude operation)
Max. permissible relative humidity (operation)	< 60 % (At an ambient operating temperature >70 °C)
Permissible humidity (operation)	10 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)	10 % ... 95 % (non-condensing)

CE
Certificate	CE-compliant
ATEX
Identification	 II 3 G Ex ec IIC T4 Gc
Certificate	PxCIF16ATEX2702253X
Note	Please follow the special installation instructions in the documentation!
UKEX
Identification	 II 3 G Ex ec IIC T4 Gc
Certificate	PxCIMA22UKEX2702253X
UL, USA/Canada
Identification	508 Listed
Corrosive gas test
Identification	ISA-S71.04-1985 G3 Harsh Group A

Electromagnetic compatibility	Conformance with EMC Directive 2014/30/EU
Electrostatic discharge
Standards/regulations	EN 61000-4-2
Electrostatic discharge
Contact discharge	± 6 kV
Discharge in air	± 8 kV
Indirect discharge	± 6 kV
Comments	Criterion B
Electromagnetic HF field
Standards/regulations	EN 61000-4-3
Electromagnetic HF field
Frequency range	80 MHz ... 3 GHz
Field intensity	10 V/m
Comments	Criterion A
Fast transients (burst)
Standards/regulations	EN 61000-4-4
Fast transients (burst)
Input	± 2 kV
Signal	± 2 kV
Comments	Criterion B
Surge current load (surge)
Standards/regulations	EN 61000-4-5
Surge current load (surge)
Input	± 0.5 kV (Symmetrical, unshielded supply line)
	± 1 kV (Asymmetrical, unshielded supply line)
Output	± 1 kV (asymmetrical, unshielded)
Signal	± 1 kV (asymmetrical, shielded Ethernet cable)
	± 4 kV (asymmetrical: line to ground, unshielded SHDSL cable)
	± 2 kV (symmetrical: line to line, unshielded SHDSL cable)
Comments	Criterion B
Conducted interference
Standards/regulations	EN 61000-4-6
Conducted interference
Frequency range	0.15 MHz ... 80 MHz
Comments	Criterion A
Voltage	10 V
Emitted interference
Standards/regulations	EN 55011
Comments	Class A, industrial applications
Criteria
Criterion A	Normal operating behavior within the specified limits.
Criterion B	Temporary impairment to operational behavior that is corrected by the device itself.

Standards/regulations	EN 50121-4

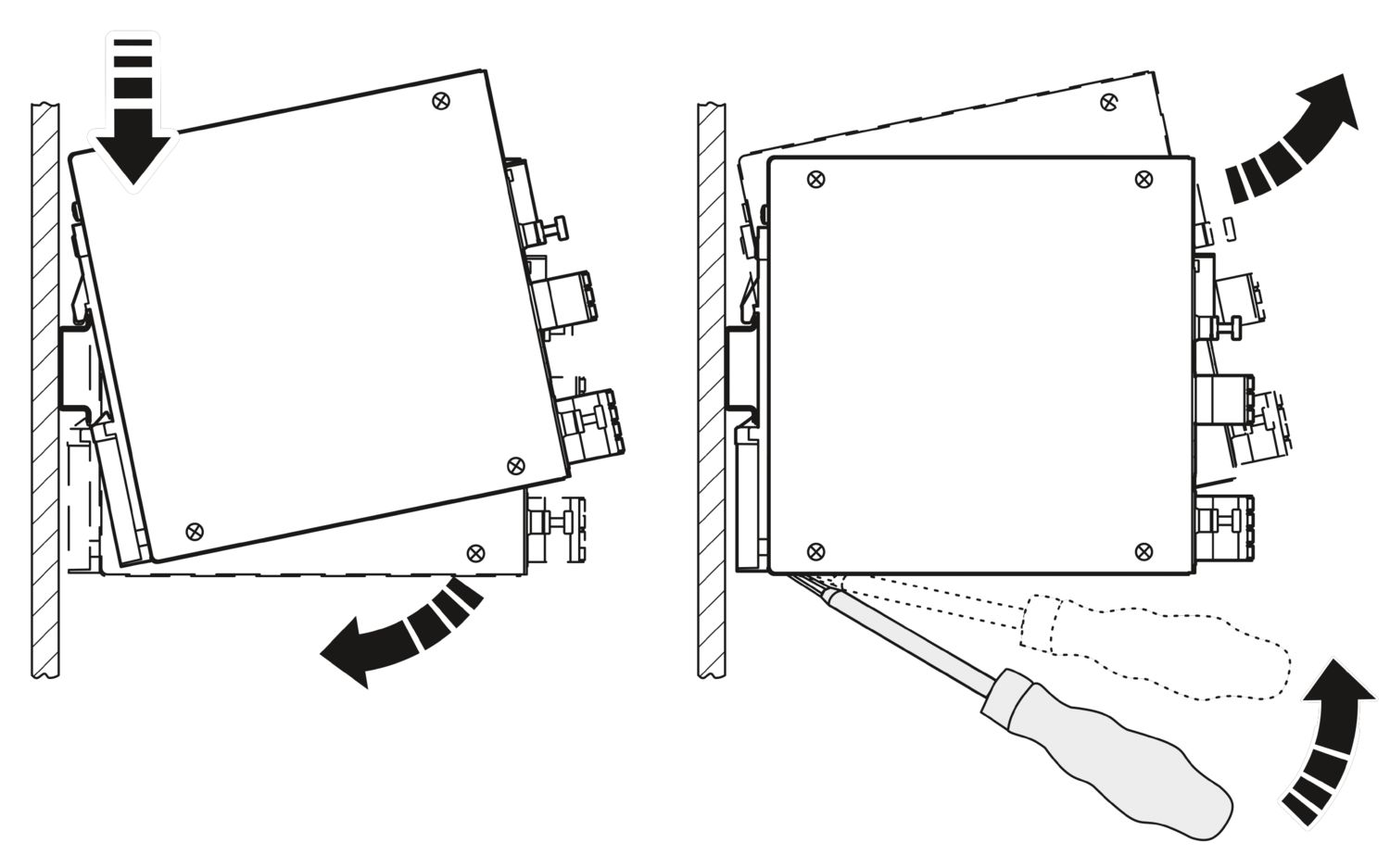

Mounting type	DIN rail: 35 mm
Assembly note	The product can be snapped onto all 35 mm DIN rails in accordance with EN 60715.

Item number	2702255
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	*****
Product key	DNC442
Catalog page	Page 349 (C-6-2019)
GTIN	4055626055541
Weight per piece (including packing)	800 g
Weight per piece (excluding packing)	766 g
Customs tariff number	85176200
Country of origin	DE

Compatible products

Accessories

Your advantages

Distances up to 20 km

Up to 15.3 Mbps in 2-wire operation

Up to 30 Mbps in 4-wire operation

Robust modulation method (SHDSL)

Automatic topology and data rate detection

Transparent transmission of all standard Ethernet protocols, including EtherNet/IP™, Modbus/TCP, PROFINET, PROFIsafe, EtherCAT®, KNX, BACnet/IP

Network transparent (no IP configuration required)

Automatic detection of network cable type (auto MDI(X))

Easy startup, plug and play

2 digital outputs for alerting external controllers

Remote diagnostics via IP and automatic event messages via SNMP

Use in point-to-point, line, and ring topologies with managed and unmanaged Ethernet extenders

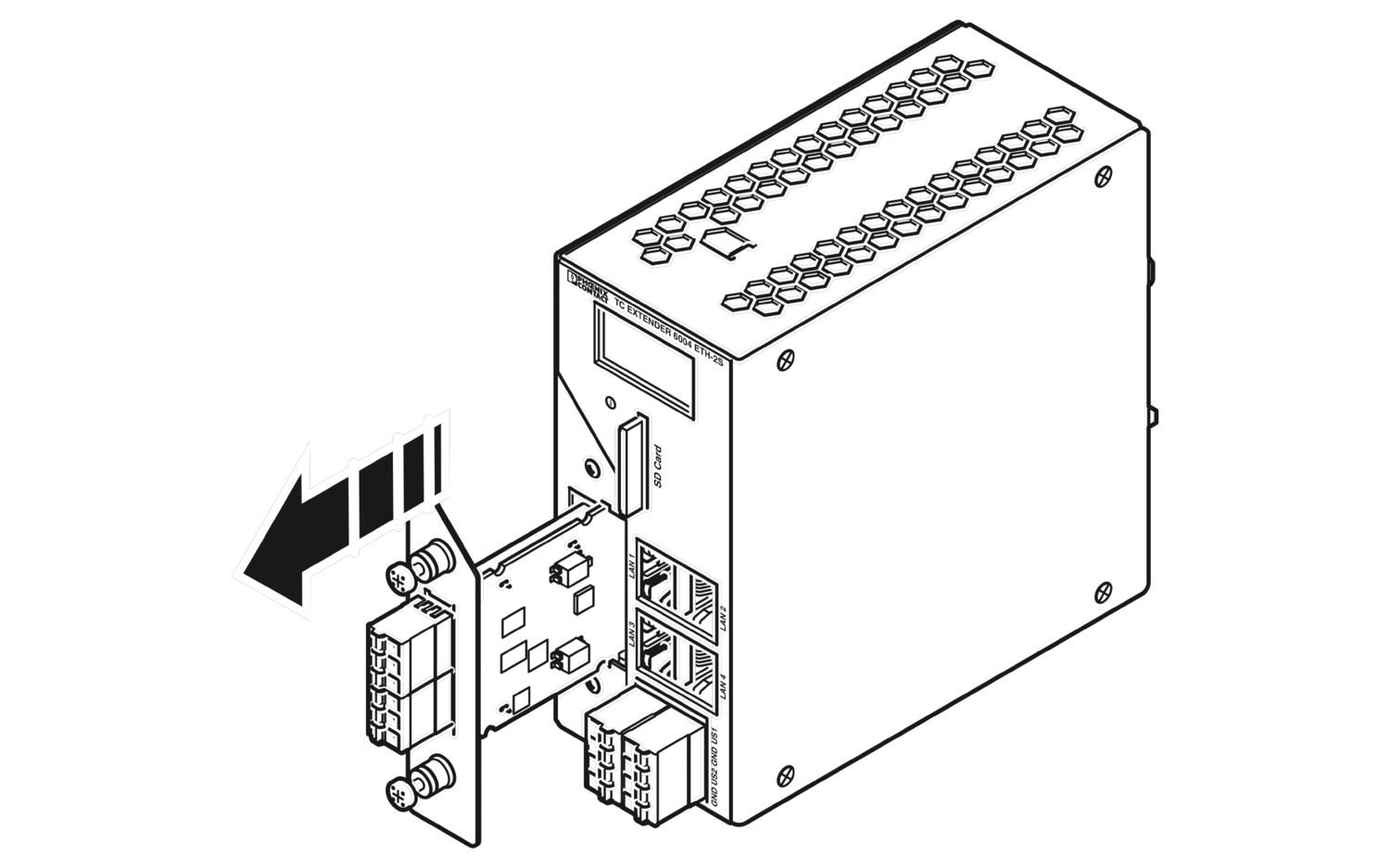

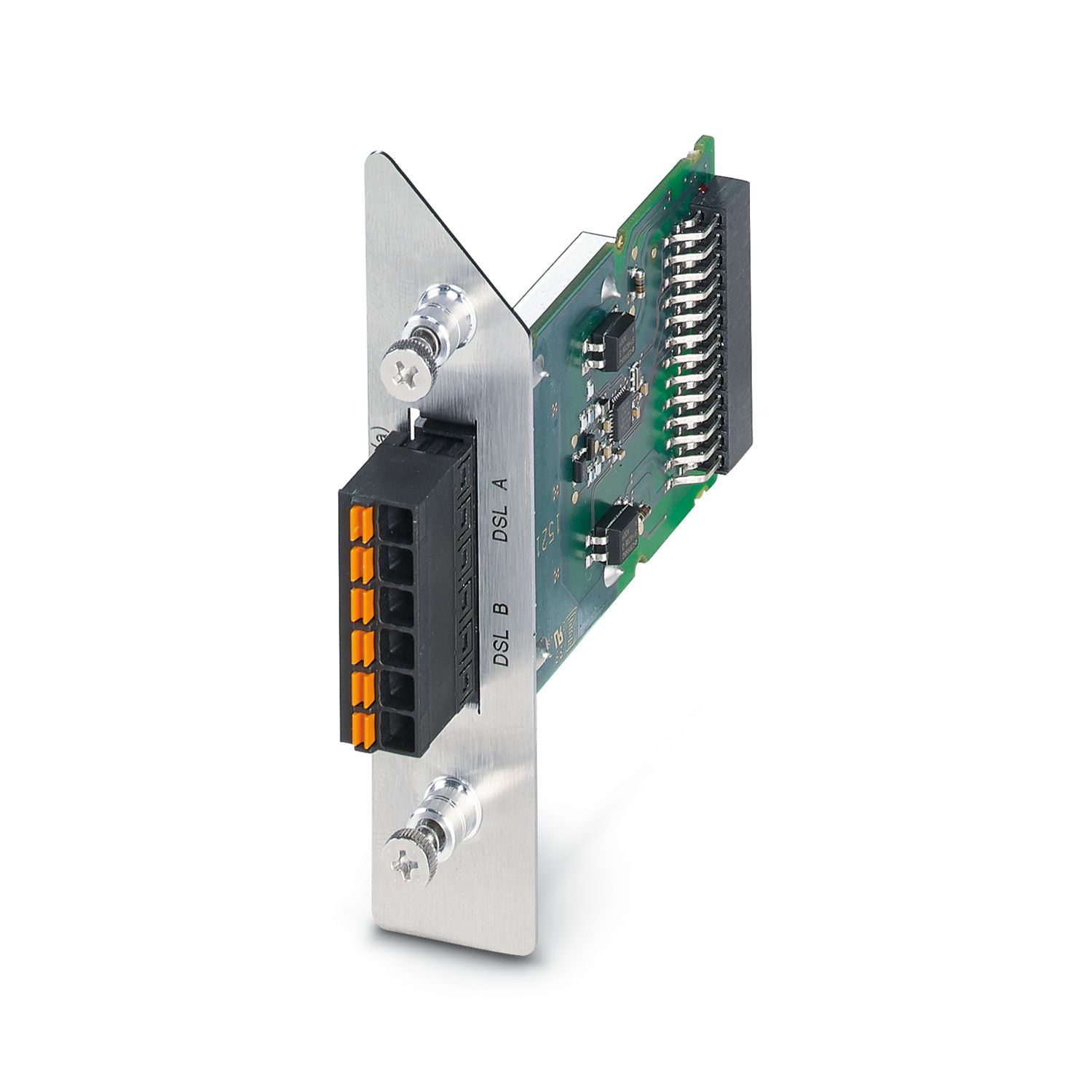

Integrated surge protection of the SHDSL interface

Virtually separate critical IP networks with VLAN

Increase availability through RSTP redundancy

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(c), 7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
REACH candidate substance (CAS No.)		2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol (CAS: 79-94-7)
SCIP	6d3f7619-f145-402c-80f9-7033bb3ff389
