HC-HPR-B24-BFH-EMR-BK
-
Housing
1411055

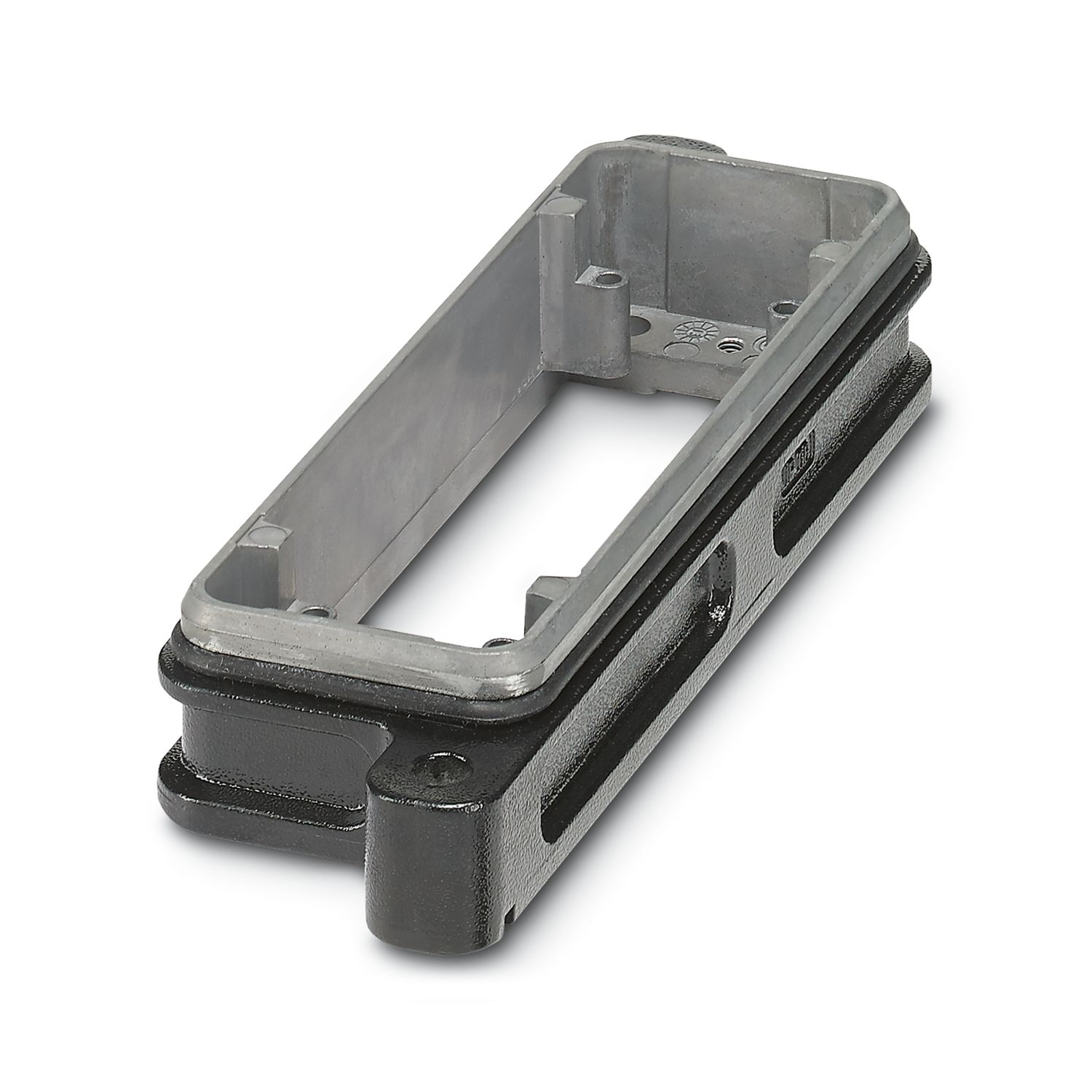

HEAVYCON B24 panel mounting base, HPR series, for screw locking, for increased environmental and EMC requirements
Product details
| General | For contact inserts HC-B24, BB46, BBB64, D64, DD108, M |
| Product type | Housing with screw locking |
| Housing type | Panel mounting base |
| Product family | HC-HPR-B |
| Series | HPR-B24 |
| Application | Railway applications |
| Type | B24 |
| Protective cover | no |
| Pg screw connection | none |
| Tightening torque | 4 Nm (Locking screw) |

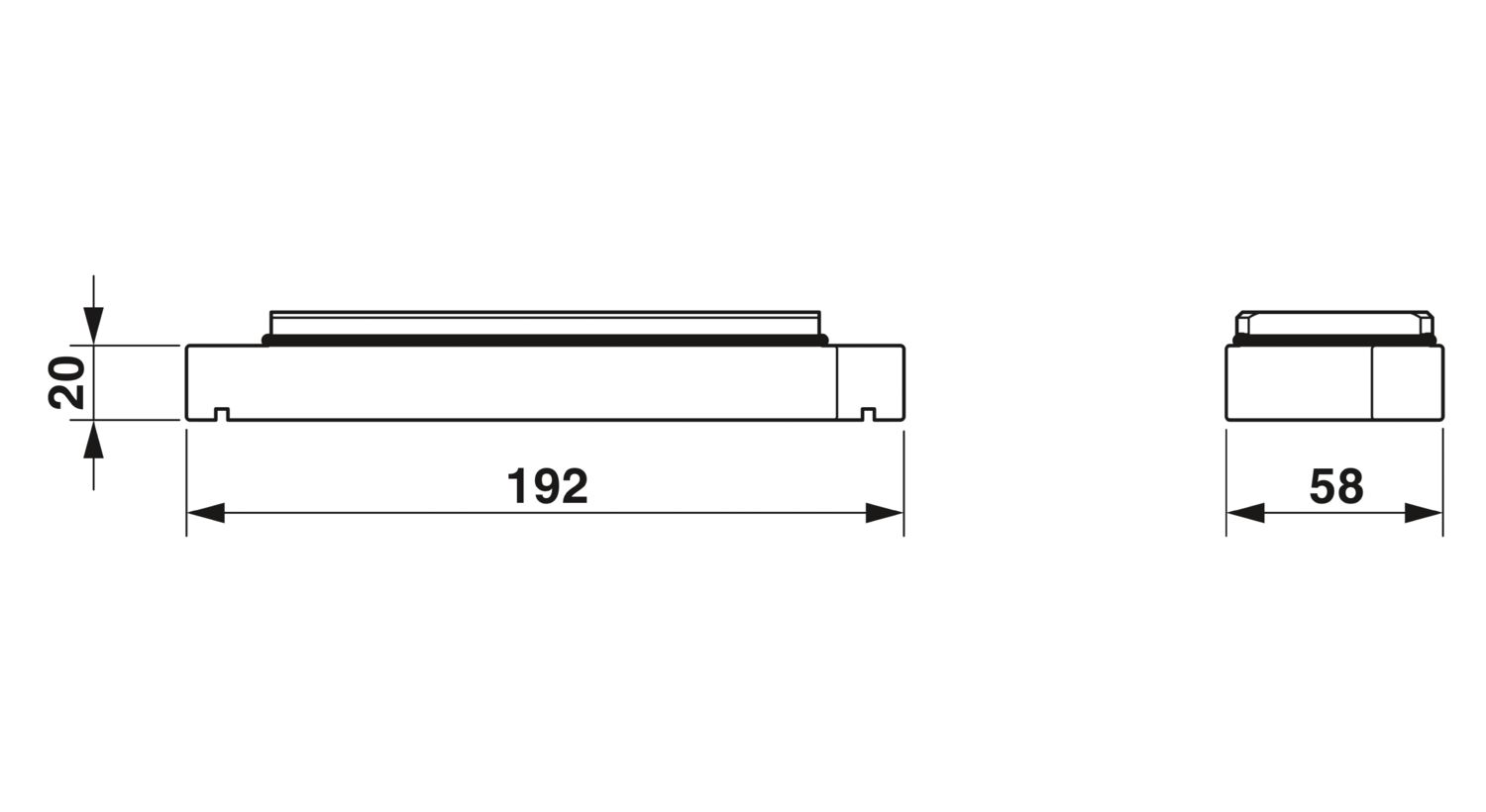

| Dimensional drawing |
|
| Width | 58 mm |
| Height | 20 mm |
| Length | 192 mm |
| Drill hole distance, horizontal | 130 mm |
| Drill hole distance, vertical | 32 mm |
| Hole diameter | 6.5 mm |
| Installation dimensions | |
| Width of the assembly cutout | 35 mm |
| Length of the assembly cutout | 108 mm |
| Seal material | NBR |
| Housing material | Die-cast aluminum |
| Housing surface material | Powder-coated, black |
| Locking latch material | Stainless steel |
| Material of locking screw | Stainless steel |
| Ambient conditions | |
| Degree of protection | IP66 |
| IP68 (0.5 bar / 24 h) | |
| IP69 (ISO 20653:2013-02) | |
| Impact strength | IK09 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Mechanical data | |
| Locking type | Nut |
Your advantages
Vibration and shock: IEC 61373/EN 50155, category 1, class 1B
