HC-STA-D07-CHWSCM-1TGM20-PL-BK
-
Housing
1419263

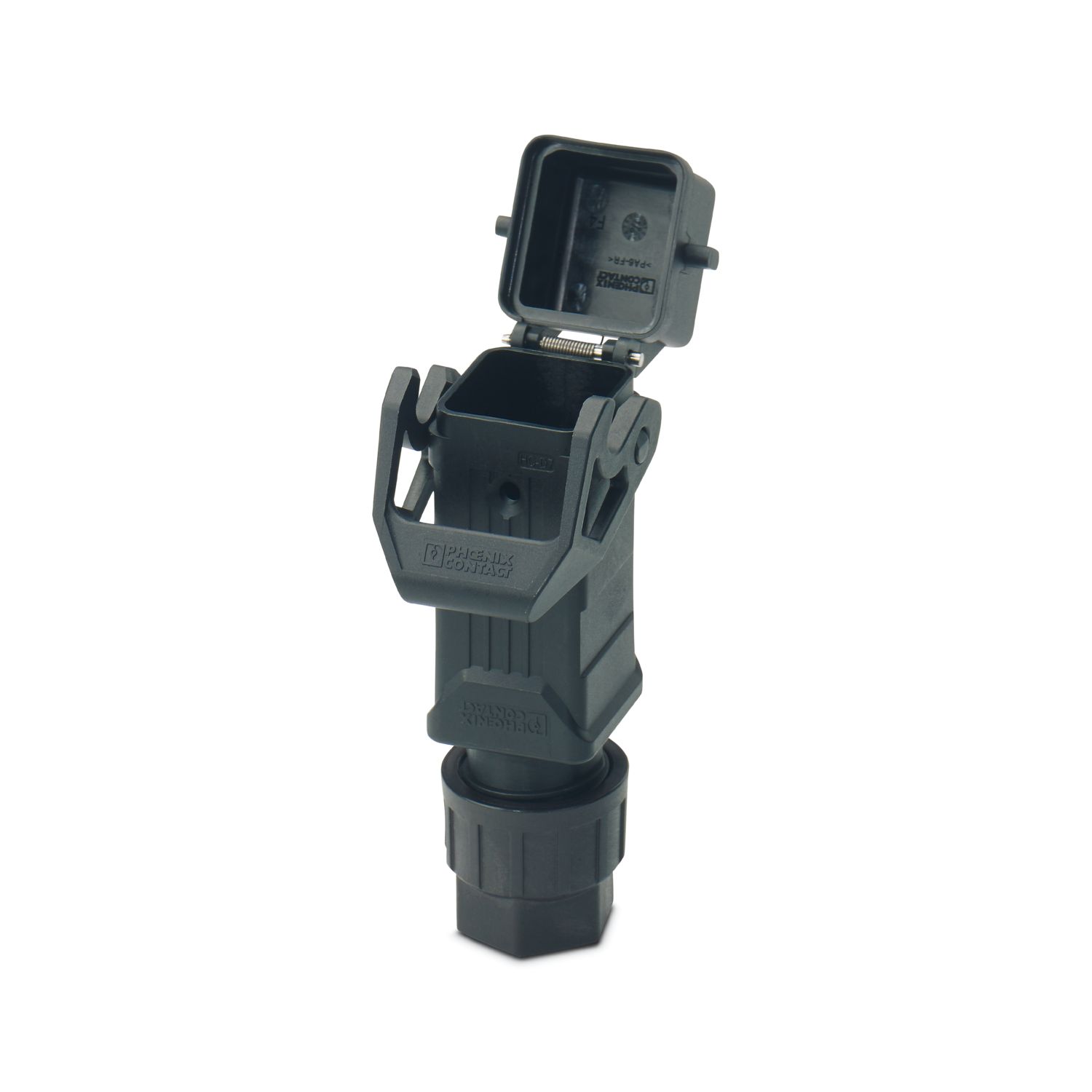

Coupling housings D7, with single locking latch, material: PA, protective cover material: PA, cable outlets: 1, straight, M20, height: 60.5 mm, cable gland: with, protective cover: yes, Standard, for pin inserts
Product details
| General | for contact inserts HC-A03, A04, D07, D08, Q02, Q03, Q04, Q05, Q07, Q12 |
| Product type | Housing with locking latch |
| Housing type | Coupling housings |
| Product family | HC-STA-D07 |
| Application | Standard |
| Type | D7 |
| No. of cable outlets | 1 |
| Type of the screw connection | M20 |
| Protective cover | yes |
| Shielded | no |
| Cable outlet | straight |
| Pg screw connection | with |
| Dimensional drawing |
|
| Width | 26.5 mm |
| Height | 60.5 mm |
| Length | 26.5 mm |
| Flammability rating according to UL 94 | V0 (Housing) |
| V0 (Interlock) | |
| V0 (Protective cover) | |
| Housing material | PA |
| Material, protective cover | PA |
| Locking latch material | PA |
| Mechanical data | |
| Type of the screw connection | M20 |
| Locking type | Latch |
| External cable diameter | 4 mm ... 10 mm |
| External cable diameter | 4 mm ... 10 mm |
| Ambient conditions | |
| Degree of protection | IP66 (when plugged in or with locked protective cover) |
| Enclosure rating (NEMA) | 4 (UL) |
| 4X (UL) | |
| Impact strength | IK06 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
