HC-COM-HHFS-1TTM25-EL-AL
-
Housing
1078590

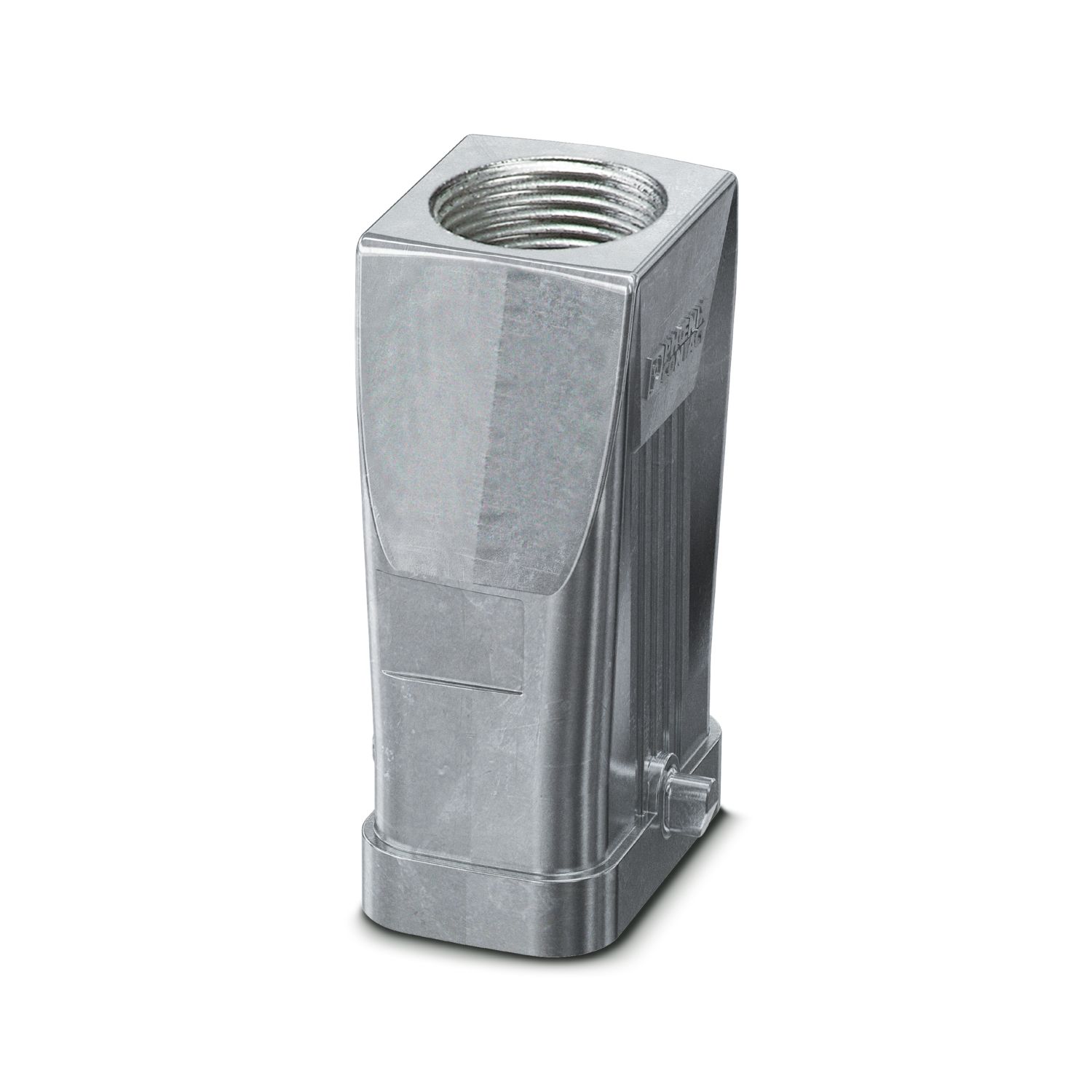

Sleeve housing COM, for single locking latch, material: Die-cast aluminum, salt water resistant, cable outlets: 1, straight, 1x M25, height: 68 mm, cable gland: none, Standard
Product details
| Product type | Housing with locking latch |
| Housing type | Sleeve housing |
| Product family | HC-COM |
| Application | Standard |
| Type | COM |
| No. of cable outlets | 1 |
| Type of the screw connection | 1x M25 |
| Type | Tall design |
| Cable outlet | straight |
| Pg screw connection | none |

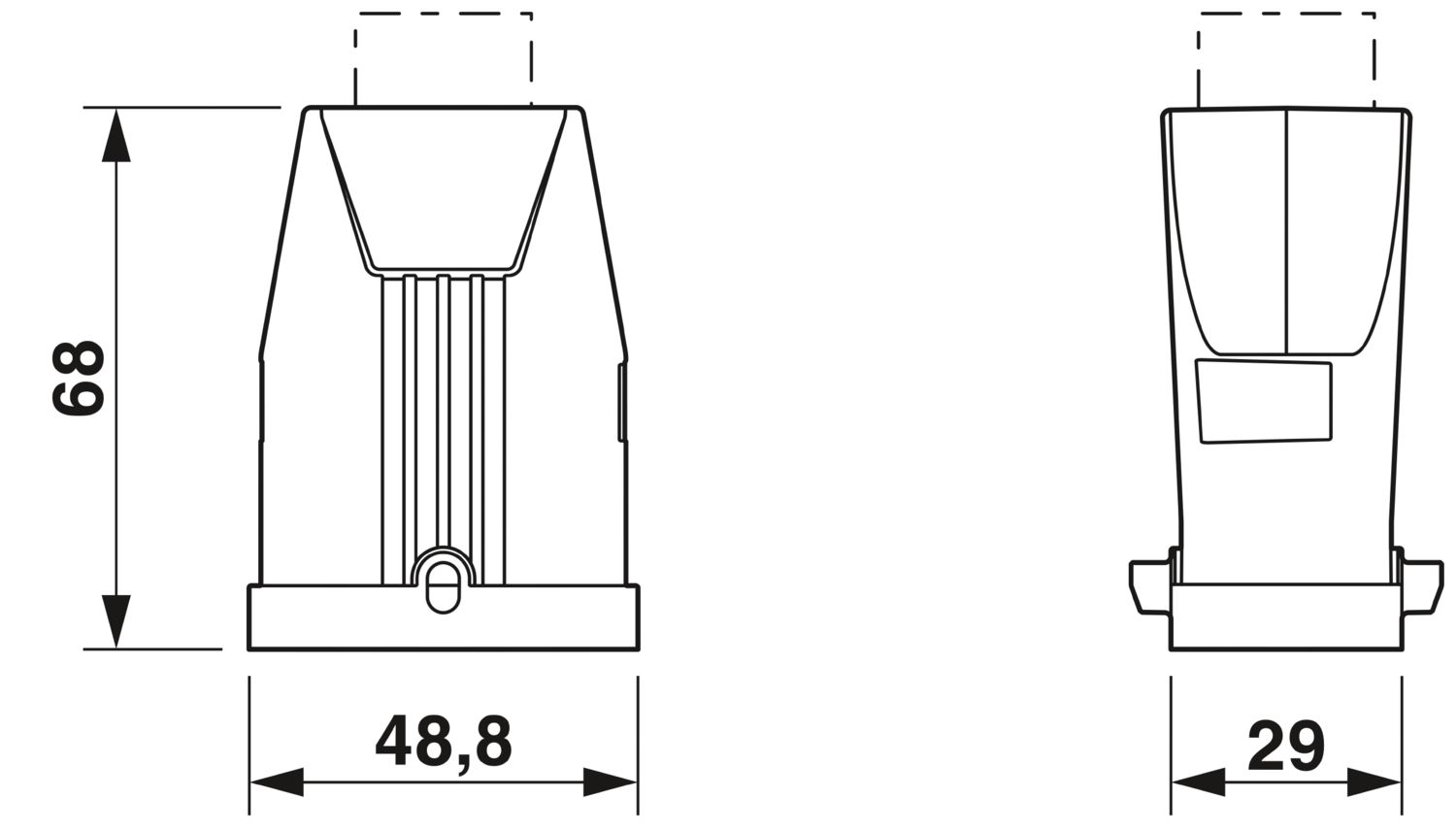

| Dimensional drawing |
|
| Width | 39 mm |
| Height | 68 mm |
| Length | 48.8 mm |
| Housing material | Die-cast aluminum, salt water resistant |
| Mechanical data | |
| Type of the screw connection | 1x M25 |
| Locking type | Pin |
| Ambient conditions | |
| Degree of protection | IP66 |
| Impact strength | IK06 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
Your advantages
Good shielding in the event of electromagnetic interference
