HC-STA-D07-BWSCM-M32-PL-BK
-
Housing
1672254

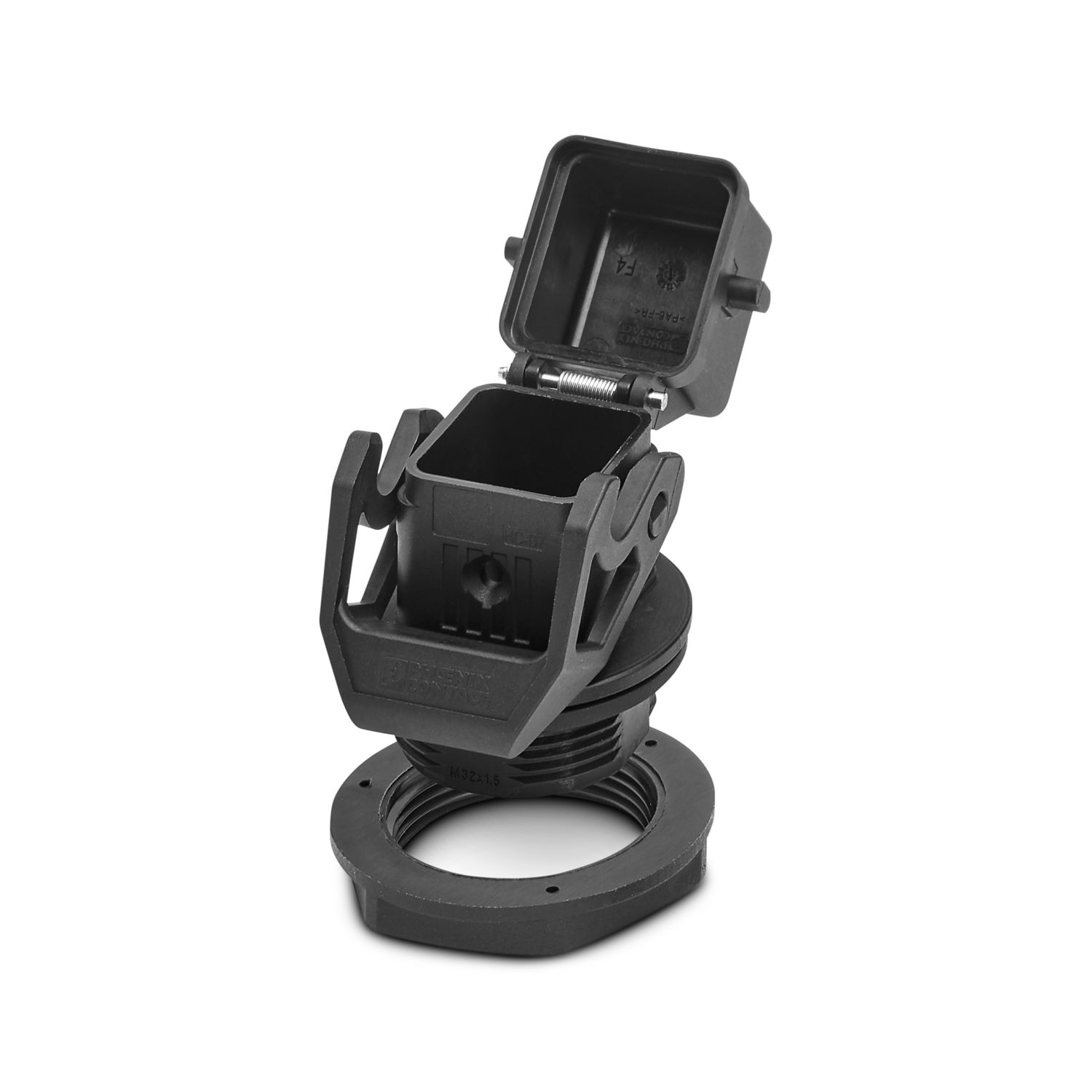

Screw-in housing D7, with single locking latch, material: PA, protective cover material: PA, height: 35.5 mm, protective cover: yes, seal: yes, Standard, for pin inserts
Product details
| General | for contact inserts HC-A03, A04, D07, D08, Q02, Q03, Q04, Q05, Q07, Q12 |
| Product type | Housing with locking latch |
| Housing type | Screw-in housing |
| Application | Standard |
| Type | D7 |
| Seal present | yes |
| Protective cover | yes |
| Shielded | no |

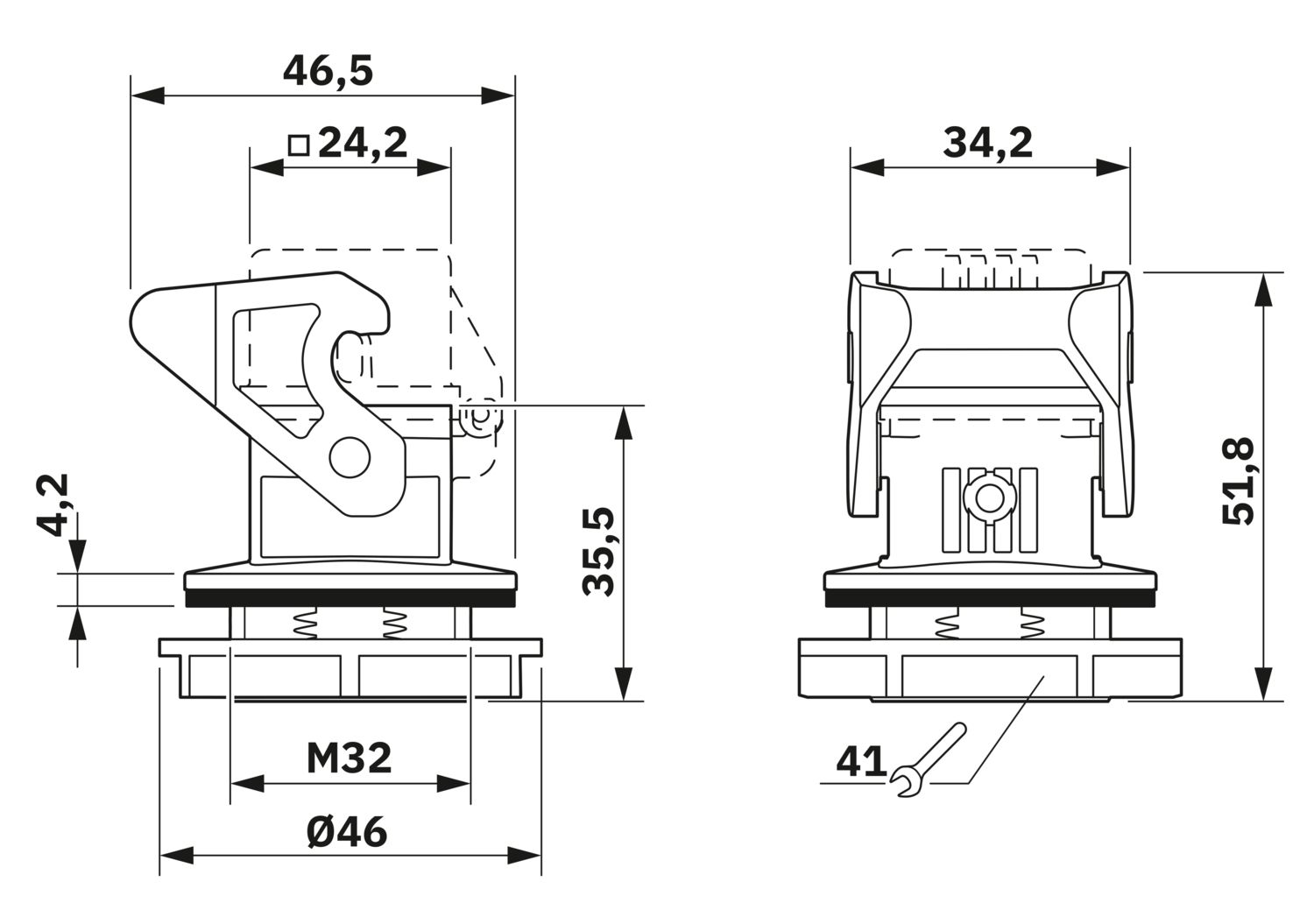

| Dimensional drawing |
|
| Height | 35.5 mm |
| Thread pitch | 1.5 mm |
| Flammability rating according to UL 94 | V0 (Housing) |
| V0 (Interlock) | |
| V0 (Protective cover) | |
| Seal material | NBR |
| Housing material | PA |
| Material, protective cover | PA |
| Locking latch material | PA |
| Mechanical data | |
| Locking type | Latch |
| Tightening torque | 5 Nm ... 7.5 Nm |
| Assembly note | For mounting pin inserts |
| To ensure anti-rotation protection of the housing, use the attached mounting cutout. Alternatively, you can use a consistently round panel cutout. However, this cutout cannot guarantee anti-rotation protection. |
| Ambient conditions | |
| Degree of protection | IP66 (when plugged in or with locked protective cover) |
| Impact strength | IK06 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
