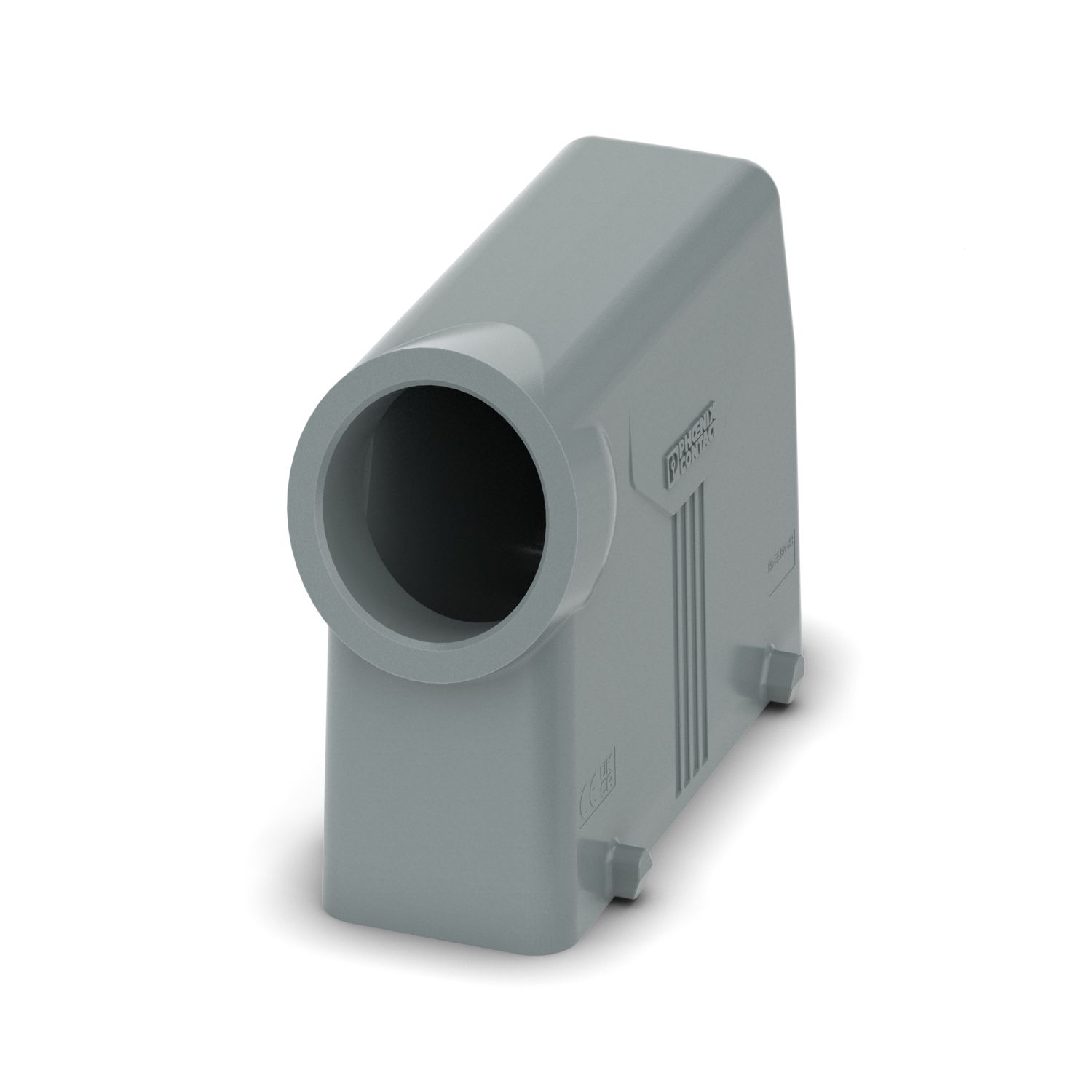

HC-EE-B24-HHFD-1STM40-PLGY - Housing

HC-EE-B24-HHFD-1STM40-PLGY - Housing

1508609

Sleeve housing B24, for double locking latch, material: PP, cable outlets: 1, lateral, 1x M40, cable gland: none, Standard

Product details

Expand all Collapse all

Technical data

Notes

General	for contact inserts HC-B24, BB46, D64, DD108, HV10/16, M

Product properties

Product type	Housing with locking latch
Housing type	Sleeve housing
Application	Standard
Type	B24
No. of cable outlets	1
Type of the screw connection	1x M40
Type	Tall design
Cable outlet	lateral
Pg screw connection	none

Material specifications

Flammability rating according to UL 94	HB (Housing)
Housing material	PP

Mechanical properties

Mechanical data
Type of the screw connection	1x M40
Locking type	Pin

Mounting

Assembly note	Not for click-in contact inserts

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP65
Impact strength	IK07
Ambient temperature (operation)	-40 °C ... 85 °C

Commercial data

Item number	1508609
Packing unit	1 pc
Minimum order quantity	1 pc
Note	Made to order (non-returnable)
Sales key	*****
Product key	AFGAPA
GTIN	4063151968663
Weight per piece (including packing)	115.6 g
Weight per piece (excluding packing)	22.22 g
Customs tariff number	85389099
Country of origin	CN

Classifications

ECLASS

ECLASS-13.0

27440202

ETIM

ETIM 9.0

EC000437

Environmental product compliance

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%

Compatible products

Expand all Collapse all

Accessories

HC-B 24-I-UT-M - Contact insert 1648296
HC-B 24-I-UT-F - Contact insert 1648306
HC-B24-HCWD-PLR-BK - Protective cover 1346552
G-INS-EE-M40-L68N-PNES-GY - Cable gland 1717896
