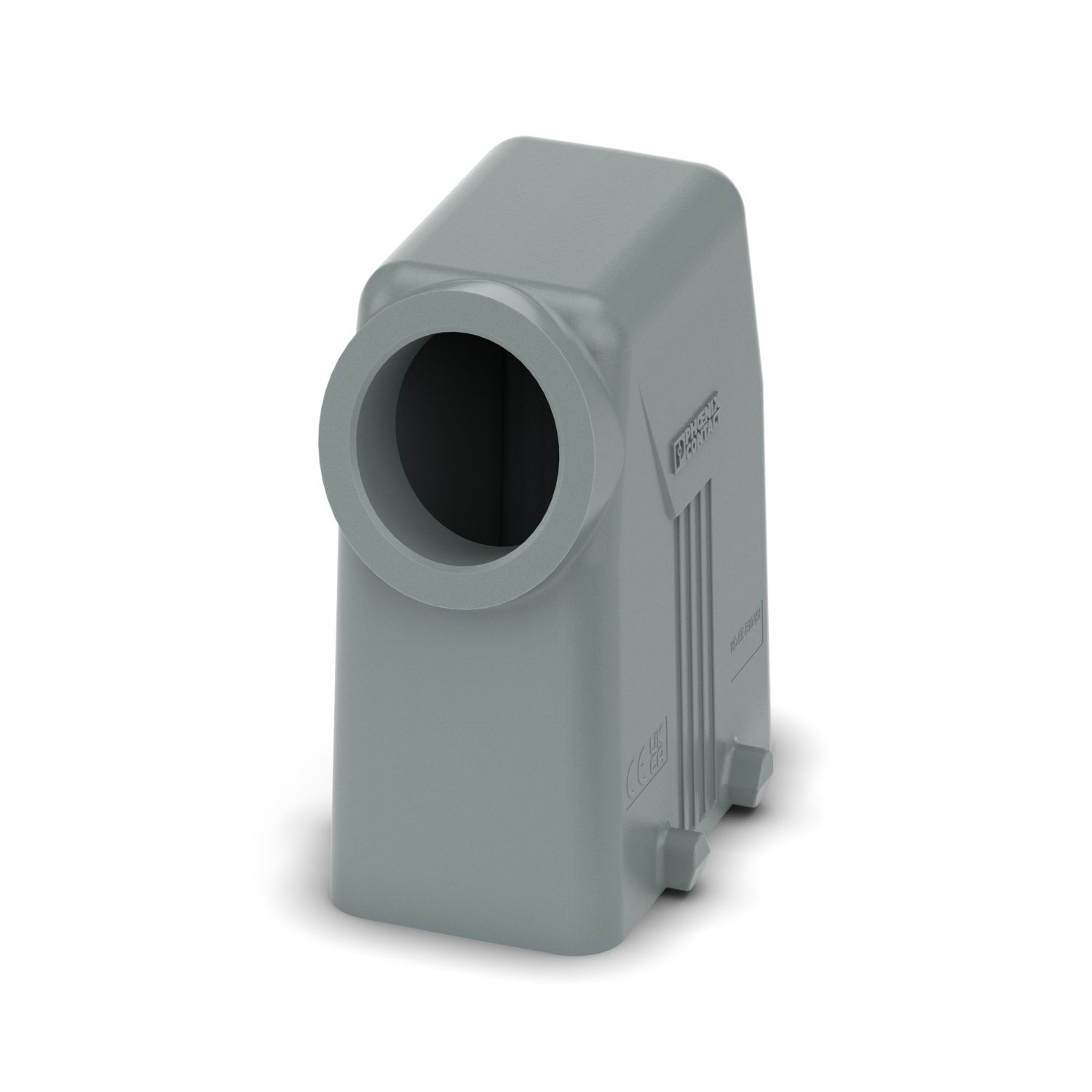

HC-EE-B10-HHFD-1STM32-PLGY - Housing
HC-EE-B10-HHFD-1STM32-PLGY
-
Housing
1508617
Product details
Expand all
Collapse all
Technical data
Notes
General
for contact inserts HC-B10, BB18, DD42, M, K8/24, HV03
Product properties
Product type
Housing with locking latch
Housing type
Sleeve housing
Application
Standard
Type
B10
No. of cable outlets
1
Type of the screw connection
1x M32
Cable outlet
lateral
Pg screw connection
none
Material specifications
Flammability rating according to UL 94
HB (Housing)
Housing material
PP
Mechanical properties
Mechanical data
Type of the screw connection
1x M32
Locking type
Pin
Mounting
Assembly note
Not for click-in contact inserts
Environmental and real-life conditions
Ambient conditions
Degree of protection
IP65
Impact strength
IK07
Ambient temperature (operation)
-40 °C ... 85 °C
Commercial data
Item number
1508617
Packing unit
1 pc
Minimum order quantity
1 pc
Note
Made to order (non-returnable)
Sales key
*****
Product key
AFGAPA
GTIN
4063151969844
Weight per piece (including packing)
82 g
Weight per piece (excluding packing)
22.22 g
Customs tariff number
85389099
Country of origin
CN
Classifications
ECLASS
ECLASS-13.0
27440202
ECLASS-15.0
27440202
ETIM
ETIM 9.0
EC000437
Environmental product compliance
EU RoHS
Fulfills EU RoHS substance requirements
Yes
(No exemptions)
China RoHS
Environment friendly use period (EFUP)
EFUP-E
No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)
No substance above 0.1 wt%
Compatible products
Expand all
Collapse all
Accessories
HC-B 10-I-UT-M
-
Contact insert
1648173
HC-B 10-I-UT-F
-
Contact insert
1648186
HC-B10-HCWD-PLR-BK
-
Protective cover
1346530
G-INS-EE-M32-L68N-PNES-GY
-
Cable gland
1717899
