HC-M-KV-T-M32
-
Cable gland
1646201
Metal screw connection with cable bend protection and strain relief, thread length: 8 mm, cable sealing area: 18 - 27 mm, clamping area: 20 - 30 mm, SW 40, screw connection: M32
Product details
| Product type | Cable screw gland |
| Application | Standard |
| No. of conductors | 1 |
| Type | with cable bend protection and strain relief |
| Manufacturer | wafi |
| Shielded | no |

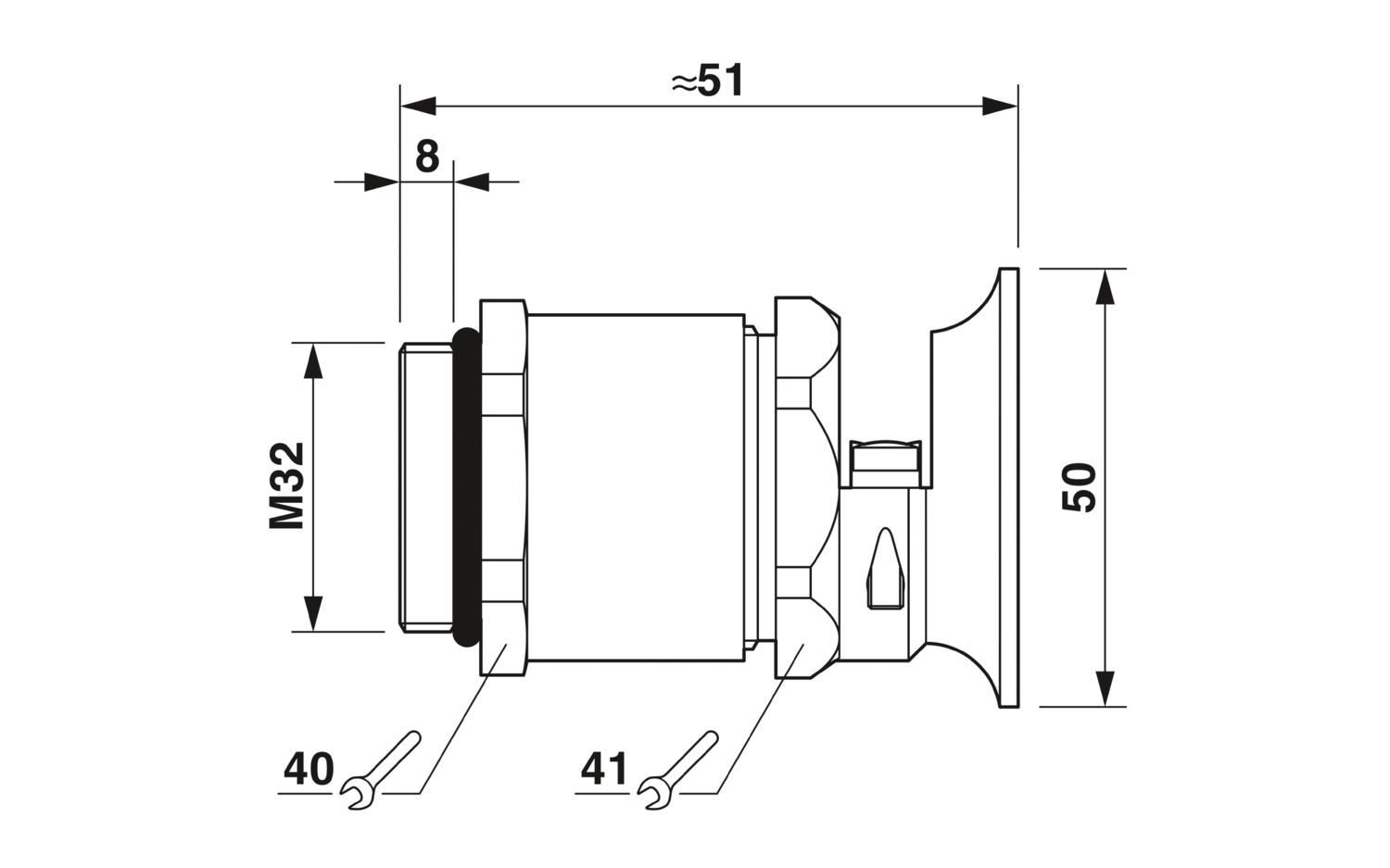

| Dimensional drawing |
|
| Length | 51 mm |
| Length of the connecting thread | 8 mm |
| Length without connecting thread | 43 mm |
| Diameter | 32 mm |
| Connecting thread diameter | 32 mm |
| Wrench size, union nut | 41 mm |
| Wrench size, support | 40 mm |
| Clamping range of the strain relief clip | 20.00 mm ... 30.00 mm |
| Hexagon angular dimension | 50 mm |
| Thread type connection side | M32 x 1.5 |
| Thread pitch | 1.5 mm |
| Tightening torque | 18 Nm (Support sleeve) |
| 12 Nm (Union nut) |
| Seal material O-ring | NBR |
| Seal material Cable seal | Perbunan |
| Material for screw connection | Brass, nickel-plated |
| External cable diameter Cable 1 | 18 mm ... 27 mm |
| Halogen-free | no |
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -20 °C ... 80 °C (static) |
