G-INS-M50-L68L-PNES-BK
-
Cable gland
1411138
Cable gland, material for screw connection: PA, application: Standard, external cable diameter 30 mm ... 36 mm, shielding: no, connecting thread: M50 x 1.5, color: jet black RAL 9005
Product details
| Assembly note | 1) Mount screw connection support in the housing using the correct torque 2) Insert cable 3) Tighten union nut using the correct torque |
| Product type | Cable screw gland |
| Application | Standard |
| No. of conductors | 1 |
| Manufacturer | BIMED |
| Manufacturer Designation | BM-29 |
| Shielded | no |
| Execution of the strain relief | A |
| Category of shock impact | 4 |
| Design, Strain relief | A |

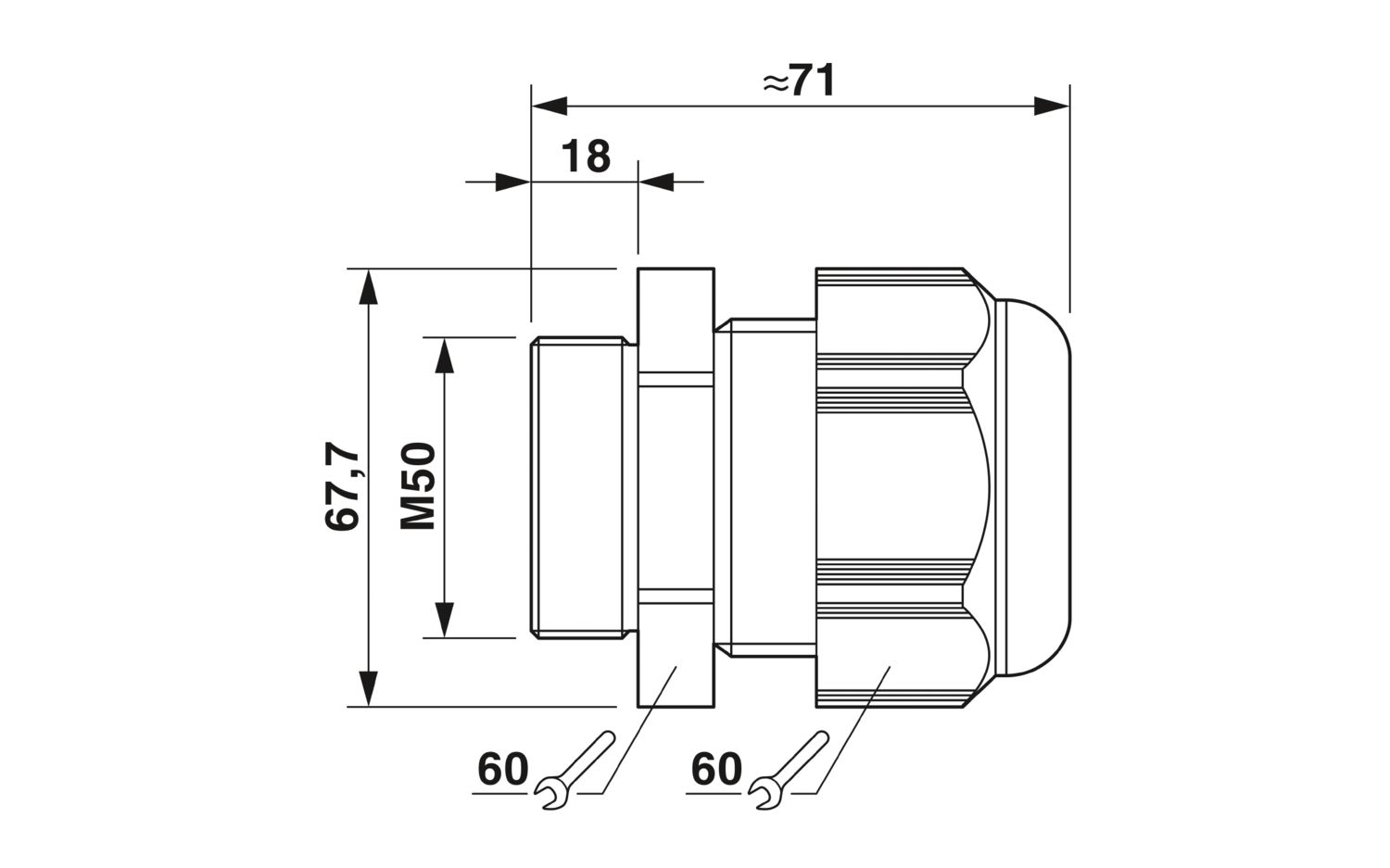

| Dimensional drawing |
|
| Length | 71 mm |
| Length of the connecting thread | 18 mm |
| Hole diameter | 50.1 mm ... 50.3 mm |
| Wrench size, union nut | 60 mm |
| Wrench size, support | 60 mm |
| Hexagon angular dimension | 67.7 mm |
| Thread type connection side | M50 x 1.5 |
| Thread pitch | 1.5 mm |
| Tightening torque | 20 Nm ±2 Nm (Cap nut) |
| 8 Nm (Support sleeve) |
| Color | black (RAL 9005) |
| Material Housing | PA (Housing) |
| Flammability rating according to UL 94 | V2 |
| Seal material Cable seal | CR |
| Material for screw connection | PA |
| External cable diameter Cable 1 | 30 mm ... 36 mm |
| External cable diameter | 30 mm ... 38 mm (for UL 514 B) |
| Halogen-free | no |
| Ambient conditions | |
| Degree of protection | IP66 |
| IP68 (5 bar / 0.5 h) | |
| Enclosure rating (NEMA) | 1 |
| 4 | |
| 4X | |
| 12 | |
| 13 | |
| Ambient temperature (operation) | -40 °C ... 100 °C (static) |
Your advantages
Plastic material conforms to UL 746C f1
