G-INS-M32-M68N-SNES-S
-
Cable gland
1424545
Product details
| Assembly note | 1) Mount screw connection support in the housing using the correct torque 2) Insert cable 3) Tighten union nut using the correct torque |
| Product type | Cable screw gland |
| Application | Standard |
| No. of conductors | 1 |
| Manufacturer | BIMED |
| Manufacturer Designation | BMSC-E4 |
| Shielded | no |
| Execution of the strain relief | A |
| Category of shock impact | 4 |
| Design, Strain relief | A |

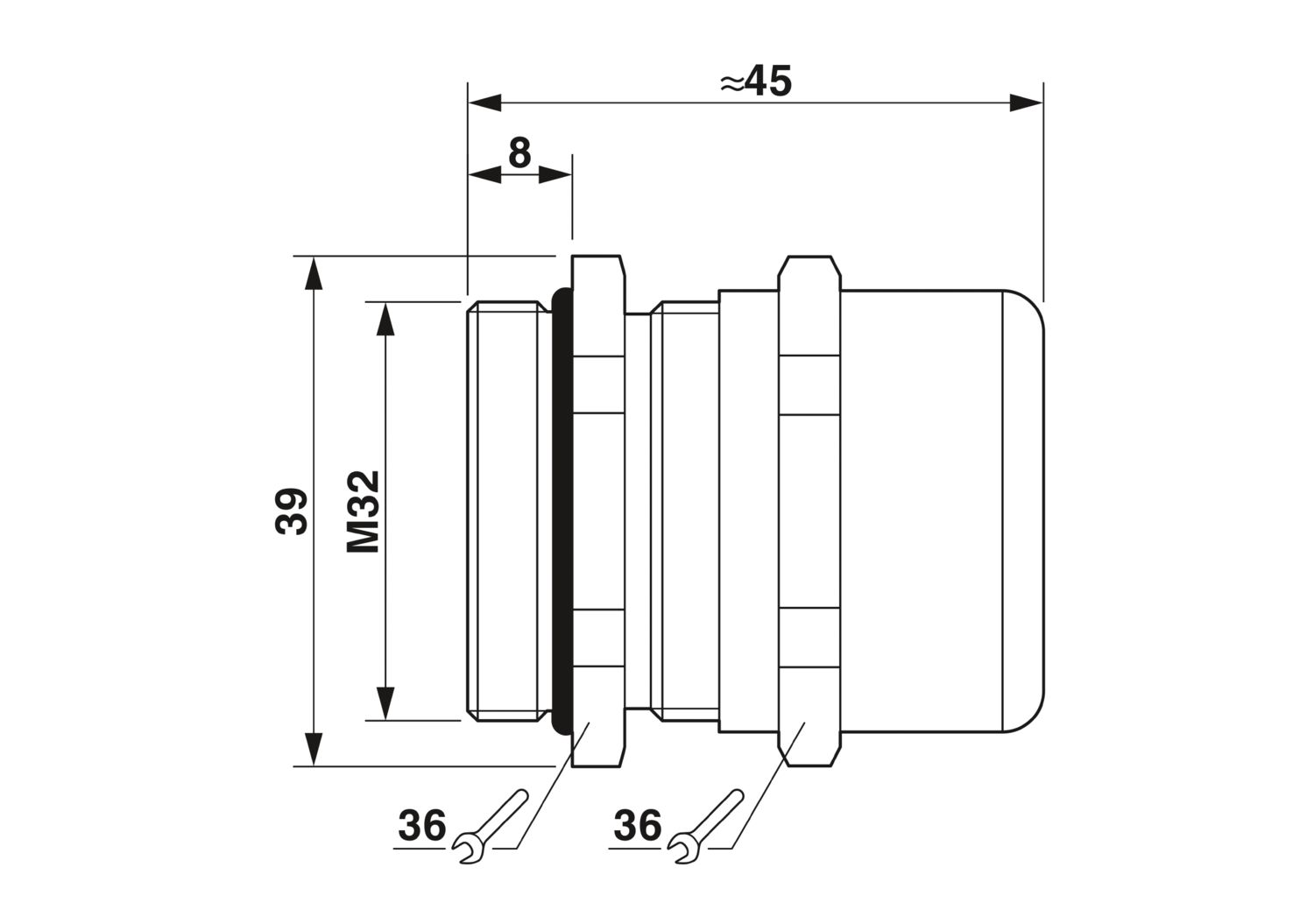

| Dimensional drawing |
|
| Length | 45 mm |
| Length of the connecting thread | 8 mm |
| Hole diameter | 32.1 mm ... 32.3 mm |
| Wrench size, union nut | 36 mm |
| Wrench size, support | 36 mm |
| Hexagon angular dimension | 38.9 mm |
| Thread type connection side | M32 x 1.5 |
| Thread pitch | 1.5 mm |
| Tightening torque | 15 Nm (Cap nut) |
| 6 Nm (Support sleeve) | |
| for UL514 B: union nut |
| Color | Steel/stainless steel color |
| Material Compression ring | PA 6 |
| Seal material O-ring | Perbunan |
| Seal material Cable seal | CR |
| Material for screw connection | Stainless steel 1.4305 |
| External cable diameter Cable 1 | 15 mm ... 21 mm |
| External cable diameter | 17 mm ... 21 mm (for UL 514 B) |
| Ambient conditions | |
| Degree of protection | IP68 (5 bar, 30 min.) |
| IP66 | |
| IP69 | |
| Ambient temperature (operation) | -40 °C ... 100 °C (static) |
