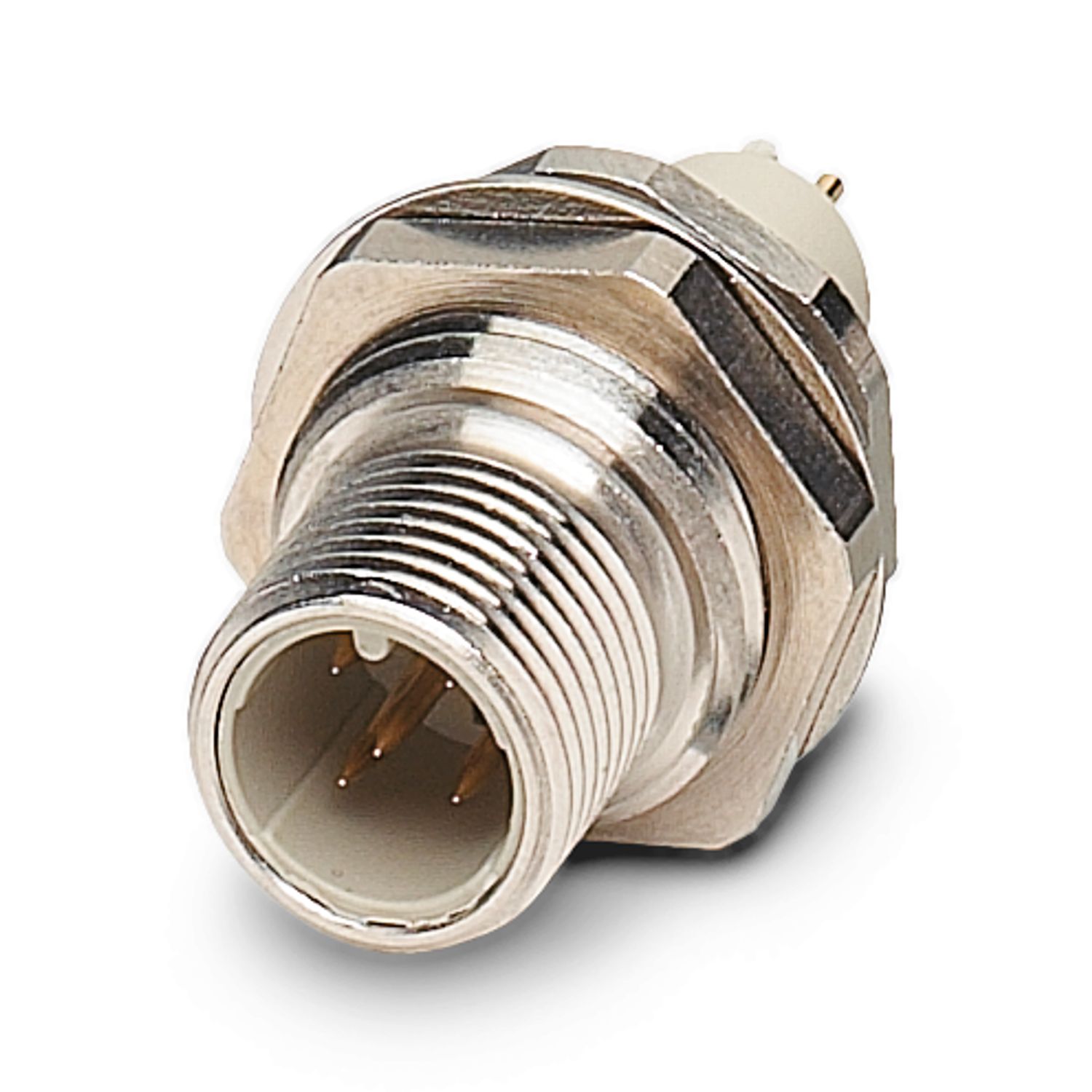

SACC-DSIV-M12MS-5CON-L180-SIX
-
Device connector rear mounting
1239902
Device connector rear mounting, 5-position, Pin, straight, M12, coding: A, Rear mounting, Pg9, Wave soldering, cable gland Pg9, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %)
Product details
| Order information: | Lock nut is included in the scope of delivery |
| Mounting type | Rear mounting Pg9 With locking nut |
| Assembly note | With locking nut |
| Product type | Circular connectors (device side) |
| Number of positions | 5 |
| Shielded | no |
| Coding | A |
| Thread type | M12 |
| Insulation characteristics | |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Flammability rating according to UL 94 | V0 |
| Seal material | NBR |
| Contact material | CuZn |
| Contact surface material | Au |
| Contact carrier material | PBT |
| Material for screw connection | Brass, nickel-plated |
| Contact resistance | ≤ 0.003 Ω |
| Insulation resistance | ≥ 100000 Ω |
| Nominal voltage UN | 60 V |
| Nominal current IN | 4 A |
| Conductor connection | |
| Connection method | Wave soldering |
| Contact connection type | Pin |
| Connection 1 | |
| Head design | Pin |
| Head cable outlet | straight |
| Head thread type | M12 |
| Coding | A |
| Ambient conditions | |
| Degree of protection | IP67 |
| IP67 | |
| Ambient temperature (operation) | -25 °C ... 90 °C (Plug / socket) |
| UL Type Rating | Type 4 (indoor use only) |
| Item number | 1239902 |
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Sales key | ***** |
| Product key | ABQEGL |
| GTIN | 4063151425074 |
| Weight per piece (including packing) | 20.78 g |
| Weight per piece (excluding packing) | 15.35 g |
| Customs tariff number | 85366990 |
| Country of origin | DE |
ECLASS
| ECLASS-13.0 | 27440110 |
| ECLASS-11.0 | 27440110 |
ETIM
| ETIM 9.0 | EC003569 |
UNSPSC
| UNSPSC 21.0 | 26121600 |
| EU RoHS | |
| Fulfills EU RoHS substance requirements | Yes (No exemptions) |
| China RoHS | |
| Environment friendly use period (EFUP) |
EFUP-E
No hazardous substances above the limits
|
| EU REACH SVHC | |
| REACH candidate substance (CAS No.) | No substance above 0.1 wt% |
