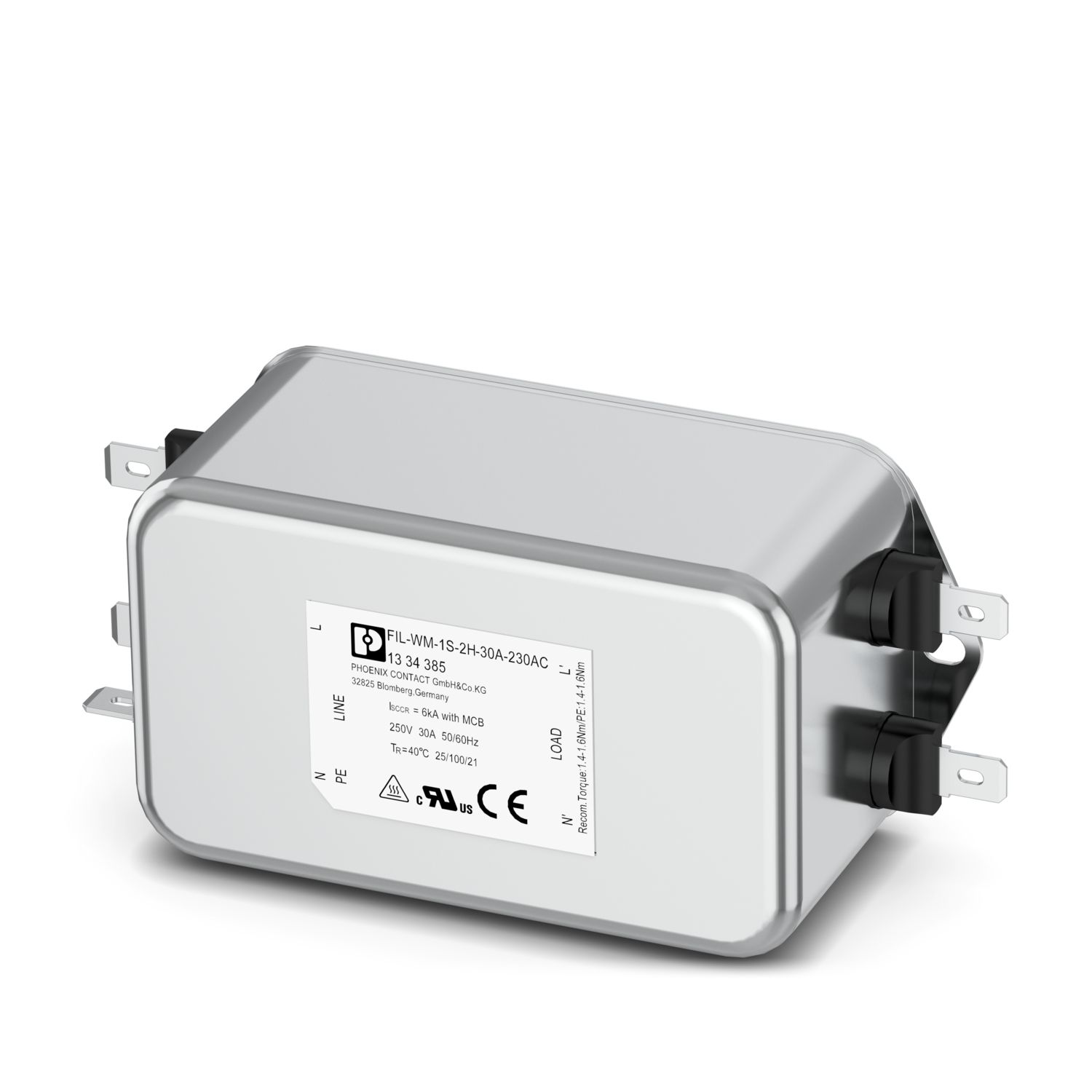

FIL-WM-1S-2H-30A-230AC
-
EMC filter
1334385
Single-phase EMI filter, high performance product, bolt connection, backplane mounting, rated current 30 A
Product details
| Type | Panel-mount module, single |
| Number of positions | 2 |
| Nominal frequency fN | 50 Hz (60 Hz) |
| Rated voltage | 250 V AC (50/60 Hz (AC)) |
| 250 V DC |
| Connection method | Bolt connection |
| Screw thread | M4 |
| Tightening torque | 1.2 Nm ... 1.3 Nm (Cable entry and outlet) |
| 1.5 Nm ... 1.7 Nm (to earth) |
| Dimensional drawing |
|
| Width | 57.5 mm |
| Height | 113.5 mm |
| Depth | 45.4 mm |
| Housing material | Steel |
| Direction of action | 1L-N & N-PE |
| Nominal frequency fN | 50 Hz (60 Hz) |
| Rated current | 30 A (40 °C) |
| Protective conductor current IPE | ≤ 0.93 mA |
| Input attenuation aE, sym. | > 85 dB (50 Ω / 1 MHz) |
| Input attenuation aE, asym. | > 75 dB (50 Ω / 1 MHz) |
| Capacity | 2x 1 µF (X2) |
| 2x 10 nF (Y2) | |
| 2x 1 nF (Y2) | |
| Inductivity in series | 2x 1.5 mH (with current compensation) |
| 2x 1.5 mH | |
| Short-circuit current rating ISCCR | 100 kA |
| Max. required back-up fuse | 32 A (gR) |
| Filter data | |
| Discharge resistance | 220 kΩ |
| Ambient conditions | |
| Ambient temperature (operation) | -25 °C ... 100 °C |
| Standards/specifications | IEC 60939-2 |
| Standards/specifications | EN 60939-2 |
| Standards/specifications | IEC 60664-1 |
| Mounting type | Panel mount |
