PTV 2,5-TG - Disconnect terminal block

1079065

Disconnect terminal block, Current and voltage are determined by the plug used., nom. voltage: 400 V, nominal current: 20 A, connection method: Push-in connection, Rated cross section: 2.5 mm², cross section: 0.14 mm² - 4 mm², mounting: NS 35/7,5, NS 35/15, color: gray

Product details

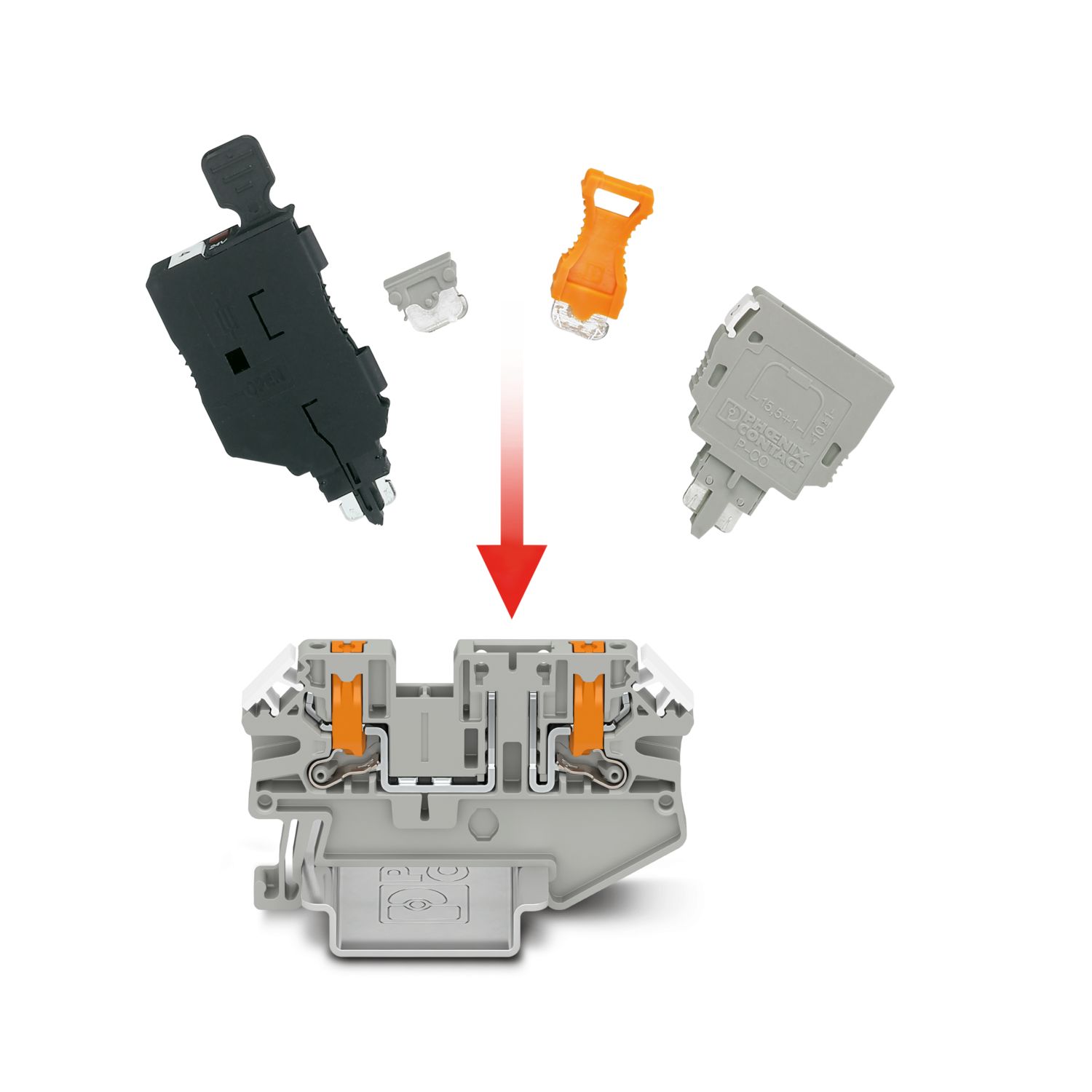

General	Current and voltage are determined by the plug used.

Product type	Disconnect terminal block
Product family	PTV
Number of connections	2
Number of rows	1
Potentials	1
Insulation characteristics
Overvoltage category	III
Degree of pollution	3

Rated surge voltage	6 kV
Maximum power dissipation for nominal condition	0.77 W

Number of connections per level	2
Nominal cross section	2.5 mm²
Stripping length	8 mm ... 10 mm
Internal cylindrical gage	A3
Connection in acc. with standard	IEC 60947-7-1
Conductor cross section rigid	0.14 mm² ... 4 mm²
Cross section AWG	26 ... 12 (converted acc. to IEC)
Conductor cross section flexible	0.14 mm² ... 4 mm²
Conductor cross section, flexible [AWG]	26 ... 12 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.14 mm² ... 2.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.14 mm² ... 2.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	0.5 mm² ... 1.5 mm²
Nominal current	20 A
Maximum load current	20 A (with 4 mm² conductor cross section, rigid)
Nominal voltage	400 V
Nominal cross section	2.5 mm²
Connection cross sections directly pluggable
Conductor cross section rigid	0.5 mm² ... 4 mm²
Conductor cross-section flexible (ferrule without plastic sleeve)	1.5 mm² ... 2.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	1.5 mm² ... 2.5 mm²

Width	5.2 mm
End cover width	2.2 mm
Height	63.3 mm
Depth	36.9 mm
Depth on NS 35/7,5	36.8 mm
Depth on NS 35/15	44.3 mm

Color	gray (RAL 7042)
Flammability rating according to UL 94	V0
Insulating material group	I
Insulating material	PA
Static insulating material application in cold	-60 °C
Relative insulation material temperature index (Elec., UL 746 B)	130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3
Surface flammability NFPA 130 (ASTM E 162)	passed
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed
Smoke gas toxicity NFPA 130 (SMP 800C)	passed

Surge voltage test
Result	Test passed
Temperature-rise test
Requirement temperature-rise test	Increase in temperature ≤ 45 K
Result	Test passed
Result	Test passed
Power-frequency withstand voltage
Test voltage setpoint	1.89 kV
Result	Test passed

Mechanical data
Open side panel	Yes

Mechanical strength
Result	Test passed
Attachment on the carrier
DIN rail/fixing support	NS 35
Result	Test passed
Test for conductor damage and slackening
Rotation speed	10 rpm
Revolutions	135
Conductor cross section/weight	0.14 mm² / 0.2 kg
	2.5 mm² / 0.7 kg
	4 mm² / 0.9 kg
Result	Test passed

Aging
Temperature cycles	192
Result	Test passed
Needle-flame test
Time of exposure	30 s
Result	Test passed
Oscillation/broadband noise
Specification	DIN EN 50155 (VDE 0115-200):2018-05
Spectrum	Long life test category 2, bogie-mounted
Frequency	f₁ = 5 Hz to f₂ = 250 Hz
ASD level	6.12 (m/s²)²/Hz
Acceleration	3.12g
Test duration per axis	5 h
Test directions	X-, Y- and Z-axis
Result	Test passed
Shocks
Pulse shape	Semi-sinusoidal
Acceleration	30g
Shock duration	18 ms
Number of shocks per direction	3
Test directions	X-, Y- and Z-axis (pos. and neg.)
Result	Test passed
Ambient conditions
Ambient temperature (operation)	-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %
Permissible humidity (storage/transport)	30 % ... 70 %

Connection in acc. with standard	IEC 60947-7-1

Mounting type	NS 35/7,5
	NS 35/15

Commercial data

Item number	1079065
Packing unit	50 pc
Minimum order quantity	50 pc
Note	Made to order (non-returnable)
Sales key	*****
Product key	BE2332
GTIN	4055626797083
Weight per piece (including packing)	7.98 g
Weight per piece (excluding packing)	7.904 g
Customs tariff number	85369010
Country of origin	CN

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG
Use group B
	300 V	20 A	26 - 12
Use group C
	300 V	20 A	26 - 12
Use group D
	600 V	5 A	26 - 12

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG
Use group B
	300 V	20 A	26 - 12
Use group C
	300 V	20 A	26 - 12
Use group F
	400 V	20 A	26 - 12
Use group D
	600 V	5 A	26 - 12

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	400 V	20 A		0.2 - 4

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	400 V	20 A		0.2 - 4

Environmental product compliance

Compatible products

Accessories

Your advantages

Clear wiring, thanks to lateral conductor entry

The compact design enables wiring in a confined space

The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system

In addition to the testing option, all terminal blocks provide an additional test pick-off

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
