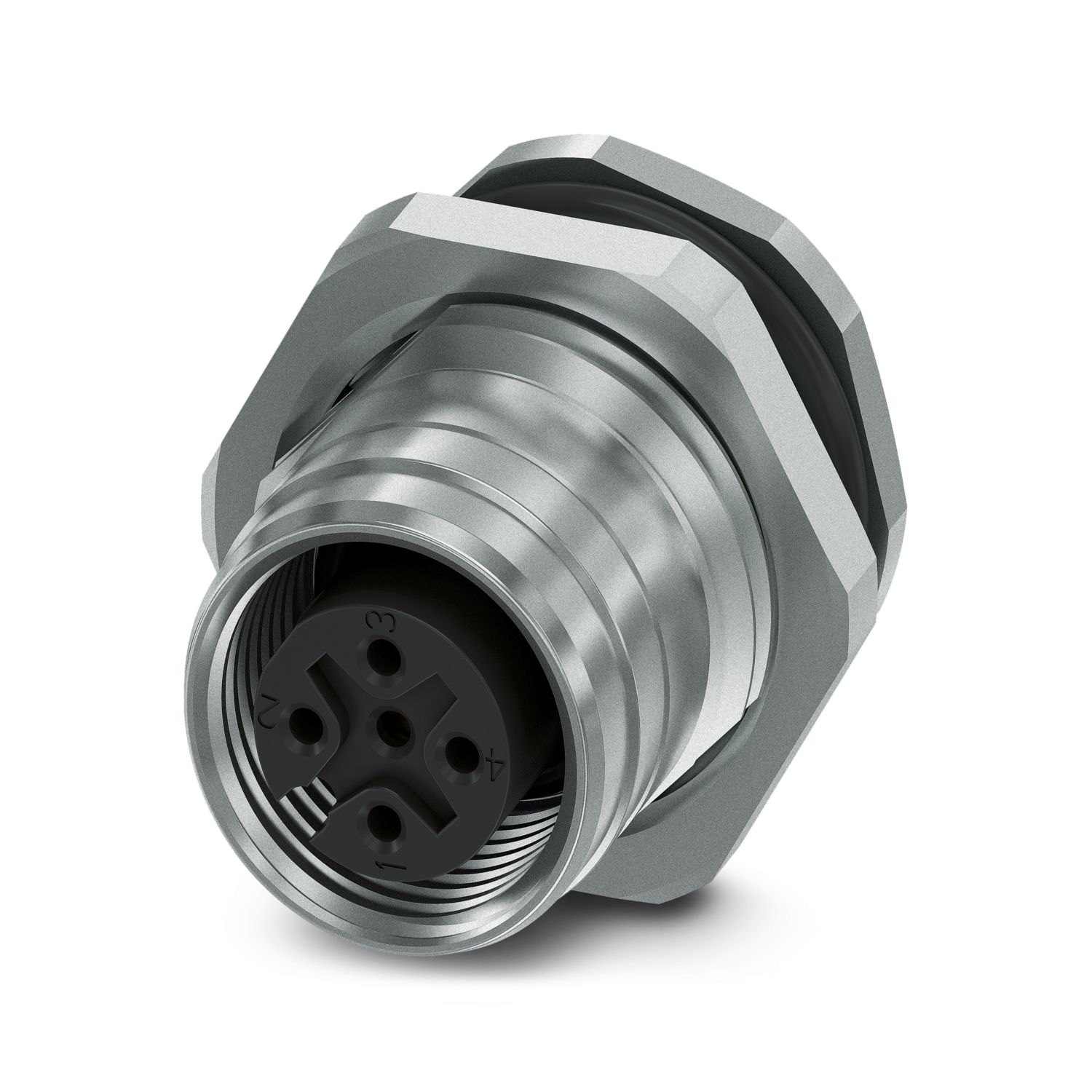

SACC-DSI-FS-5CON-M16-L180 PPX - Device connector rear mounting

1238100

Device connector rear mounting, 5-position, Socket, straight, M12-Push-pull external locking, coding: A, Rear mounting, M16, Wave soldering, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %)

Product details

Notes on operation	The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Order information:	Lock nut is included in the scope of delivery

Mounting type	Rear mounting M16 With flat nut
Assembly note	With flat nut

Product type	Circular connectors (device side)
Number of positions	5
Shielded	no
Coding	A
Thread type	M12
Insulation characteristics
Overvoltage category	II
Degree of pollution	3

Length of the solder pin	6 mm
	6 mm

Material (Housing)	CuZn/Ni
Flammability rating according to UL 94	V0
Seal material	NBR/FKM
Contact material	CuZn
Contact surface material	Au
Contact carrier material	PA 6.6

Rated surge voltage	1.5 kV
Nominal voltage U_N	60 V
Nominal current I_N	4 A

Conductor connection
Connection method	Wave soldering
Contact connection type	Socket

Mechanical data
Insertion/withdrawal cycles	> 100

Connection 1
Head design	Socket
Head cable outlet	straight
Head thread type	M12
Head locking type	Push-pull external locking
Coding	A

Ambient conditions
Degree of protection	IP67
	IP65/IP67
Ambient temperature (operation) (male connector/female connector)	-25 °C ... 85 °C (Plug / socket)

Standard designation	M12 circular connector
Standards/specifications	based on IEC 61076-2-010
Note	Push-pull (type 2)

Commercial data

Item number	1238100
Packing unit	12 pc
Minimum order quantity	12 pc
Sales key	*****
Product key	ABQEDJ
GTIN	4063151429805
Weight per piece (including packing)	24.925 g
Weight per piece (excluding packing)	18.069 g
Customs tariff number	85366990
Country of origin	DE

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	60 V	4 A

Environmental product compliance

Compatible products

Accessories

Your advantages

Established M12 standard for secure transmission of signals, data, and power

Easy and quick cabling of devices and systems in hard-to-reach areas

Manufacturer-independent M12 push-pull locking system for maximum availability

Reliable shield connection even under extreme mechanical strain

Compatible with connectors with screw or push-in connection

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
