Contact insert, number of positions: 6+PE, size: B16, power contacts: 6, control contacts: 0, Socket, Screw connection, 1000 V, 80 A, 6 mm2 ... 16 mm2, application: Power
| General | For HEAVYCON ADVANCE and HEAVYCON housing type B16/B32; screw head shape of connection screws: Allen screws, wrench size 3 mm. |
| General | Connectors may be operated only when there is no load/voltage. |
| General | Flexible conductors may be used without ferrules as long as they comply with IEC 60228 Class 1 ... 5. |
| Assembly note | To ensure correct use, installation in housing with IP54 protection or better is required |
| For housing type B16. |
| Product type | Contact insert with a fixed no. of positions |
| Series | HC-K |
| Application | Power |
| Type | B16 |
| B32 | |
| Number of positions | 6 |
| Connection profile | 6+PE |

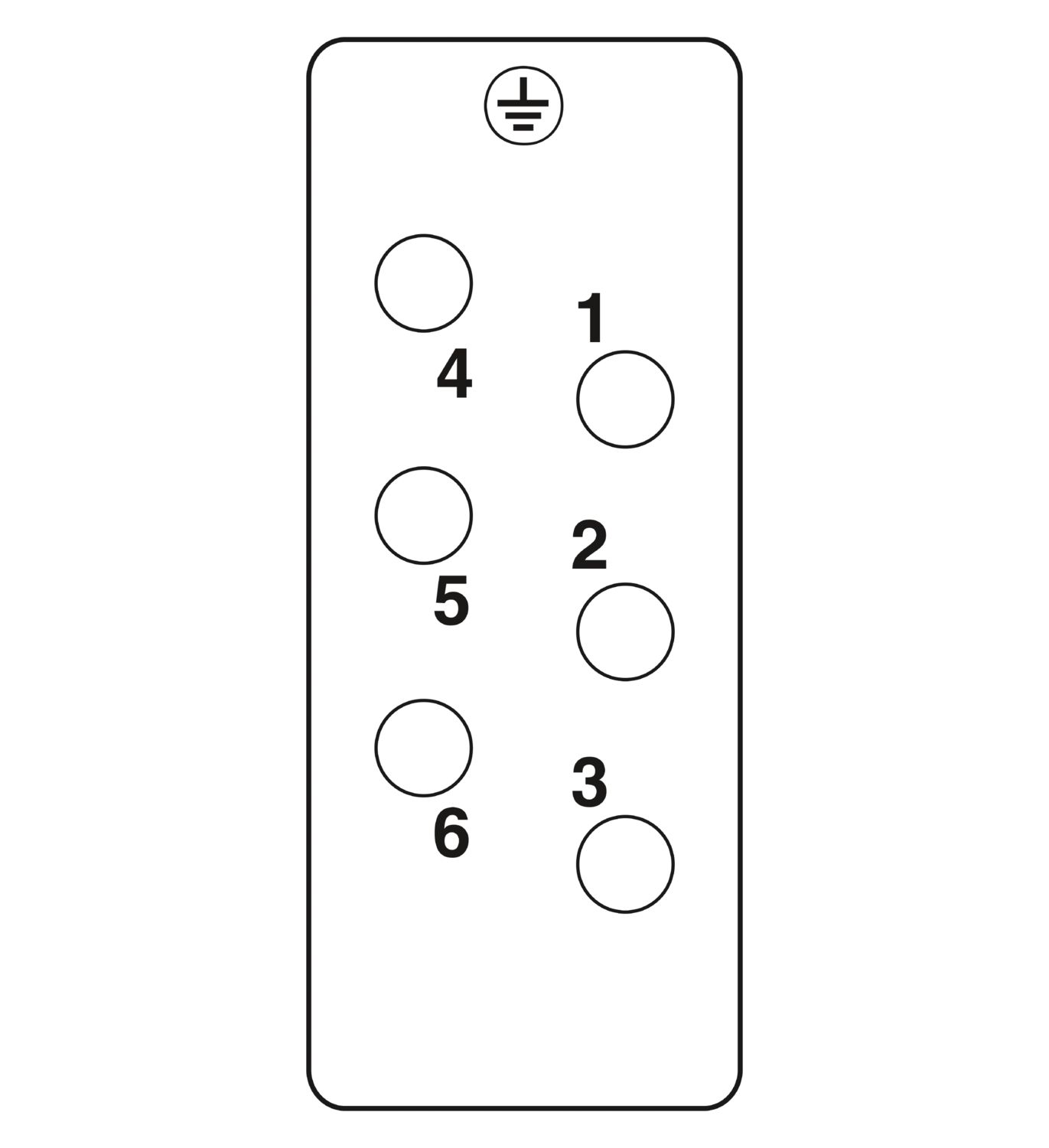

| Contact numbering | 1 - 6 |
| No. of power contacts | 6 |
| No. of control contacts | 0 |
| Contact material type | turned |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Dimensional drawing |
|

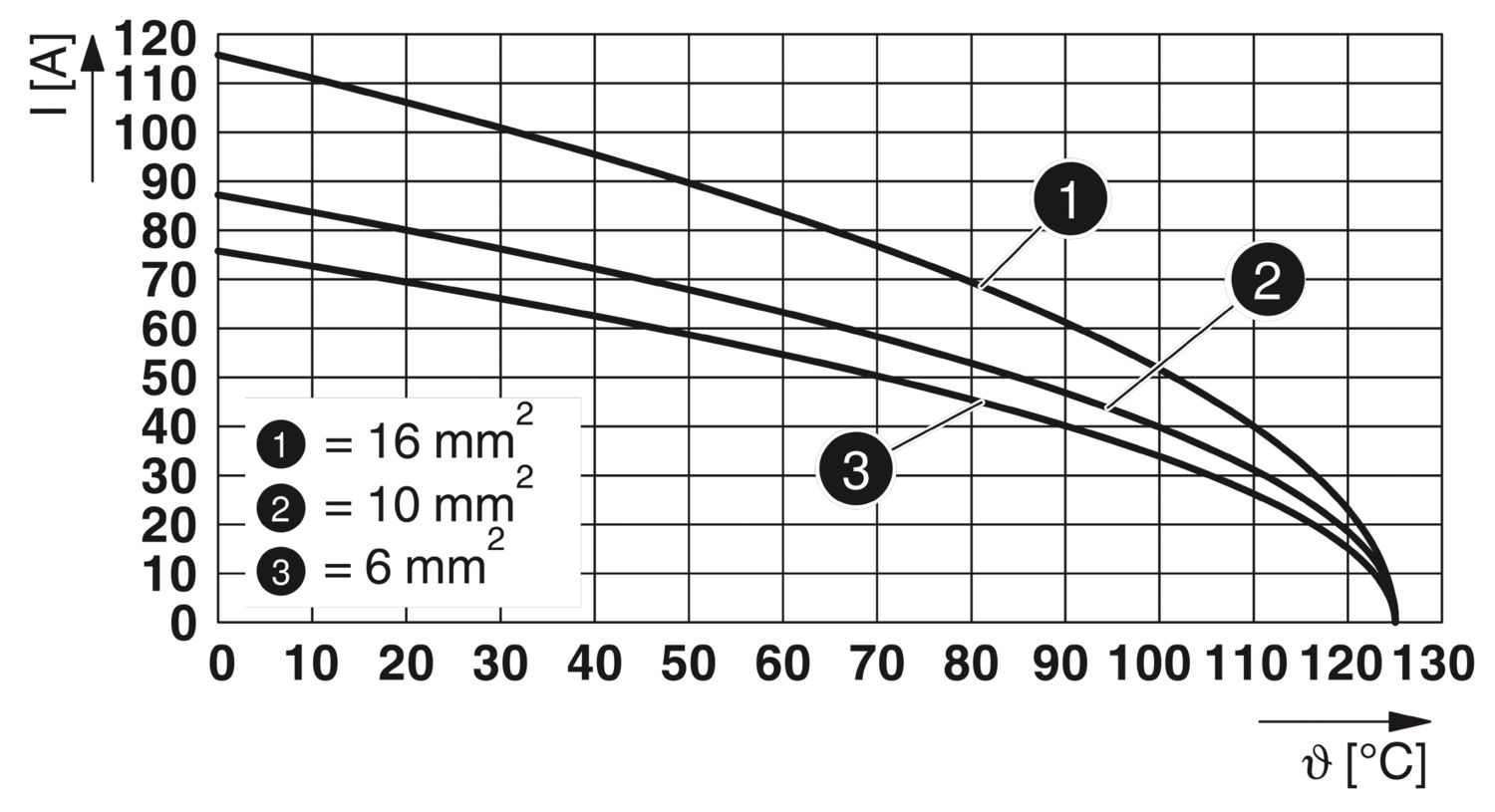

| Width | 33.9 mm |
| Height | 49.7 mm |
| Length | 84 mm |
| Drill hole distance, horizontal | 77.4 mm |
| Mechanical characteristics | |
| Contact diameter | 6 mm |
| Connection technology | |
| Connection technology | Screw connection (without wire protection) |
| Connection in acc. with standard | IEC / EN |
| Conductor connection | |
| Conductor cross section | 6 mm² ... 16 mm² (without ferrule) |
| 2.5 mm² ... 16 mm² (with ferrule) | |
| Connection cross section AWG | 10 ... 6 |
| Tightening torque | 0.8 Nm ... 1.2 Nm (PE connection) |
| 0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing) | |
| 1.8 Nm | |
| Stripping length of the individual wire | 15 mm |
| Rated voltage (III/3) | 1000 V |
| Rated surge voltage | 8 kV |
| 8 kV | |
| Rated current | 80 A |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 500 |
| Flammability rating according to UL 94 | V0 |
| Contact material | Copper alloy |
| Contact surface material | Ag |
| Contact carrier material | PA |
| Material of contact surface, power contact | Ag |
| Standards/regulations | PA |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C (including heating up of contacts) |
| Constructional and testing regulations | DIN VDE 0627/86 |
| DIN VDE 0110/02.79 | |
| DIN VDE 0110-1/04.97 | |
| IEC 60664-1, DIN IEC 60512 | |
| Tests | DIN VDE 0627/86 |
| DIN VDE 0110/02.79 | |
| DIN VDE 0110-1/04.97 | |
| IEC 60664-1, DIN IEC 60512 | |
| Testing | |
| Standards/regulations | PA: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
| Nominal voltage UN | Nominal current IN | Cross section AWG | Cross section mm2 | |
|---|---|---|---|---|
| 600 V | 60 A | 10 - 6 |
| Nominal voltage UN | Nominal current IN | Cross section AWG | Cross section mm2 | |
|---|---|---|---|---|
| 600 V | 80 A | - 6 |
| Nominal voltage UN | Nominal current IN | Cross section AWG | Cross section mm2 | |
|---|---|---|---|---|
| 600 V | 80 A |
