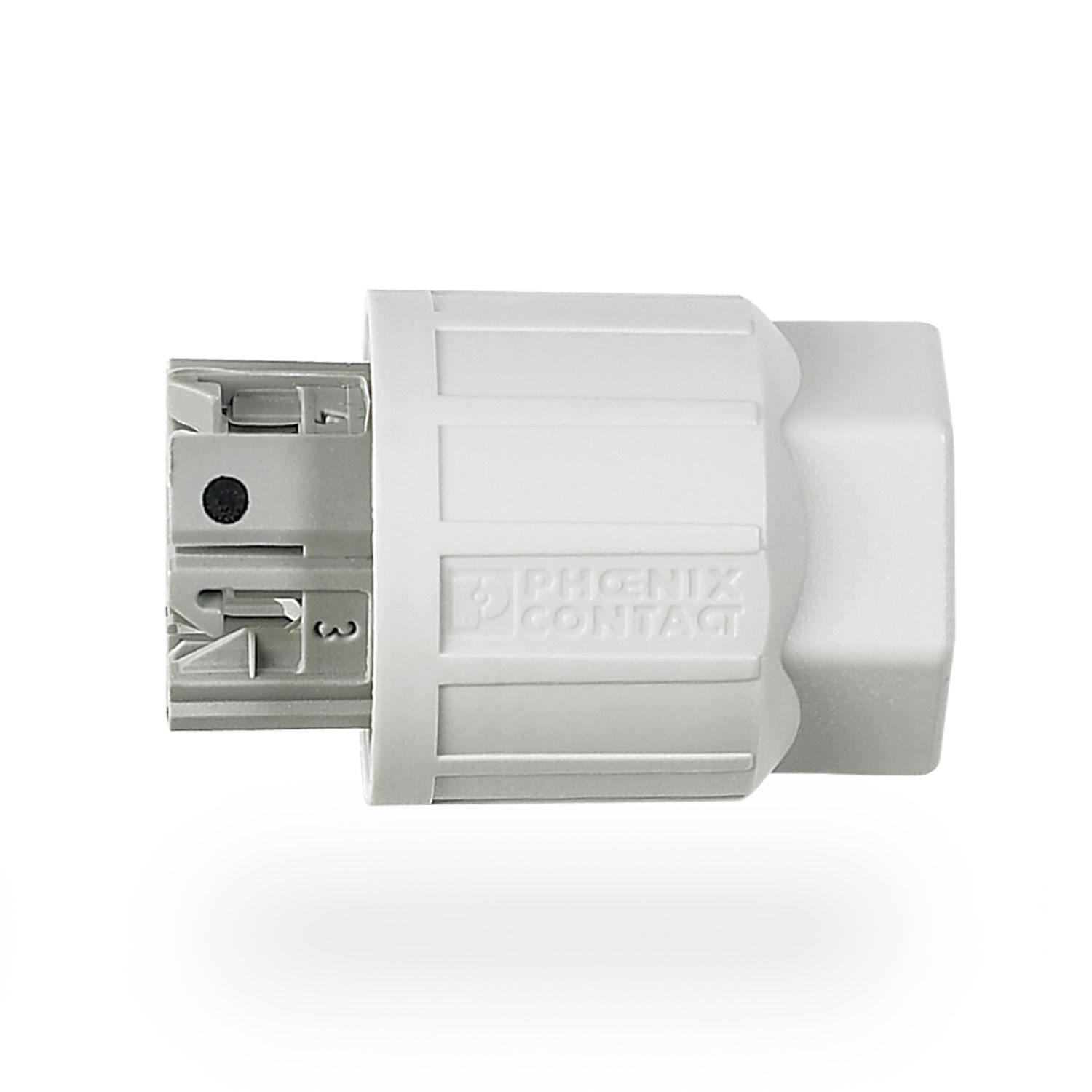

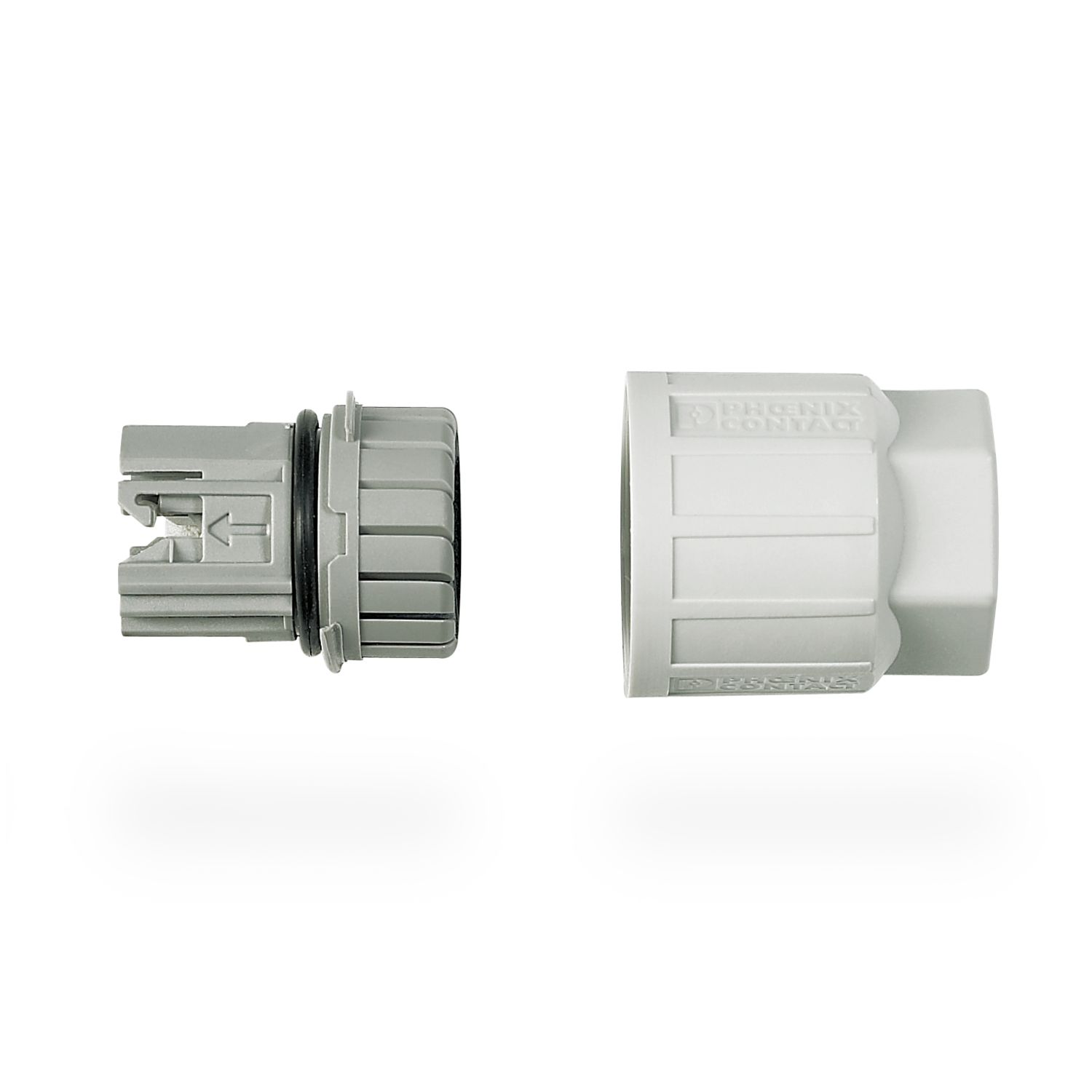

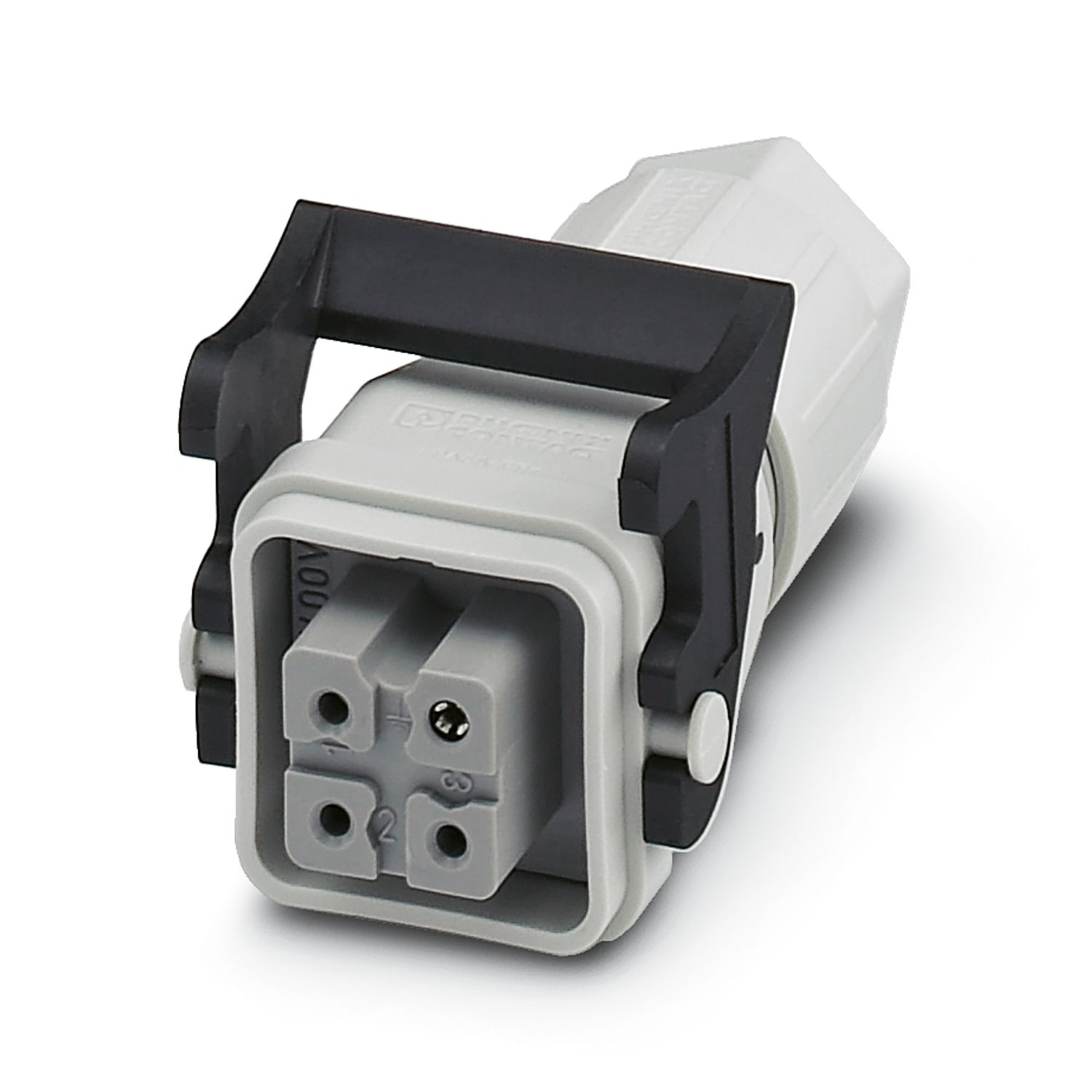

HEAVYCON QUICKON coupling housing A3, with single locking latch, 3-pos., with PE connection, socket, QUICKON connection, straight cable outlet
| Assembly note | This product is only intended for use outdoors. |
| If the conductor is reconnected, it must be cut off above the last contact point. QUICKON components may only be operated when under no load. |
| Product type | Contact insert with a fixed no. of positions |
| Housing type | Complete housing |
| Series | HC-A |
| Application | Standard |
| Type | D7 |
| Number of positions | 3 |
| Connection profile | 3+PE |
| Contact numbering | 1 - 3 |
| No. of cable outlets | 1 |
| Type | Socket |
| Shielded | no |
| Cable outlet | straight |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |

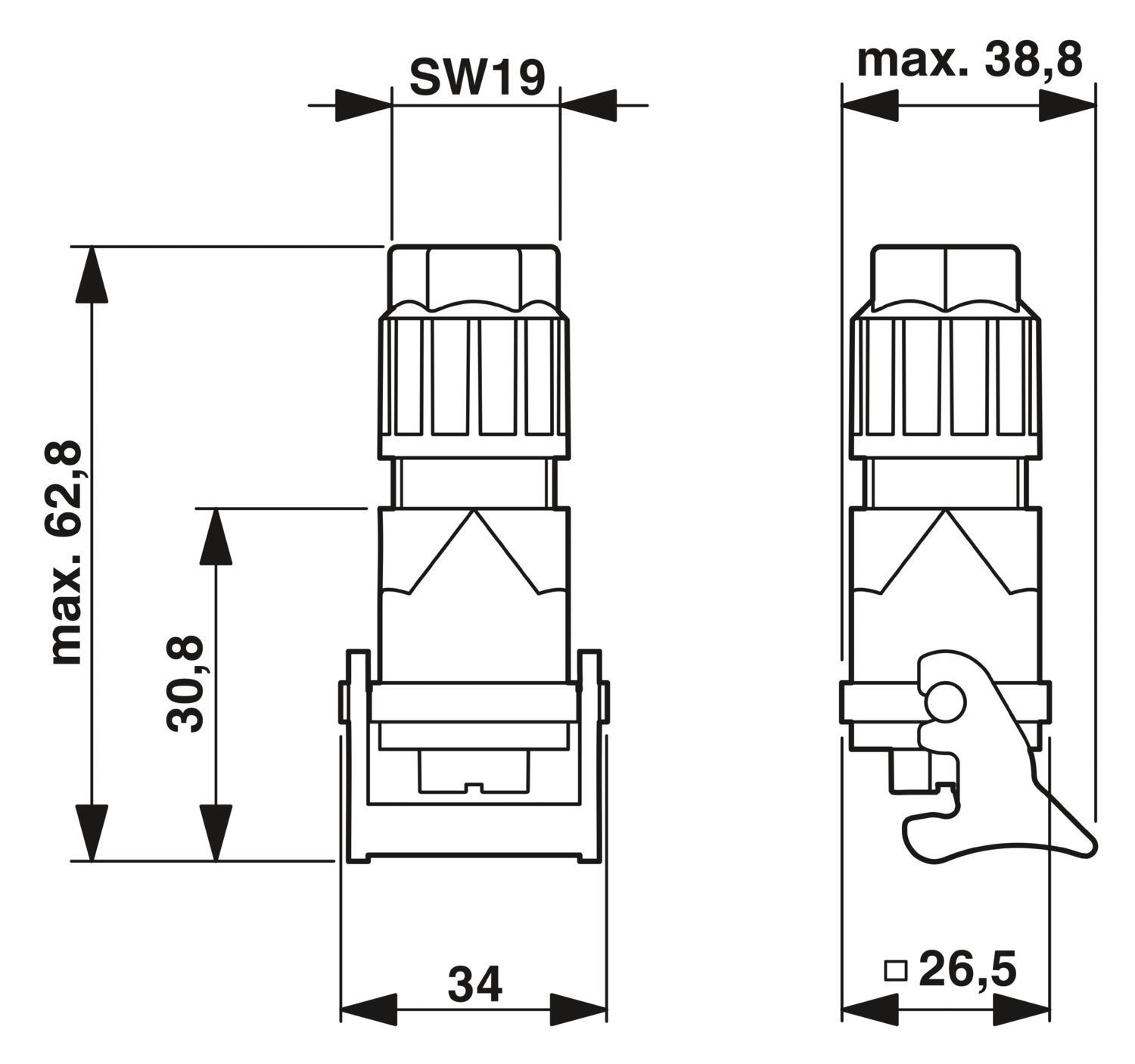

| Dimensional drawing |
|

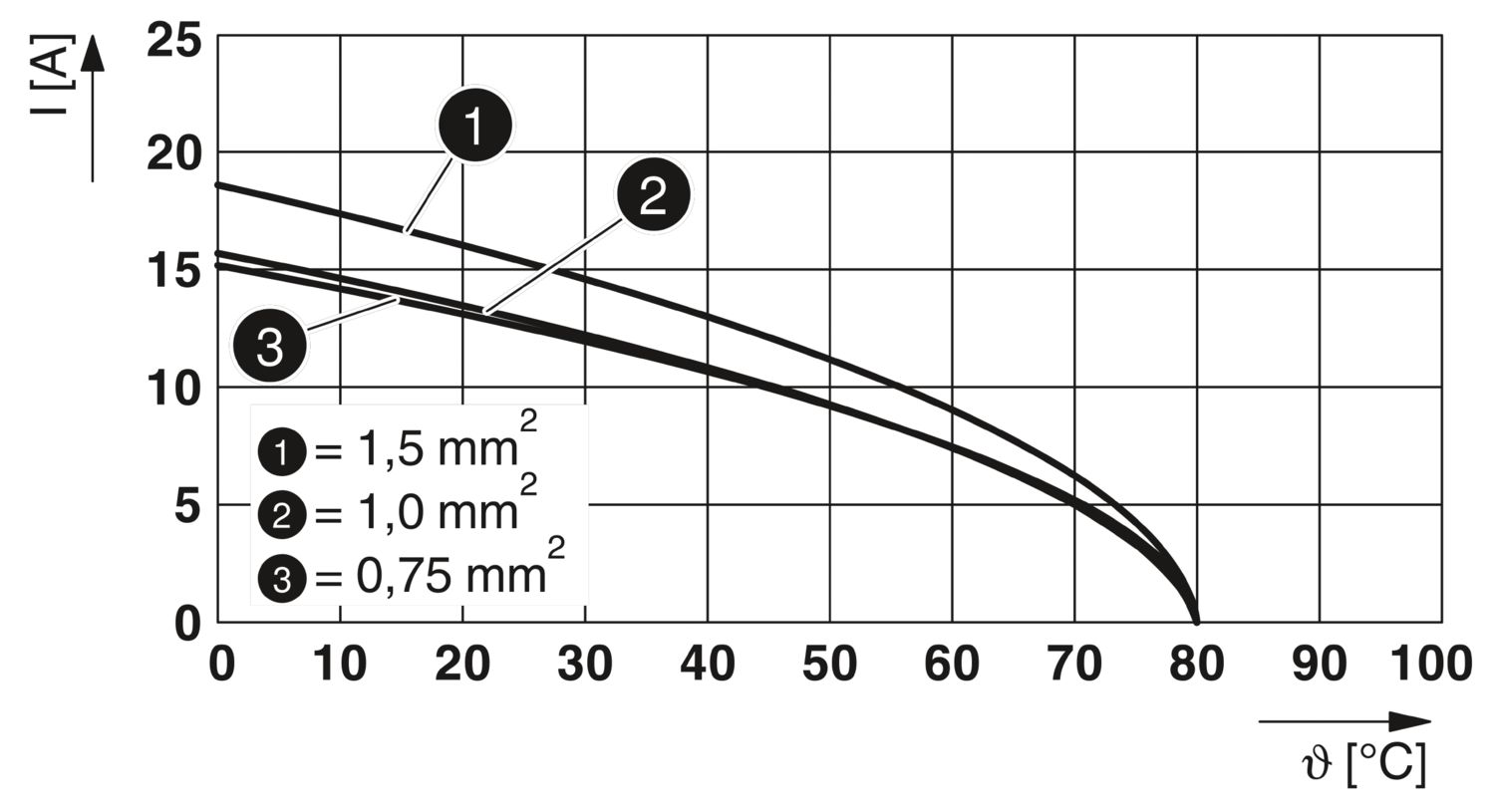

| Width | 34 mm |
| Height | 62.8 mm |
| Length | 26.5 mm |
| Connection technology | |
| Connection technology | IDC connection |
| Conductor connection | |
| Conductor cross section | 0.75 mm² ... 1.5 mm² |
| Connection cross section AWG | 18 ... 16 |
| Tightening torque | 3 Nm |
| Rated surge voltage (II/2) | 4 kV |
| Rated surge voltage (III/2) | 4 kV |
| Rated surge voltage (III/3) | 4 kV |
| Rated current | 10 A |
| Rated voltage (III/3) | 230 V (Conductor-PE) |
| 400 V (Conductor-Conductor) |
| Mechanical data | |
| Insertion/withdrawal cycles | >= 500 |
| Material Housing | PA |
| Flammability rating according to UL 94 | V0 |
| Material wire insulation | PVC / PE |
| Contact material | Copper alloy |
| Contact surface material | Ag |
| Contact carrier material | PA/PC |
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -25 °C ... 80 °C |
| Temperature when conductor connected | -5 °C ... 50 °C (specifications of the cable manufacturer must also be observed) |
| Ambient temperature (storage/transport) | -25 °C ... 80 °C |
| Nominal voltage UN | Nominal current IN | Cross section AWG | Cross section mm2 | |
|---|---|---|---|---|
| 600 V | 10 A | 18 - 16 |
| Nominal voltage UN | Nominal current IN | Cross section AWG | Cross section mm2 | |
|---|---|---|---|---|
| 600 V | 10 A | 18 - 16 |
