SACC-CIP-M8FS-6P SMD SH T - Contact carrier

1412238

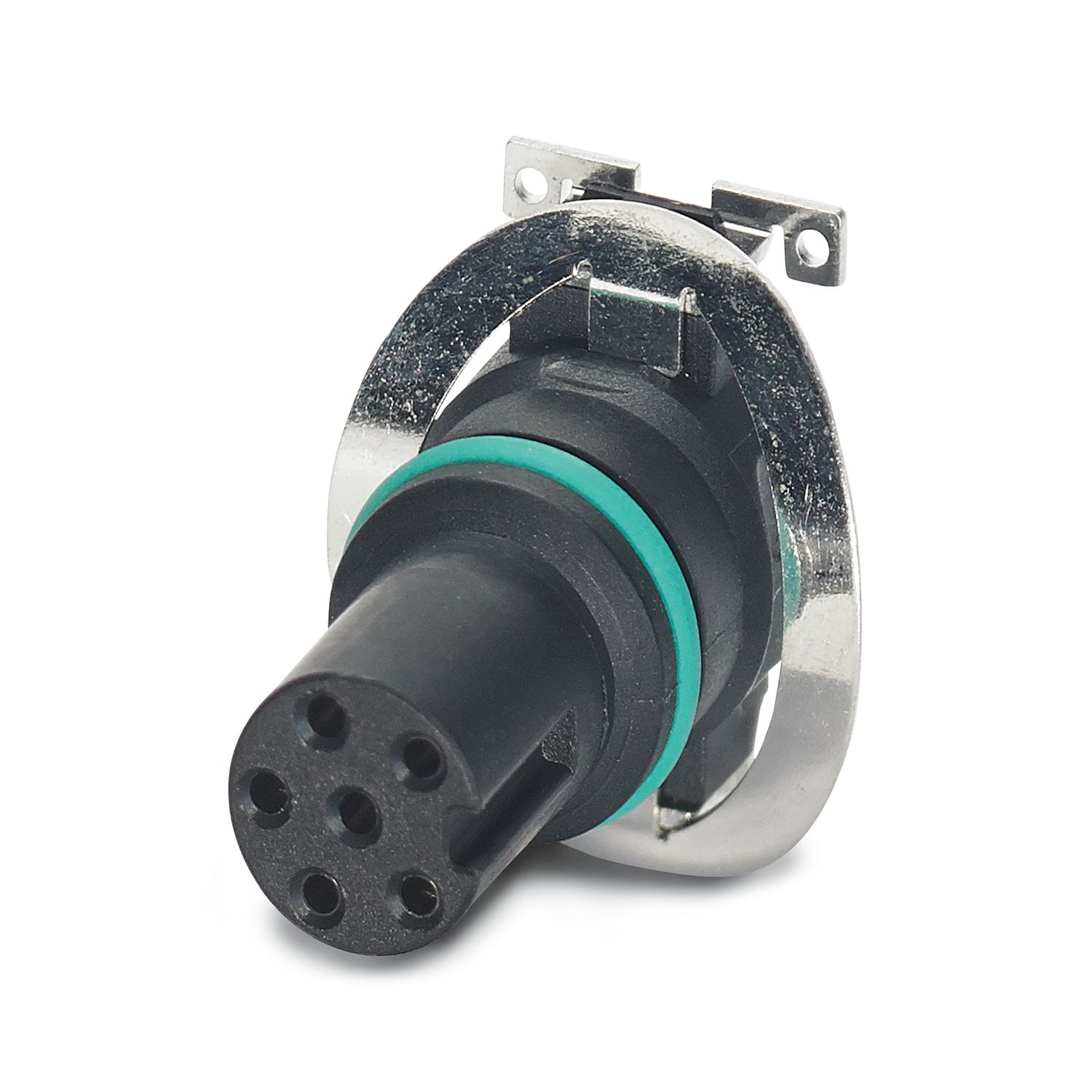

Contact carrier, 6-position, Socket, straight, M8, coding: A, PCB mounting, SMD reflow, this item is undergoing a smooth changeover, lead-free alternative in accordance with RoHS II without exception 6c (Pb < 0.1%) possible on request in advance

Product details

Notes on operation	The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.

Product type	Contact insert
Application	Signal
Number of positions	6
Seal present	yes
Shielded	yes
Coding	A
Thread type	M8
Insulation characteristics
Overvoltage category	III

Nominal voltage U_N	30 V AC
	30 V DC
Nominal current I_N	1.5 A

Connection method	SMD reflow

Flammability rating according to UL 94	V0
Seal material	FKM
Contact material	CuZn
Contact surface material	Au
Contact carrier material	PA

Connection 1
Head design	Socket
Head cable outlet	straight
Head thread type	M8
Coding	A

Ambient conditions
Degree of protection (when plugged in)	IP67 (correctly plugged in and locked)
Degree of protection	IP67
Ambient temperature (operation)	-25 °C ... 105 °C (Plug / socket)
	-40 °C ... 105 °C (without mechanical actuation)

Standard designation	M8 circular connector
Standards/specifications	according to IEC 61076-2-104

Mounting type	PCB mounting

Type of packaging	Tray

Commercial data

Item number	1412238
Packing unit	60 pc
Minimum order quantity	60 pc
Sales key	*****
Product key	ABQHCG
GTIN	4046356988803
Weight per piece (including packing)	2.851 g
Weight per piece (excluding packing)	2.283 g
Customs tariff number	85366990
Country of origin	DE

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	30 V	1.5 A

Environmental product compliance

Compatible products

Accessories

Your advantages

Reduced mounting costs thanks to two-piece device connector

Packaging available for automated pick and place assembly

All common pin assignments and codings available

Easy device integration thanks to mechanical port screw connections with threaded attachment, press-in contour or direct integration in the front plate

Additional gasket for the device when not plugged in

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
