Contact insert with short-circuit function. If the connector is pulled out, all contacts are short circuited.
HC-TSC-M-06-PT-F
-

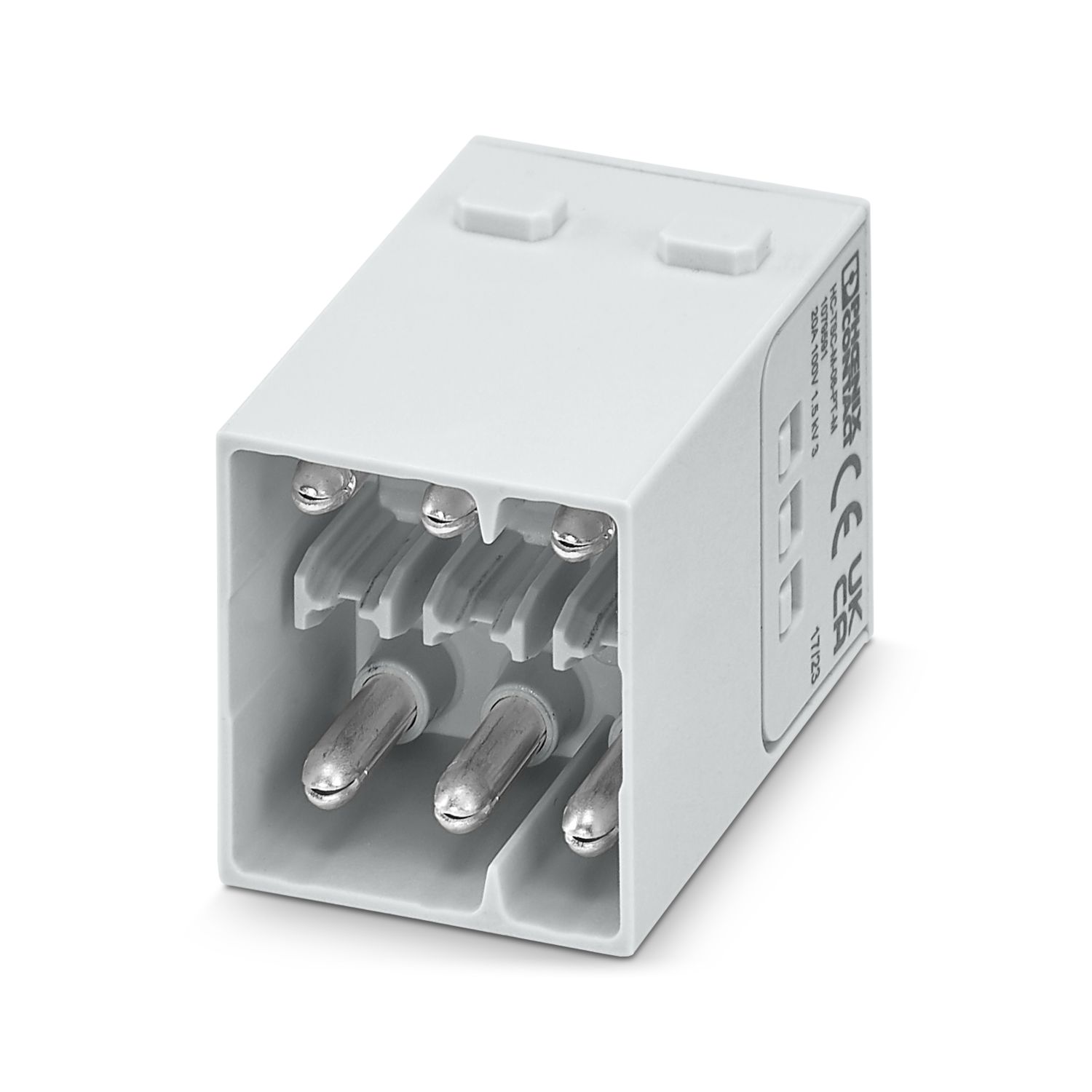

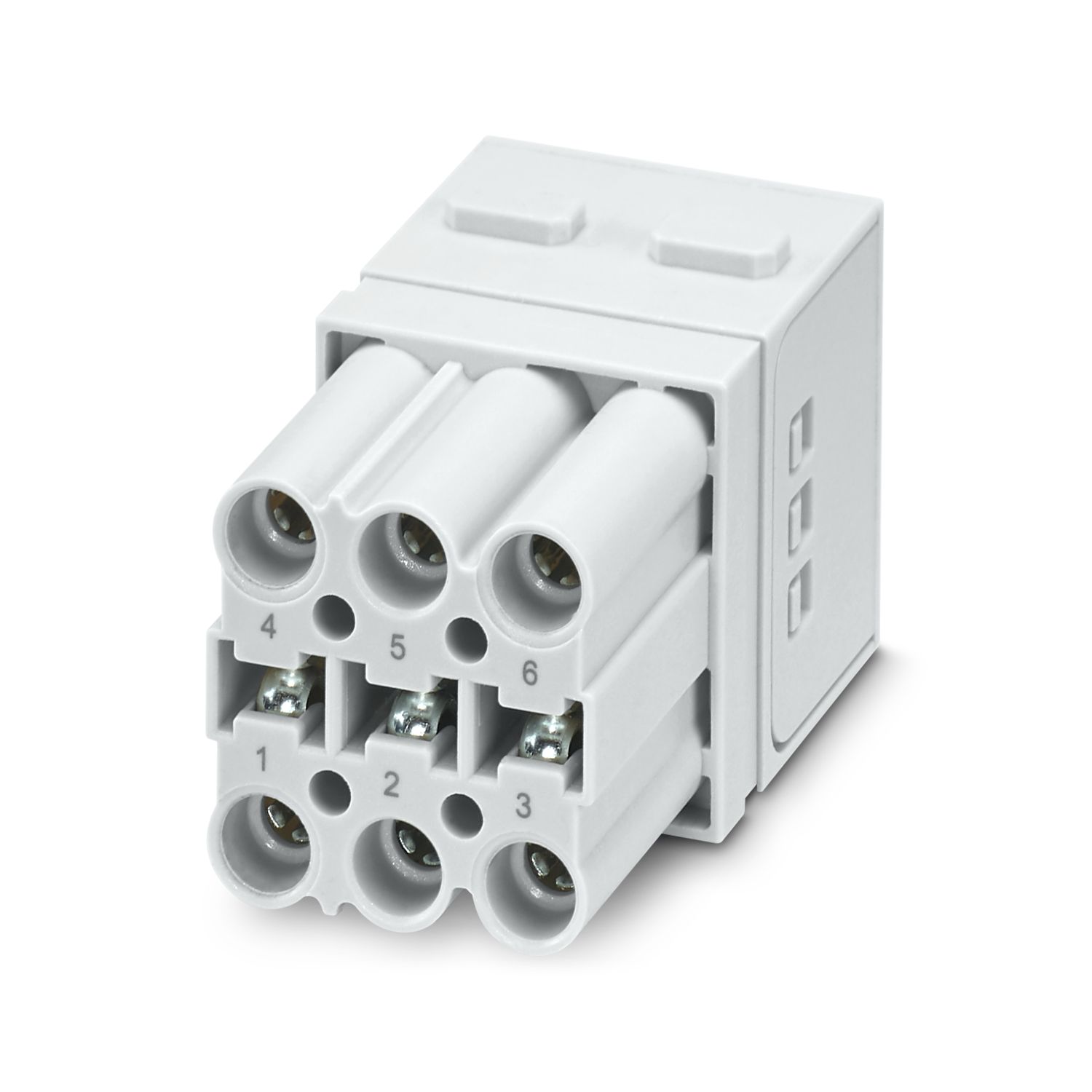

Contact insert module
1079590
Contact insert module, number of positions: 6, Socket, Push-in connection, 100 V, 20 A, 1.5 mm2 ... 4 mm2, with short-circuit function
Product details

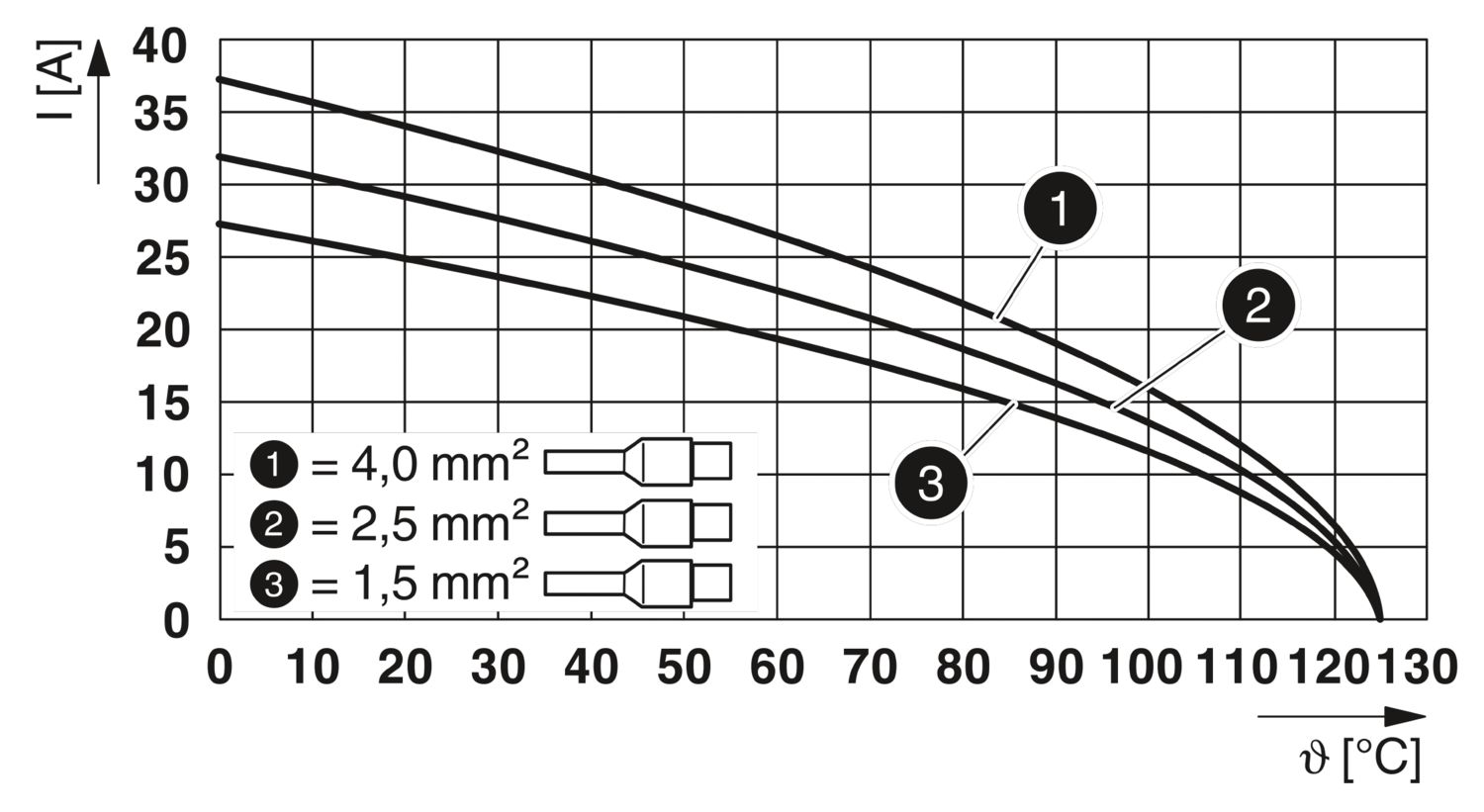

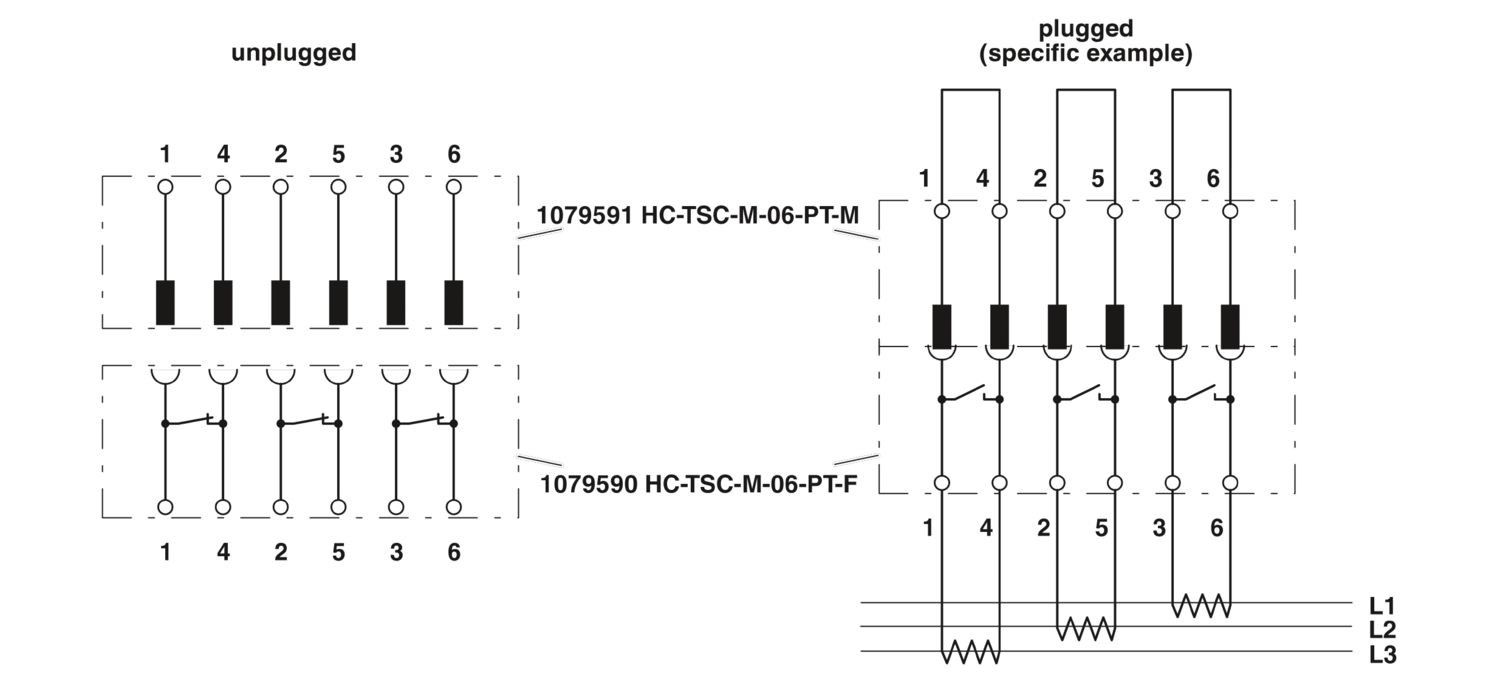

| General | Please observe the circuit diagram |
| General | Use at least 1.5 mm² cables with a maximum conductor loop of 2 m. No open conductor loops permitted! |
| General | only use flexible conductors with ferrules |
| Assembly note | To ensure correct use, installation in housing with IP54 protection or better is required |
| Product type | Modular contact insert |
| Series | HC-M-TSC |
| Number of positions | 6 |
| Connection profile | 6 |
| Number of module slots | 2 |
| Contact material type | rolled |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Connection technology | |

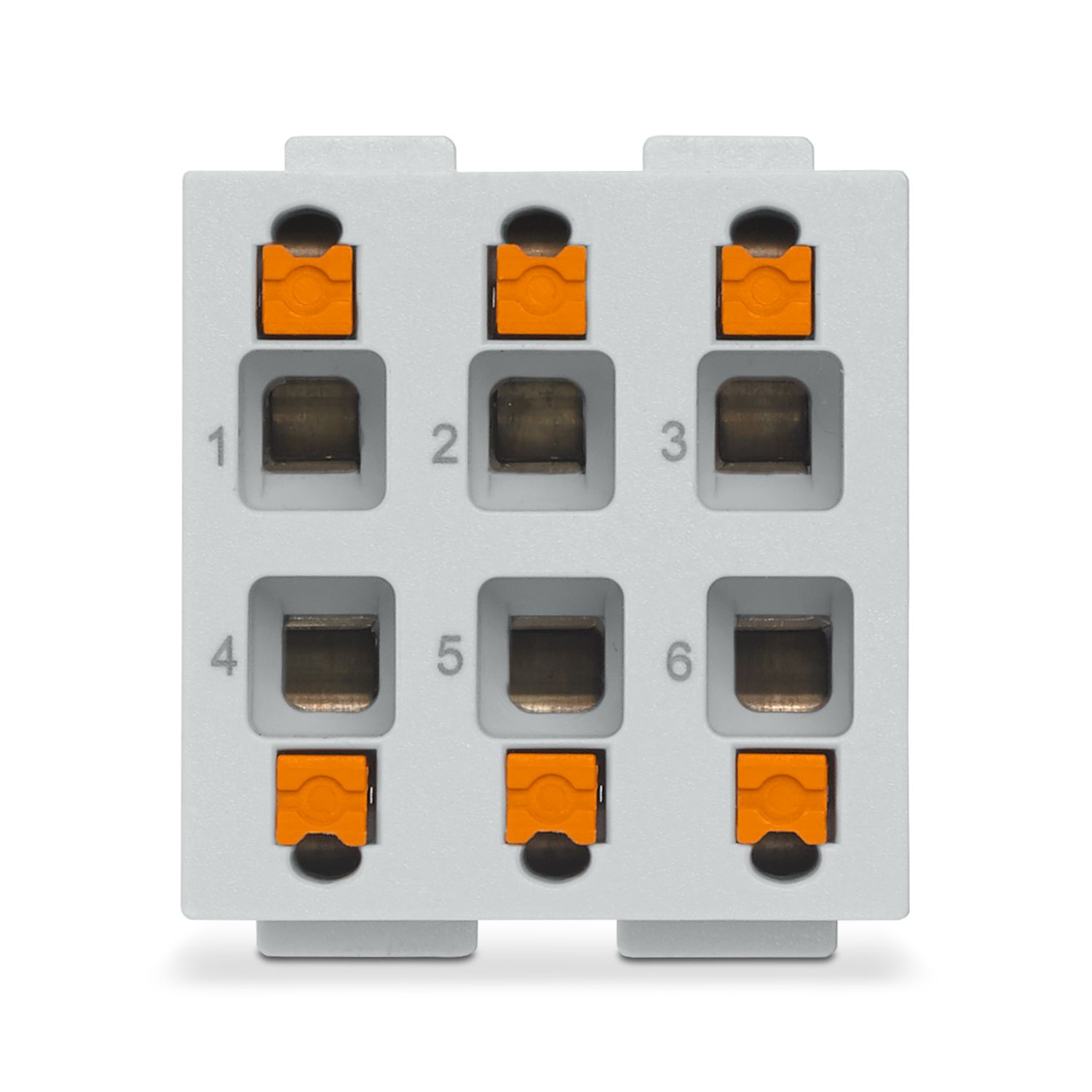

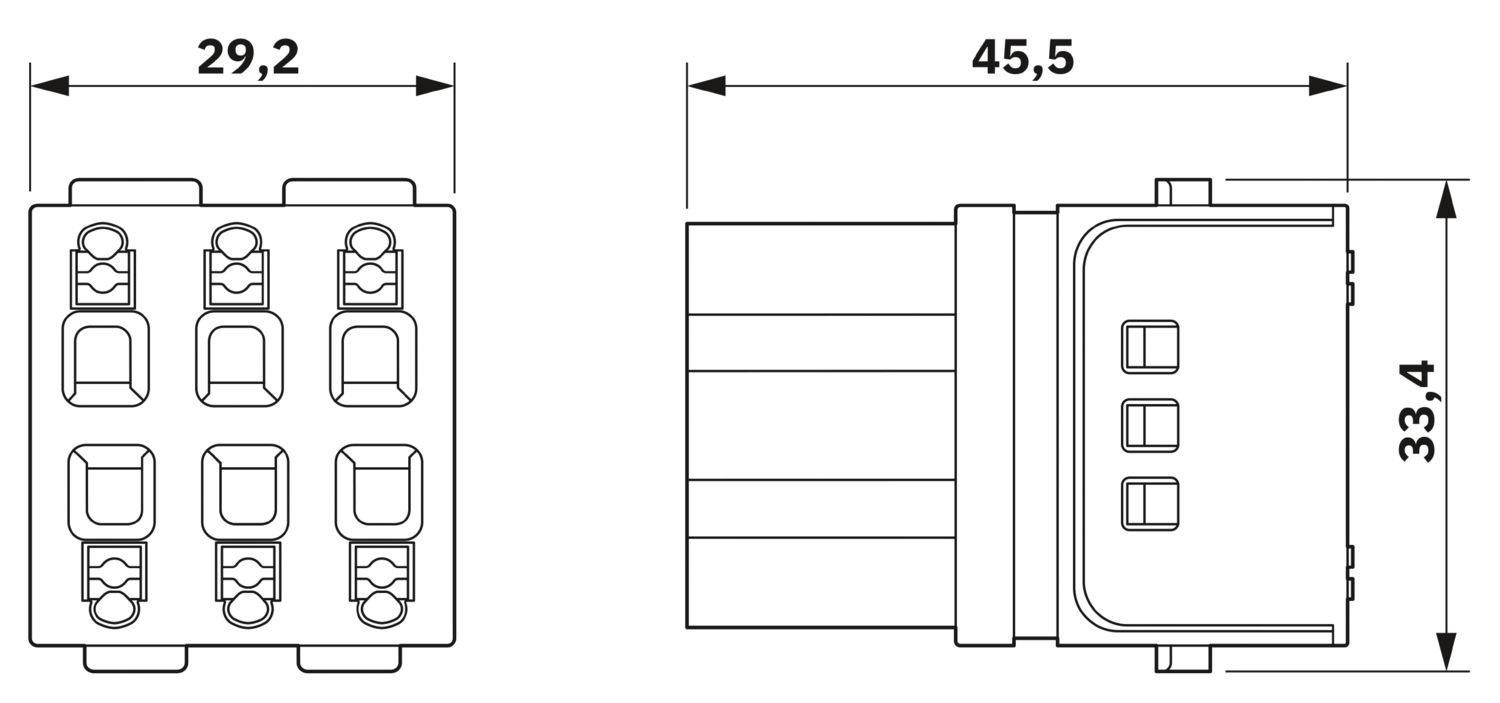

| Connection technology | Push-in connection |
| Conductor connection | |
| Conductor cross section | 1.5 mm² ... 4 mm² |
| Connection cross section AWG | 21 ... 12 |
| Stripping length of the individual wire | 8 mm |
| Dimensional drawing |
|
| Width | 33.8 mm |
| Height | 45.8 mm |
| Length | 29.2 mm |
| Mechanical characteristics | |
| Contact diameter | 4 mm |
| Rated voltage (III/3) | 100 V (when plugged in) |
| 100 V (Unplugged and during plugging) | |
| Rated surge voltage | 1.5 kV |
| Rated current | 20 A (When plugged in) |
| 20 A (Unplugged and during plugging) |
| Flammability rating according to UL 94 | V0 |
| Contact material | Copper alloy |
| Contact surface material | Ag |
| Contact carrier material | PC |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C (including heating up of contacts) |
