Contact insert with short-circuit function. If the connector is pulled out, all contacts are short circuited.

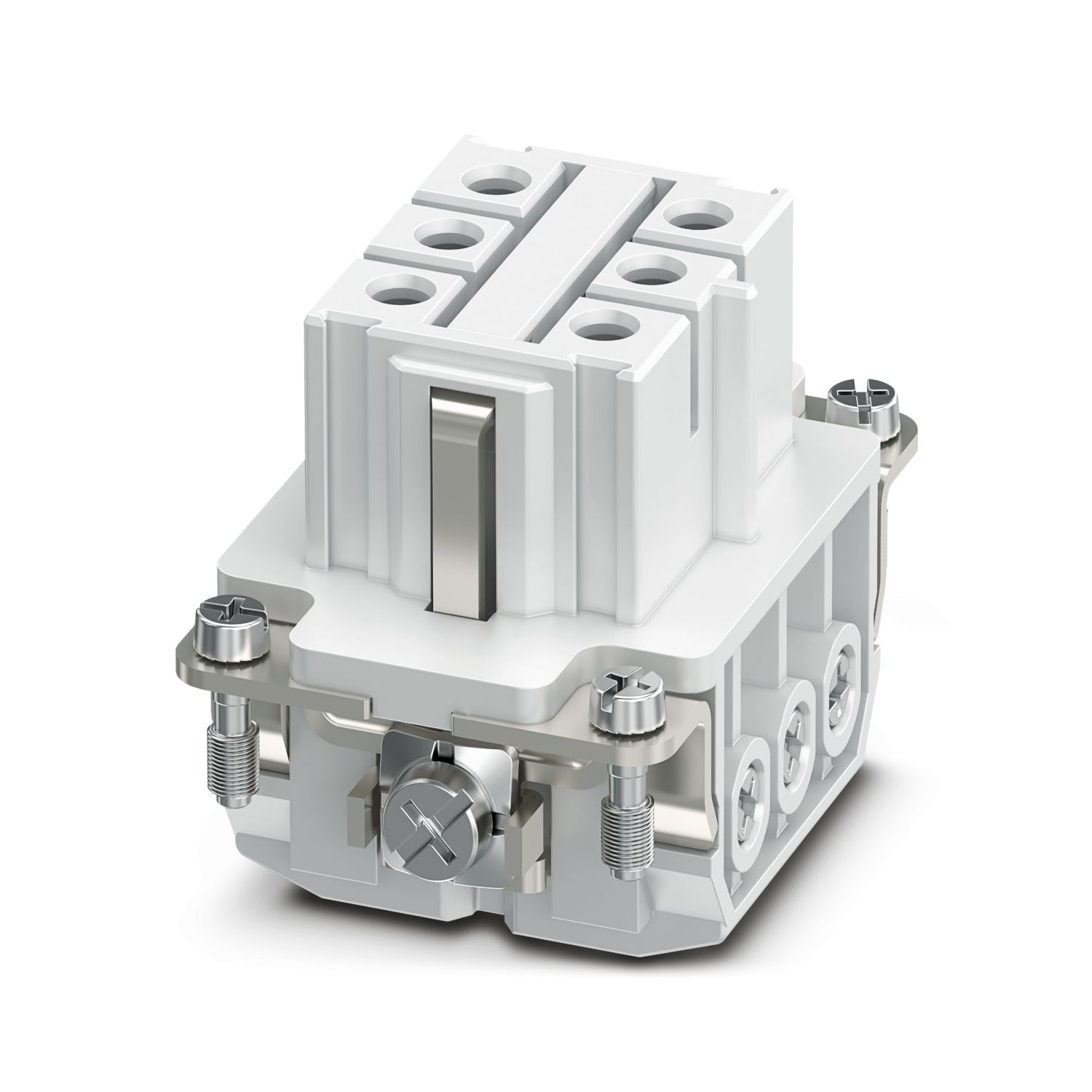

HC-TSC-B06-I-UT-F-CE
-
Contact insert
1541918
Contact insert, number of positions: 6+PE, size: B6, Socket, Screw connection, 200 V, 16 A, 1.5 mm2 ... 6 mm2, with short-circuit function
Product details

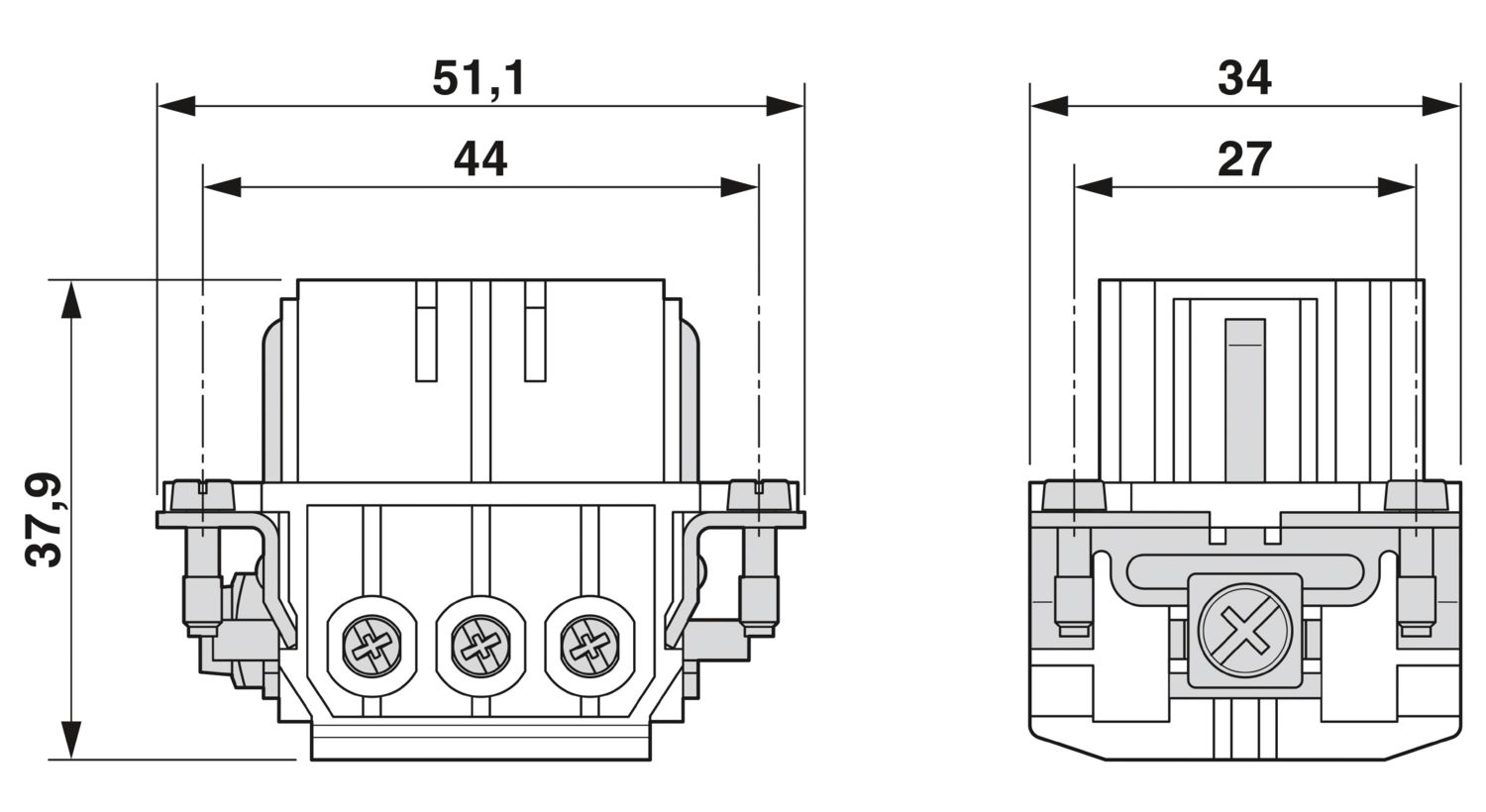

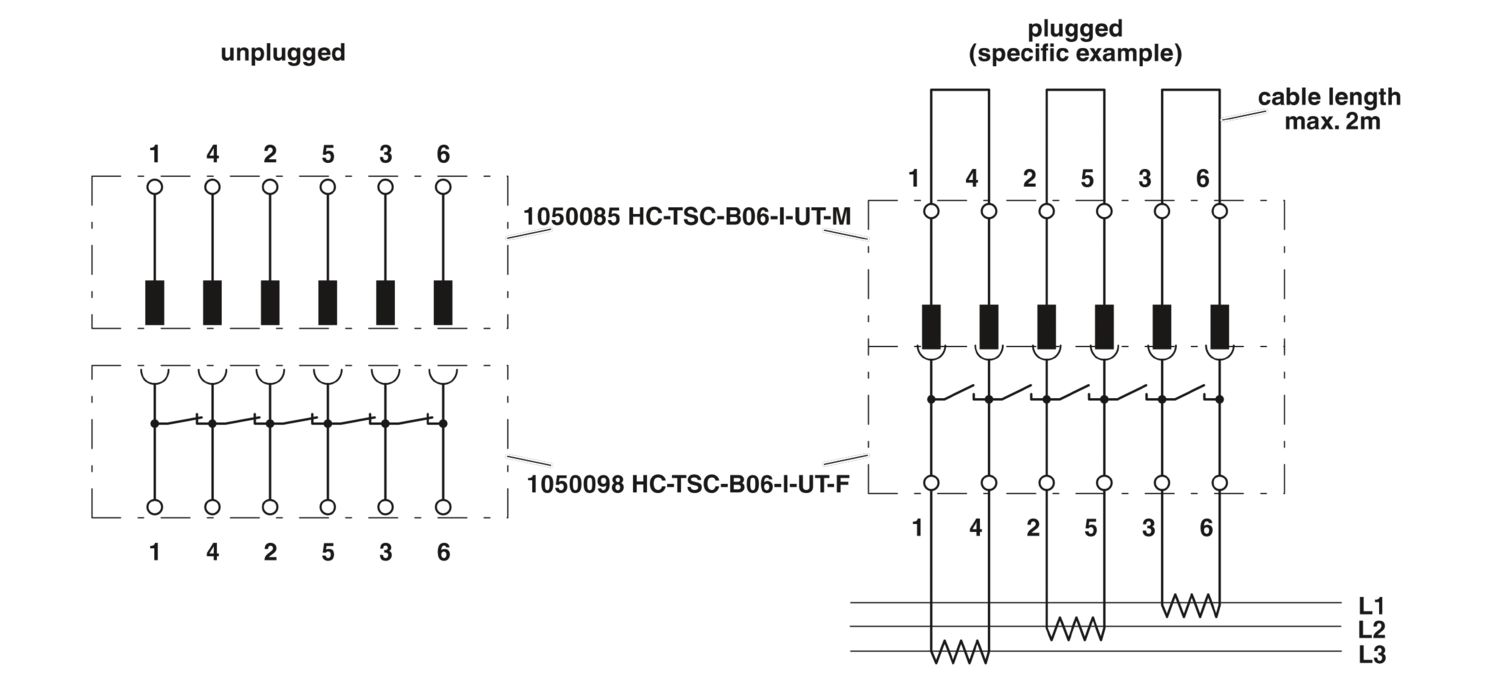

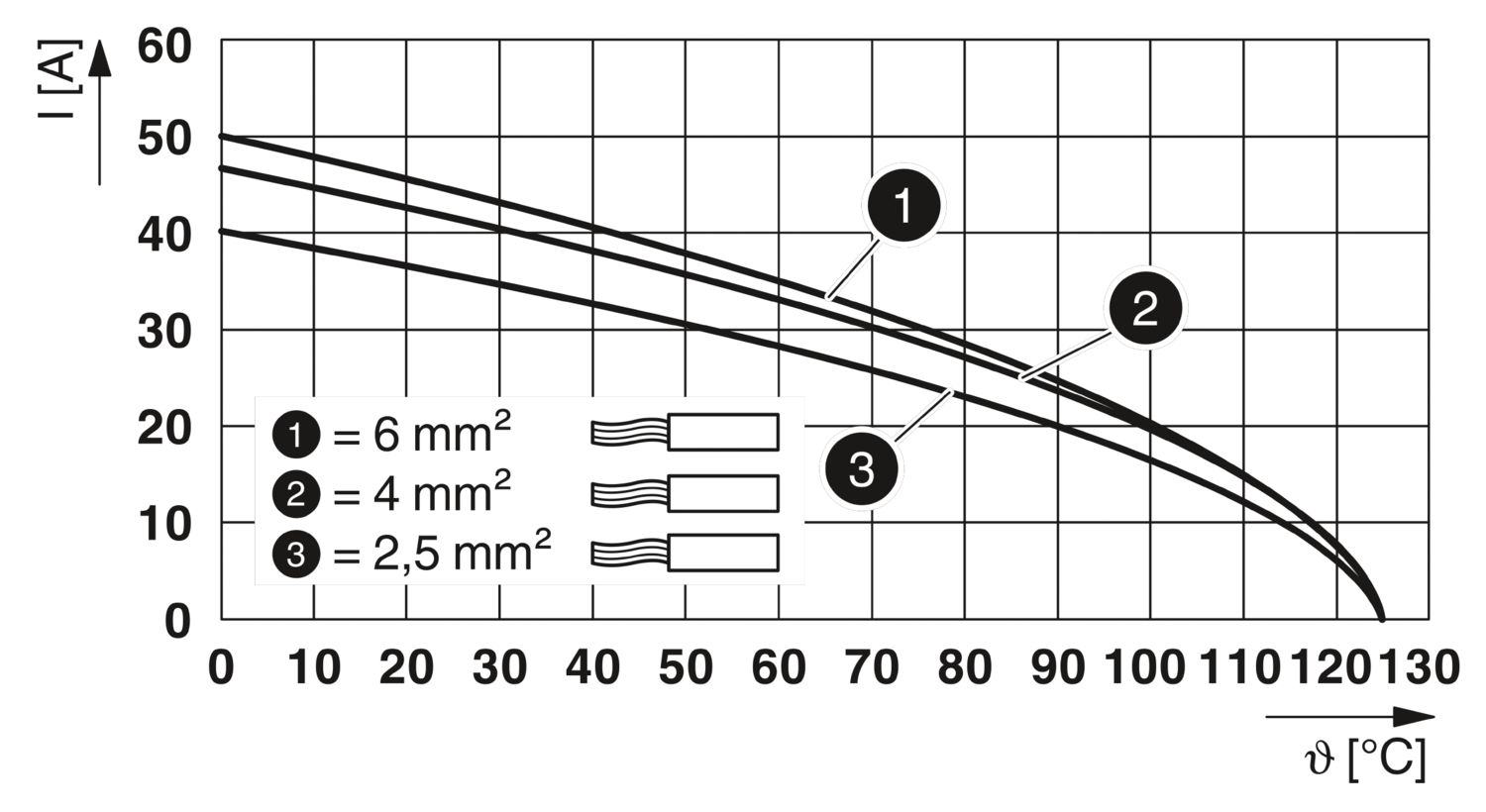

General | Please observe the circuit diagram |
General | Use at least 1.5 mm² cables with a maximum conductor loop of 2 m. No open conductor loops permitted! |
Product type | Contact insert with a fixed no. of positions |
Type | B6 |
Number of positions | 6 |
Connection profile | 6+PE |
Insulation characteristics | |
Overvoltage category | III |
Degree of pollution | 3 |
Mechanical characteristics | |
Contact diameter | 2.5 mm |
Connection technology | |
Connection technology | Screw connection |
Conductor connection | |
Conductor cross section | 1.5 mm² ... 6 mm² |
Connection cross section AWG | 16 ... 10 |
Tightening torque | 1.2 Nm |
Stripping length of the individual wire | 10 mm |
Rated voltage (III/3) | 200 V (when plugged in) |
20 V (Unplugged and during plugging) | |
Rated surge voltage | 2.5 kV |
Rated current | 16 A (When plugged in) |
5 A (Unplugged and during plugging) |
Mechanical data | |
Insertion/withdrawal cycles | >= 500 |
Flammability rating according to UL 94 | V0 |
Contact material | Copper alloy |
Contact surface material | Ag |
Contact carrier material | PC |
Ambient conditions | |
Ambient temperature (operation) | -40 °C ... 125 °C (including heating up of contacts) |
Item number | 1541918 |
Packing unit | 1 pc |
Minimum order quantity | 1 pc |
Sales key | ***** |
Product key | AF7ABC |
GTIN | 4067923014275 |
Weight per piece (including packing) | 73.4 g |
Weight per piece (excluding packing) | 72 g |
Customs tariff number | 85366990 |
Country of origin | CN |
ECLASS
ECLASS-13.0 | 27440205 |
ETIM
ETIM 9.0 | EC000438 |
EU RoHS | |
Fulfills EU RoHS substance requirements | Yes |
Exemption | 6(c) |
China RoHS | |
Environment friendly use period (EFUP) |
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
|
EU REACH SVHC | |
REACH candidate substance (CAS No.) | Lead (CAS: 7439-92-1) |
SCIP | 1fe89c56-cf8b-481f-8330-be25f1f8ba43 |
Compatible products
-
-
HC-CB - Coding bolt 1772722
-
HC-CST - Coding element 1676857
-
HC-CBU - Coding element 1676860
-
HC-B-PE-PT - Adapter 1054672
-
HC-B-2PE-PT - PE multiplier 1054675
-
HC-B-3PE - PE multiplier 1644326
-
HC-B-PES - Screw 1604997
-
HC-B-ZG - Strain relief clamp 1685327
-
HC-B-ZS - Strain relief clamp 1685330
-
HC-CIF-B06-HFWL-PL - DIN rail mounting frame 1424334
-
HC-B 6-ANDOCK - Docking frame 1586112
-
HC-CIF-B06-24-BFAFL-PL - DIN rail mounting frame 1424338
-
HC-B24/6-ADP-SS - Adapter plate 1034215
-

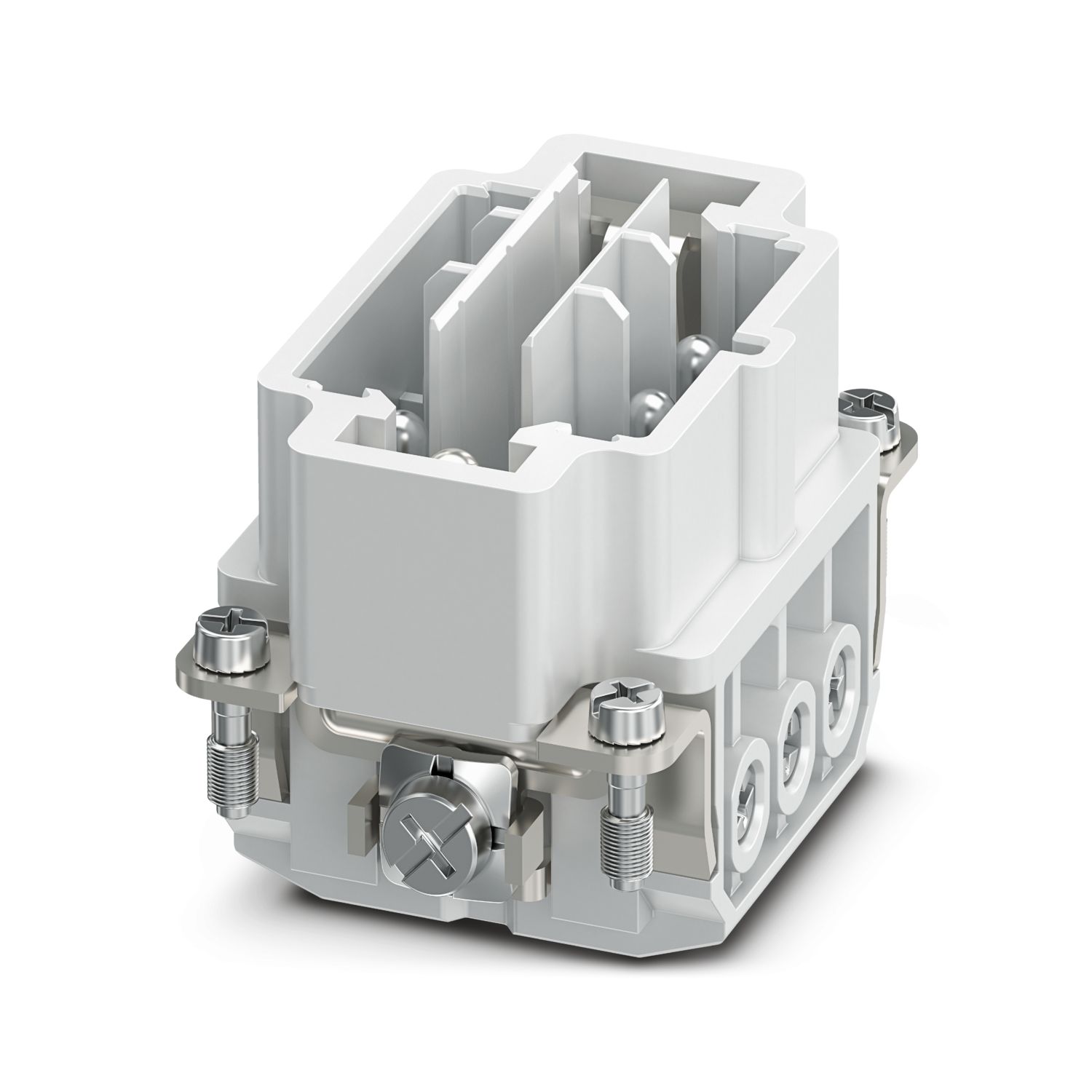

HC-TSC-B06-I-UT-M-CE - Contact insert 1541916
