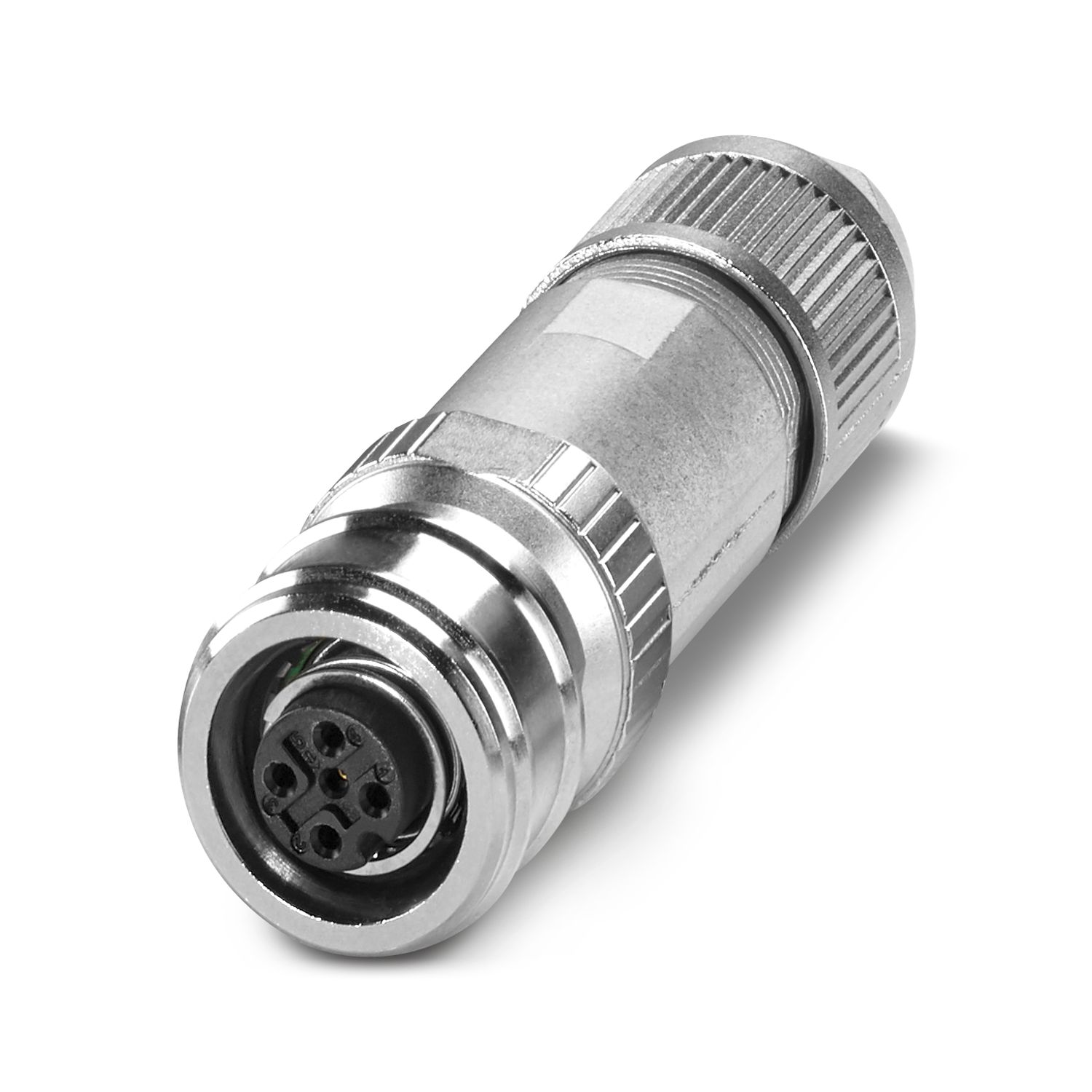

SACC-P12FS-4PL-CM SH - Connector - 1438169

Assembly note	NOTE: Observe the permissible bending radii when routing cables, since the degree of protection may be at risk if the bending forces are too high. Reduce mechanical loads upstream of the connector, e.g., by using cable ties.

Product type	Circular connector (cable-side)
Sensor type	Universal
Number of positions	4
No. of cable outlets	1
Shielded	yes
Coding	A
Cable outlet	straight
Insulation characteristics
Overvoltage category	II
Degree of pollution	3

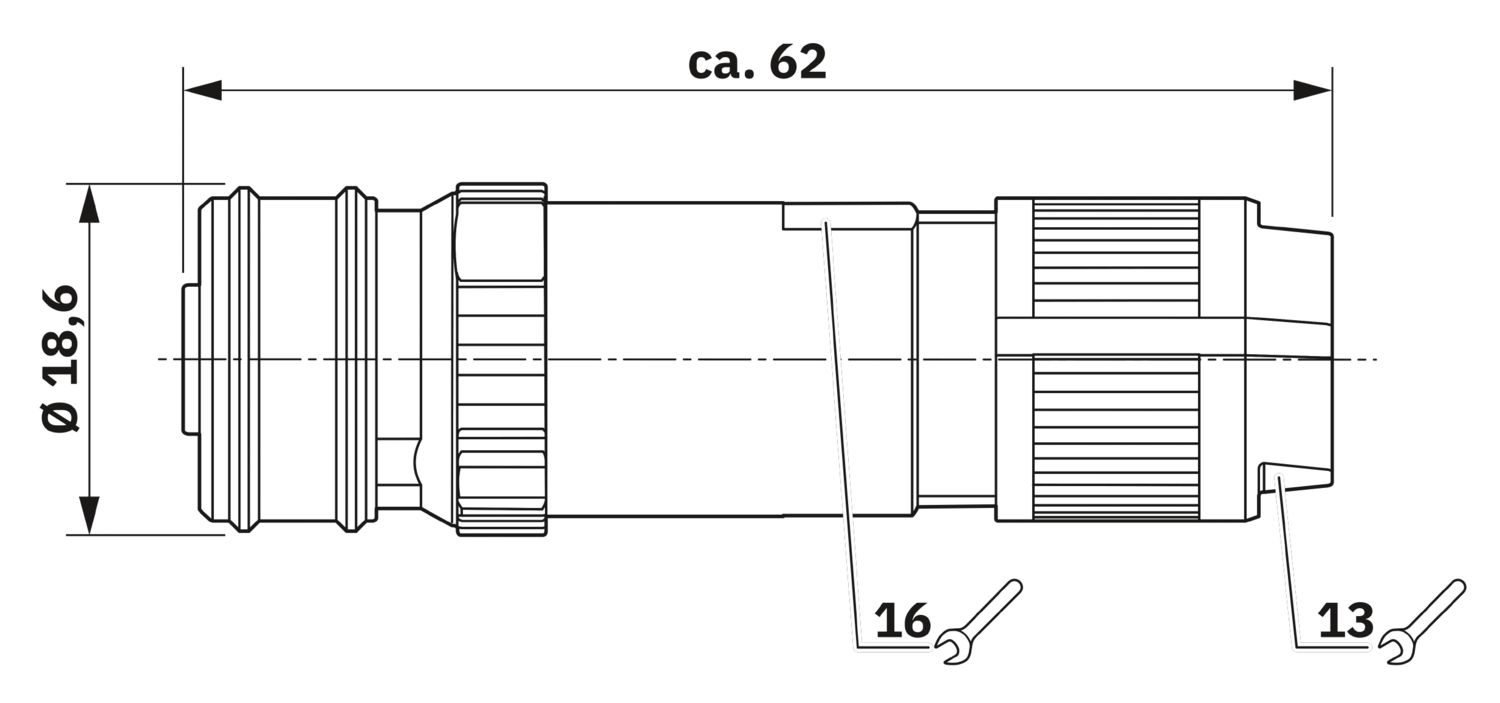

External dimensions
Outside diameter	4 mm ... 8 mm

Material	TPE-U (Clamping cage, weight: 1.1 g)
	PA 6 (Actuation lever)
Flammability rating according to UL 94	V0
Seal material	NBR
Material of grip body	Zinc die-cast, nickel-plated
Contact material	CuSn
Contact surface material	Ni/Au
Contact carrier material	PA 6.6
Material for screw connection	Zinc die-cast, nickel-plated
Standards/regulations	PA 6.6
	PA 6

Conductor connection
Connection method	Push-lock spring connection
Connection cross section	0.14 mm² ... 0.75 mm² (without ferrule)
	0.08 mm² ... 0.5 mm² (with ferrule)
	0.14 mm² ... 0.75 mm² (solid)
Connection cross section AWG	26 ... 18 (without ferrule)
	28 ... 20 (with ferrule)

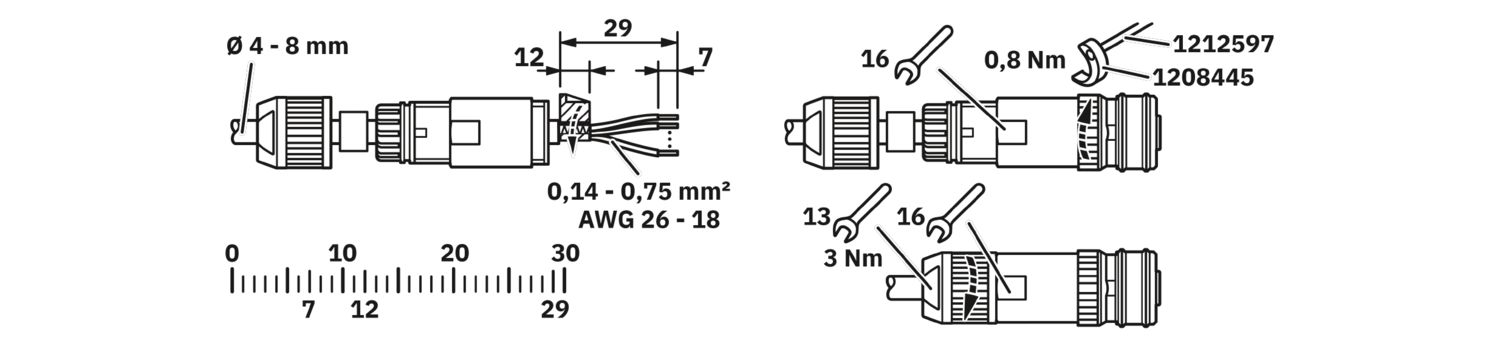

Stripping length of the individual wire	7 mm
Tightening torque	0.8 Nm (Connector with coupling sleeve)
	3 Nm (Pressure nut with coupling sleeve)
Pin assignment
Contact \| Color (signal designation) \| Contact (optional)	1 = BN
	2 = WH
	3 = BU
	4 = BK

Mechanical data
Insertion/withdrawal cycles	≥ 100

Signal type/category	Universal
Stripping length of the individual wire	7 mm

Ambient conditions
Ambient temperature (operation) (male connector/female connector)	-40 °C ... 85 °C (Plug / socket)

Testing
Standards/regulations	PA 6.6: Fire protection in rail vehicles - requirement sets R22, R23, R24, R25, and R26 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)
	PA 6: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)
Standard designation	M12 connector
Standards/specifications	IEC 61076-2-101
Standard designation	Shock, vibration
Standards/specifications	EN 50155 Cat. 1B
Standard designation	M12-Push-Pull
Standards/specifications	IEC 61076-2-010

Item number	1438169
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	*****
Product key	AF2CFA
GTIN	4063151815332
Weight per piece (including packing)	39.3 g
Weight per piece (excluding packing)	22.22 g
Customs tariff number	85366990
Country of origin	DE

Your advantages

Time-saving Push-Lock connection: Tool-free connection and disconnection of conductors by opening the contact levers

Intuitive connection: Easy assignment of individual litz wires with color-coded and numerical identification of the contact levers

Integrated Push-in Technology: Wire rigid and pretreated conductors easily by means of simple, direct insertion

Shock- and vibration-resistant connection: Proven spring-cage technology guarantees secure and reliable contacting

Safely shielded: Reliable 360° shield connection even under extreme mechanical strain

Save time, thanks to installation with push-pull fast locking

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
