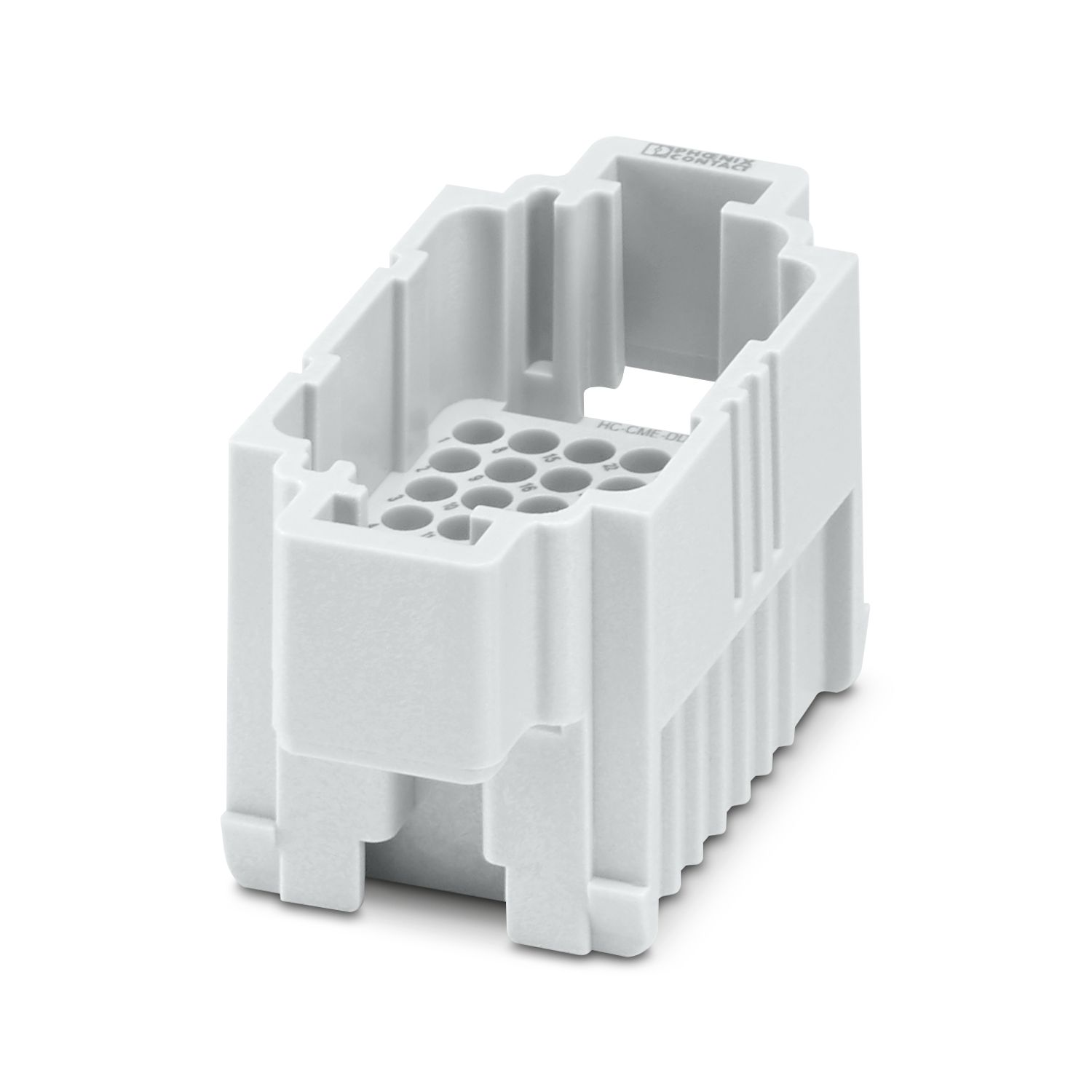

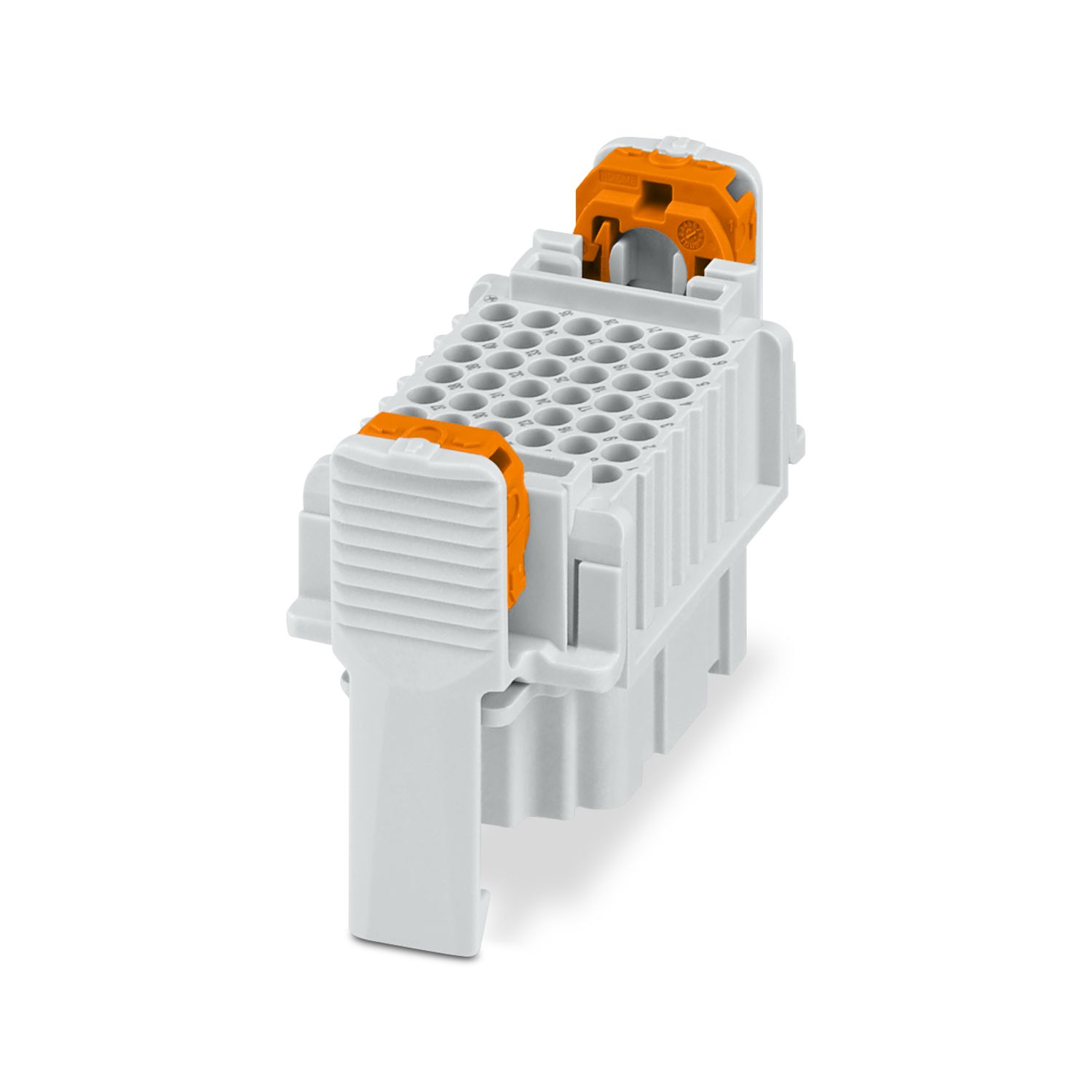

Conductor connector, number of positions: 41+PE, number of connections per position: 1, Socket, Crimp connection, 250 V, 10 A, 0.14 mm2 ... 2.5 mm2, for connections in control cabinets
Product details
General
Connectors may be operated only when there is no load/voltage.
General

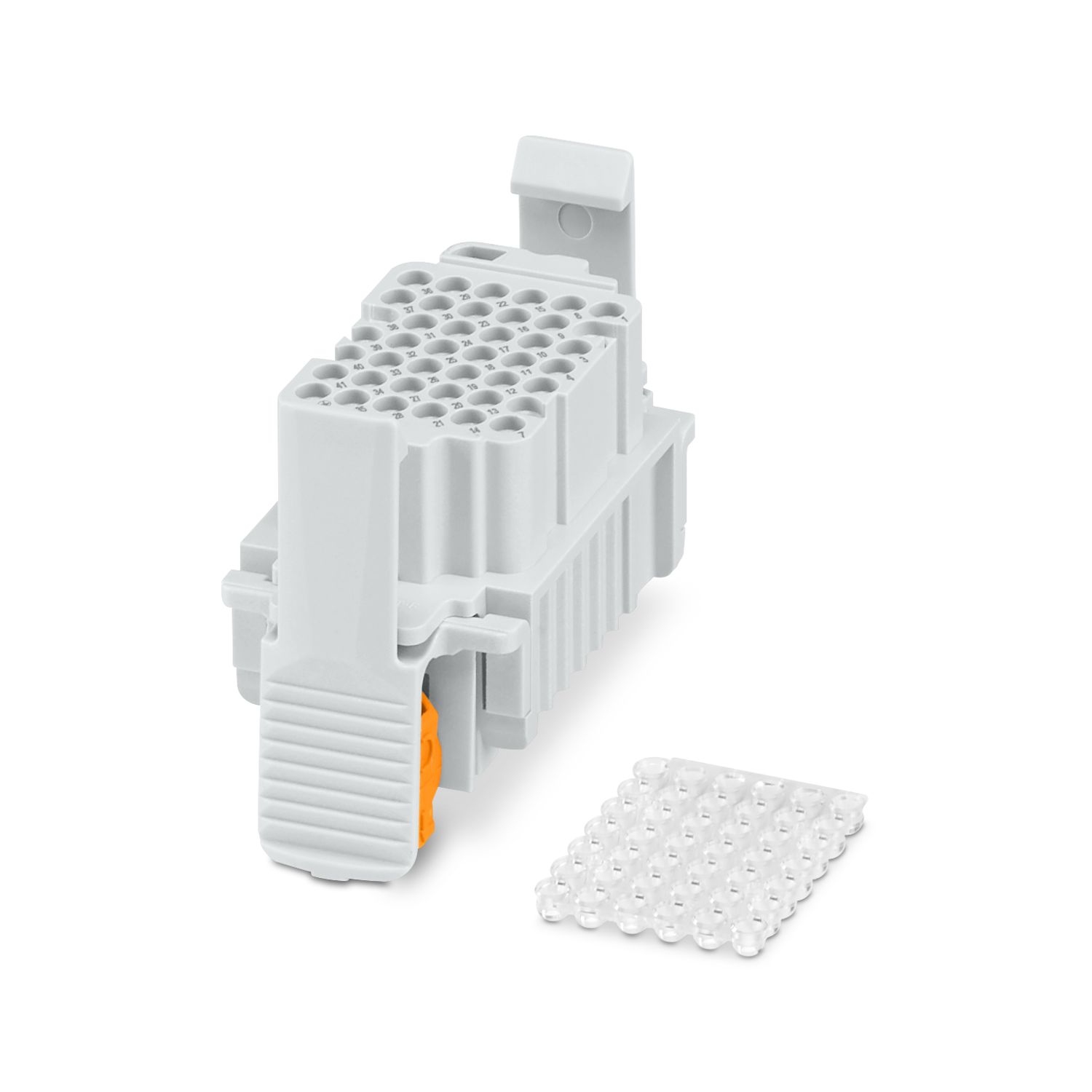

It is imperative that the supplied funnel pads (HC-DD…-FP) are used to prevent tip collision due to misalignment.
Assembly note
Use within a control cabinet that is protected against unauthorized access is essential to ensure correct use. At the installation location in the control cabinet, the cable bundle to be connected must be properly installed and fitted with strain relief. As the pin connector pattern does not provide a leading protective conductor contact (PE), consistent grounding must be ensured by the control cabinet assembly.
Product type
Contact insert with a fixed no. of positions
Number of positions
41

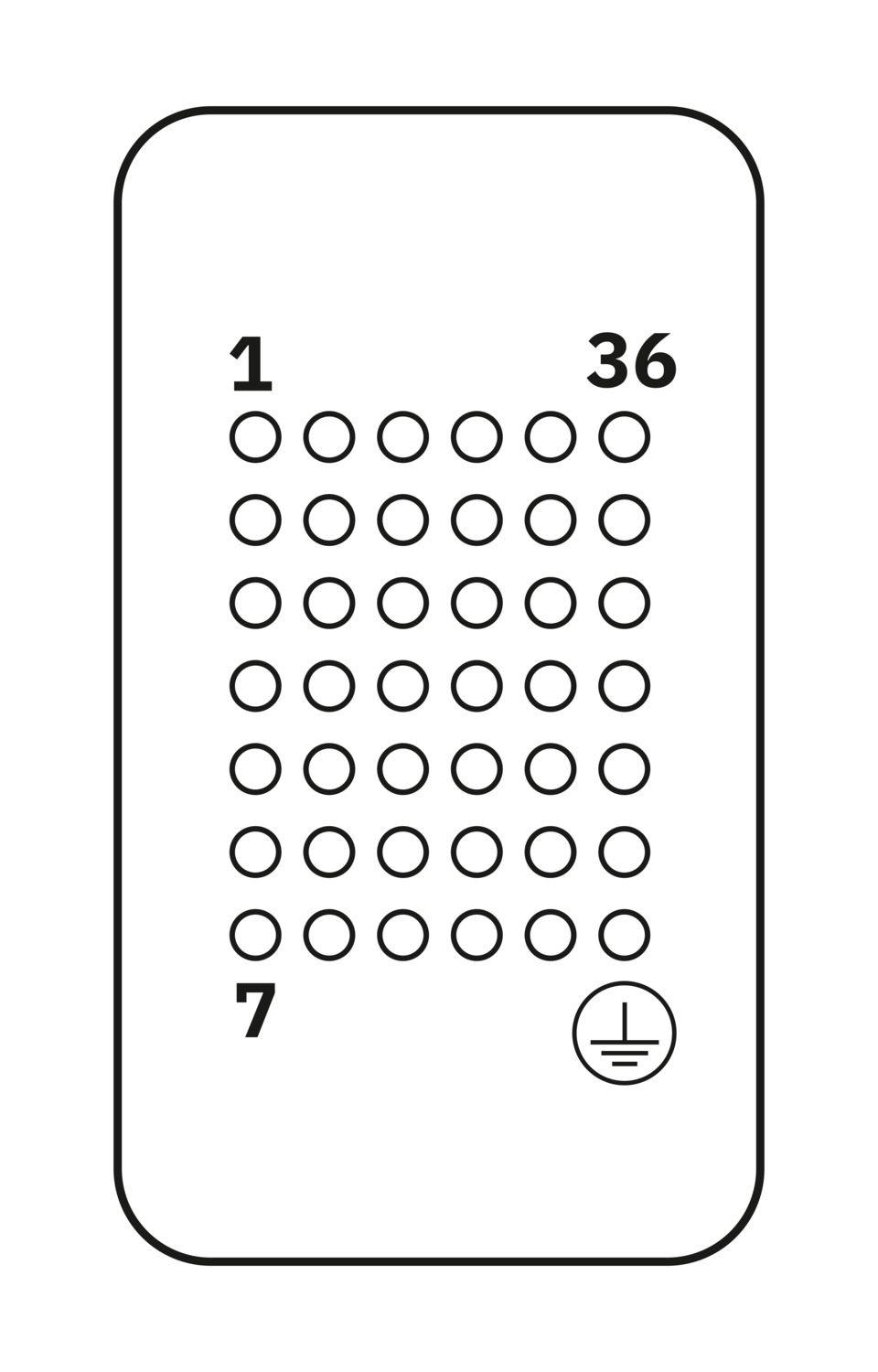

Connection profile
41+PE
Number of connections per position
1
Contact material type
turned
rolled
Insulation characteristics
Overvoltage category
III
Degree of pollution
3
Mechanical characteristics
Contact diameter
1.6 mm
Connection technology
Connection technology
Crimp connection
Number of connections per position
1
Conductor connection
Conductor cross section
0.14 mm² ... 2.5 mm²
Connection cross section AWG
26 ... 14
Stripping length of the individual wire
8 mm (0.14 mm² ... 1.5 mm²)
6 mm (2.5 mm²)
Rated voltage (III/3)
250 V
Rated surge voltage
4 kV
Rated current
10 A
Flammability rating according to UL 94
V0
Contact material
Copper alloy
Contact surface material
Ag
Contact carrier material
PC
Ambient conditions
Ambient temperature (operation)
-40 °C ... 125 °C (including heating up of contacts)
