SACC-DSIV-M12FS-5CON-L180 - Device connector rear mounting

1694237

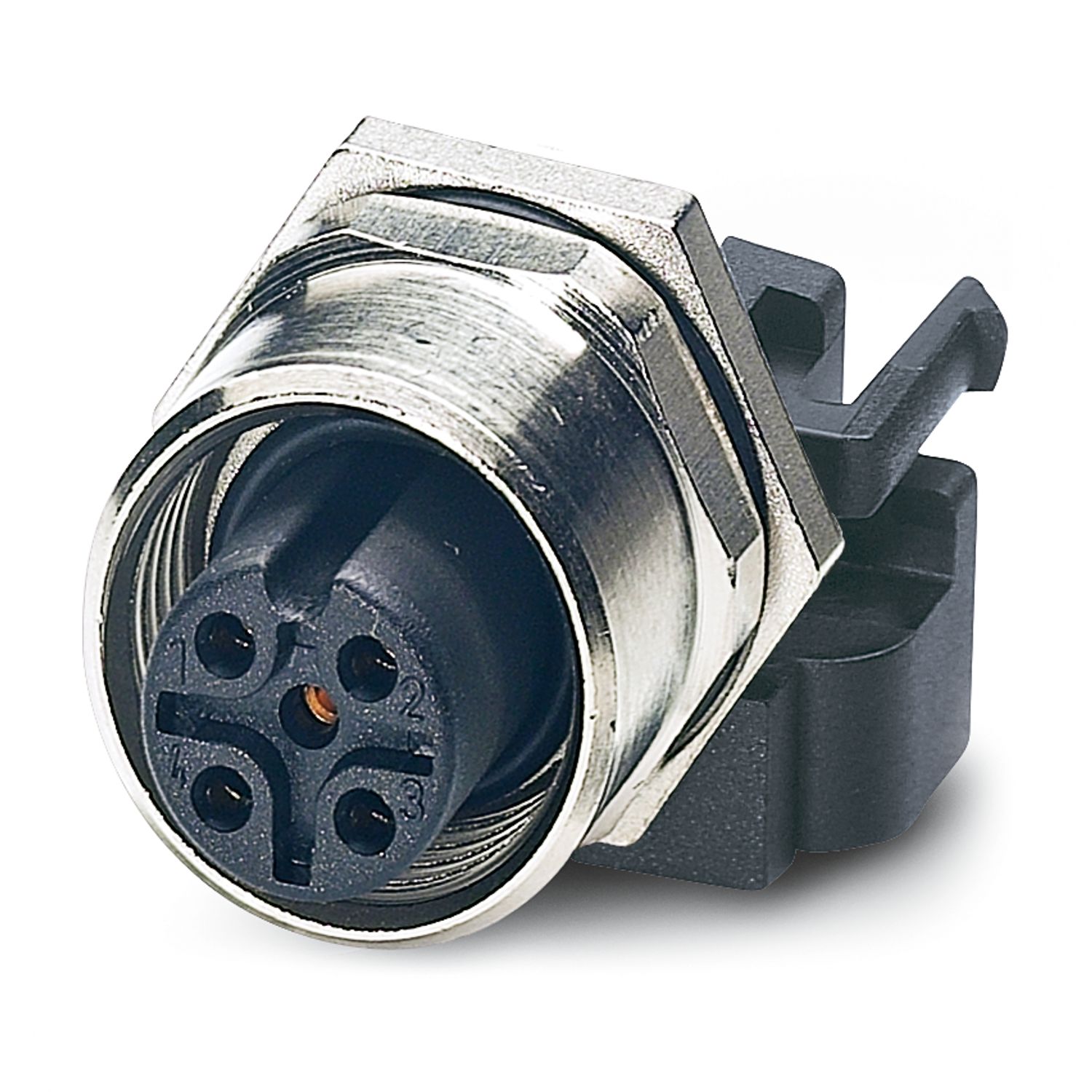

Sensor/actuator flush-type socket, 5-pos., M12, A-coded, rear/screw mounting with M12 thread, with polarity protection, with straight solder connection

Product details

Notes on operation	The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.

Mounting type	Rear mounting M12 x 1 With locking nut
Assembly note	With locking nut

Product type	Circular connectors (device side)
Number of positions	5
Shielded	no
Coding	A
Thread type	M12
Insulation characteristics
Overvoltage category	II
Degree of pollution	3

Flammability rating according to UL 94	HB
Seal material	NBR
Contact material	CuZn
Contact surface material	Au
Contact carrier material	PA 6.6
Material for screw connection	Brass, nickel-plated

Rated surge voltage	1.5 kV
Contact resistance	≤ 3 mΩ
Insulation resistance	≥ 100 MΩ
Nominal voltage U_N	60 V
Nominal current I_N	4 A

Conductor connection
Connection method	Wave soldering
Contact connection type	Socket
Tightening torque	1 Nm ... 1.5 Nm (Installation-side)

Mechanical data
Insertion/withdrawal cycles	> 100

Connection 1
Head design	Socket
Head cable outlet	straight
Head thread type	M12
Coding	A

Ambient temperature (operation)	-40 °C ... 85 °C (cable, fixed installation)
	-25 °C ... 85 °C (Cable, flexible installation)

Ambient conditions
Degree of protection	IP67
	IP67
Ambient temperature (operation) (male connector/female connector)	-25 °C ... 85 °C (Plug / socket)
	-40 °C ... 85 °C (without mechanical actuation)
Ambient temperature (operation) (Cable, flexible installation)	-25 °C ... 85 °C (Cable, flexible installation)
Ambient temperature (operation) (Cable, fixed installation)	-40 °C ... 85 °C (cable, fixed installation)
UL Type Rating	Type 4 (indoor use only)

Standard designation	M12 circular connector
Standards/specifications	according to IEC 61076-2-101

Commercial data

Item number	1694237
Packing unit	10 pc
Minimum order quantity	10 pc
Sales key	0212*
Product key	ABQEHI
Catalog page	Page 189 (C-2-2013)
GTIN	4017918177515
Weight per piece (including packing)	14.96 g
Weight per piece (excluding packing)	14.51 g
Customs tariff number	85366990
Country of origin	DE

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	60 V	4 A

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	60 V	4 A

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	60 V	4 A

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	60 V	4 A
