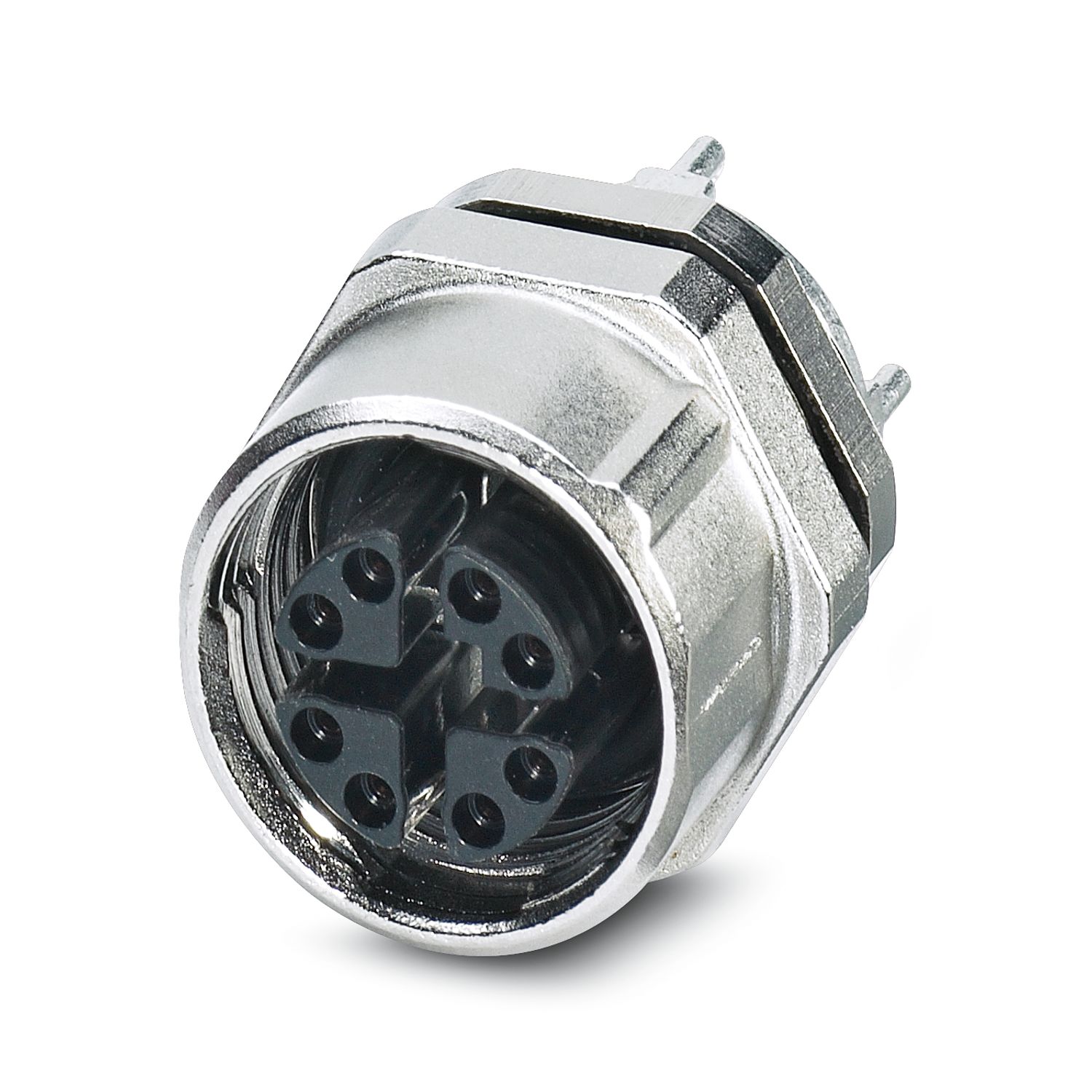

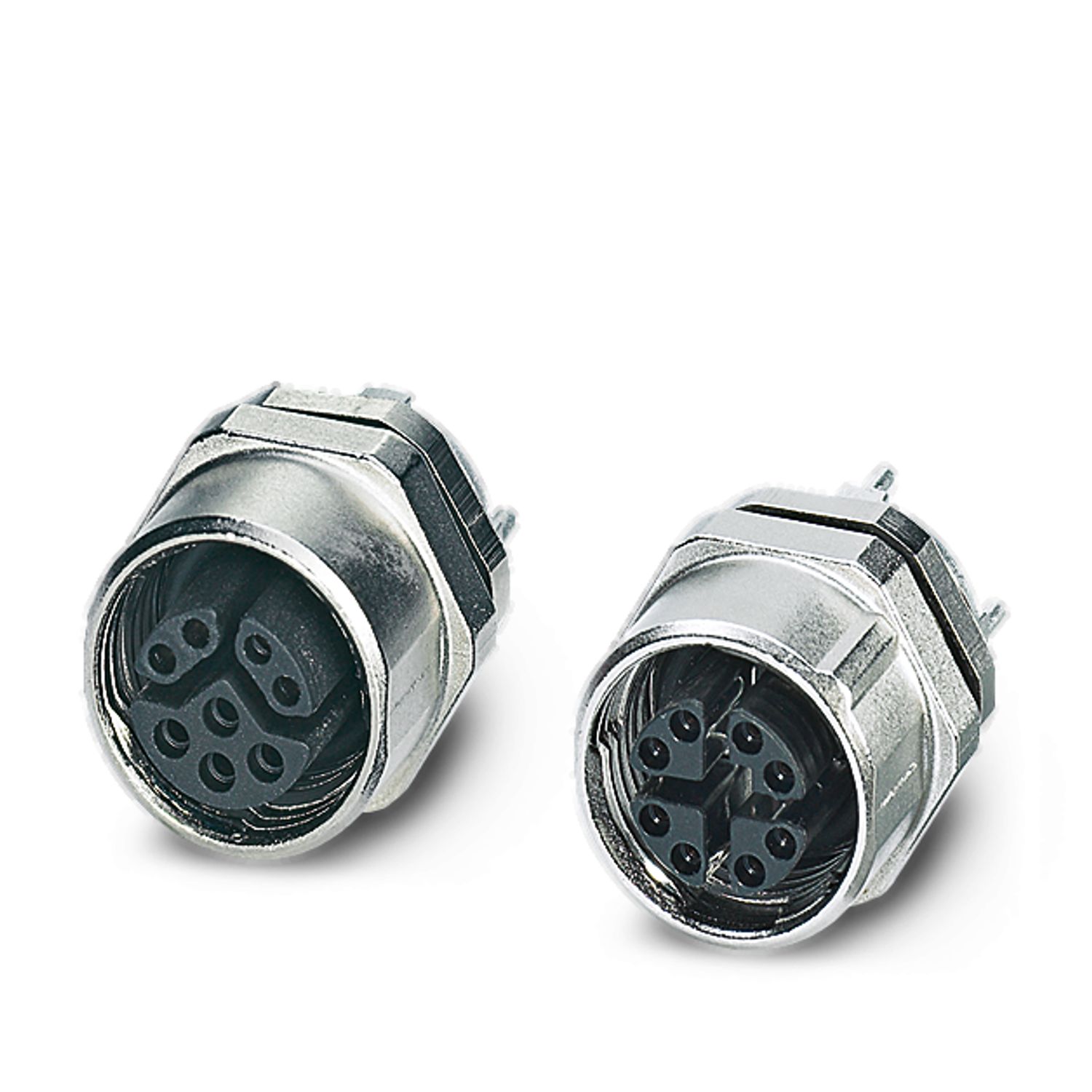

SACC-DSIV-FSX-8CON-L180 SCO - Device connector rear mounting

1411820

Device connector rear mounting, Ethernet CAT6_A, 8-position, Socket, straight, M12-SPEEDCON, coding: X, Rear mounting, THR solder connection, this item is expected to be lead-free from Q2 2026 in accordance with RoHS II without exception 6c (Pb < 0.1%), a lead-free alternative is possible on request in advance

Product details

Order information:	Lock nut is included in the scope of delivery

Mounting type	Rear mounting

Product type	Circular connectors (device side)
Sensor type	Ethernet
Number of positions	8
Coding	X
Thread type	M12
Insulation characteristics
Overvoltage category	III
Degree of pollution	3

Material	Zinc die-cast (nickel-plated)
Flammability rating according to UL 94	V0
Seal material	EPDM
Material of grip body	Zinc die-cast, nickel-plated
Contact material	CuZn
Contact surface material	Ni/Au
Contact carrier material	PPA
Material for screw connection	Zinc die-cast, nickel-plated

Rated surge voltage	1.5 kV
Contact resistance	< 5 mΩ
Insulation resistance	> 100 MΩ
Nominal voltage U_N	50 V AC
	60 V DC
Nominal current I_N	0.5 A
Transmission characteristics (category)	CAT6_A

Conductor connection
Connection method	THR solder connection
Contact connection type	Socket

Mechanical data
Insertion/withdrawal cycles	≥ 100

Connection 1
Head design	Socket
Head cable outlet	straight
Head thread type	M12
Head locking type	SPEEDCON
Coding	X

Signal type/category	Ethernet CAT6_A

Ambient conditions
Degree of protection	IP67 (When plugged in)
	IP67
Ambient temperature (operation)	-40 °C ... 85 °C
UL Type Rating	Type 4 (indoor use only)

Commercial data

Item number	1411820
Packing unit	20 pc
Minimum order quantity	20 pc
Note	Made to order (non-returnable)
Sales key	*****
Product key	ABQAIA
GTIN	4046356956376
Weight per piece (including packing)	11.81 g
Weight per piece (excluding packing)	9.736 g
Customs tariff number	85366990
Country of origin	DE

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	60 V	0.5 A

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	60 V	0.5 A

Environmental product compliance

Compatible products

Accessories

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(c)
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
SCIP	2e6a313b-ab58-4843-8be2-529282446794
