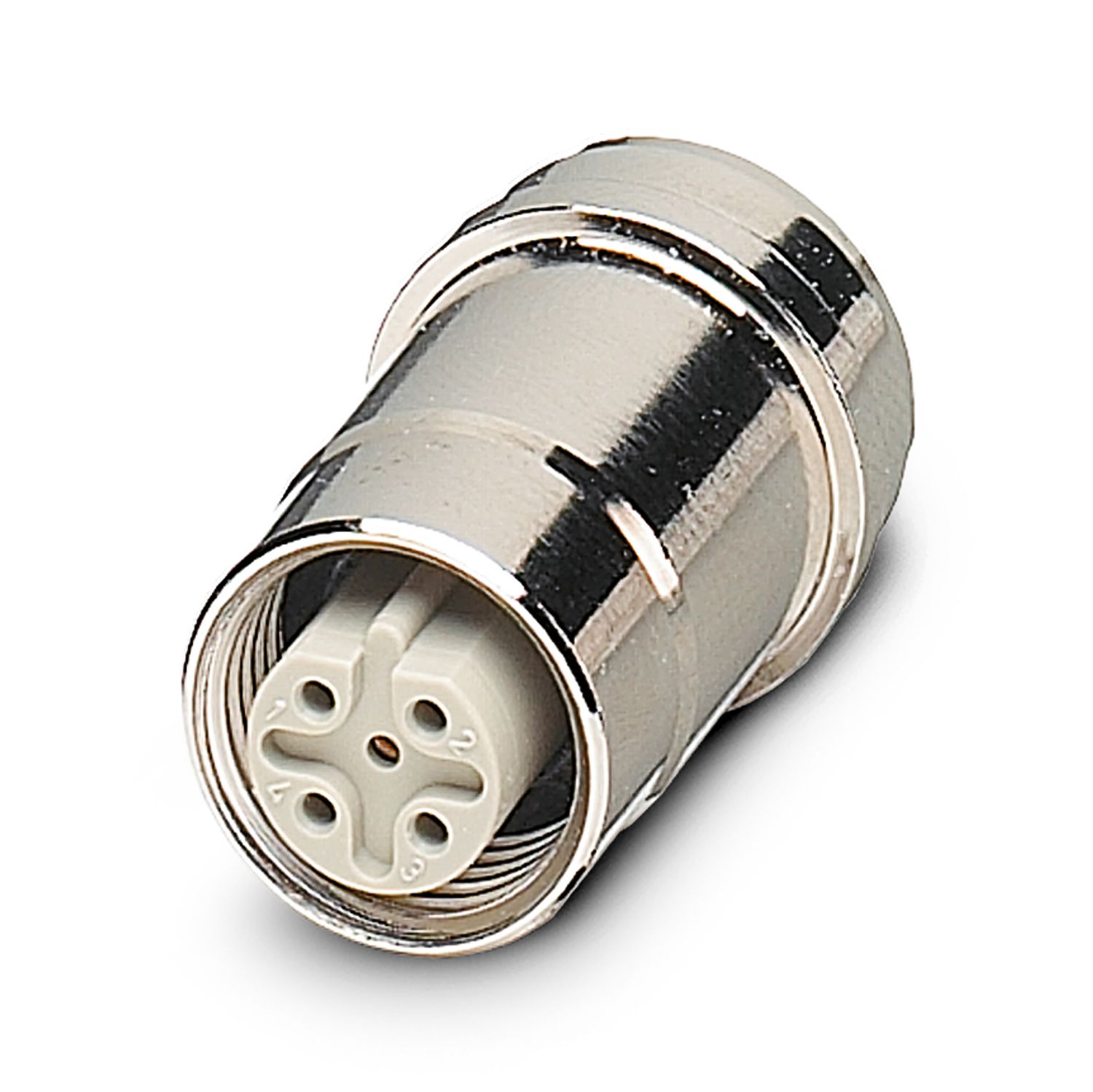

SACC-DSIP-M12FSB-5CON-L180-SI - Device connector rear mounting

SACC-DSIP-M12FSB-5CON-L180-SI - Device connector rear mounting

1528251

Device connector rear mounting, Universal, 5-position, Socket, straight, M12, coding: B, Rear mounting, Solder pins

Product details

Expand all Collapse all

Technical data

Mounting

Mounting type	Rear mounting

Product properties

Product type	Circular connectors (device side)
Sensor type	Universal
Number of positions	5
Shielded	no
Coding	B
Thread type	M12
Insulation characteristics
Overvoltage category	II
Degree of pollution	3

Material specifications

Flammability rating according to UL 94	V0
Seal material	NBR
Contact material	CuZn
Contact surface material	Au
Contact carrier material	PBT
Material for screw connection	Brass, nickel-plated

Electrical properties

Rated voltage in acc. with IEC 61076-2-101	60 V
Contact resistance	≤ 0.003 Ω
Insulation resistance	≥ 1 TΩ
Nominal voltage U_N	60 V
Nominal current I_N	4 A

Connection data

Conductor connection
Connection method	Solder pins
Contact connection type	Socket

Connector

Connection 1
Head design	Socket
Head cable outlet	straight
Head thread type	M12
Coding	B

Cable/line

Signal type/category	Universal

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP67
Degree of protection		IP67
Ambient temperature (operation)	-25 °C ... 90 °C (Plug / socket)
UL Type Rating	Type 4 (indoor use only)

Commercial data

Item number	1528251
Packing unit	10 pc
Minimum order quantity	10 pc
Sales key	0212*
Product key	ABQEQA
GTIN	4046356023238
Weight per piece (including packing)	24 g
Weight per piece (excluding packing)	15.911 g
Customs tariff number	85366990
Country of origin	DE

Classifications

ECLASS

ECLASS-13.0

27440110

ETIM

ETIM 9.0

EC003568

UNSPSC

UNSPSC 21.0

39121400

Environmental product compliance

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(c)
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
SCIP	7e06980c-21ce-43e0-846c-79bbd2563675

Compatible products

Expand all Collapse all

Accessories

PROT-M12 MS-M PPI - Screw plug 1320658
