SACC-DSI-M8MS-5CON-M8-L180 DN - Device connector rear mounting

1424242

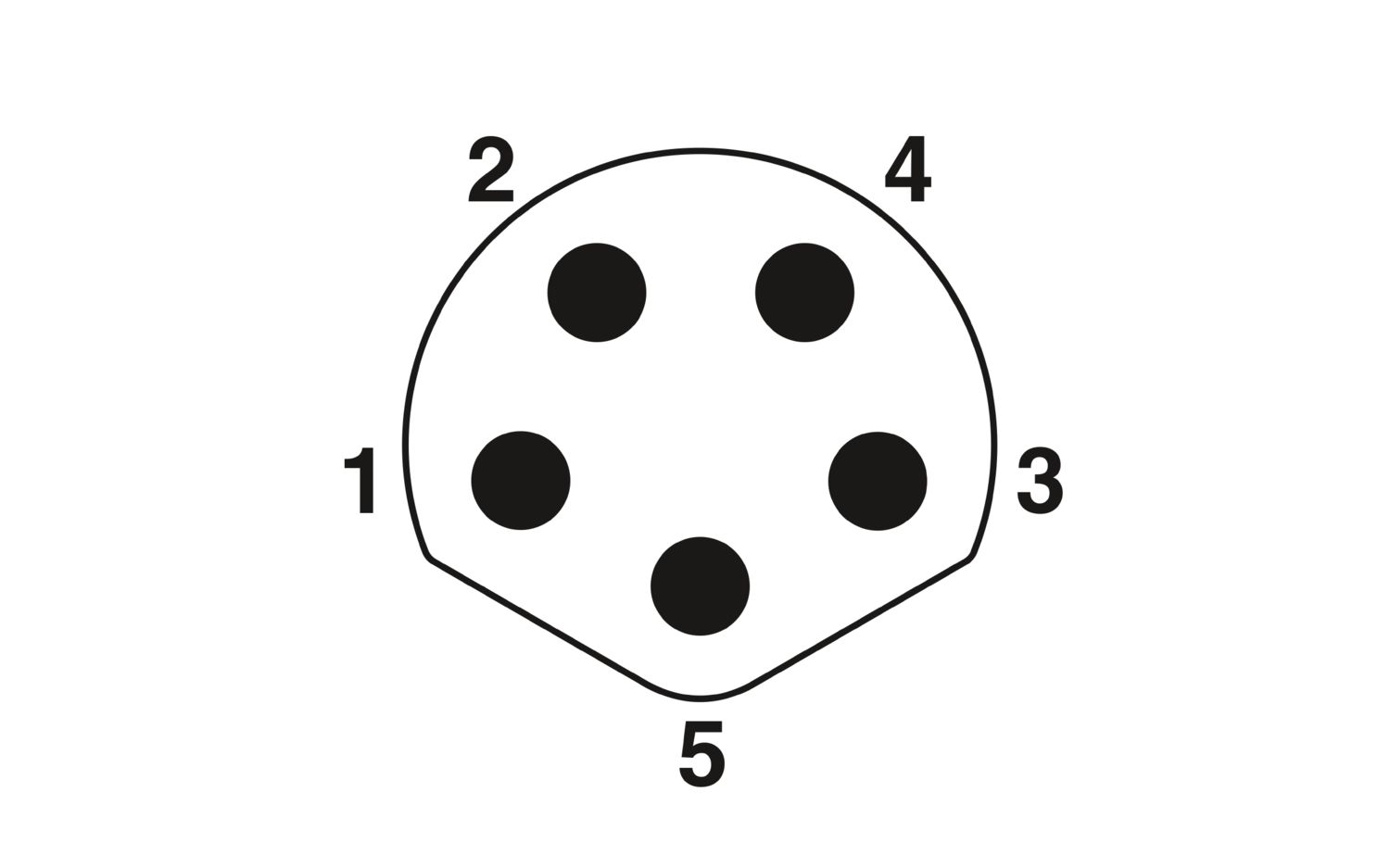

Device connector rear mounting, 5-position, Pin, straight, M8, coding: B, Rear mounting, M8 x 1, Wave soldering

Product details

Technical data

Mounting

Mounting type	Rear mounting M8 x 1 With flat nut
Assembly note	With flat nut

Product properties

Product type	Circular connectors (device side)
Number of positions	5
Shielded	yes
Coding	B
Thread type	M8
Insulation characteristics
Overvoltage category	II
Degree of pollution	3

Material specifications

Flammability rating according to UL 94	HB
Contact material	Cu alloy
Contact surface material	Au
Contact carrier material	PA 6.6
Material for screw connection	Zinc die-cast, nickel-plated

Electrical properties

Contact resistance	≤ 3 mΩ
Insulation resistance	≥ 100 MΩ
Nominal voltage U_N	30 V AC
	30 V DC
Nominal current I_N	3 A

Connection data

Conductor connection
Connection method	Wave soldering
Contact connection type	Pin

Connector

Connection 1
Head design	Pin
Head cable outlet	straight
Head thread type	M8
Coding	B

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP67
	IP67
Ambient temperature (operation)	-25 °C ... 85 °C
	-25 °C ... 85 °C

Standards and regulations

Standard designation	M8 circular connector
Standards/specifications	according to IEC 61076-2-104

Commercial data

Item number	1424242
Packing unit	20 pc
Minimum order quantity	20 pc
Sales key	*****
Product key	ABQJAA
Catalog page	Page 229 (C-2-2013)
GTIN	4046356712545
Weight per piece (including packing)	6.365 g
Weight per piece (excluding packing)	6.17 g
Customs tariff number	85366990
Country of origin	DE

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	30 V	4 A	24

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	30 V	4 A	24

Environmental product compliance

Your advantages

Easy PCB assembly: one-piece connectors for wave soldering

For high transmission reliability: optional shield connection to the housing and latching on the PCB

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(c)
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
SCIP	bac2621c-3cb0-4334-97b9-671fbd442fed
