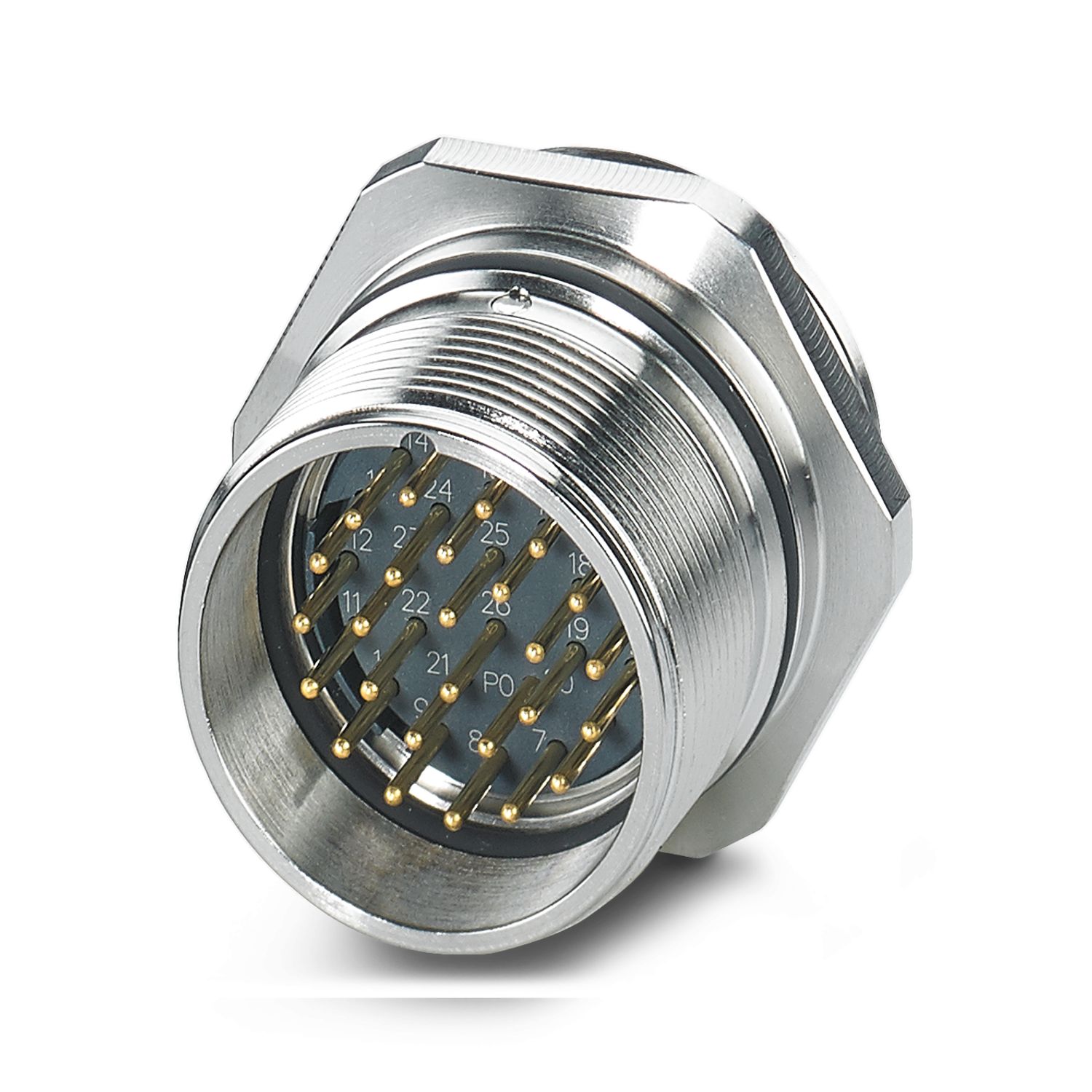

HC-26P1N126300
-
Device connector front mounting
1590282
Device connector front mounting, straight, Screw locking mechanism, M27, number of positions: 26, contact connection type: Pin, Axial O-ring, shielded: yes, number of positions: 26, connection method: Solder connection, series: HC, this item is expected to be lead-free from Q4 2025 in accordance with RoHS II without exception 6c (Pb < 0.1%), a lead-free alternative is possible on request in advance
Product details
| Mounting type | Front mounting Central fastening |
| Assembly note | Central fastening |
| Product type | Circular connectors (device side) |
| Series | HC |
| Application | Signal |
| Number of positions | 26 |
| Connection profile | 26 |
| Shielded | yes |
| Coding | N |
| Thread type | M27 |
| Flammability rating according to UL 94 | V0 |
| Seal material | FPM or NBR or EPDM |
| Housing material | Metal |
| Housing material | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
| Insulator material | PA 6.6 |
| Contact material | CuZn |
| Contact surface | Nickel-plated, gold coating |
| Gasket and O-ring material | FPM |
| Contact | |
| Contact diameter | 1 mm |
| Min. cross section | 0.08 mm² |
| Max. cross section | 1 mm² |
| Max. current | 8 A |
| Nominal voltage UN | 48 V AC 74 V DC |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated surge voltage | 1.5 kV |
| Conductor connection | |
| Connection method | Solder connection |
| Contact connection type | Pin |
| Mechanical data | |
| Insertion/withdrawal cycles | 50 |
| Type | straight |
| Direction of rotation | Standard |
| Ambient conditions | |
| Degree of protection | IP67 |
| Ambient temperature (operation) | -20 °C ... 125 °C |
| Altitude | 2000 m |
| Item number | 1590282 |
| Packing unit | 24 pc |
| Minimum order quantity | 24 pc |
| Note | Made to order (non-returnable) |
| Sales key | ***** |
| Product key | ABRAJL |
| GTIN | 4046356186551 |
| Weight per piece (including packing) | 59.387 g |
| Weight per piece (excluding packing) | 54.74 g |
| Customs tariff number | 85366990 |
| Country of origin | DE |
ECLASS
| ECLASS-13.0 | 27440109 |
ETIM
| ETIM 9.0 | EC003569 |
UNSPSC
| UNSPSC 21.0 | 39121400 |
| EU RoHS | |
| Fulfills EU RoHS substance requirements | Yes |
| Exemption | 6(c) |
| China RoHS | |
| Environment friendly use period (EFUP) |
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
|
| EU REACH SVHC | |
| REACH candidate substance (CAS No.) | Lead (CAS: 7439-92-1) |
| SCIP | 358409eb-6c65-4b4a-b5b1-90824f5ebbe2 |
