SACC-M12MST-4CT-CM SH
-
Power connector
1027465
Power connector, Power, 4-position, shielded, Plug straight M12, coding: T, Crimp connection, knurl material: Zinc die-cast, tin-plated, external cable diameter 6.5 mm ... 11 mm, without crimp contacts, Contact 4 leading
This product needs further products for operation.
Mandatory accessories
Product details

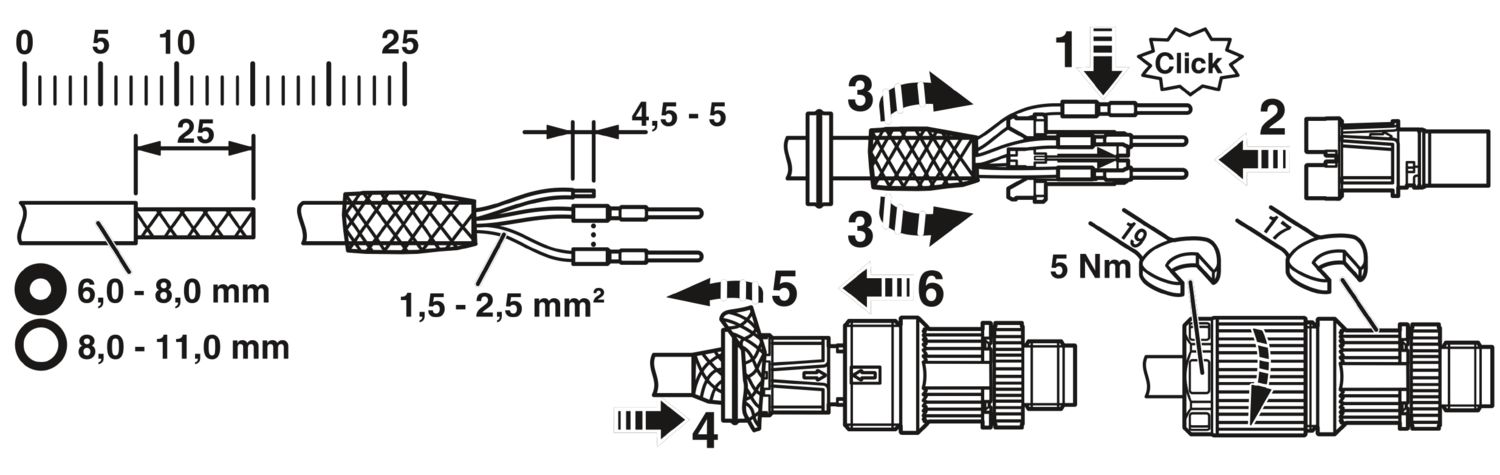

| Assembly note | NOTE: Observe the permissible bending radii when routing cables, since the degree of protection may be at risk if the bending forces are too high. Reduce mechanical loads upstream of the connector, e.g., by using cable ties. |
| Product type | Circular connector (cable-side) |
| Application | Power supply |
| Sensor type | Power |
| Number of positions | 4 |
| No. of cable outlets | 1 |
| Shielded | yes |
| Coding | T |
| Cable outlet | straight |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Dimensional drawing |
|
| Length | 58 mm |
| External dimensions | |
| Outside diameter | 6.5 mm ... 11 mm |
| Housing | |
| Diameter housing | 21.5 mm |
| Flammability rating according to UL 94 | V0 |
| Material of grip body | Zinc die-cast, nickel-plated |
| Contact carrier material | PA |
| Material for screw connection | Zinc die-cast, tin-plated |
| Conductor connection | |
| Connection method | Crimp connection |
| Connection cross section | 1.5 mm² ... 2.5 mm² (flexible) |
| Connection cross section AWG | 14 (flexible) |
| Tightening torque | 5 Nm (Pressure nut with coupling sleeve) |
| Pin assignment | |
| Contact | Color (signal designation) | Contact (optional) | 1 = BN |
| 2 = WH | |
| 3 = BU | |
| 4 = BK | |
| Rated surge voltage | 1.5 kV |
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 63 V DC |
| Nominal current IN | 12 A (when using 1.5 mm² conductors) |
| 12 A (at 40 °C) |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 100 |
| Connection 1 | |
| Head design | Plug |
| Head cable outlet | straight |
| Head thread type | M12 |
| Coding | T |
| Signal type/category | Power |
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) (male connector/female connector) | -40 °C ... 85 °C (Plug / socket) |
| Standard designation | M12 connector |
| Standards/specifications | according to IEC 61076-2-111 |
